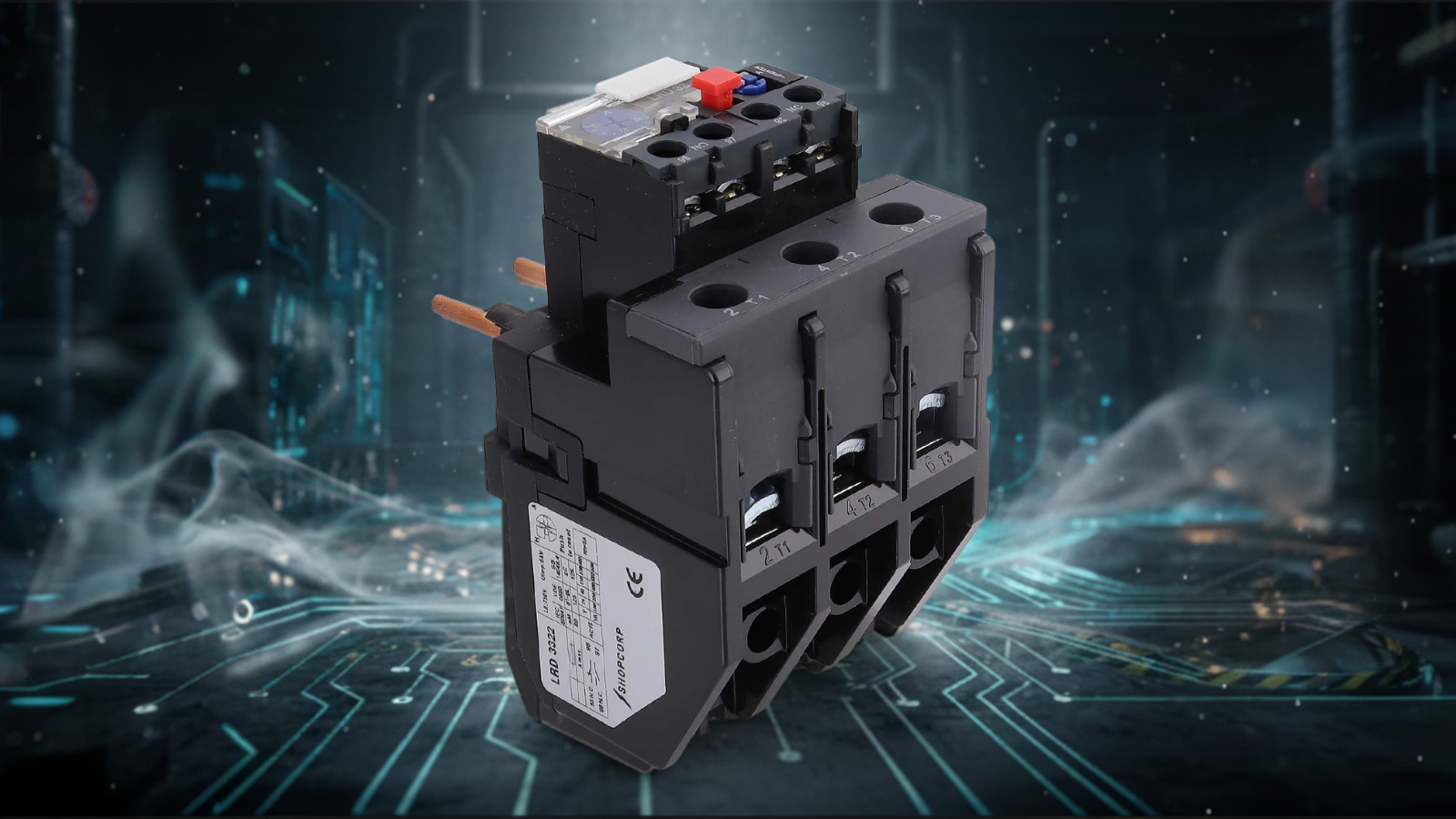

The Role of Thermal Overload Relays in Motor Protection

Electric motors are the backbone of countless industrial, commercial, and HVAC applications. However, without proper protection, motors are vulnerable to overheating, insulation damage, and premature failure. This is where thermal overload relays play a critical role, working alongside the contactor to safeguard motors against sustained overcurrent conditions.

In this article, we explore how thermal overload relays function, why they are essential for motor protection, and how they integrate seamlessly with electrical contactors, motor contactors, and HVAC contactors to ensure safe and reliable operation.

What Is a Thermal Overload Relay?

A thermal overload relay is an electromechanical protection device designed to prevent electric motors from overheating due to excessive current. Unlike circuit breakers, which respond instantly to short circuits, thermal overload relays provide time-delayed protection that mirrors the actual heating characteristics of a motor.

This delayed response allows motors to handle normal inrush current during startup while still protecting them from prolonged overload conditions that can cause permanent damage.

How Do Thermal Overload Relays Work with a Contactor?

Thermal overload relays are typically installed directly beneath a contactor, forming a compact motor starter assembly.

Thermal Simulation Using Bimetallic Elements

Inside the relay, bimetallic strips heat up as motor current increases. If the motor draws excessive current for too long, these strips bend and trigger the relay to trip.

Interrupting the Contactor Control Circuit

When tripped, the overload relay opens a normally closed (NC) contact in the contactor coil circuit. This de-energizes the contactor, disconnecting power to the motor before overheating occurs.

Why Are Thermal Overload Relays Critical for Motor Protection?

Prevention of Motor Overheating

Sustained overloads cause excessive heat buildup, which degrades motor insulation and shortens service life. Thermal overload relays prevent this by stopping the motor before critical temperatures are reached.

Protection Against Mechanical Stress

Conditions such as jammed equipment, bearing failure, or excessive load torque force motors to draw higher current. Overload relays detect these conditions early and prevent mechanical damage.

Reduced Downtime and Repair Costs

By stopping motors before catastrophic failure, overload relays help avoid costly repairs, emergency shutdowns, and production losses.

Do Thermal Overload Relays Protect Against Phase Loss?

Yes, many thermal overload relays provide phase loss and phase imbalance protection, which is especially important in three-phase motor applications.

Why Phase Loss Is Dangerous

If one phase is lost, the motor continues running on the remaining phases, drawing excessive current and rapidly overheating.

How the Relay Responds

Differential sensing within the overload relay detects uneven current between phases and trips the motor contactor, preventing severe motor damage.

Key Features of Thermal Overload Relays

Adjustable Current Settings

Thermal overload relays allow precise adjustment to match the motor’s full load current (FLC), ensuring accurate protection without nuisance tripping.

Manual or Automatic Reset Options

• Manual reset requires operator inspection before restarting, enhancing safety.

• Automatic reset allows the motor to restart after cooling, suitable for controlled environments.

Auxiliary Contacts for Signaling

Normally open (NO) and normally closed (NC) contacts provide feedback to control panels, alarms, or PLCs for monitoring motor status.

How Thermal Overload Relays Fit into HVAC and Industrial Systems

In HVAC systems, thermal overload relays protect compressors, fans, and pumps from prolonged electrical stress. When paired with an HVAC contactor, they ensure motors only operate within safe thermal limits.

In industrial environments, overload relays work with electrical contactors to protect conveyors, mixers, blowers, and processing equipment that operate under variable load conditions.

Thermal Overload Relays vs Other Protective Devices

Thermal Overload Relays

• Protect against sustained overcurrent

• Time-delayed response

• Designed specifically for motor protection

Circuit Breakers

• Protect against short circuits

• Instantaneous trip

• Not sufficient alone for motor thermal protection

Solid-State Protection

• Faster response and higher precision

• Often used in advanced automation systems

• Typically higher cost

For most motor applications, thermal overload relays remain the most practical and reliable solution.

Why Proper Overload Protection Extends Motor Life

By accurately replicating motor heating behavior and coordinating with the contactor, thermal overload relays prevent insulation breakdown, reduce thermal cycling, and ensure consistent motor performance over time.

This proactive protection approach significantly extends motor lifespan and improves system reliability.

A Critical Partner to the Contactor

Thermal overload relays are not optional accessories, they are essential motor protection components. When integrated with the right contactor, they form a robust defense system against overheating, phase loss, and sustained overload conditions.

For HVAC, industrial, and motor-driven applications, properly selected and adjusted thermal overload relays ensure safer operation, reduced downtime, and long-term performance you can trust.
