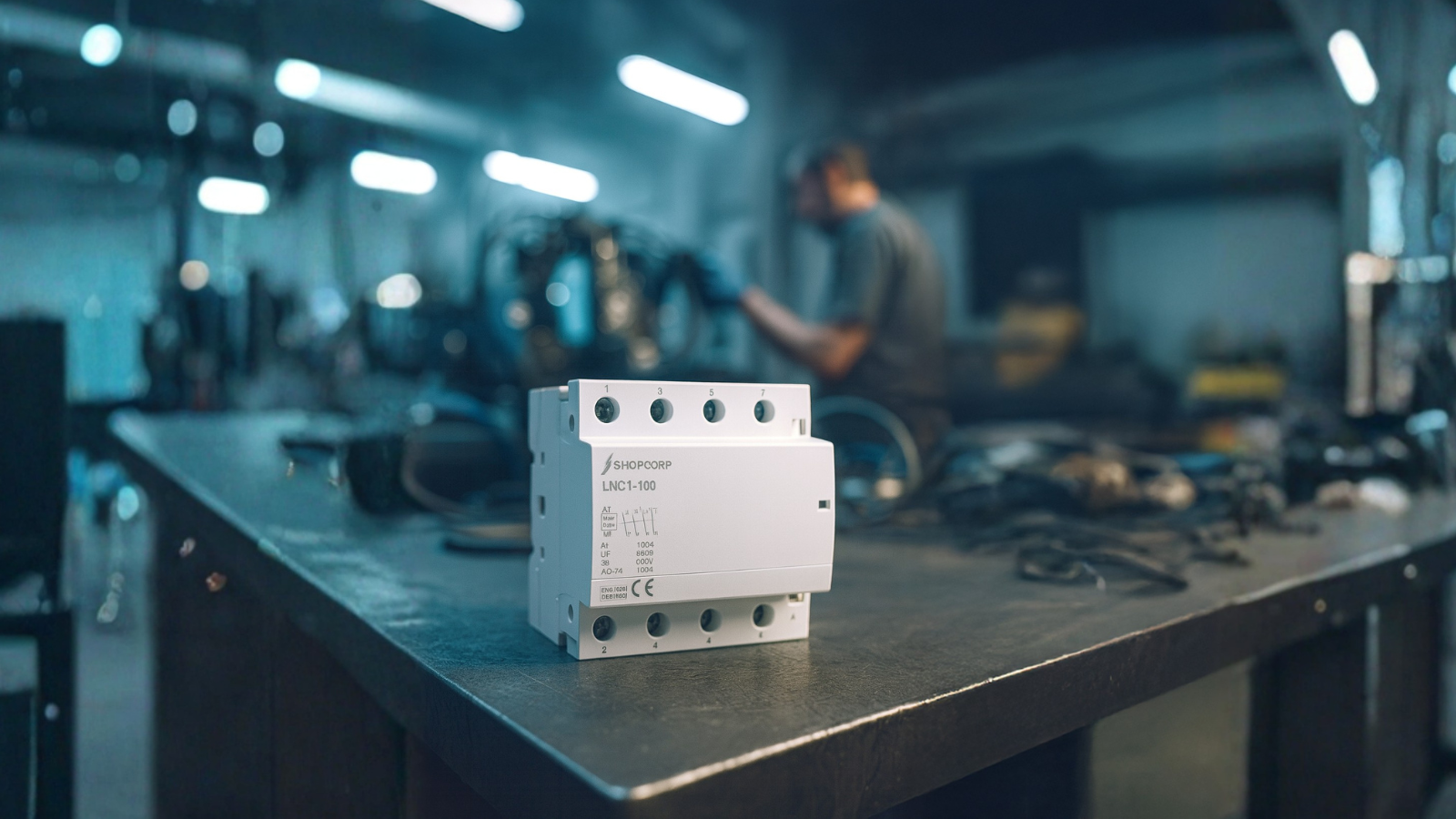

Common Wiring Mistakes in Contactors (And How to Avoid Them)

Wiring errors are one of the most common causes of premature failure in contactors across HVAC, motor control, and lighting applications. Even high-quality electrical contactors can fail if they are wired incorrectly, leading to overheating, welded contacts, nuisance trips, or complete system shutdowns.

Whether you are installing an HVAC contactor, a motor contactor, or a lighting contactor, understanding the most frequent wiring mistakes and how to prevent them is essential for system reliability, safety, and long-term performance.

This guide breaks down the most common contactor wiring issues seen in the field and provides practical steps to avoid costly callbacks and equipment damage.

Why Proper Contactor Wiring Matters

A contactor acts as the bridge between low-voltage control circuits and high-power electrical loads. When wiring is incorrect, even small mistakes can create high resistance, excessive heat, or unstable switching behavior.

Proper wiring ensures:

• Safe and reliable switching of electrical loads

• Longer contactor service life

• Reduced risk of electrical faults or fire hazards

• Consistent performance under frequent switching cycles

What Are the Most Common Wiring Mistakes in Contactors?

Loose or Poorly Secured Connections

Loose terminals are one of the most frequent causes of contactor failure. Even a slightly loose connection increases electrical resistance, which leads to heat buildup and eventual contact damage.

Why it happens

• Improper tightening during installation

• Vibration from motors or compressors

• Thermal expansion and contraction over time

How to avoid it

• Tighten all terminals to the manufacturer’s torque specifications

• Avoid overtightening, which can damage terminals

• Recheck connections during commissioning and maintenance

Using the Wrong Wire Size or Type

Incorrect wire gauge is a critical but often overlooked issue. Undersized conductors cannot handle the required current and will overheat under load.

Why it happens

• Misreading load requirements

• Reusing existing wiring without verification

• Ignoring local electrical code requirements

How to avoid it

• Match wire gauge to the full load current (FLA) of the circuit

• Follow NEC and local electrical codes

• Use copper conductors rated for the application temperature

Is the Contactor Being Overloaded?

Overloading occurs when the connected load exceeds the contactor’s rated capacity. This can quickly lead to welded contacts or permanent failure.

Common causes

• Incorrect contactor amperage selection

• Ignoring inrush or locked-rotor current

• Using a general-purpose contactor for motor-heavy loads

How to avoid it

• Select a contactor rated for the application type

• Account for inductive loads and startup current

• Use definite purpose contactors for HVAC and motor applications

Why Is Incorrect Coil Voltage a Serious Issue?

The coil voltage controls how the contactor engages. If the voltage does not match the control circuit, performance issues are guaranteed.

Incorrect Coil Voltage Selection

• Too high: Coil overheats and burns out

• Too low: Contactor chatters, hums, or fails to pull in

How to avoid it

• Verify control voltage before installation (24V, 120V, 240V, etc.)

• Never assume coil voltage based on load voltage

• Check the contactor label and wiring diagram

Can Reversed Phases or Incorrect Line/Load Wiring Cause Problems?

Yes. Incorrect line and load placement or reversed phases can cause malfunction, unsafe operation, or damage to downstream equipment.

Common mistakes

• Swapping L and T terminals

• Incorrect phase sequence in three-phase systems

How to avoid it

• Follow the manufacturer’s wiring diagram exactly

• Verify phase rotation with a tester

• Label conductors clearly during installation

Why Is Proper Grounding Often Overlooked?

Grounding errors may not cause immediate failure, but they significantly increase safety risks.

Risks of poor grounding

• Shock hazards

• Unstable control signals

• Increased damage during surges

How to avoid it

• Ensure proper grounding per code

• Inspect ground continuity during installation

• Use grounding lugs and bonding where required

How Environmental Conditions Affect Contactor Wiring

Dust, moisture, vibration, and heat all impact contactor performance, especially in outdoor or industrial environments.

Common environmental issues

• Moisture leading to corrosion

• Dust accumulation causing insulation breakdown

• Excess heat degrading coil insulation

How to avoid it

• Use properly rated enclosures (NEMA or IP)

• Select sealed or dust-resistant contactors when needed

• Maintain adequate panel ventilation

Best Practices to Prevent Contactor Wiring Failures

Installation and Maintenance Checklist

• Use manufacturer torque specifications

• Label all wires and terminals

• Install proper fuses, breakers, and surge protection

• Inspect connections regularly

• Test coil resistance and continuity during maintenance

For complex systems or critical applications, professional installation and periodic inspection are strongly recommended.

Wiring Matters as Much as the Contactor Itself

Even the best contactors can fail if they are wired incorrectly. Most failures traced back to wiring issues are preventable with careful installation, correct component selection, and regular inspection.

By avoiding these common wiring mistakes, you protect not only the electrical contactor, but also the motors, compressors, and lighting systems it controls.
