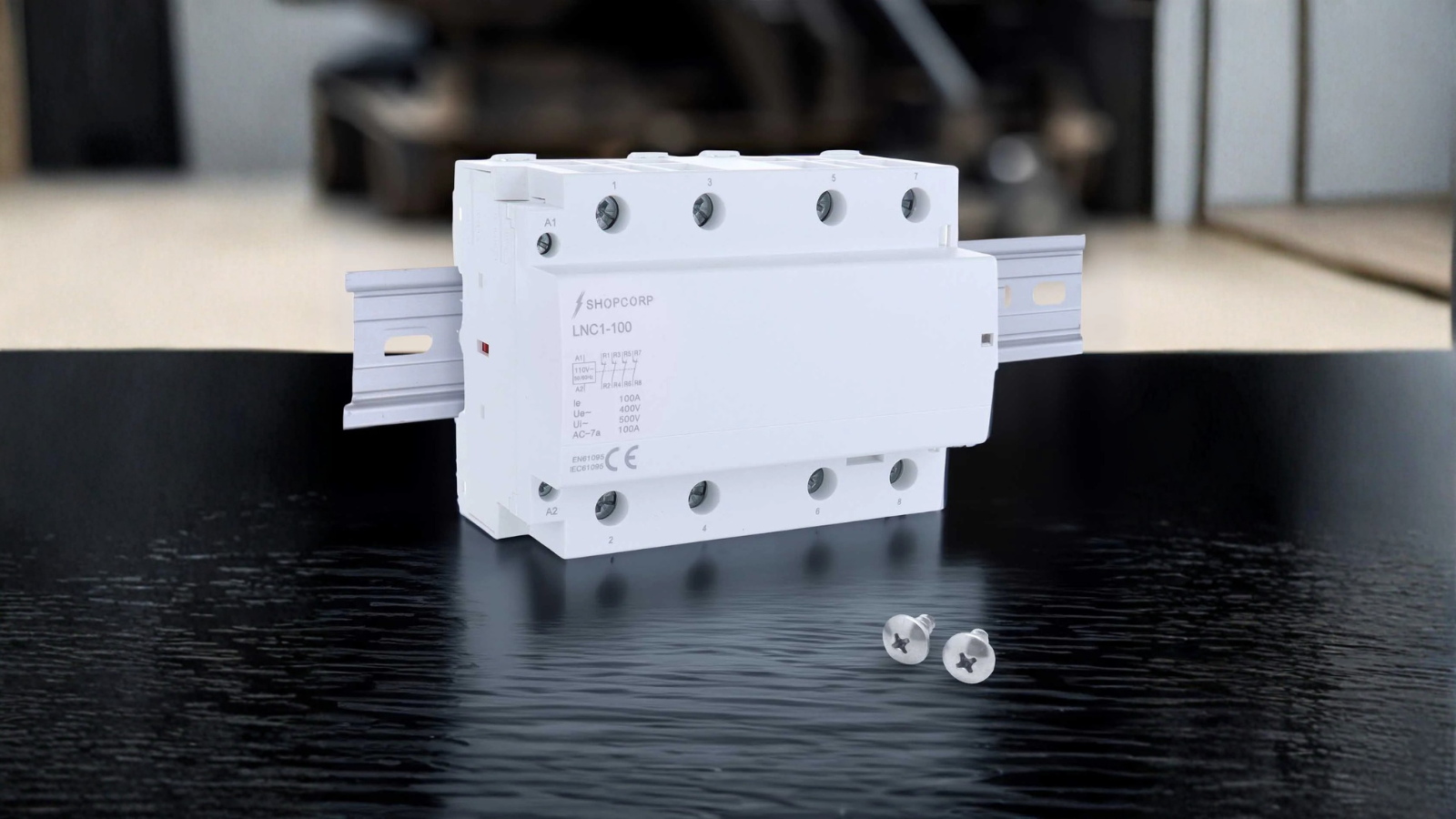

How a Normally Closed Contactor Operates in a Control Circuit

In modern electrical and industrial systems, understanding how control components behave under different conditions is essential for safety, reliability, and proper system logic. One component that often raises questions is the normally closed contactor. Unlike the more common normally open design, this type of contactor plays a critical role in safety circuits, interlocking systems, and fault-sensitive applications.

This article explains how normally closed contactors operate within a control circuit, why they are used, and how they differ from other electrical contactor configurations commonly found in HVAC and motor-driven systems.

Understanding the Basics of a Normally Closed Contactor

A normally closed contactor is an electromechanical switching device whose main contacts remain closed when the coil is not energized. In this default state, electrical current is allowed to flow through the circuit and power the connected load.

When voltage is applied to the coil, the contactor’s internal electromagnetic mechanism activates and physically opens the contacts, interrupting current flow. This operating logic is the opposite of normally open designs.

This behavior makes normally closed contactors particularly valuable in applications where continuity is required during normal operation, and power must be interrupted immediately when a control signal is introduced or lost.

How Does a Normally Closed Contactor Work in a Control Circuit?

In a control circuit, the contactor functions as the interface between low-voltage control signals and higher-power electrical loads. With a normally closed configuration, the sequence of operation is as follows:

• When the control circuit is inactive, the coil remains de-energized

• The contactor contacts stay closed, allowing current to reach the load

• When the control signal energizes the coil, a magnetic field is created

• The armature moves, opening the contacts and stopping current flow

This design allows the control circuit to shut down equipment intentionally by energizing the coil, rather than by removing power.

Why Are Normally Closed Contactors Used in Safety Circuits?

One of the most important uses of a normally closed contactor is in safety-related control logic. Because the circuit remains closed by default, the system is inherently fail-safe.

Fail-Safe Behavior Explained

If a control wire breaks, a power supply fails, or a safety device is triggered, the contactor coil may energize or lose its expected state, causing the contacts to open and immediately disconnect the load. This prevents uncontrolled operation and reduces risk to equipment and personnel.

This is why normally closed contactors are commonly found in:

• Emergency stop circuits

• Safety interlocks

• Fault detection systems

• Alarm and shutdown logic

Normally Closed vs Normally Open Contactors

Understanding the difference between contactor types is essential when designing or troubleshooting control circuits.

Normally Closed Contactors

• Closed when coil is de-energized

• Open when coil is energized

• Ideal for safety and shutdown logic

• Common in protective control circuits

Normally Open Contactors

• Open when coil is de-energized

• Close when coil is energized

• Used for standard start/stop control

• Common in HVAC contactor and motor contactor applications

Both types of contactors serve important but very different purposes depending on system requirements.

Common Applications for Normally Closed Contactors

Although less common than normally open designs, normally closed contactors are essential in specific control scenarios where reliability and safety are priorities.

Typical applications include:

• Emergency shutdown systems

• Motor protection logic

• Interlocking sequences in industrial machinery

• Safety circuits in motor contactors and AC contactors

• Control panels requiring continuous operation until a fault occurs

In these environments, losing control power should never allow equipment to continue running.

How Normally Closed Contactors Support Motor and HVAC Systems

In HVAC contactor and motor contactor systems, normally closed contacts are often used in auxiliary or control roles rather than as the primary power switch. They provide critical feedback and shutdown capability when abnormal conditions are detected.

For example, a fault relay or safety switch can energize the coil of a normally closed contactor, instantly removing power from a compressor or motor to prevent damage.

This layered protection approach increases system reliability and helps extend equipment lifespan.

Key Advantages of Using Normally Closed Contactors

• Built-in fail-safe operation

• Immediate shutdown during control faults

• Improved system safety

• Reliable interlocking functionality

• Clear logic for emergency and fault conditions

When properly applied, normally closed contactors strengthen control circuit design and reduce the risk of unintended operation.

Normally Closed Contactors in Control Circuits

Understanding how a normally closed contactor operates is essential for anyone working with electrical control systems. Its unique default-closed behavior makes it a powerful tool for safety, protection, and logical control in industrial, HVAC, and motor-driven applications.

Choosing the correct contactor type ensures predictable operation, protects valuable equipment, and supports safer electrical system design.
