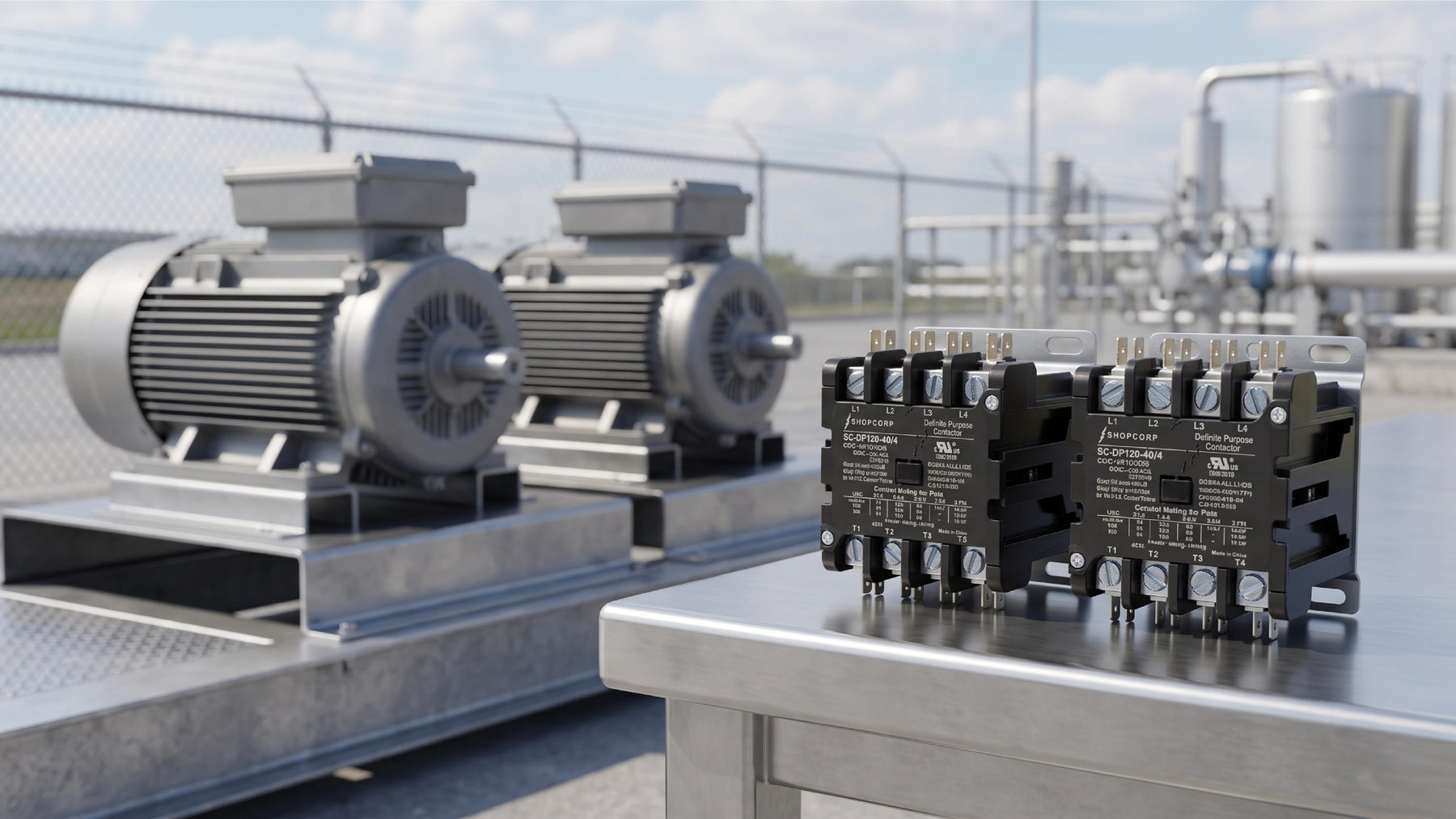

How to Choose the Right Contactor for Motor Load Applications

To choose the right contactor for a motor load, start with the motor's nameplate specifications, including operating voltage and full-load current, then verify that the contactor is rated for the actual motor application. You should also check the utilization category or motor-duty rating, number of poles, coil voltage, switching frequency, auxiliary contact requirements, and operating environment.

Choosing a motor contactor is different from selecting a switching device for a simple resistive load. Electric motors can draw substantially more current during starting than during normal operation, and repeated starts and stops place additional electrical and mechanical stress on the contactor.

That is why the largest amp number printed on a contactor should not be the only specification you consider.

A properly selected electrical contactor must match both the motor and the way that motor will operate.

Let's break down what to check.





What Is a Motor Contactor?

A motor contactor is an electrically controlled switching device used to connect and disconnect power to an electric motor.

Instead of requiring someone to manually switch the motor's power circuit, the contactor uses an electromagnetic coil to operate its main contacts.

When the coil receives its rated control voltage, the contactor changes state and its main contacts can supply power to the motor. When the control signal is removed, the contactor releases and interrupts the circuit.

This basic switching function allows motor contactors to become part of larger control systems involving devices such as:

• Start/stop push buttons
• Control relays
• Timers
• Sensors
• PLCs
• Overload relays
• Building or industrial control systems

But not every contactor is automatically suitable for every motor.

The electrical characteristics of the motor and its operating duty determine what the contactor needs to handle.

Why Do Motor Loads Need the Right Contactor?

Motors behave differently from many other electrical loads.

A motor that draws a certain amount of current while running may demand considerably more current during startup.

This temporary starting current creates additional stress at the moment the contactor closes.

The contacts may also experience significant electrical stress when the motor is switched off, particularly depending on the motor, operating condition, and switching duty.

This becomes even more important when a motor:

• Starts frequently
• Stops frequently
• Reverses direction
• Is jogged or inched
• Operates under demanding mechanical loads
• Runs in high-temperature conditions

As a result, a motor contactor should be selected using ratings that actually apply to motor loads.

A general-purpose or resistive current rating by itself does not tell you everything you need to know.

What Motor Specifications Should You Check First?

Before looking for a contactor, look at the motor.

The motor nameplate provides much of the information needed to begin selection.

Full-Load Current

Full-load current indicates how much current the motor is expected to draw under its rated operating conditions.

Depending on the motor and applicable standards, you may see values identified as FLA, FLC, rated current, or a similar designation.

This is one of the most important values for selecting motor-control equipment.

Motor Voltage

Identify the voltage at which the motor will actually operate.

The contactor's main contacts must be appropriately rated for that power circuit.

Phase

Determine whether the motor is single-phase or three-phase.

This affects the circuit configuration and commonly the number of poles required.

Motor Power

Horsepower (HP) or kilowatt (kW) information can also be important because manufacturers frequently publish motor contactor ratings according to motor power at specified voltages.

Operating Duty

Ask what the motor actually does.

A motor that starts once in the morning and runs for hours creates a very different switching duty from one that starts and stops dozens of times during a production cycle.

Motor data + operating behavior gives you a much better starting point than amperage alone.

How Do You Choose the Correct Contactor Amp Rating for a Motor?

This is where selection is often oversimplified.

Suppose a motor has a full-load current of 24A.

It may be tempting to conclude:

24A motor = any contactor rated above 24A

But that is not necessarily correct.

A contactor can carry different ratings depending on the type of electrical load and utilization category.

For example, the same device may have one current rating for a resistive application and another for a motor application.

Therefore, instead of looking only for:

Contactor amp rating ≥ Motor FLA

look for whether the manufacturer's specifications show that the contactor is suitable for the motor load, operating voltage, and switching duty involved.

A design or code calculation may also require additional sizing considerations depending on the motor circuit and installation.

The key takeaway is:

Do not substitute a general current rating for an actual motor-load rating.

What Does AC-3 Mean on a Motor Contactor?

For IEC motor contactors, the utilization category helps describe the type of switching duty the contactor is designed to perform.

One of the most important categories for common motor applications is AC-3.

AC-3 is associated with typical squirrel-cage induction motor operation where the contactor closes to start the motor and opens after the motor is running under normal conditions.

In practical terms, this includes many conventional applications where the sequence is simply:

Start → Run → Stop

Examples may include appropriately matched:

• Pumps
• Fans
• Blowers
• Compressors
• Conveyors
• Industrial machinery

When evaluating an IEC contactor for these applications, its AC-3 rating at the applicable voltage is much more informative than simply comparing the largest current number printed on the device.

AC-1 vs. AC-3

This distinction is particularly important.

AC-1 is associated primarily with non-inductive or slightly inductive loads.

AC-3 is specifically relevant to common squirrel-cage motor starting and stopping duty.

Therefore, a contactor showing a higher AC-1 rating should not automatically be assumed to have the same current capability under AC-3 motor duty.

When Would an AC-4 Contactor Be Needed?

Not every motor application follows a simple start-run-stop sequence.

Some machinery requires:

• Frequent jogging
• Inching
• Plugging
• Reversing
• Repeated starting and stopping

These operations place significantly greater electrical stress on the contactor.

IEC utilization category AC-4 addresses more severe squirrel-cage motor switching duties involving operations such as inching and plugging.

This matters because two motors with the same running current may require very different contactor selections if one runs continuously while the other is repeatedly started, stopped, or reversed.

So before choosing a motor contactor, ask:

How will this motor actually be operated?

The answer may be just as important as the FLA.

Why Does Coil Voltage Matter?

The coil voltage and motor voltage perform completely different roles.

This is an important distinction when selecting any electrical contactor.

Main Circuit

The main contacts switch the electrical power supplied to the motor.

Control Circuit

The coil receives the control voltage that tells the contactor when to engage or release.

Those voltages do not have to be the same.

For example, a contactor might switch a higher-voltage motor circuit while using a 24V, 110/120V, 220/240V, or another appropriately specified coil voltage.

The correct coil therefore depends on the control circuit, not simply the motor supply voltage.

Using the wrong coil voltage can result in problems such as:

• Failure to pull in
• Chattering
• Unreliable operation
• Coil overheating
• Premature failure
• Coil damage

Always check the coil label or manufacturer's specifications rather than assuming the coil voltage from the main contact rating.

How Many Poles Does a Motor Contactor Need?

The pole configuration must match the motor circuit and control design.

For a typical three-phase motor, a 3-pole contactor is commonly used so that the three phase conductors can be switched together.

Other applications may require different configurations depending on the motor and circuit design.

This is another reason why replacing a contactor based on physical size alone is risky.

Two contactors can look nearly identical while having different:

• Pole counts
• Contact configurations
• Coil voltages
• Current ratings
• Motor ratings

Always verify the electrical specifications.

What Other Specifications Should You Check?

Current, voltage, poles, and utilization category are major factors, but they are not the entire selection process.

Switching Frequency

How often will the contactor operate?

Repeated cycling increases both mechanical and electrical wear.

The manufacturer's operating limits and expected electrical life should be considered for demanding applications.

Auxiliary Contacts

Some control circuits require additional Normally Open (NO) or Normally Closed (NC) auxiliary contacts.

These may be used for:

• Holding circuits
• Interlocks
• Status indication
• PLC feedback
• Control logic

Determine what the circuit requires before selecting the motor contactor.

Mounting

Depending on the panel design, the contactor may use:

• DIN rail mounting
• Base mounting
• Panel mounting

Verify the physical installation requirements as well as the electrical ones.

Operating Environment

Ambient temperature, moisture, dust, vibration, enclosure conditions, and altitude can affect equipment selection.

The enclosure (not simply the contactor itself) may also determine the required environmental protection.

Coordination With Motor Protection

A contactor is a switching device. It should not be confused with motor overload or short-circuit protection.

Depending on the motor-control system, separate devices may be required for:

• Overload protection
• Short-circuit protection
• Disconnecting
• Motor protection

The complete motor circuit should be designed according to the applicable electrical requirements.

Where Are Motor Contactors Commonly Used?

Motor contactors appear anywhere electrical motors need controlled starting and stopping.

Common applications include:

Pumps

Water pumps, circulation pumps, process pumps, and other motor-driven pumping systems.

Fans and Blowers

Ventilation, exhaust, air-handling, and industrial airflow systems.

Compressors

Motor-driven compressors can place significant starting demands on electrical switching equipment.

HVAC Equipment

Compressors, condenser fans, blowers, and other HVAC components may use appropriately selected contactors as part of their control circuits.

Conveyors

Industrial conveyor systems often require controlled motor operation integrated with switches, sensors, or automation systems.

Industrial Machinery

Manufacturing equipment can use motor contactors as part of more complex motor-control and automation panels.

The specific application changes, but the selection principle remains the same:

Match the contactor to the motor and its actual operating duty.

How Do You Choose the Right Contactor for a Motor Load?

Choosing the right contactor for a motor starts with understanding the motor, not simply finding a contactor with a larger amp number. Check the motor's full-load current, operating voltage, phase, power rating, starting characteristics, and switching duty, then compare those requirements with the contactor's actual motor-load ratings and utilization category.

For typical IEC squirrel-cage motor starting and stopping, the AC-3 rating is an especially important specification. Applications involving more severe operations such as frequent jogging, plugging, or reversing may require a different duty category and selection approach.

The coil voltage, number of poles, auxiliary contacts, mounting method, operating environment, and required motor protection also need to match the system.

Ultimately, the best rule when comparing motor contactors is simple:

Choose by motor specifications and application requirements, not by appearance or a single amp rating.
