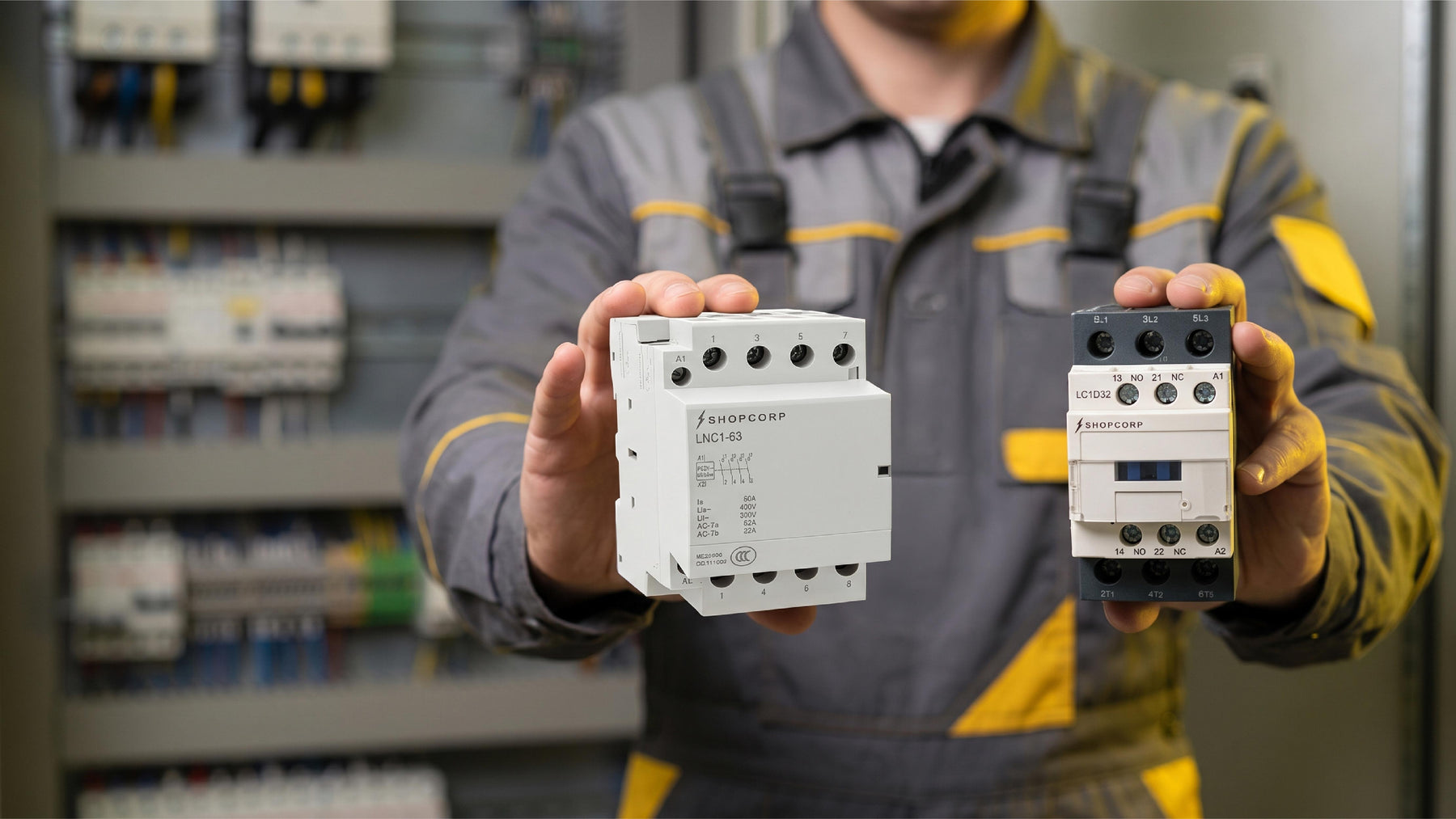

Common Lighting Contactor Wiring Mistakes and How to Avoid Them

Common lighting contactor wiring mistakes include connecting the control circuit to the wrong terminals, using the wrong coil voltage, misidentifying line and load connections, assuming a terminal such as L2 is always neutral, ignoring the electrical characteristics of the lighting load, and failing to properly secure terminal connections.

Even when an electrician understands how a contactor works, wiring errors can happen because several different electrical functions are concentrated in one device. Main power terminals switch the lighting load, while coil terminals control when the contactor changes state. Auxiliary contacts, when present, perform yet another function.

The result is that two terminals located only inches apart can have completely different purposes.

Correct lighting contactor wiring therefore starts with more than identifying where the wires physically fit. You need to understand the circuit, verify the contactor specifications, identify the control voltage, confirm the lighting load, and follow the manufacturer's wiring diagram.

Here are some of the most common mistakes to watch for.





Why Does Correct Lighting Contactor Wiring Matter?

A lighting contactor is designed to switch electrical lighting loads in response to a control signal.

Depending on the system, that control signal may come from a wall switch, timer, photocell, relay, building automation system, or another control device.

This creates two important sides of the installation:

Control circuit → operates the contactor coil

Power circuit → supplies the lighting load through the main contacts

Mixing up those two functions can lead to a contactor that does not operate correctly and, in some situations, can damage components.

Other wiring problems may cause intermittent operation, excessive heat, chattering, or premature wear.

The safest approach is to treat every terminal according to its designated electrical function, not simply according to where it is located on the device.

Mistake #1: Confusing the Coil Circuit with the Power Circuit

One of the most fundamental wiring mistakes is treating A1 and A2 as if they were another set of line and load terminals.

They are not.

On many electromagnetic contactors, A1 and A2 identify the coil terminals.

The coil creates the magnetic force that changes the state of the main contacts.

When the correct control voltage is applied across the coil, the magnetic mechanism pulls in. On a Normally Open contactor, this causes the main contacts to close.

The sequence looks like this:

Control voltage → A1/A2 → Coil energizes → Contactor changes state → Main contacts switch the lighting circuit

The main power terminals perform a different job. They carry the circuit being switched.

Before making any connection, identify which terminals belong to the control circuit and which belong to the power circuit.

Never determine their function based only on physical position.

Mistake #2: Assuming Coil Voltage Matches the Lighting Circuit Voltage

This is one of the most important concepts in electrical contactor wiring:

The coil voltage does not have to be the same as the voltage being switched by the main contacts.

For example, a lighting circuit and its contactor control circuit can operate at different voltages if the system is designed that way.

That means you need to check two specifications separately:

1. Main contact / load voltage
What circuit is the contactor switching?

2. Coil voltage
What voltage is the control circuit supplying to A1 and A2?

Do not infer one from the other.

What happens if the coil voltage is too high?

Applying voltage above the coil's rated value can cause excessive heating and may damage or burn out the coil.

What happens if the coil voltage is too low?

Insufficient coil voltage may prevent the contactor from pulling in firmly.

Depending on the amount of undervoltage and the contactor design, symptoms can include:

• Failure to engage
• Chattering
• Unstable operation
• Excessive heating
• Accelerated contact wear

If the lighting contactor repeatedly clicks or chatters instead of pulling in firmly, control voltage is one of the items that should be investigated.

The simple rule is:

Read the coil rating. Do not guess it from the lighting circuit voltage.

Mistake #3: Misidentifying Line and Load Terminals

Another common mistake is connecting conductors without first identifying the manufacturer's intended terminal arrangement.

Many contactors use markings such as:

• L1, L2, L3 for designated line-side terminals
• T1, T2, T3 for corresponding load-side terminals

Multi-pole contactors may include additional terminals depending on their configuration.

A common arrangement can therefore look like:

L1 → T1
L2 → T2
L3 → T3

However, these labels should be interpreted using the documentation for the specific electrical contactor being installed.

Do not assume that every contactor follows an identical terminal arrangement.

Why does this matter?

Correct identification makes the installation easier to understand, troubleshoot, and service. It also ensures the contactor is connected according to the manufacturer's intended configuration.

When replacing an existing contactor, don't rely solely on where the wires were connected on the old device.

Verify the markings and diagram on the replacement first.

Does L2 Always Mean Neutral?

No. L2 does not automatically mean neutral.

This is an important misconception to avoid.

In a contactor terminal designation, the letter L generally identifies a line-side connection. It does not, by itself, tell you whether the conductor connected there is a phase, neutral, or another circuit conductor.

The conductor's actual function depends on the electrical system and wiring design.

For example, different installations may involve:

• Single-phase circuits
• Three-phase circuits
• Line-to-line loads
• Line-to-neutral loads
• Multi-pole switching arrangements

The circuit determines what each conductor is.

Not the letter L alone.

This is why technicians should read the wiring diagram and understand the supply configuration before connecting a lighting contactor.

Mistake #4: Ignoring the Type of Lighting Load

Correct voltage and amperage do not tell the entire story.

The type of lighting being switched matters too.

Commercial lighting systems may contain:

• LED drivers
• Fluorescent ballasts
• HID lighting
• Incandescent or tungsten loads
• Other electronic lighting equipment

These loads do not necessarily behave the same way electrically.

Why is inrush current important?

Some lighting equipment can draw a brief but substantial current when first energized.

LED drivers are a particularly important example. Although the normal operating current of an LED lighting system may appear modest, its input capacitors can create a significant short-duration inrush when the system is switched on.

That switching event is what the lighting contactor must repeatedly handle.

A contactor should therefore be evaluated for the actual lighting load and applicable switching rating, not simply because its general amp rating appears high enough.

For example, a contactor with a certain resistive-load rating should not automatically be assumed to have the same capability for every type of lighting load.

Load type matters.

Mistake #5: Leaving Terminal Connections Loose

A perfectly selected contactor can still experience problems if its electrical connections are not properly secured.

A loose terminal connection can create increased resistance at the connection point.

As current flows through that resistance, heat can build locally.

Possible warning signs include:

• Terminal discoloration
• Heat damage around the connection
• Melted or deformed insulation
• Intermittent operation
• Burn marks
• A burning odor
• Visible deterioration around the terminal

This type of problem should not automatically be blamed on the contactor itself.

The connection may be the source of the heat.

How should contactor terminals be tightened?

Follow the manufacturer's specified terminal torque.

“Hand tight” is not a technical specification.

Where a manufacturer specifies a torque value, use an appropriate calibrated torque tool and follow the published requirement. Over-tightening can also be problematic because terminals and conductors can be damaged.

Correct termination means using the correct conductor preparation, connection method, and torque specified for the equipment.

Mistake #6: Choosing the Wrong Number of Poles

Sometimes what appears to be a wiring problem actually begins with incorrect component selection.

A lighting contactor must have the appropriate number of poles for the circuits or conductors the design requires it to switch.

Depending on the application, lighting systems may use:

• 2-pole configurations
• 3-pole configurations
• 4-pole configurations
• Multi-pole arrangements for multiple lighting circuits

A 4-pole contactor, for example, provides four main switching paths. But that does not automatically mean it is the correct choice for every system with four conductors.

The pole configuration needs to follow the electrical design.

This becomes especially important in commercial lighting applications where several circuits may be controlled together.

Before installation, determine what actually needs to be switched and then select the contactor accordingly.

Mistake #7: Copying the Old Wiring Without Verifying the New Contactor

Replacing a contactor wire-for-wire may seem like the easiest approach.

It can also create problems.

Two lighting contactors that look similar may have different:

• Coil voltages
• Amp ratings
• Pole configurations
• Terminal arrangements
• Auxiliary contacts
• Load ratings
• Mounting configurations

Even the location of terminals can vary between manufacturers or product families.

Therefore, the fact that a wire was connected to the upper-left terminal of the old contactor does not prove that the same location serves the same function on the replacement.

Before transferring conductors, compare:

Old contactor specifications → New contactor specifications → Circuit requirements

Then verify the manufacturer's terminal markings and wiring diagram.

Match by specifications, not appearance.

What Should You Check Before Wiring a Lighting Contactor?

A short pre-installation check can prevent many of the mistakes discussed above.

Before wiring a lighting contactor, verify:

• Main circuit voltage
• Lighting load current
• Type of lighting load
• Applicable lighting/load rating
• Inrush characteristics where relevant
• Coil voltage
• Control circuit voltage
• Number of poles
• Normally Open or Normally Closed configuration
• Line terminal identification

• Load terminal identification

• A1 and A2 coil terminals
• Auxiliary contact requirements
• Conductor size and compatibility
• Manufacturer terminal torque
• Manufacturer wiring diagram

If any of those items are unclear, resolve the specification before energizing the circuit.

That is much easier than troubleshooting a contactor after installation.

What Are the Warning Signs of a Lighting Contactor Wiring Problem?

A wiring or selection problem does not always produce an immediate failure.

Sometimes the first clue is a change in how the contactor operates.

Possible warning signs include:

Chattering or Rapid Clicking

The contactor repeatedly engages and releases instead of remaining firmly pulled in.

Possible causes can include insufficient or unstable coil voltage, control-circuit problems, or a mechanical issue.

Contactor Does Not Pull In

If the coil does not energize, verify whether the correct control voltage is actually reaching the appropriate coil terminals.

Excessive Heat

Heat around a terminal can point to a loose or otherwise poor connection, excessive current, incorrect application, or another electrical issue.

Lighting Does Not Switch as Expected

If the coil operates but the lighting does not respond correctly, the power circuit, contact configuration, terminal connections, and load should be checked.

Burn Marks or Discoloration

Visible thermal damage should never be ignored. The cause needs to be identified before the equipment is returned to service.

These symptoms do not prove that the lighting contactor itself is defective. Troubleshooting should consider the contactor, wiring, control circuit, connected load, and overall system.

overall system.

---

Verify the Circuit Before Energizing the Contactor

Correct lighting contactor wiring comes down to understanding the function of each part of the circuit. The coil terminals control the electromagnetic mechanism, while the main contacts switch the lighting load. Those two functions may operate at different voltages and must be evaluated separately.

Before energizing an electrical contactor, verify the coil voltage, control voltage, line and load terminal designations, number of poles, lighting load type, conductor connections, and manufacturer-specified terminal torque. Just as importantly, never assume that L2 means neutral or that a replacement contactor can be wired solely by copying the physical layout of the previous device.

For lighting contactors, the best practice is simple: identify the circuit, verify the specifications, follow the manufacturer's diagram, and then make the connections. That approach reduces wiring errors and makes the system easier to troubleshoot and service later.
