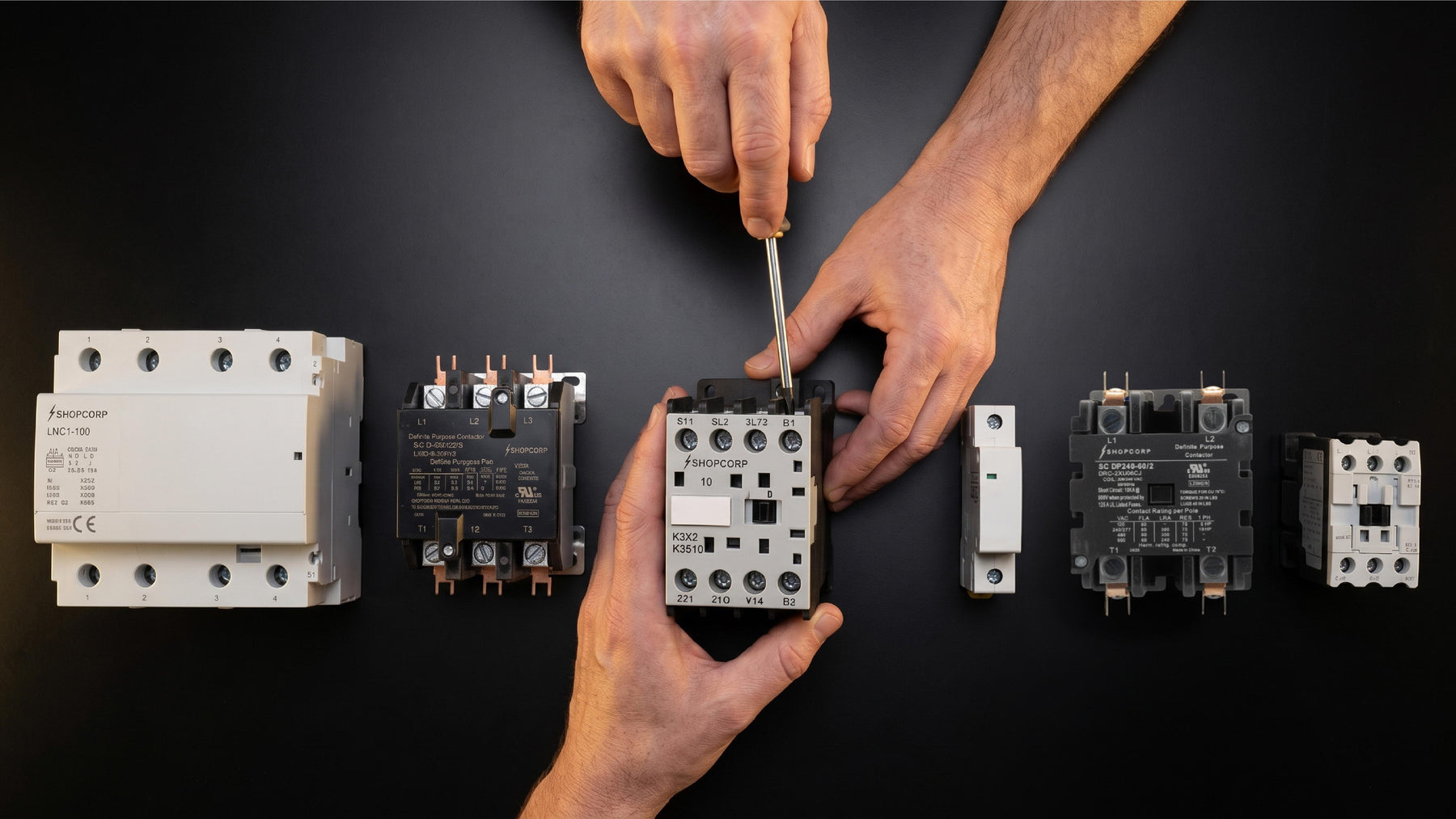

AC vs. DC Contactors: What Is the Difference and Why Does It Matter?

The main difference between AC and DC contactors is the type of electrical circuit they are designed and rated to switch. AC circuits naturally cross through zero current every cycle, which helps interrupt an electrical arc. DC current does not have this natural zero crossing, so switching a DC load can require different contact spacing, arc-control methods, and contactor ratings.

This distinction matters because two contactors that look similar may perform very differently when switching AC versus DC.

There is another important distinction to understand from the beginning: the voltage and current switched by the main contacts are not necessarily the same as the voltage type used by the contactor coil. A contactor's power-circuit ratings and coil/control specifications should be checked separately.

Whether you're selecting a lighting contactor, motor contactor, HVAC contactor, or a contactor for a DC system, the correct choice starts with the manufacturer's electrical ratings, not the enclosure, physical size, or a single amp number.





What Is the Main Difference Between AC and DC Contactors?

At the most practical level, the difference is the electrical load each contactor is designed to switch.

An AC-rated contactor is designed and tested for specified alternating-current applications. A DC-rated contactor is designed and tested for specified direct-current applications.

Why does that distinction matter?

Because AC and DC behave differently when contacts open under load.

With alternating current, current repeatedly changes direction and naturally passes through zero. In a 60 Hz AC system, this happens many times every second.

DC behaves differently. Current flows continuously in one direction and does not provide the same natural current-zero event.

That difference has a major impact on one of the hardest jobs a contactor has to perform:

opening a circuit while current is flowing.

How Does an Electrical Contactor Work?

An electrical contactor is an electrically operated switching device used to repeatedly connect and disconnect electrical loads.

Although designs vary, an electromagnetic contactor typically contains:

• A coil
• Magnetic components
• An armature or moving mechanism
• Main power contacts
• A return mechanism
• Terminals
• Arc-management components where required
• Auxiliary contacts on some models

When the correct control voltage is applied to the coil, the magnetic mechanism moves the contacts.

On a Normally Open contactor, the main contacts close, allowing current to flow to the load.

When the coil is de-energized, the mechanism releases and the contacts reopen.

That general principle can apply to both AC and DC systems.

The challenge is what happens between the contacts as they separate.

Why Is Switching DC More Difficult Than Switching AC?

When two contacts carrying current begin to separate, the electrical current may continue flowing through the air gap between them.

This creates an electrical arc.

An arc produces intense heat and can erode contact surfaces. If it is not extinguished effectively, it can interfere with the contactor's ability to safely interrupt the circuit.

AC has a natural advantage

An AC waveform repeatedly passes through zero current.

That natural current zero helps the arc extinguish as the contacts separate, although an AC contactor still needs to be correctly designed and rated for its application.

DC does not naturally cross zero

With DC, current continues in the same direction.

As a result, the arc can be more persistent.

This is why a contactor's DC switching capacity can differ substantially from its AC capacity, and why DC switching designs may incorporate specific methods for increasing arc length, cooling the arc, or driving it away from the contact surfaces.

The same amp value does not automatically represent the same switching capability on AC and DC.

How Does Arc Suppression Differ in AC and DC Contactors?

Arc management is one of the most important differences when comparing AC and DC switching.

Because AC current periodically crosses zero, extinguishing the arc is generally less demanding than interrupting a comparable DC circuit.

DC contactors may therefore use design features intended to control a persistent DC arc.

Depending on the device, these can include:

• Larger contact separation
• Arc chutes
• Magnetic blowout systems
• Multiple contact gaps
• Application-specific contact arrangements

A magnetic blowout system, for example, can help drive an arc away from the contact area and lengthen its path until it can no longer be sustained.

Not every DC contactor uses exactly the same arc-control design. The important point for selection is that DC interruption capability must be explicitly supported by the contactor's ratings.

This becomes increasingly important as DC voltage and switching demands increase.

Are AC and DC Contactor Coils Different?

They can be, and this is where another common misunderstanding occurs.

The coil supply and the load being switched are two separate specifications.

For example, when reading an electrical contactor specification sheet, you may encounter:

Main contacts: rated for a specified AC or DC load
Coil: rated for a specified AC or DC control voltage

These specifications describe different parts of the device.

Traditional AC electromagnetic coils and magnetic circuits are designed around alternating current characteristics. AC magnetic assemblies may use features such as shading rings to help maintain magnetic force as the AC waveform passes through zero and reduce vibration or chatter.

Traditional DC coils operate from continuous direct current and are designed accordingly.

Modern contactor designs may also incorporate electronic coil-control systems, so it is not safe to identify coil compatibility simply by looking at the contactor.

Always read the coil rating.

If the coil says 120VAC, supply it according to that specification. If it is rated for 24VDC, follow that rating instead.

Never determine coil voltage from the main contact voltage rating.

Do AC and DC Contactors Use Different Magnetic Designs?

Traditional designs often do.

AC magnetic circuits have to account for alternating magnetic flux. Laminated magnetic cores are commonly used to reduce eddy-current losses, and shading rings may be incorporated to help stabilize the magnetic pull.

Traditional DC electromagnets do not experience alternating magnetic flux in the same way and can therefore use different magnetic construction.

However, this should not be turned into a universal shopping rule such as:

“Laminated core = AC contactor”
or
“Solid core = DC contactor.”

Modern contactors can use different construction methods and electronic coil technologies.

A technician or buyer should not need to disassemble a contactor and inspect its magnetic core to determine whether it is suitable for the application.

The manufacturer's ratings provide the answer.

Where Are AC Contactors Commonly Used?

Alternating current is widely used for building, commercial, HVAC, and industrial power systems, so AC contactors are common across many applications.

HVAC Equipment

An HVAC contactor may control compressors, condenser fan motors, heating components, or other appropriately rated HVAC loads.

Motor Control

Many motor contactors are used to start and stop AC induction motors in pumps, fans, compressors, conveyors, and industrial machinery.

Lighting Control

A lighting contactor can provide centralized switching for commercial or industrial lighting circuits.

Industrial Equipment

Machinery, control panels, pumps, fans, and automation systems frequently incorporate AC switching.

In each case, simply knowing that the application uses AC is not enough. Voltage, current, load category, motor or lighting rating, number of poles, coil voltage, and operating duty still need to be checked.

Where Are DC Contactors Commonly Used?

DC contactors are used in systems where direct-current loads need repeated electrical switching.

Depending on the voltage, current, and specific equipment, applications can include:

• Battery systems
• Solar and energy-storage systems
• Electric vehicles and charging equipment
• Telecommunications equipment
• DC motor systems
• Industrial DC power systems
• Material-handling equipment
• Mobile electrical equipment

These applications can involve very different DC voltages and currents.

A contactor suitable for one DC application should therefore not automatically be assumed to work in another.

For example, suitability for a low-voltage DC control circuit does not establish suitability for switching a much higher-voltage battery or solar circuit.

The manufacturer's DC ratings must match the actual application.

Can You Use an AC Contactor for a DC Load?

Only if the manufacturer specifically provides a DC rating for that contactor and the application falls within that rating.

This is more accurate than saying that an AC contactor can never switch DC.

Some electrical contactors have published ratings for both AC and DC applications. However, those ratings may be very different.

A device might have a substantial AC switching rating while its permissible DC voltage, current, pole arrangement, or utilization is more limited.

Therefore, you should never reason:

“It's rated for 40A AC, so it should handle 40A DC.”

That conclusion is not valid without supporting specifications.

The same principle applies in reverse.

Do not assume a DC-rated device is suitable for an AC application unless the manufacturer explicitly provides the appropriate AC ratings.

If the required AC or DC rating is not specified, do not assume compatibility.

Is AC or DC Coil Voltage the Same as AC or DC Load Rating?

No—and this distinction deserves special attention.

Consider a contactor with a DC coil.

That does not automatically make it a DC load contactor.

Likewise, a contactor using an AC coil is not necessarily limited to switching only AC loads if its manufacturer provides appropriate ratings for other applications.

Think of the contactor as having two separate electrical questions:

1. What can the main contacts switch?

Check:

• AC or DC rating
• Operating voltage
• Current
• Load type
• Utilization category where applicable
• Pole arrangement

2. What does the coil require?

Check:

• AC or DC control supply
• Coil voltage
• Frequency for AC coils where specified
• Coil operating range

Keeping those questions separate prevents one of the most common mistakes in contactor selection.

AC vs. DC Contactors: Which One Do You Need?

The answer starts with the load.

If you are switching an AC load, select an electrical contactor with an appropriate AC rating for the circuit voltage, current, load type, and operating duty.

If you are switching DC, verify an appropriate DC switching rating for those same application requirements.

Then separately match the coil to the control circuit.

For example, someone choosing an HVAC contactor should evaluate the actual HVAC load, voltage, motor or compressor requirements, poles, and coil voltage. Someone choosing motor contactors should consider motor-specific ratings and duty. Someone selecting a lighting contactor should consider the characteristics of the lighting technology and its switching demands.

The label “AC” or “DC” is therefore only the beginning of the selection process.
