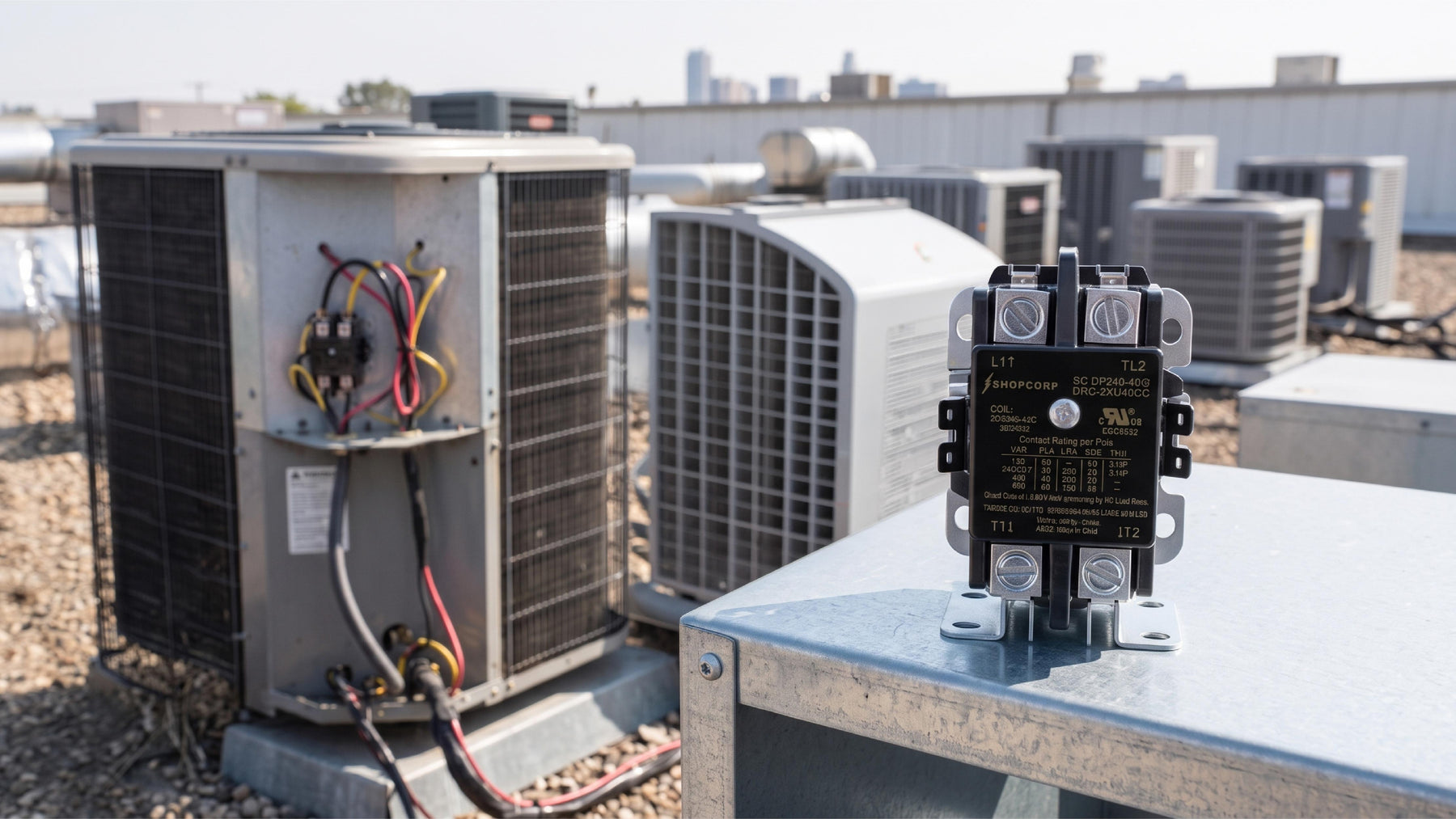

1-Pole vs. 2-Pole vs. 3-Pole HVAC Contactors: Which Do You Need?

The right HVAC contactor depends on the electrical configuration of the equipment, not simply on which contactor has the highest amp rating. In HVAC systems, 1-pole and 2-pole contactors are commonly found in single-phase equipment, while 3-pole contactors are generally used to switch three-phase loads in commercial and industrial systems. Choosing correctly requires matching the pole configuration, coil voltage, load ratings, and equipment specifications.

That distinction matters when replacing a failed HVAC contactor. Two contactors can have the same amp rating and similar dimensions while operating differently because of their pole configuration.

A contactor is responsible for electrically switching power to loads such as compressors, condenser fan motors, blowers, pumps, and other HVAC equipment. The number of poles tells you how many power conductors the device is designed to switch simultaneously.

Understanding what 1-pole, 2-pole, and 3-pole configurations actually do is therefore one of the first steps toward selecting the correct electrical contactor for an HVAC application.





What Does the Number of Poles Mean on an HVAC Contactor?

A pole represents an independent power path that the contactor can open or close.

In simple terms:

• A 1-pole contactor switches one power conductor.
• A 2-pole contactor switches two power conductors.
• A 3-pole contactor switches three power conductors.

The pole count should correspond to the way the equipment is designed to control its electrical supply.

This is why choosing an HVAC contactor should never be based on physical appearance alone. The original wiring diagram, equipment data, contact configuration, voltage, and electrical ratings all need to be considered.

When Is a 1-Pole Contactor Used in HVAC Systems?

A 1-pole contactor can be found in some single-phase residential air-conditioning and heat-pump equipment.

In this arrangement, the contactor switches one side of the power circuit while the other side may remain connected through the system design.

This configuration has historically been used by some HVAC manufacturers and can serve specific equipment designs. However, its operation is different from a 2-pole device because only one conductor is being switched by the contactor.

That distinction is especially important during troubleshooting and replacement.

Finding a 1-pole AC contactor inside an existing condenser does not mean that any 1-pole device with a similar amp rating is an appropriate substitute. The replacement must still match the equipment requirements and original circuit design.

What Should You Check on a 1-Pole HVAC Contactor?

Before replacing one, verify:

• Pole and contact configuration
• Coil voltage
• Main contact voltage rating
• Load/current rating
• Terminal configuration
• Equipment wiring diagram
• Manufacturer specifications
• Physical mounting requirements

The objective is to reproduce the electrical function required by the equipment, not simply find a contactor that fits inside the enclosure.

Why Are 2-Pole Contactors Common in Residential HVAC?

A 2-pole HVAC contactor switches two conductors simultaneously and is commonly found in single-phase air-conditioning and heat-pump applications.

For a system designed around a 2-pole contactor, energizing the coil closes both poles and establishes the required power paths to the connected load. When the control signal is removed, both poles return to their normal state.

This makes 2-pole HVAC contactors a familiar configuration in residential and light-commercial equipment.

For example, when a thermostat calls for cooling, the HVAC control circuit can energize the contactor coil. The magnetic mechanism pulls in, the power contacts close, and the appropriately designed compressor and condenser fan circuits can operate.

Once the cooling demand ends, the control signal is removed and the contactor releases.

Is a 2-Pole Contactor Always Better Than a 1-Pole Contactor?

Not necessarily.

Pole count is an application requirement rather than a quality ranking.

A 2-pole device should not automatically replace a 1-pole device simply because it switches an additional conductor. Changing pole configuration can change how the original circuit operates.

If an HVAC manufacturer designed the equipment around a specific configuration, that design and its wiring diagram should guide replacement selection.

For replacement work, the safest principle is simple:

Match the electrical requirements of the equipment rather than assuming that more poles are better.

When Do HVAC Systems Need a 3-Pole Contactor?

A 3-pole contactor is commonly associated with three-phase HVAC equipment.

Three-phase power is widely used in larger commercial and industrial installations, including certain:

• Rooftop HVAC units
• Large compressors
• Chillers
• Pumps
• Air-handling equipment
• Ventilation systems
• Commercial refrigeration systems
• Industrial HVAC machinery

In a standard three-phase switching application, the contactor provides three main power poles so the three phases can be controlled together.

This is fundamentally different from the typical single-phase residential application.

A 3-pole HVAC contactor may also carry motor-specific ratings because compressors, fans, and pumps create electrical demands that differ from simple resistive loads.

Why Does the HVAC Load Matter When Choosing a Contactor?

Pole count answers only one part of the selection question.

The type of load matters just as much.

HVAC equipment frequently contains motors and compressors, which behave differently from resistive electrical loads. When a motor starts, its electrical demand can be substantially different from its normal running condition.

For that reason, an HVAC contactor should be evaluated according to ratings that are appropriate for the actual load it will switch.

For a motor-driven HVAC application, this may include reviewing:

• Motor current
• Compressor ratings
• Full-load current
• Locked-rotor or starting characteristics
• Horsepower ratings where applicable
• Utilization or motor-duty category
• Switching frequency
• Manufacturer-specific application ratings

An amp number printed on the contactor does not tell the entire story.

How Do 1-Pole, 2-Pole, and 3-Pole HVAC Contactors Compare?

Feature	1-Pole HVAC Contactor	2-Pole HVAC Contactor	3-Pole HVAC Contactor
Power poles switched	1	2	3
Typical system type	Certain single-phase HVAC designs	Single-phase HVAC equipment	Three-phase HVAC equipment
Common applications	Some residential AC and heat-pump designs	Residential and light-commercial AC systems	Commercial and industrial HVAC
Power conductors controlled	One	Two	Three
Typical loads	Compressor/fan circuits according to equipment design	Compressor/fan circuits according to equipment design	Three-phase compressors, motors, pumps and fans
Replacement priority	Match original circuit design	Match original circuit design	Match three-phase load requirements

The table is useful as a general guide, but it should not replace the equipment wiring diagram or manufacturer specifications.

Does Coil Voltage Change with the Number of Poles?

No. Pole count and coil voltage describe two different characteristics of a contactor.

The poles determine how many power circuits are being switched.

The coil determines what control voltage is required to operate the contactor.

For example, an HVAC contactor could be designed with two power poles while using a 24VAC coil. Another contactor could have three poles and use a completely different coil voltage.

This is one of the most important distinctions to understand when buying a replacement.

A contactor might have the correct:

• Number of poles
• Amp rating
• Physical size

…and still be incompatible because the coil voltage is wrong.

Always verify the voltage specified for the coil against the actual HVAC control circuit.

Why Are 24V Coils So Common in HVAC Contactors?

Many HVAC control systems use a low-voltage control circuit, commonly associated with thermostats and control boards.

When cooling or heating is requested, the control circuit energizes the coil of the HVAC contactor. The coil creates the magnetic force needed to change the state of the main contacts.

This allows a lower-voltage control circuit to command the switching of a separately rated power circuit.

It also demonstrates why coil voltage and load voltage should never be treated as the same specification.

An HVAC unit may operate from a much higher line voltage while its contactor coil operates from a lower control voltage.

Can You Replace a 1-Pole HVAC Contactor with a 2-Pole Contactor?

This should not be treated as an automatic or universal replacement.

Changing from a 1-pole to a 2-pole contactor can alter the electrical behavior intended by the original HVAC design. Certain circuits may have been configured around one conductor remaining connected, or other components may depend on the manufacturer's original arrangement.

A replacement decision should therefore be based on the unit's wiring diagram, equipment specifications, applicable electrical requirements, and the replacement instructions provided for that system.

The same principle applies in reverse: a 2-pole contactor should not automatically be replaced by a 1-pole device.

Match the circuit design, not just the amp rating.

Can You Use a 3-Pole Contactor on a Single-Phase HVAC System?

The fact that a contactor has three poles does not automatically make it the correct choice for a single-phase system.

Some contactors may support particular wiring configurations according to their manufacturer's specifications, but the presence of an extra pole is not, by itself, a reason to choose a 3-pole unit.

For replacement HVAC work, using the required pole configuration simplifies compatibility and reduces the possibility of wiring errors.

A 3-pole motor contactor is generally most relevant when the HVAC equipment contains a three-phase load that requires all three phases to be switched.

What Other Ratings Should You Check Before Choosing an HVAC Contactor?

Choosing between 1, 2, and 3 poles is only the beginning.

Before selecting an HVAC contactor, verify the complete electrical specification.

Coil Voltage

The contactor coil must be compatible with the control circuit.

A mismatch can prevent the contactor from pulling in correctly or damage the coil.

Main Contact Rating

Confirm that the contacts are rated appropriately for the voltage and current being switched.

Load Type

Determine whether the contactor will control a compressor, fan motor, pump, heater, or another type of HVAC load.

Motor Ratings

When switching motors or compressors, review the applicable motor-duty ratings rather than relying exclusively on a general current rating.

Number of Poles

Determine whether the equipment requires one, two, or three switched power paths.

Contact Configuration

Check whether the required contacts are Normally Open (NO), Normally Closed (NC), or another specified arrangement.

Frequency

Verify that the device is appropriate for the system frequency, such as 50/60 Hz where specified.

Mounting and Terminal Layout

The replacement must also work with the physical installation, terminal arrangement, conductor size, and enclosure.

What Are Common HVAC Contactor Selection Mistakes?

Many replacement errors happen because one visible specification is treated as the entire specification.

For example, seeing “40A” on an existing HVAC contactor and purchasing another 40A device is not enough to establish compatibility.

Common mistakes include:

• Matching only the amp rating
• Ignoring the number of poles
• Choosing the wrong coil voltage
• Confusing coil voltage with line voltage
• Ignoring motor or compressor ratings
• Selecting by physical appearance
• Assuming all 2-pole contactors operate identically
• Using a general-purpose device without checking its suitability for the HVAC load
• Changing from 1 pole to 2 poles without reviewing the original circuit
• Using a 3-pole device simply because it has a higher perceived capacity

The correct replacement is the one whose relevant specifications match the application.

How Do You Choose the Right Contactor for an AC Unit?

Start with the existing equipment, not with the replacement contactor.

Check the AC unit's data plate, wiring diagram, original contactor markings, and manufacturer specifications.

Then identify:

1. System phase: Is the equipment single-phase or three-phase?

2. Pole requirement: Does the circuit require a 1-pole, 2-pole, or 3-pole contactor?

3. Coil voltage: What control voltage energizes the contactor?

4. Load requirements: What compressor, motor, fan, or other load will the contactor switch?

5. Electrical ratings: Does the replacement have appropriate voltage, current, and application ratings?

6. Contact configuration: Are the required power contacts NO, NC, or another configuration?

7. Installation requirements: Are the terminals, mounting method, dimensions, and environmental ratings appropriate?

These checks provide a much stronger basis for selection than choosing an AC contactor according to appearance or amp rating alone.

Which HVAC Contactor Do You Need?

There is no single pole configuration that is the right choice for every HVAC system. 1-pole contactors appear in certain single-phase equipment designs, 2-pole contactors are common across many residential and light-commercial single-phase systems, and 3-pole contactors are typically associated with three-phase commercial and industrial HVAC loads.

The important part is understanding what the existing system requires.

Whether you are replacing an HVAC contactor for an AC condenser, compressor, fan, pump, rooftop unit, or another HVAC application, check the complete specification: pole configuration, coil voltage, operating voltage, current and load ratings, contact configuration, and equipment requirements.

At Contactor Depot, we always recommend choosing contactors by specifications, not appearance. The correct electrical contactor is the one designed to perform the switching duty required by your specific system.
