How a Contactor with Timer Works for Scheduled Electrical Control

A contactor with timer provides scheduled electrical control by using the timer to determine when equipment should turn on or off and the contactor to switch power to the connected load. Instead of asking the timer to handle the main electrical load directly, the timer controls the contactor coil, while the contactor switches appropriately rated lighting, motor, HVAC, fan, pump, or other electrical circuits.

This division of responsibilities is what makes the combination useful. The timer handles when the system operates, while the contactor handles the electrical switching required by the load.

For commercial lighting, workshops, electrical panels, HVAC control, and other applications that follow predictable schedules, this setup can provide a practical way to automate operation without manually switching equipment every day.

Understanding how the two components work together also makes it easier to choose the correct coil voltage, amp rating, pole configuration, timer settings, and load rating for the application.





What Is a Contactor with Timer?

A contactor with timer is an electrical control arrangement that combines a time-based control device with an electromagnetic contactor.

The timer contains the schedule or timing logic.

The contactor contains the power-switching contacts.

When the programmed condition occurs, the timer changes the state of its output. In a properly designed control circuit, this action energizes or de-energizes the contactor coil.

For a Normally Open contactor, energizing the coil causes its main contacts to close. The electrical load can then receive power through those contacts.

When the timer reaches the programmed OFF event, the control signal changes again, the coil de-energizes, and the contactor returns to its normal open position.

The basic concept can be summarized as:

Timer schedule → Control signal → Contactor coil → Main contacts → Electrical load

Why Use a Timer and Contactor Together?

The main reason is that timers and contactors are designed for different jobs.

A timer is a control device. Its purpose is to decide when a circuit should change state according to a programmed schedule.

A contactor is a switching device. Its purpose is to connect or disconnect an electrical load within its specified ratings.

Using them together allows the control portion of the system to remain separate from the main power-switching portion.

This can be especially useful when controlling:

• Multiple lighting circuits
• Commercial exterior lighting
• Motors
• Pumps
• Fans
• HVAC equipment
• Workshop equipment
• Other scheduled electrical loads

The important point is that adding a contactor does not automatically make every load compatible with every timer. Both devices still need to be correctly selected for the circuit.

How Does a Contactor with Timer Work Step by Step?

The operating sequence becomes straightforward once the timer and contactor are viewed separately.

Step 1: The Timer Is Programmed

The desired ON and OFF periods are entered into the timer.

For example, a facility might want exterior lights to operate from 7:00 PM until 6:00 AM every weekday.

Step 2: The Program Reaches an ON Time

At 7:00 PM, the timer changes the state of its programmed output.

Step 3: The Contactor Coil Receives Its Control Signal

The timer's switching action allows the correctly designed control circuit to energize the contactor coil.

Coil terminals are commonly identified as A1 and A2, although the exact wiring diagram should always be verified for the specific components.

Step 4: The Magnetic Mechanism Activates

Once the coil is energized, it generates a magnetic field.

That magnetic force moves the armature inside the contactor.

Step 5: The Main Contacts Close

On a Normally Open contactor, the power contacts close when the coil energizes.

This establishes the electrical path to the load.

Step 6: The Equipment Operates

Power reaches the lighting system, motor, fan, pump, or other properly matched equipment.

Step 7: The Timer Reaches the OFF Time

At the programmed OFF event, the timer changes its output.

The contactor coil de-energizes.

Step 8: The Main Contacts Open

The contactor returns to its resting state, interrupting power to the load.

The entire process can happen automatically every day according to the programmed schedule.

What Does the Electronic Timer Control?

The timer determines when the contactor should change state.

Depending on the timer design, users may be able to program:

• Specific ON times
• Specific OFF times
• Daily schedules
• Weekly schedules
• Multiple switching periods per day
• Manual overrides
• Automatic modes

For example, a 7-day timer makes it possible to create one operating schedule for weekdays and another for weekends.

That can be useful in commercial spaces where normal operating hours vary throughout the week.

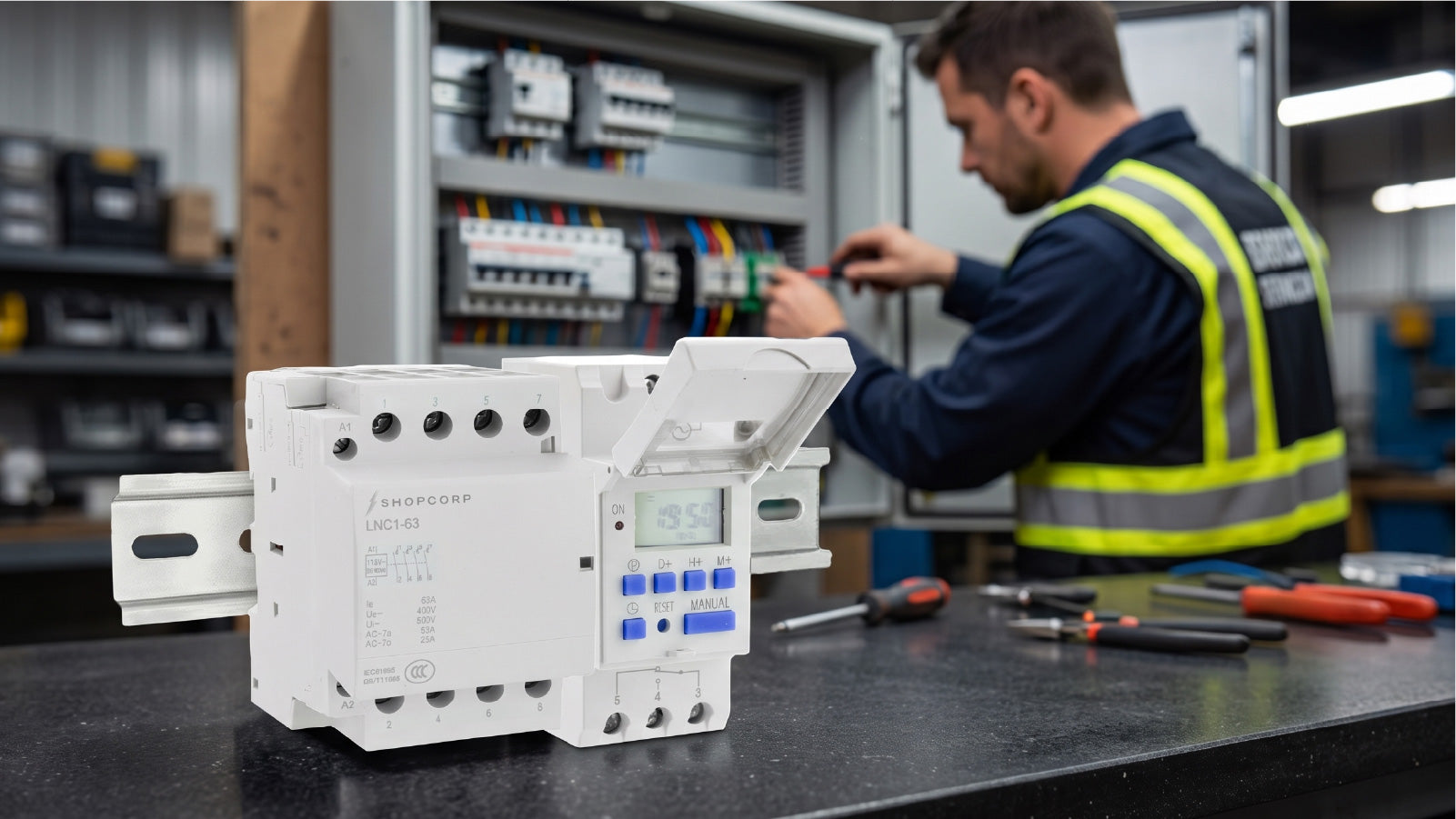

The Shopcorp bundle that inspired this article includes a 7-day/24-hour programmable timer with up to 16 separate ON/OFF settings, MAN-AUTO-OFF operation, integrated battery backup, and backup memory.

These features affect how and when the system operates. They do not replace the electrical load rating of the contactor itself.

What Does the Contactor Do in the System?

While the timer provides the schedule, the contactor handles the power-switching function.

Inside the contactor, an electromagnetic coil operates the main contacts.

When the coil energizes:

Coil activates → Armature moves → Main contacts change state

For a Normally Open design, those main contacts close and allow current to reach the connected equipment.

When the coil de-energizes, the main contacts reopen.

This is why the contactor must be evaluated according to the actual electrical application, including:

• Current
• Voltage
• Load type
• Number of poles
• Switching duty
• Coil voltage
• Contact configuration

A timer cannot compensate for an incorrectly selected contactor.

Where Are Timer-Controlled Contactors Commonly Used?

Timer-controlled contactors can be useful wherever electrical equipment needs to follow a predictable operating schedule.

Commercial Lighting

Stores, warehouses, workshops, office buildings, exterior areas, and other facilities often need lights to operate only during specific hours.

Outdoor Lighting

Parking areas, signs, landscape lighting, and exterior building lights can benefit from scheduled control.

Pumps

Some pump systems need to run at predetermined times rather than continuously.

Fans and Ventilation

Workshops and commercial spaces may schedule ventilation based on operating hours.

Motors

Certain motor-driven systems may require scheduled starting and stopping when the entire motor-control design supports that operating method.

HVAC Applications

Scheduled control can also appear within some HVAC installations, provided the contactor, timer, load, control circuit, and protection strategy are appropriate for the equipment.

The application always determines the specifications.

How Does a Timer Work with a Lighting Contactor?

A lighting contactor is one of the clearest examples of how scheduled electrical control works.

Imagine a warehouse that wants several exterior lighting circuits to turn on automatically every evening.

Instead of an employee manually operating the lights, the timer can provide the schedule.

At the programmed ON time:

Timer activates → Lighting contactor energizes → Lighting circuits receive power

At the programmed OFF time:

Timer changes state → Lighting contactor releases → Lighting circuits turn off

This approach can be particularly practical when multiple circuits need to operate from the same schedule.

The lighting contactor handles the appropriately rated lighting load, while the timer determines the operating hours.

Can Timer-Controlled Motor Contactors Be Used for Motors and HVAC?

They can, but motor and HVAC applications require careful electrical selection.

Motors are inductive loads. Starting a motor can create significantly different electrical stress than switching a simple resistive load.

That means motor contactors should be evaluated using motor-duty specifications rather than only a general amp rating.

For motor or HVAC applications, verify factors such as:

• Equipment operating voltage
• Full-load current
• Starting characteristics
• Horsepower or kW rating
• Relevant utilization/load rating
• Number of poles
• Coil voltage
• Switching frequency
• Required overload protection

The same principle applies to compressors and fan motors in HVAC equipment.

The timer controls when the equipment is commanded to operate.

It does not change what electrical load the contactor must handle.

Making Scheduled Electrical Control Work

A contactor with timer provides a practical way to automate electrical equipment by combining two distinct functions: the timer determines when the system should operate, while the contactor handles the switching of the connected load.

Whether the application involves lighting contactors, motor contactors, HVAC equipment, pumps, or fans, reliable operation depends on selecting components that match the actual electrical requirements. Before installation, always verify the coil voltage, contact rating, load type, number of poles, control voltage, and switching requirements.

 When these specifications are properly matched, a timer and contactor can work together to provide consistent, scheduled electrical control without relying on manual switching.
