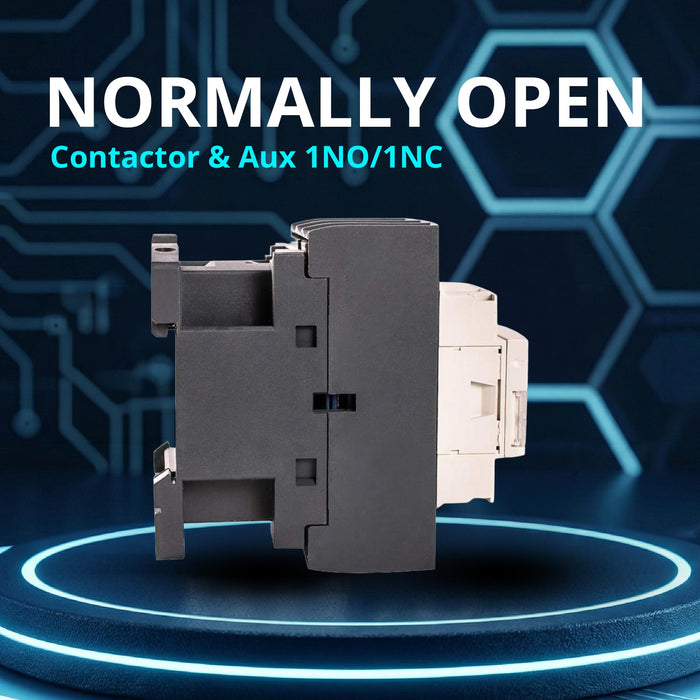

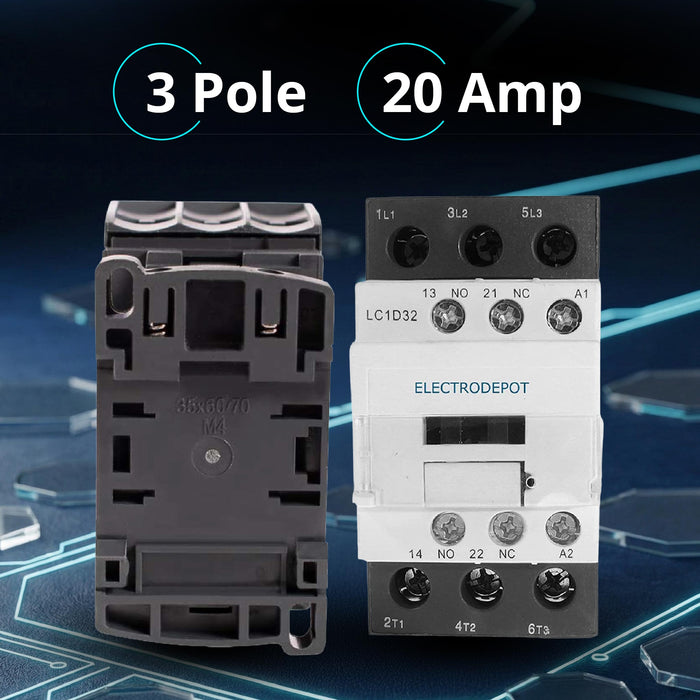

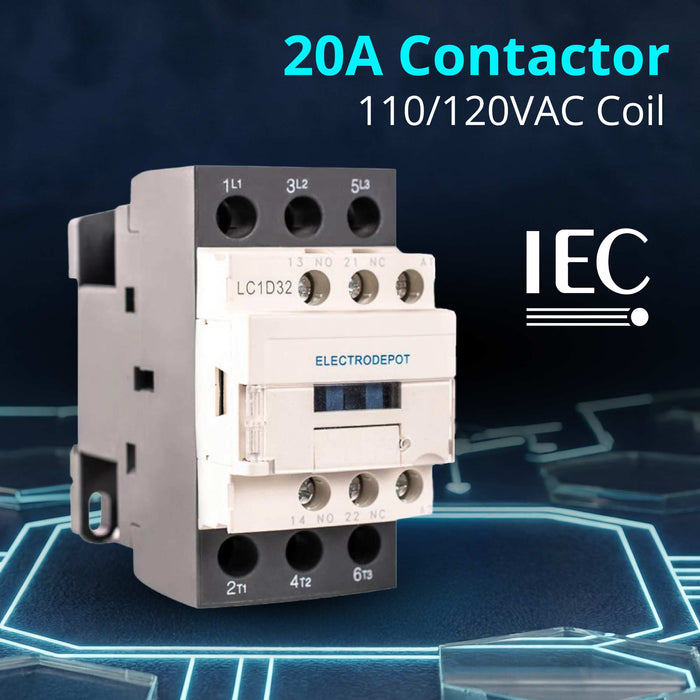

Electrodepot 20A 3 Pole IEC 660V Contactor - Normally Open and Auxiliary 1NO/1NC - 110/120VAC Coil for HVAC, AC, Motor Load and Lighting

Contactor 660V
Contactor Type: IEC
Full Load Amps-Inductive: 18
Full Load Amps-Resistive: 32
Number of Poles: 3
Coil Volts: 120VAC
Hz: 50/60
Action: Non-reversing
Enclosure Type: Open
Auxiliary Contact Form: 1NC/1NO
Coil inrush: 70VA, Sealed: 7.5VA
2 HP @ 1 Phase - 120V
5 HP @ 1 Phase - 230V
10 HP @ 3 Phase - 208V
10 HP @ 3 Phase - 230V
20 HP @ 3 Phase - 480V
30 HP @ 3 Phase - 575V
Standards: CE
Base or DIN 35mm mount

Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1.

Electrodepot 20 Amp 3 Pole IEC 110 / 120VAC Normally Open (NO) Contactor

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 20Amp 3 Pole Normally Open (NO) Contactor, designed for both home and industrial applications. This 110/120VAC contactor is meticulously crafted to meet various electrical needs, featuring compatibility with 35mm DIN rails, 1 Normally Open (NO), and 1 Normally Closed (NC) auxiliary contacts, and a user-friendly power status indicator. It excels in a wide range of applications, including lighting, motor control, and switching.

This 20Amp 3 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
