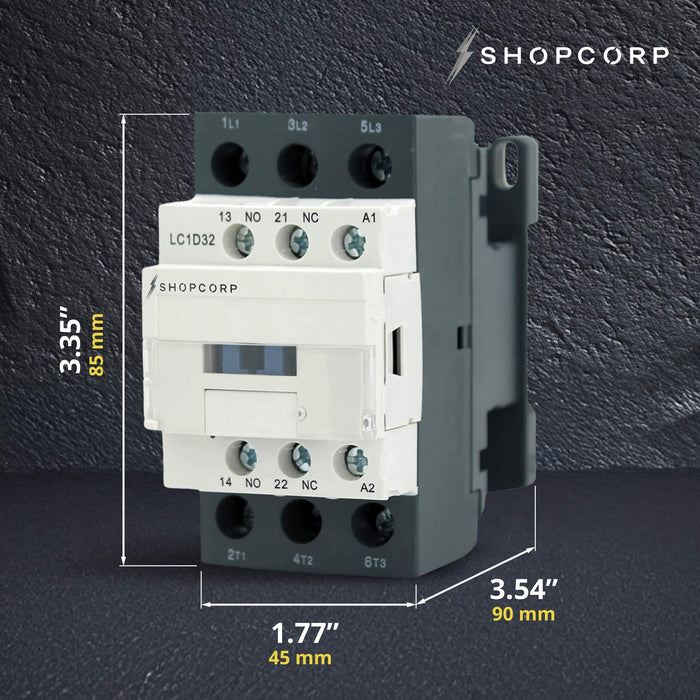

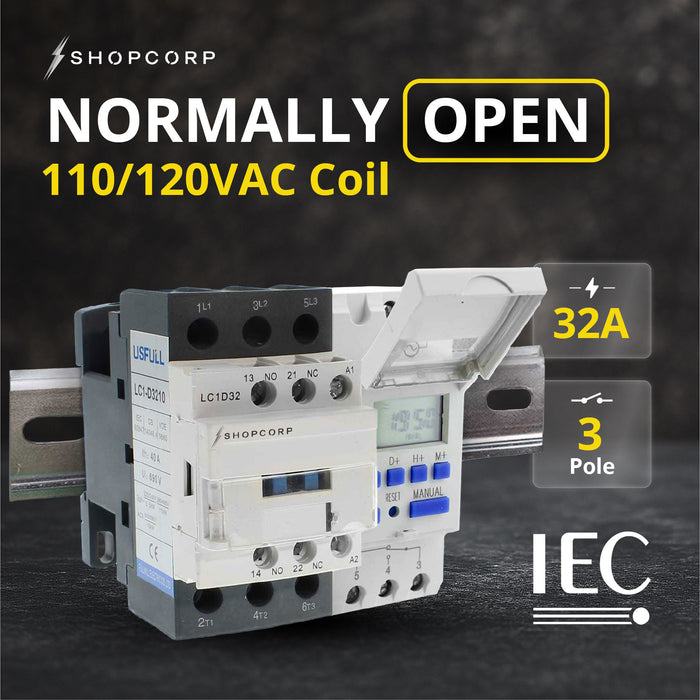

Shopcorp 30A 3 Pole Contactor NO & Aux 1NO/1NC - 110/120VAC Coil w/ 24-7 Timer, DIN Rail & Screws for Motor & Lighting

Contactor 660V
Contactor Type IEC
Inductive Load: 40A
Resistive Load: 63A
Number of Poles 3
Coil Volts: 120VAC
Hz 50/60
Action: Non-reversing
Enclosure Type Open
Auxiliary Contact Form 1NC/1NO
Coil inrush 70VA, Sealed 7.5VA
2 HP @ 1 Phase - 120V
5 HP @ 1 Phase - 230V
10 HP @ 3 Phase - 208V
10 HP @ 3 Phase - 230V
20 HP @ 3 Phase - 480V
30 HP @ 3 Phase - 575V
Standards CE
Base or DIN 35mm mount

Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Bundle Content:
5 ITEMS – One (1) 30A 3 Pole Normally Open (NO) Contactor with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts; one (1) 7 Days, 24 Hours Programmable Timer, one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail for immediate installation and two (2) screws.

Programmable Timer:
– 7 Days 24 Hours Electronic Programmable Timer for better control in home or industrial installations.
– 7 days, 24 hours accuracy to the minute
– Programmable timer mode: MAN-AUTO-OFF
– 3 year backup memory
– 16 separate ON/OFF programmable settings
– Integrated battery backup

Shopcorp 30A 3 Pole Normally Open Contactor

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 30 Amp 3 Pole Normally Open (NO) Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, featuring compatibility with DIN rail mounting, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

Backed by the trusted reputation of Shopcorp, this 30 Amp 3 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
