Why Use a 4-Pole Contactor for Scheduled Electrical Control?

A 4-pole contactor is useful for scheduled electrical control because it provides four main switching paths that can operate together from a single control signal. When connected to a compatible timer or automation controller, it allows multiple conductors or appropriately designed circuits to be switched according to a programmed schedule.

This can be particularly valuable in commercial lighting, building automation, industrial control panels, and other applications where electrical equipment must operate at specific times.

Instead of relying on someone to manually switch equipment on and off, a scheduled control system can automatically energize or de-energize the contactor at predetermined intervals.

However, the number of poles is only one part of the design. Load characteristics, voltage ratings, coil requirements, and circuit configuration all determine whether a particular contactor is suitable.

Understanding how four-pole switching works can help explain when it offers an advantage over two-pole or three-pole configurations.





What Does a 4-Pole Contactor Do in a Scheduled System?

A 4-pole contactor is an electrically operated switching device with four main contact paths.

In a typical normally open (NO) configuration, all four main contacts remain open when the coil is de-energized.

When the coil receives its rated control voltage, the contactor's mechanism closes the contacts, allowing electricity to flow through the connected switching paths.

When the control signal is removed, the contacts return to their normal open position.

This arrangement allows multiple switching paths to respond to the same control command.

What makes scheduled control different?

In a manually operated system, a person must initiate the switching action.

In a scheduled system, an external device determines when the contactor should operate.

That device might be a digital timer, programmable controller, building automation system, or another compatible control device.

For example, a commercial facility may require certain lighting circuits to operate during business hours.

A timer can provide the control signal, while the contactor handles the electrical switching within its rated capabilities.

The timer determines when the system operates. The contactor performs the switching.

Why Are Four Poles Useful for Automated Switching?

The primary advantage of a four-pole design is the ability to operate four main contact paths through one electromagnetic mechanism.

This can simplify certain control arrangements when multiple conductors must change state together.

Coordinated Switching

In an appropriately designed system, four poles can switch multiple electrical paths in response to one command.

For example, a control panel may require several lighting groups to operate on the same schedule.

Rather than assigning a separate control signal to each switching device, a suitable four-pole arrangement may provide coordinated operation.

This does not mean the four poles can automatically be used as four independent branch-circuit controllers. The circuit design, supply arrangement, protection, and contactor ratings must permit the proposed configuration.

Fewer Manual Switching Operations

Scheduled automation reduces the need for routine manual intervention.

Equipment can be programmed to operate during required hours and remain off when operation is unnecessary.

This is useful in buildings where operating schedules are predictable.

Consistent Operating Times

Automated control can provide more consistent switching than relying on manual routines.

For example, lighting can be scheduled to turn on before employees arrive and turn off after normal working hours.

Actual operation remains dependent on the timer settings, control power, and any overrides or safety interlocks.

Potential Energy Management Benefits

Scheduled switching can help reduce unnecessary energy consumption when equipment would otherwise remain energized outside required operating hours.

However, a contactor does not reduce energy consumption simply because it has four poles.

Energy savings depend on which loads are controlled, how long they operate, and whether the schedule eliminates unnecessary runtime.

How Does a 4-Pole Contactor Work with a Timer?

A timer and contactor perform separate but complementary functions.

The timer provides a programmed control output. The contactor switches the connected electrical load.

In a typical arrangement, the timer's output controls the contactor coil through an appropriately designed circuit.

When the programmed ON time arrives, the timer causes the coil to energize.

The normally open main contacts close, allowing the connected equipment to operate.

When the programmed OFF time arrives, the coil is de-energized and the main contacts open.

Example: A Commercial Lighting Schedule

Consider a facility that needs its designated lighting loads energized from 7:00 AM until 7:00 PM on weekdays.

The control system may follow this sequence:

Time	Timer command	Contactor state	Connected loads
7:00 AM	ON	Energized	Powered
12:00 PM	ON	Energized	Remain powered
7:00 PM	OFF	De-energized	Switched off
Overnight	OFF	De-energized	Remain switched off

This example assumes a normally open contactor and a correctly designed control circuit.

The contactor does not contain or determine the schedule unless the product is specifically supplied as an integrated timer-contactor assembly.

Why not connect the load directly to the timer?

Some timers are designed to switch relatively small electrical loads directly.

A contactor can be useful when the connected load requires a separate switching device with appropriate current, voltage, and utilization-category ratings.

The timer's output must also be suitable for controlling the contactor coil, including its electrical characteristics.

Using a contactor does not automatically make any timer suitable for any load.

Where Can a 4-Pole Contactor Be Used for Scheduled Control?

Four-pole switching can be useful in several applications, provided the equipment and electrical design support it.

Commercial and Industrial Lighting

Lighting systems are a common application for scheduled electrical control.

Warehouses, parking facilities, offices, and commercial buildings may operate lighting according to established schedules.

A suitable four-pole contactor can provide coordinated switching for a designed group of lighting conductors or circuits.

For LED lighting, it is important to consider driver inrush current as well as steady-state current. A contactor's general amp rating may not adequately describe its suitability for a large LED lighting load.

Building Automation

Building automation systems can use contactors to control designated electrical equipment according to occupancy schedules, operating hours, or other programmed conditions.

Four-pole configurations may be useful when the control design requires four coordinated switching paths.

Heating and Ventilation Equipment

Some heating or ventilation systems use scheduled switching as part of their control strategy.

However, HVAC contactors must be selected for the actual equipment and load characteristics.

A four-pole contactor is not automatically suitable for compressors, fan motors, or other inductive equipment merely because it has four main contacts.

Pumps and Motor-Driven Equipment

Certain pump and motor-control systems operate on scheduled cycles.

In these applications, motor contactors may be controlled by timers or programmable controllers.

A suitable motor contactor must have the appropriate motor-duty ratings, including the relevant operating voltage, current, and switching duty.

The number of poles does not replace these requirements.

Industrial Control Panels

Industrial panels sometimes require multiple switching paths to operate together.

A four-pole design can be useful when the intended circuit configuration calls for coordinated switching.

Control-panel designers must also account for short-circuit protection, conductor arrangements, operating conditions, and applicable electrical standards.

Can a 4-Pole Contactor Switch Three Phases and Neutral?

In certain electrical systems, a four-pole device may be used to switch three phase conductors and a neutral conductor.

However, this application requires careful evaluation.

The presence of a fourth pole does not automatically mean that the contactor is approved or suitable for neutral switching.

The electrical system, manufacturer documentation, applicable standards, and required switching sequence must all be considered.

Is switching the neutral always necessary?

No.

Many three-phase motor circuits do not require a switched neutral conductor.

Other electrical arrangements may have specific requirements governing whether neutral switching is permitted, required, or prohibited.

A grounded conductor must never be switched casually without considering the system's grounding and protection requirements.

Does opening all four poles provide safe isolation?

Not necessarily.

A standard contactor is designed primarily for electrical switching and may not be approved as a disconnecting or isolation device.

Even when its contacts are open, hazardous voltage may remain on the supply side or elsewhere in the installation.

Backfeeding and other electrical hazards may also exist.

Scheduled shutdown is not a substitute for an approved disconnecting means, lockout/tagout procedures, or verification of an electrically safe work condition.

Four-pole switching provides additional circuit-design options. It does not automatically provide complete electrical isolation.

What Specifications Matter for Scheduled Operation?

Selecting a contactor for scheduled control requires more than counting poles.

The following specifications should be reviewed.

Coil Voltage

The coil voltage determines the control supply required to operate the contactor.

For example, a contactor with a 110/120VAC coil requires a compatible control circuit.

The coil voltage is separate from the operating voltage of the switched load.

Contact Configuration

A normally open contactor closes its main contacts when energized.

A normally closed configuration behaves differently.

The required default state should be determined by the control design, particularly where power loss or timer failure could affect equipment operation.

Rated Operational Current

The current rating must be appropriate for the actual load and operating conditions.

A contactor may have different ratings for resistive and inductive loads.

These values should not be treated as interchangeable.

Load Type

Lighting, heating, and motor loads have different switching characteristics.

For example, AC contactors used for motor loads may require an appropriate motor-duty utilization category.

LED lighting loads can introduce high inrush currents that must also be considered.

Switching Frequency

A scheduled system may operate once or twice daily, or it may switch much more frequently.

The expected number of operations affects the selection of the contactor and its electrical endurance.

Electrical and Mechanical Endurance

Mechanical endurance describes the device's ability to perform mechanical operations under specified conditions.

Electrical endurance relates to switching operations under defined electrical loads.

These ratings are not equivalent.

Environmental and Installation Requirements

The operating environment may affect the choice of contactor.

Relevant considerations include ambient temperature, enclosure conditions, mounting arrangement, terminal requirements, and applicable product certifications.

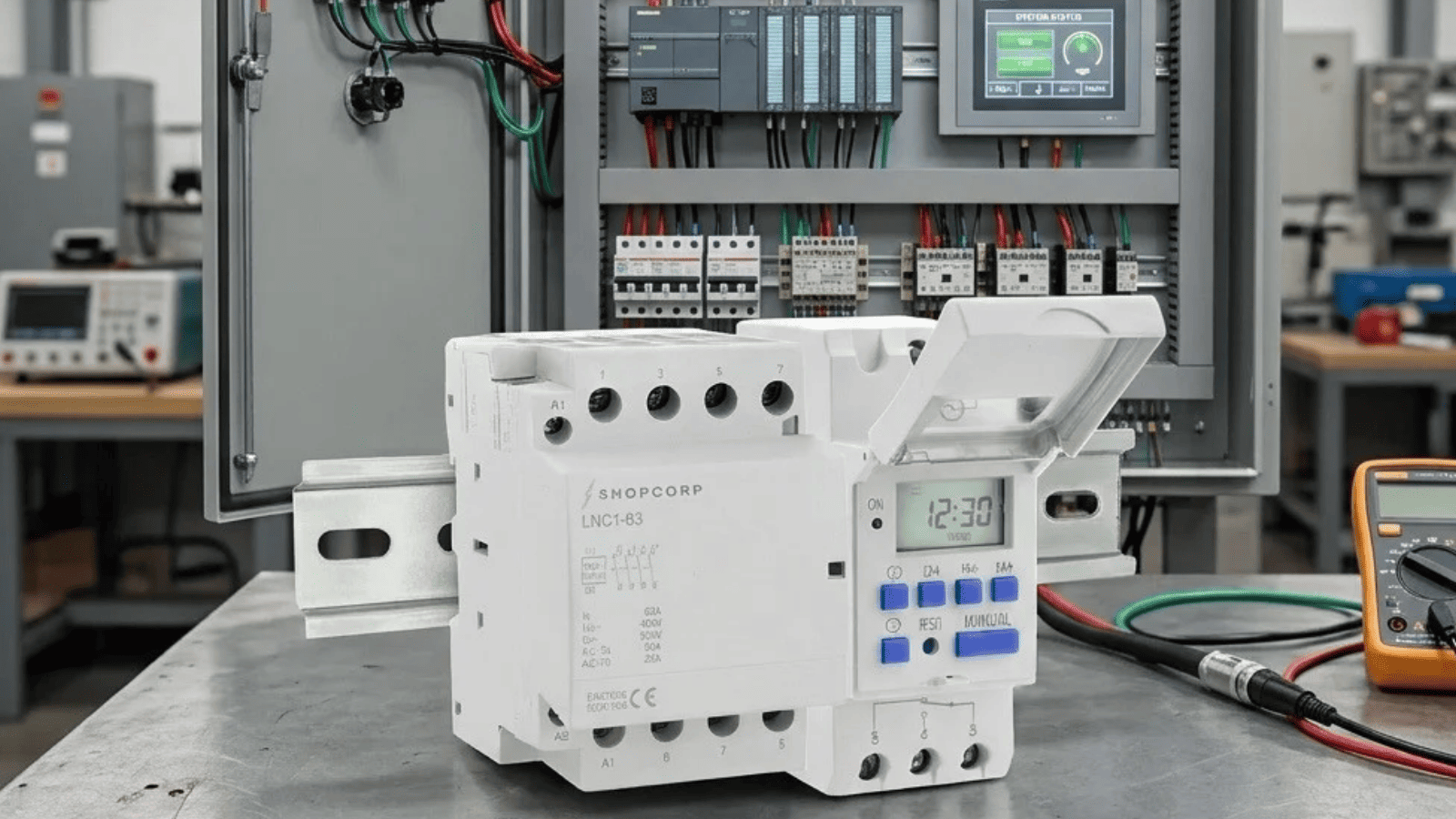

Example: A Shopcorp 4-Pole Contactor with Timer

A practical example is the Shopcorp four-pole normally open contactor supplied with a programmable timer.

Based on the provided product specifications, the contactor includes:

Specification	Value
Main contacts	4-pole, Normally Open
Coil voltage	110/120VAC
Inductive load rating	40A
Resistive load rating	63A
Control arrangement	Contactor paired with timer

These specifications illustrate why load type and coil voltage must be evaluated separately.

The 40A inductive rating and 63A resistive rating describe different load conditions. Neither should be assumed to apply universally to every lighting or motor application.

The timer adds scheduled control, while the contactor provides the main switching function.

For an installation requiring multiple coordinated switching paths, this arrangement may be useful when the circuit and equipment ratings are compatible.

Explore the Shopcorp 4-Pole Contactor with Timer to review the product details.

Common Mistakes When Using Contactors with Timers

Several selection and design errors can affect scheduled electrical control.

Assuming Four Poles Mean Four Independent Schedules

A standard four-pole contactor operates its main contacts together.

Separate schedules generally require independently controlled switching devices or an appropriate alternative control system.

Confusing Coil Voltage with Load Voltage

The control voltage used to energize the coil is not necessarily the same as the voltage being switched by the main contacts.

Both must be checked independently.

Ignoring Load Characteristics

A resistive current rating should not automatically be applied to motors or other inductive loads.

Likewise, lighting loads with significant inrush current may require specific switching ratings.

Treating the Timer as a Protective Device

A timer controls operating periods.

It does not replace required overload protection, short-circuit protection, or safety controls.

Assuming Scheduled OFF Means Electrically Safe

An open contactor does not necessarily provide approved electrical isolation.

Maintenance work requires appropriate isolation procedures and verification.

Overlooking the Equipment's Operating Sequence

Some equipment requires a controlled startup or shutdown sequence.

For example, certain HVAC systems and motors have protection delays, interlocks, or manufacturer-specific requirements.

An external timer should not bypass these functions.

When Four Poles Make Sense

A 4-pole contactor can be a practical component in scheduled electrical control systems that require four coordinated switching paths.

Combined with a compatible timer or automation controller, it can help manage equipment operation according to predetermined schedules.

Its value comes from matching the switching configuration to the application, not simply from having more poles.

For commercial lighting, industrial control panels, and selected motor or HVAC applications, the appropriate contactor must be chosen according to the actual circuit design and electrical specifications.

At Contactor Depot, we specialize in contactors for lighting, HVAC, motor loads, and industrial control applications.

If you are comparing a two-pole, three-pole, or four-pole model, our team can help you review coil voltage, contact configuration, current ratings, and application requirements before purchasing.

Choose the number of poles your circuit needs, and the ratings your load requires.
