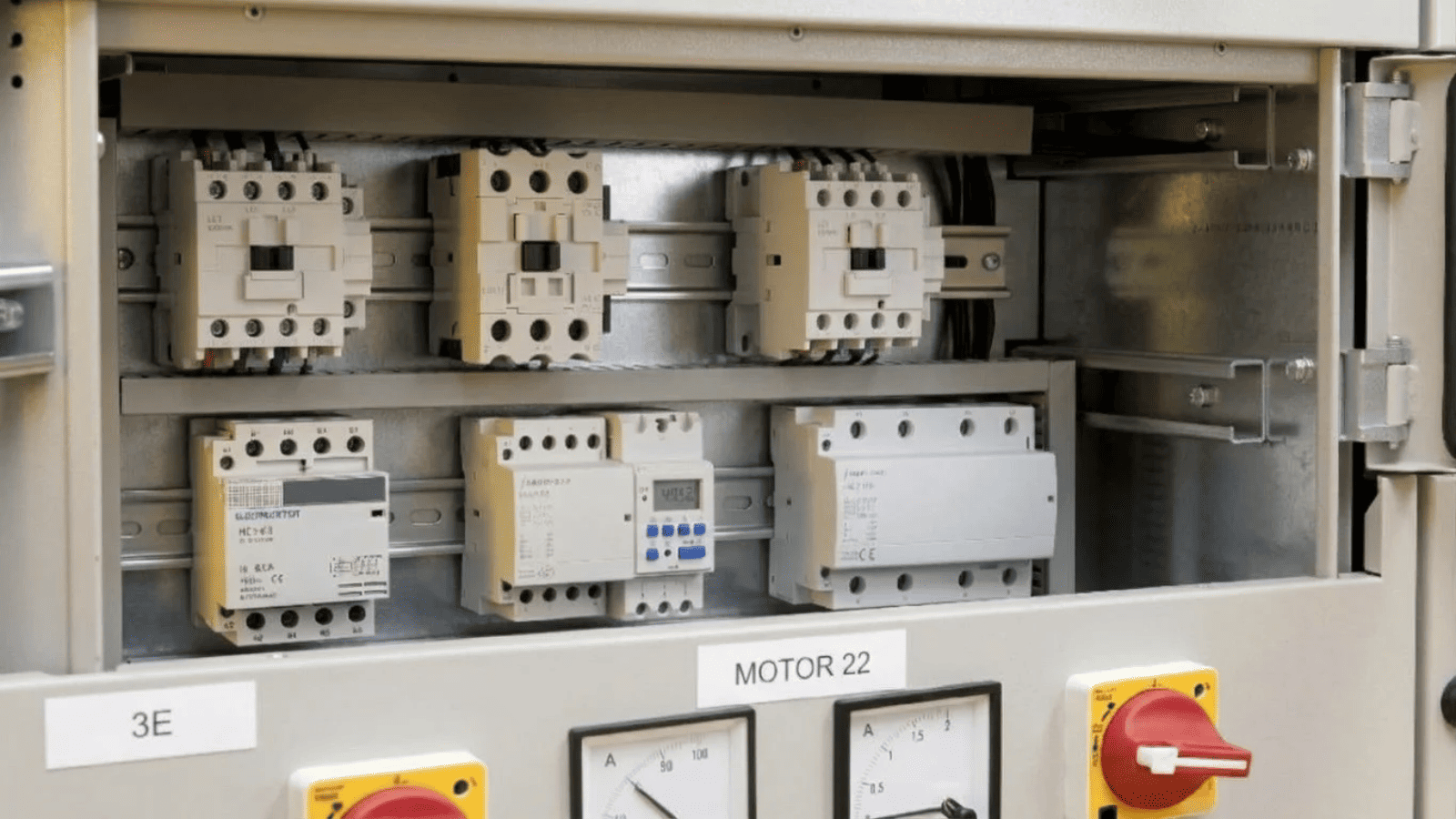

Why Does the Breaker Trip When the Contactor Turns On?

When a circuit breaker trips as soon as a contactor turns on, the problem may be caused by a short circuit, ground fault, damaged wiring, a faulty compressor, or excessive motor starting current. In some cases, an incorrectly wired or damaged contactor can also contribute to the problem.

The timing of the trip provides an important diagnostic clue. A breaker that trips immediately when the contactor closes may indicate a high-current fault, while a breaker that trips after the equipment has been running may point toward overload, overheating, or another operating issue.

However, the contactor is not necessarily the defective component. It may simply be connecting power to a motor, compressor, or other load that already has an electrical problem.

Understanding the relationship between the breaker, contactor, and connected equipment can help technicians identify where to investigate before replacing components unnecessarily.

Important safety note: A breaker that repeatedly trips may indicate a dangerous electrical fault. Do not continue resetting it or attempt to bypass its protection. Electrical testing, isolation, and repairs should be performed by qualified personnel using appropriate lockout/tagout procedures.





What Happens When a Contactor Turns On?

A contactor is an electrically operated switch used to control power to equipment such as motors, compressors, fans, pumps, and HVAC systems.

It typically has two separate electrical functions:

• Control circuit: Energizes the contactor's electromagnetic coil.

• Power circuit: Carries electricity to the connected equipment through the main contacts.

When the correct voltage reaches the coil, the magnetic mechanism moves the contacts into their energized position.

For a normally open contactor, this closes the main power circuit and allows the connected load to receive electricity.

For example, in an air conditioning system, an HVAC control board may energize the contactor coil when cooling is requested.

The contactor then closes its main contacts, supplying power to the compressor and other connected components according to the equipment's wiring design.

Why does the breaker trip at that moment?

The breaker may trip because closing the contactor completes a circuit containing an electrical fault.

Before the contacts close, the affected load may not be receiving power.

Once the contactor engages, the fault becomes energized, potentially causing the breaker to operate.

This distinction matters because the timing alone does not prove that the contactor itself has failed.

Why Does the Breaker Trip Immediately When the Contactor Engages?

An immediate trip often directs attention toward high fault current, but several conditions can produce similar symptoms.

The most common possibilities involve the connected load, wiring, motor starting characteristics, or protective device.

1. Short Circuits and Ground Faults

A short circuit occurs when an unintended low-impedance electrical connection develops between points at different electrical potentials.

A ground fault occurs when current flows through an unintended path to ground.

Both conditions can cause excessive current and activate the circuit breaker's protective mechanism.

Possible causes include:

• Damaged wire insulation

• Conductors touching metal enclosures

• Loose strands bridging terminals

• Incorrect wiring connections

• Damaged motor windings

• Moisture-related insulation deterioration

If the fault is located on the load side of a normally open contactor, it may only become energized when the contacts close.

That can explain why the breaker trips at the exact moment the contactor engages.

2. A Shorted or Grounded HVAC Compressor

In an air conditioning system, the compressor is one of the most important components to evaluate when the breaker trips during startup.

A compressor contains motor windings that must remain electrically insulated from the compressor housing and from one another as designed.

If the insulation deteriorates, a winding may develop a short circuit or ground fault.

When the HVAC contactor closes and supplies power, the fault can produce excessive current.

The breaker may then trip to interrupt the circuit.

However, not every compressor-related trip indicates a grounded winding. Mechanical problems, starting-component failures, and excessive starting current can produce different electrical symptoms.

A qualified HVAC technician must determine which condition is present.

3. Motor Overload or Locked Rotor

Electric motors normally draw more current during startup than during steady operation.

This is expected behavior.

However, a motor that cannot accelerate properly may continue drawing high current.

One possible cause is a locked rotor.

A locked-rotor condition can occur when a motor is mechanically unable to rotate or accelerate as intended.

Potential contributing factors include:

• Mechanical binding

• Damaged bearings

• Seized equipment

• Compressor mechanical failure

• Inadequate starting torque

• Problems with applicable motor-starting components

If the motor remains in a high-current condition, the breaker or other protective device may operate.

The exact trip timing depends on the current, breaker characteristics, motor circuit, and protection design.

4. Damaged Wiring or Incorrect Connections

The wiring around a contactor is another possible source of trouble.

A conductor with damaged insulation may contact another conductor or a grounded surface.

Similarly, an incorrect connection can create an unintended electrical path when the contactor closes.

Potential problems include:

• Pinched wires

• Frayed insulation

• Loose conductor strands

• Incorrect terminal connections

• Damaged connectors

• Improperly installed replacement components

A wiring fault may exist even when the contactor appears physically intact.

This is why technicians should not assume that replacing the contactor will resolve every breaker-tripping problem.

5. Faulty Capacitors or Starting Components

Some single-phase motors and HVAC compressors use capacitors or other starting components to establish the electrical conditions needed for operation.

When these components fail, the motor may have difficulty starting.

A motor that fails to accelerate can remain in a high-current condition and eventually cause protective equipment to trip.

A shorted capacitor can also create an electrical fault, depending on the circuit.

Signs of a starting-related problem may include:

• A motor that hums but does not start

• Repeated unsuccessful starting attempts

• A breaker that trips during startup

• Unusual motor noises

• Equipment that shuts down shortly after attempting to operate

These symptoms are not exclusive to capacitor failures.

Capacitors can retain hazardous electrical energy after power is disconnected, so inspection and testing require appropriate procedures and equipment.

6. An Incorrect or Defective Circuit Breaker

The circuit breaker itself may also need evaluation.

A breaker must be suitable for the equipment and circuit it protects.

Motor circuits can have significant starting current, and the protective device must be selected according to the applicable electrical requirements.

Possible issues include:

• Incorrect breaker type

• Improper breaker rating

• Damaged or deteriorated breaker

• Loose or damaged connections

• Incompatibility with the equipment's protection requirements

A breaker that trips does not necessarily mean it is defective.

It may be operating correctly in response to an electrical fault.

Never increase the breaker rating simply to prevent nuisance trips. Protective-device selection must comply with the equipment specifications and applicable electrical codes.

Can a Bad Contactor Cause a Breaker to Trip?

Yes, a defective or incorrectly installed contactor can contribute to breaker trips.

However, not every contactor failure produces this symptom.

For example, pitted contacts may create increased resistance and localized heating, but they do not automatically create a short circuit.

Other failures can affect the circuit differently.

Damaged Contact Insulation

If internal insulation deteriorates or conductive material creates an unintended connection, the contactor assembly may develop an electrical fault.

Incorrect Wiring

A replacement contactor with different terminal arrangements or an incorrect wiring configuration can create serious electrical problems.

Mechanical or Contact Damage

A damaged mechanism may prevent contacts from opening or closing correctly.

Welded contacts can leave a load energized when it should be disconnected, creating a different hazard from an immediate breaker trip.

Incorrect Coil Voltage

A coil supplied with the wrong voltage may chatter, fail to energize, overheat, or become damaged.

An incorrect coil voltage does not automatically explain a main power-circuit breaker trip, however. The relationship depends on the control circuit and the actual failure.

For this reason, troubleshooting should distinguish between the contactor coil, the main contacts, and the connected load.

If the contactor produces an unusual buzzing or vibrating sound, the issue may involve unstable coil voltage, internal wear, or mechanical vibration. These symptoms do not necessarily indicate a short circuit, but they should still be investigated. Learn more in our guide: Why Is My AC Contactor Buzzing? Causes, Risks, and Fixes Explained.

What Does the Timing of the Breaker Trip Tell You?

One of the most useful observations is when the breaker trips relative to the equipment's operating sequence.
Although timing cannot establish a diagnosis by itself, it can help narrow the possibilities.

When the breaker trips	Possible causes to investigate
Immediately when the contactor closes	Short circuit, ground fault, wiring fault, or severe starting-current condition
During motor startup	Locked rotor, starting-component problems, excessive starting current, or a fault
After several minutes of operation	Sustained overload, overheating, equipment problems, or protective-device issues
Intermittently	Loose or damaged connections, intermittent faults, changing loads, or equipment problems
Before the main contacts close	Faults in the supply or control circuit, depending on the wiring arrangement

The breaker type and its trip characteristics also matter.

Instantaneous Trip vs. Delayed Trip

Circuit breakers may respond differently to high fault currents and sustained overcurrent conditions.

An instantaneous magnetic trip is commonly associated with sufficiently high current.

A thermal or electronic overcurrent response may operate after current exceeds the applicable threshold for a period of time.

However, a breaker trip that appears immediate to an observer does not prove the exact protective mechanism that operated.

A qualified technician must consider the breaker's design and the electrical measurements.

How Do Technicians Diagnose a Breaker That Trips?

Troubleshooting begins with identifying the circuit and establishing safe working conditions.

A qualified technician will typically review the equipment documentation and determine which loads are controlled by the contactor.

Step 1: Review the Equipment and Circuit

The technician identifies the equipment involved and examines the electrical design.

Important information includes:

• Equipment operating voltage

• Motor or compressor ratings

• Circuit breaker specifications

• Contactor configuration

• Control voltage

• Connected loads

• Manufacturer wiring diagram

This establishes what the system is supposed to do before testing begins.

Step 2: Establish an Electrically Safe Work Condition

Before opening equipment or inspecting electrical components, qualified personnel follow appropriate isolation and lockout/tagout procedures.

The absence of voltage must be verified using suitable test equipment and approved procedures.

Turning off a thermostat or removing a control signal does not necessarily disconnect hazardous voltage from the contactor or equipment.

Step 3: Inspect the Wiring and Contactor

A visual inspection may reveal evidence of:

• Burned or discolored terminals

• Damaged insulation

• Loose connections

• Incorrect wiring

• Signs of overheating

• Physical damage to the contactor

Visual inspection alone cannot confirm every electrical fault.

Step 4: Evaluate the Connected Motor or Compressor

Depending on the equipment and manufacturer instructions, qualified technicians may perform appropriate resistance, insulation, or other electrical tests.

These tests help determine whether a motor or compressor has a winding fault or another electrical problem.

Insulation-resistance testing requires particular care because test voltages can damage connected electronic components if the equipment is not properly prepared.

Results must be interpreted using the manufacturer's criteria rather than relying on one universal resistance threshold.

Step 5: Check Starting Components and Operating Current

Where applicable, technicians may evaluate capacitors, starting devices, motor current, and related components.

Any energized testing must be performed only by qualified personnel using appropriate protective equipment and procedures.

Step 6: Verify the Protective Device

The breaker and associated circuit protection are evaluated against the equipment requirements and applicable electrical codes.

The goal is to determine whether the breaker is responding to a genuine electrical problem or whether the protective-device installation itself requires correction.

A complete diagnosis identifies the cause before parts are replaced or the circuit is returned to service.

Should You Replace the Contactor or Check the Load First?

Replacing a contactor may be appropriate when inspection or testing confirms that it is defective.

But if the breaker trips because of a grounded compressor, damaged motor winding, or shorted conductor, installing a new contactor will not correct the underlying fault.

This is especially important in HVAC systems.

A technician may observe that the breaker trips precisely when the HVAC contactor closes and assume the contactor is responsible.

In reality, the contactor may be functioning exactly as intended: closing its contacts and supplying power to the connected equipment.

The fault may exist farther downstream.

When does contactor replacement make sense?

Replacement may be justified when the device has:

• Confirmed internal electrical damage

• A defective coil

• Mechanically damaged contacts

• Welded contacts

• Excessive contact deterioration

• A failed operating mechanism

• Ratings that do not match the intended application

Before replacing a contactor, verify the relevant electrical and physical specifications.

For motor contactors, this may include the applicable motor-duty rating, operating voltage, coil voltage, number of poles, auxiliary contacts, and mounting requirements.

For HVAC contactors, the equipment's original specifications and wiring design are especially important.

How Can You Prevent Breaker Trips in HVAC and Motor Circuits?

Not every breaker trip can be prevented, but proper equipment selection, installation, and maintenance can reduce the risk of avoidable electrical problems.

Use Correctly Rated Contactors

A contactor must be suitable for the connected electrical load.

For motor applications, this means checking the relevant motor-duty rating rather than relying only on a general-purpose current rating.

Match the Coil Voltage

The coil must be compatible with the control circuit.

Incorrect coil voltage can lead to unreliable operation or damage.

Inspect Electrical Connections

Damaged insulation, loose terminals, and deteriorated conductors can create electrical hazards.

Connections should be installed and maintained according to the manufacturer's specifications, including terminal tightening torque.

Maintain Motors and Compressors

Mechanical problems can affect electrical starting and operating conditions.

Proper equipment maintenance can help identify issues before they result in repeated faults or shutdowns.

Verify Protective-Device Coordination

Breakers, fuses, overload protection, and contactors perform different functions.

The protection system should be designed for the equipment and its electrical characteristics.

Investigate Repeated Trips

A breaker that trips repeatedly is providing information about a possible problem.

Resetting it without diagnosing the cause can expose equipment and personnel to additional hazards.

Frequently Asked Questions

Why does my AC breaker trip when the contactor engages?

Possible causes include a compressor ground fault, damaged wiring, a failed motor, excessive starting current, or a problem with the protective device.

The exact cause requires electrical diagnosis.

Can a bad HVAC contactor trip a breaker?

Yes. A damaged or incorrectly wired HVAC contactor can contribute to an electrical fault.

However, a breaker that trips when the contactor closes may also indicate a problem with the connected compressor or other equipment.

Can a faulty compressor cause an immediate breaker trip?

Yes. A compressor with shorted or grounded motor windings can produce excessive fault current when energized.

Other compressor-related conditions, including mechanical seizure or starting problems, may also lead to breaker trips.

Can a bad capacitor cause the breaker to trip?

Yes. A shorted capacitor or a starting-system problem can contribute to breaker trips, depending on the circuit and failure mode.

However, a capacitor should not be replaced without confirming the diagnosis.

Does a contactor protect a motor from short circuits?

No. A standard motor contactor is primarily a switching device.

Short-circuit and overload protection require appropriately selected protective devices within the electrical system.

Should I keep resetting the breaker if it trips when the contactor turns on?

No. Repeatedly resetting a breaker without identifying the cause can be dangerous.

Leave the affected equipment out of service until a qualified professional has investigated the problem.

Find the Fault Before Replacing the Contactor

When a breaker trips as soon as a contactor turns on, the timing can provide a useful clue, but it does not identify the failed component by itself.

Short circuits, ground faults, damaged wiring, compressor failures, motor starting problems, and protective-device issues can all produce breaker-tripping symptoms.

In many cases, the contactor is simply the device that connects power to the affected load.

For this reason, troubleshooting should consider the entire electrical circuit rather than focusing exclusively on the contactor.

Whether the equipment uses AC contactors, HVAC contactors, or industrial motor contactors, selecting properly rated components and identifying the actual cause of a fault are essential for reliable operation.

At Contactor Depot, we specialize in electrical contactors for HVAC, motor control, lighting, and industrial applications.

If a contactor needs replacement, our team can help you compare coil voltage, current ratings, pole configurations, and other technical specifications to identify a suitable option.

Diagnose the electrical problem first. Replace the contactor only when the specifications and condition justify it.
