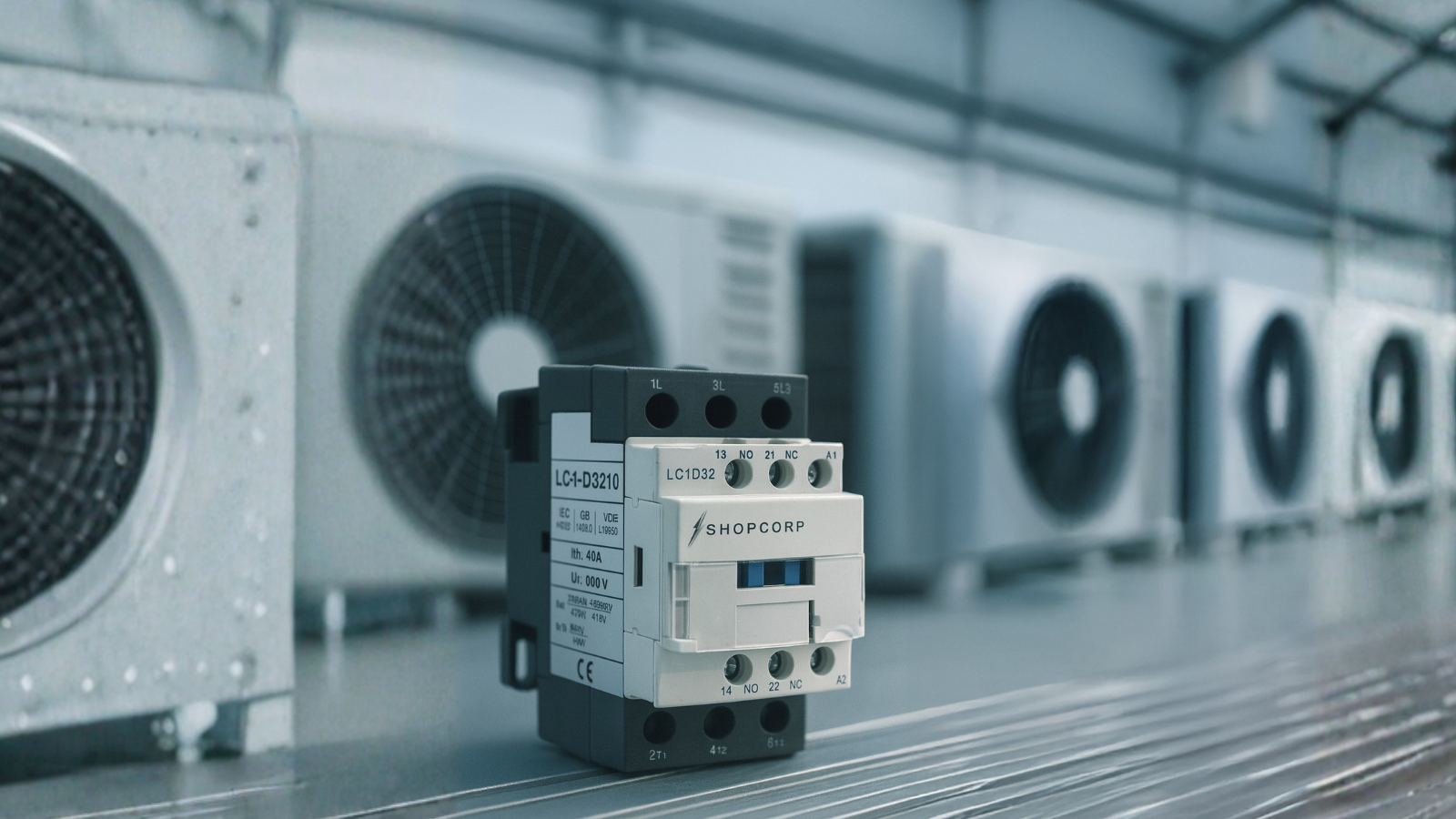

What Happens When a Contactor Is Oversized or Undersized? Understanding the Real Risks

In electrical systems, choosing the right contactor size is not just a technical detail, it is a critical decision that directly impacts safety, performance, and equipment lifespan. Whether you are working with HVAC units, motors, lighting circuits, or industrial loads, improper sizing of contactors can lead to inefficiencies, unexpected failures, and costly downtime.

Understanding what happens when a contactor is undersized or oversized helps technicians, engineers, and facility managers avoid common mistakes and build more reliable electrical systems.

Why Contactor Sizing Matters in Electrical Systems

A contactor acts as the switching bridge between control signals and high-power electrical loads. It must handle not only the normal operating current, but also startup surges, switching frequency, and environmental conditions.

When the contactor size does not match the application, performance issues appear quickly, especially in HVAC contactors, motor contactors, and lighting contactors that cycle frequently.

Proper sizing ensures:

• Stable electrical connections

• Reduced heat buildup

• Safe switching under load

• Longer service life for connected equipment

What Happens When a Contactor Is Undersized?

An undersized electrical contactor is one of the most common causes of premature system failure.

When the contactor cannot handle the required current, several problems occur:

Overheating and Excessive Arcing

Contacts designed for lower amperage generate excessive heat when overloaded. This heat causes arcing every time the contactor switches, accelerating wear.

Premature Contact Failure

Burned, pitted, or deformed contacts reduce conductivity. In severe cases, contacts can weld together, leaving the equipment permanently energized.

System Malfunctions and Shutdowns

Undersized contactors often lead to intermittent operation, failed startups, or sudden shutdowns in motors, compressors, and HVAC systems.

Increased Fire Risk

Sustained overheating and arcing significantly increase the risk of insulation breakdown and electrical fires, especially in enclosed panels.

Is an Oversized Contactor Always a Safe Choice?

While oversizing is often seen as a precaution, an oversized contactor is not always the best solution.

Reduced Contact Pressure

Oversized contactors may not generate enough contact force when switching smaller loads. This can lead to poor electrical connections.

Higher Electrical Resistance

Loose or incomplete contact engagement increases resistance, causing localized heating and energy losses.

Inefficient Operation

Oversized contactors can remain energized longer than necessary, consuming unnecessary control power and reducing system efficiency.

Inconsistent Switching

In low-load applications, oversized contactors may fail to switch reliably, especially in lighting or control circuits.

Although less dangerous than undersizing, oversizing still compromises performance and reliability.

How Proper Contactor Sizing Prevents System Failures

Correct sizing balances safety, efficiency, and durability.

A properly selected contactor:

• Handles full load current (FLA) without overheating

• Manages inrush current during motor startup

• Maintains strong contact pressure under load

• Switches reliably across frequent duty cycles

This is especially important for motor contactors, where inrush current can be several times higher than normal operating current.

Key Factors to Consider When Selecting the Right Contactor

Choosing the correct contactor involves more than matching amperage:

Load Type

• Inductive loads (motors, compressors) require higher ratings

• Resistive loads (heating, lighting) follow different switching behavior

Inrush and Starting Current

Motor and HVAC systems draw high current at startup. The contactor must be rated to withstand this surge repeatedly.

Duty Cycle

Frequent on/off cycling requires contactors designed for continuous operation and high mechanical endurance.

Environmental Conditions

Dust, humidity, vibration, and temperature extremes all affect contactor performance and lifespan.

Why Correct Sizing Is Critical for HVAC, Motor, and Lighting Applications

In HVAC contactors, improper sizing can damage compressors or cause systems to run continuously.
In motor contactors, incorrect sizing leads to failed startups and excessive wear.
In lighting contactors, oversizing may cause unreliable switching and energy waste.

Every application demands a contactor sized for its real electrical behavior, not just its nominal rating.

Build Safer Systems with Properly Sized Contactors

Using the right electrical contactor prevents overheating, arcing, and premature failure while protecting the equipment it controls. Proper sizing reduces maintenance costs, improves energy efficiency, and ensures long-term reliability across residential, commercial, and industrial systems.
