Auxiliary Contacts Explained: Improving Contactor Control and Safety

In modern electrical installations, reliability, safety, and control go far beyond simply switching power on and off. While the main contactor handles high-current loads, auxiliary contacts play a critical supporting role by providing feedback, interlocking, and control logic. Together, they form the backbone of efficient and intelligent electrical systems used across HVAC, motor control, lighting, and automation applications.

Understanding how auxiliary contacts work and why they matter helps technicians, engineers, and facility managers design safer and more reliable systems.

What Are Auxiliary Contacts in a Contactor?

Auxiliary contacts are secondary, low-power contacts mechanically linked to the main contacts of a contactor. When the main contacts open or close, the auxiliary contacts change state simultaneously, but in a separate control circuit.

Unlike the main power contacts that carry high current, auxiliary contacts operate at low voltage and low current, making them ideal for signaling, monitoring, and logic functions without exposing sensitive control devices to electrical stress.

They are commonly found on electrical contactors, HVAC contactors, motor contactors, and lighting contactors, either built-in or as add-on auxiliary blocks.

How Auxiliary Contacts Work Alongside Main Contacts

Auxiliary contacts are mechanically coupled to the contactor’s armature. When the coil is energized:

• The main contacts close to supply power to the load

• The auxiliary contacts switch at the same time

• Control circuits receive confirmation of the contactor’s state

Because they operate in a separate circuit, auxiliary contacts allow control systems to “see” what the power circuit is doing without carrying the load themselves.

This separation is essential for system safety, diagnostics, and automation.

Normally Open vs Normally Closed Auxiliary Contacts

Auxiliary contacts are available in two standard configurations:

Normally Open (NO) Auxiliary Contacts

• Open when the contactor is de-energized

• Close when the contactor coil is energized

• Commonly used for run indicators, status signals, and PLC inputs

Normally Closed (NC) Auxiliary Contacts

• Closed when the contactor is de-energized

• Open when the contactor coil is energized

• Often used for interlocking, safety circuits, and fault signaling

Selecting the correct NO or NC configuration is critical to ensuring proper system logic and safe operation.

Why Are Auxiliary Contacts Essential in Control Circuits?

Auxiliary contacts extend the functionality of a contactor far beyond basic switching. They allow electrical systems to operate intelligently and safely by:

• Providing real-time status feedback

• Enabling interlocking between devices

• Supporting automation and PLC logic

• Reducing electrical stress on control equipment

Without auxiliary contacts, many modern control and automation systems would lack visibility into actual equipment operation.

Common Applications for Auxiliary Contacts

Status Indication and Visual Feedback

Auxiliary contacts are frequently used to power indicator lights on control panels. For example:

• Green light when a motor is running

• Red light when equipment is stopped or faulted

This visual confirmation improves troubleshooting and operational awareness.

Interlocking for Safe Operation

In systems where multiple machines must not operate simultaneously, auxiliary contacts prevent unsafe conditions. For example:

• Preventing a second motor from starting while another is running

• Ensuring access doors are closed before equipment energizes

Interlocking is especially critical in industrial automation and motor control systems.

PLC and Automation Feedback

Auxiliary contacts provide digital signals to PLCs, allowing automation systems to:

• Confirm that a motor contactor has engaged

• Detect faults or abnormal states

• Trigger alarms or shutdowns

This feedback loop is essential for reliable automated processes.

Auxiliary Contacts in HVAC, Lighting, and Motor Systems

In HVAC systems, auxiliary contacts help confirm compressor or fan operation and enable staged control.
In lighting systems, they support centralized lighting control and automation schedules.
In motor applications, they provide confirmation that motors are running as commanded and help protect equipment from improper sequencing.

Across all these applications, auxiliary contacts enhance both safety and system intelligence.

Installation and Expansion Options

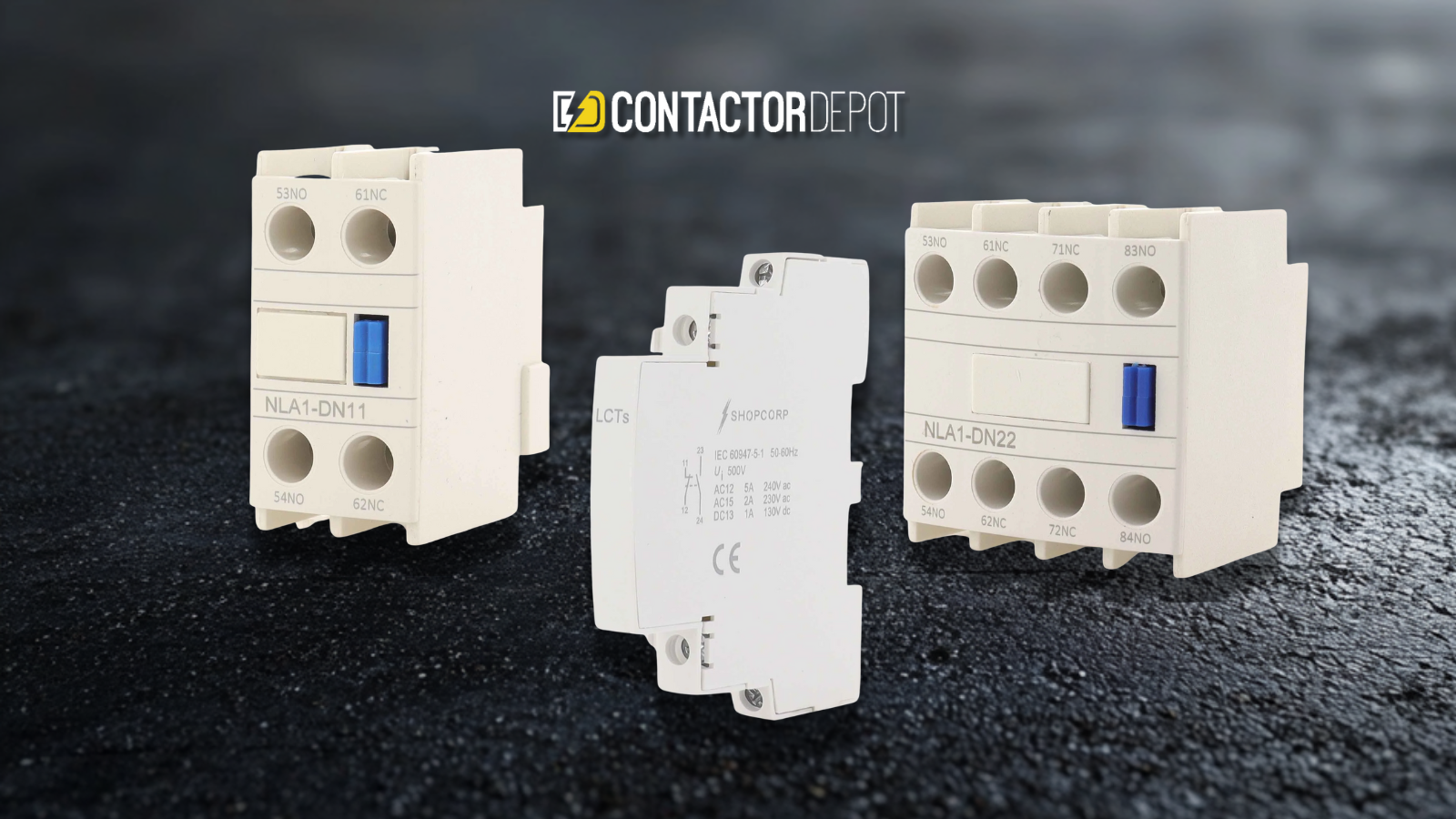

Auxiliary contacts are commonly available as modular add-on blocks that mount to the front or side of a contactor. This modular design allows technicians to:

• Expand functionality without replacing the main contactor

• Customize control logic for specific applications

• Simplify future system upgrades

Proper installation ensures reliable mechanical linkage and accurate signaling.

Why Auxiliary Contacts Improve System Reliability

By offloading control logic and signaling from the main power circuit, auxiliary contacts reduce wear on primary components and protect sensitive devices. They also help detect issues early, preventing minor faults from becoming major failures.

In demanding environments where uptime matters, auxiliary contacts play a key role in maintaining long-term reliability.

Choosing the Right Contactor Configuration

When selecting a contactor, consider not only current and voltage ratings but also auxiliary contact requirements. The right combination ensures:

• Accurate system feedback

• Safer operation

• Better compatibility with automation and control systems

At Contactor Depot, our range of contactors supports auxiliary contact integration designed for HVAC, lighting, and motor load applications.
