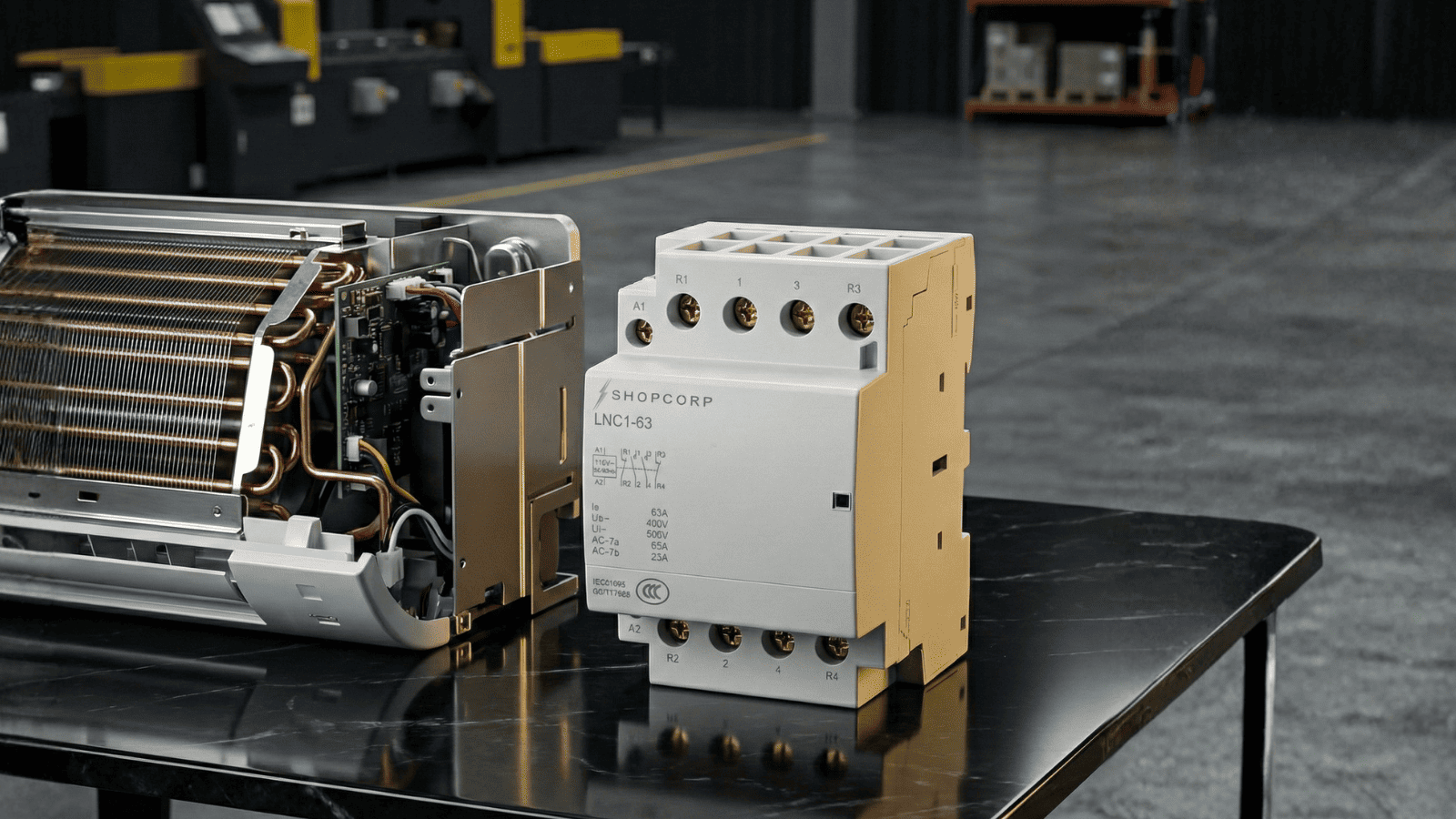

HVAC Contactor Wiring Explained: A1, A2, L1, L2, T1, T2 Terminals

Understanding how an HVAC contactor is wired is essential for anyone working with air conditioning systems, whether for troubleshooting, maintenance, or installation.

A contactor acts as the bridge between low-voltage control signals and high-voltage power. When wired correctly, it allows your system to safely control components like the compressor and fan motor.

In this guide, we break down what each terminal means and how the entire wiring system works in real HVAC applications.

What is an HVAC contactor and how does it work in an AC system?

An HVAC contactor is an electrically controlled switch that allows a low-voltage signal, usually from a thermostat, to control high-voltage components.

In simple terms:

• The thermostat sends a signal
• The contactor activates
• Power flows to the compressor and fan

If you want a deeper understanding of how HVAC contactors function within your air conditioning system, we explain it in detail in our guide on the role of an HVAC contactor in AC systems: Understanding the Role of an HVAC Contactor in Your Air Conditioning System

What do A1 and A2 terminals mean in contactors?

The A1 and A2 terminals are connected to the coil of the contactor, which is responsible for activating the switching mechanism.

These terminals typically handle low voltage:

• A1: Receives the control signal (often from the thermostat)
• A2: Completes the circuit back to the transformer

When voltage is applied across these terminals, the coil becomes energized, generating a magnetic field that activates the contactor.

What are L1 and L2 terminals in an HVAC contactor?

The L terminals represent the incoming power source.

In most residential systems:

• L1 and L2 receive high-voltage power (typically 208–240V)
• These terminals are always energized when the breaker is on

This is where the contactor receives the power that will later be switched to the load.

*Important: Even if the system is not running, L1 and L2 may still carry live voltage.

What do T1 and T2 terminals connect to in HVAC contactors?

The T terminals deliver power to the system components.

• T1 and T2 connect to the compressor and condenser fan motor
• These terminals only receive power when the contactor is engaged

This means the HVAC contactor controls when energy flows to critical parts of the system.

How does an HVAC contactor wiring system work step by step?

Here is how everything works together:

Step 1: Thermostat sends a signal

When cooling is required, the thermostat sends low-voltage power to A1 and A2.

Step 2: Coil is energized

The coil inside the contactor creates a magnetic field.

Step 3: Contacts close

The magnetic force pulls the internal mechanism, connecting L1 to T1 and L2 to T2.

Step 4: Power flows to the load

High-voltage electricity flows to the compressor and fan, starting the cooling process.

Step 5: System turns off

When the thermostat is satisfied, the signal stops, the coil de-energizes, and the contacts open.

Why is understanding contactor wiring important for troubleshooting?

Incorrect wiring or misunderstanding terminal functions is one of the most common causes of HVAC issues.

Knowing how contactors are wired allows you to:

• Diagnose why an AC unit is not turning on
• Identify voltage issues
• Test components safely
• Avoid damaging the HVAC contactor

Proper understanding reduces downtime and improves system reliability.

What are common mistakes when wiring contactors?

Even experienced technicians can make errors when working with contactors.

Common mistakes include:

• Reversing load and line connections
• Miswiring coil terminals
• Not disconnecting power before installation
• Using the wrong coil voltage

These mistakes can lead to malfunction or even equipment damage.

Final tips for safe HVAC contactor wiring and installation

Working with an HVAC contactor requires attention to safety and detail.

Follow these best practices:

• Always disconnect power before handling wiring
• Verify coil voltage before energizing the system
• Ensure all connections are secure
• Use the correct contactor for the application

If you are unsure about wiring or troubleshooting, it is always best to consult a licensed technician.
