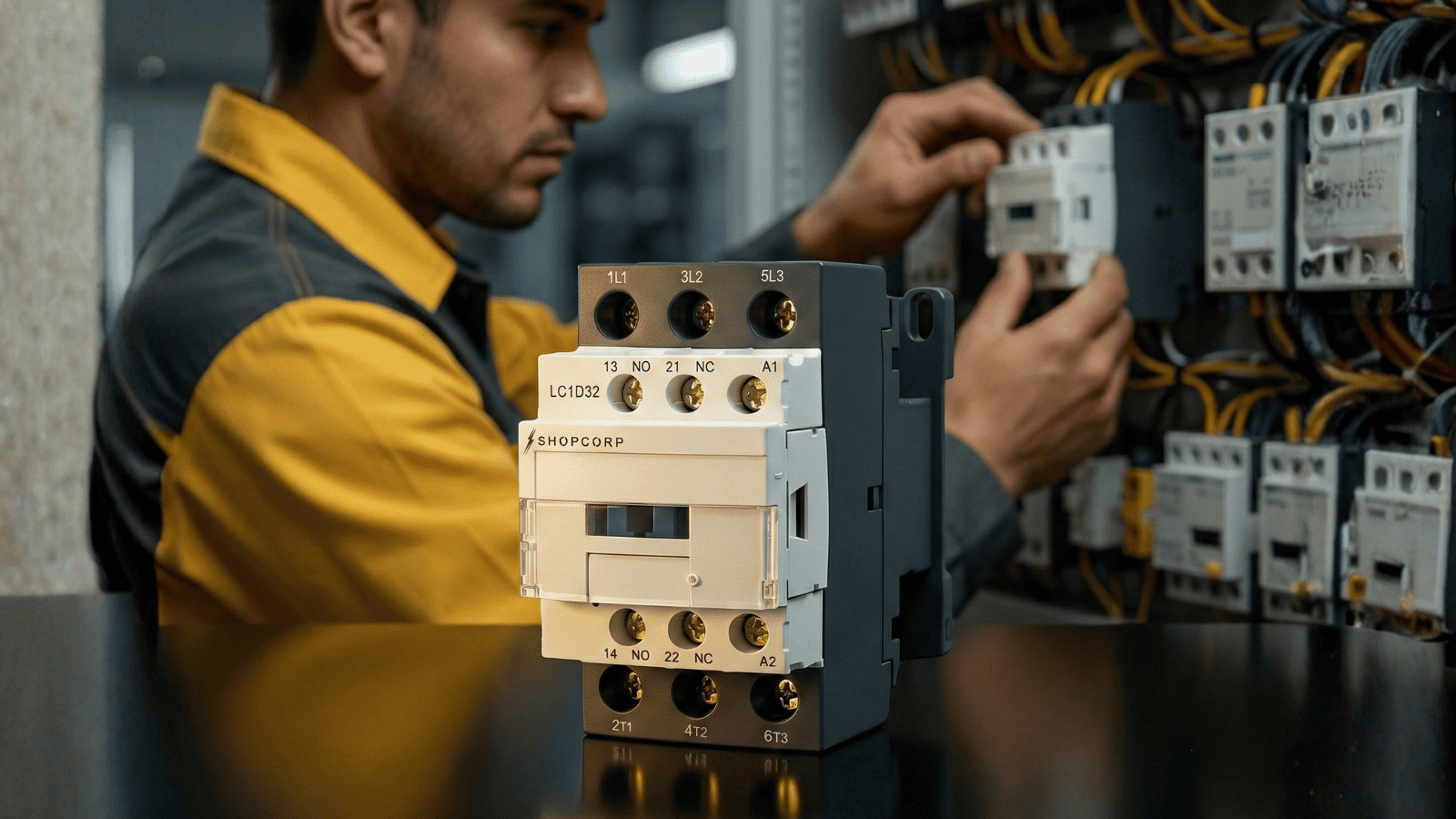

How Load Type Affects Contactor Selection: Motor vs Resistive vs Lighting

Selecting the right contactor is not just about voltage or amperage. One of the most critical factors is the type of load the device will control.

Different loads place very different electrical stresses on contactors, affecting performance, lifespan, and reliability. A contactor that works perfectly in a heating application may fail quickly when used with a motor or lighting system.

Understanding how load type influences electrical contactor selection is essential for electricians, HVAC technicians, and engineers working with real-world systems.

At Contactor Depot, we provide high-quality contactors engineered for motor, lighting, and HVAC applications, ensuring reliable performance across different load types.

What is a contactor and why does load type matter?

A contactor is an electrically controlled switch used to manage power circuits.

While all contactors perform the same basic function, the type of load they control determines:

• How much current they must handle
• How often they switch
• How much heat and arcing they experience

This is why load type is one of the most important factors when selecting an electrical contactor.

How do motor loads affect motor contactor selection?

Motor loads are among the most demanding applications for any contactor.

When a motor starts, it can draw several times its normal running current, creating a high inrush condition. This places significant stress on the motor contactor.

Key characteristics of motor loads:

• High startup current (inrush)
• Strong inductive behavior
• Significant arcing during switching

Because of this, motor load contactors must be designed to:

• Handle high peak currents
• Resist contact erosion
• Manage heat effectively

For most applications, AC-3 rated contactors are used for standard motor operation, while more demanding scenarios require higher-duty ratings.

Why are resistive loads easier on electrical contactors?

Resistive loads, such as heaters or simple electrical elements, behave very differently.

Unlike motors:

• Current remains stable
• There is little to no inrush current
• Arcing is minimal

This makes resistive applications much less demanding for an electrical contactor.

Because of this, standard contactors rated for resistive loads can often operate closer to their maximum amp rating without significant wear.

However, using a heavy-duty motor contactor for a purely resistive application is often unnecessary and can increase cost without adding real value.

How do lighting loads impact lighting contactor performance?

Lighting loads are often misunderstood, but they can be surprisingly demanding.

Certain types of lighting—especially incandescent or systems with electronic drivers—can produce very high inrush currents when switched on.

This means a lighting contactor must be designed to handle:

• High peak current at startup
• Frequent switching cycles
• Mixed electrical behavior (resistive and inductive)

For example:

• A contactor rated for general loads may not perform well in lighting applications
• Specialized lighting contactors are often required for reliability

Ignoring these factors can lead to welded contacts and premature failure.

What are the key differences between motor, resistive, and lighting contactors?

Each load type creates a unique operating environment for the contactor:

Motor Loads

• High inrush current
• High arcing
• Requires robust motor contactor design

Resistive Loads

• Stable current
• Low stress on contacts
• Suitable for standard electrical contactor designs

Lighting Loads

• High peak current at startup
• Frequent switching
• Requires specialized lighting contactor solutions

Understanding these differences ensures proper selection and long-term reliability.

Why can the wrong load type damage a contactor?

Using the wrong contactor for a given load type is one of the most common causes of failure.

Examples include:

• Using a resistive-rated contactor for a motor → leads to contact welding
• Treating lighting as purely resistive → causes damage from inrush current
• Undersizing a motor contactor → results in overheating and failure

Each load type requires a specific design approach, and ignoring this can significantly reduce lifespan.

How do IEC ratings influence electrical contactor selection?

IEC ratings categorize contactors based on the type of load they are designed to handle.

These ratings help define:

• Electrical stress levels
• Switching conditions
• Expected lifespan

Typical categories include:

• AC-1 for resistive loads
• AC-3 for motor loads
• Specialized categories for lighting applications

Choosing the correct rating ensures that the electrical contactor performs reliably under real operating conditions.

How to choose the right contactor based on load type

To select the right contactor, follow these steps:

1. Identify the load type

Determine whether the application involves:

• Motor load
• Resistive load
• Lighting load

2. Evaluate electrical characteristics

Consider:

• Inrush current
• Switching frequency
• Voltage and current levels

3. Select the appropriate rating

Choose a contactor with the correct IEC rating and capacity for the application.

4. Avoid over- or under-specifying

Using the wrong type of contactors can lead to inefficiency or premature failure.

At Contactor Depot, we offer a full range of contactors, including motor contactor, lighting contactor, and general-purpose solutions designed for different load types.
