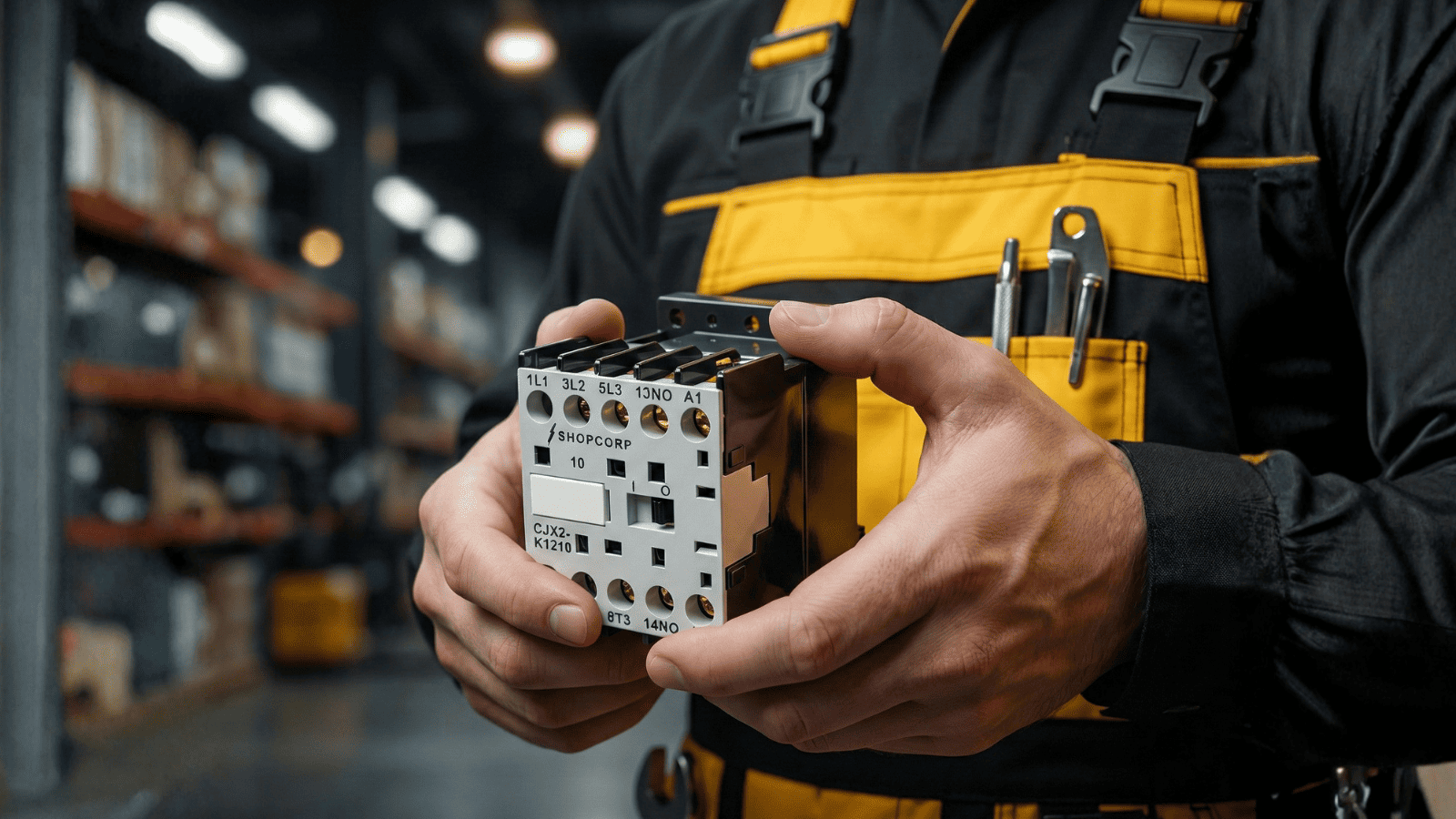

How to Test a Contactor in an AC Unit (Step-by-Step Guide)

When your air conditioning system stops working, one of the most common causes is a faulty contactor. This small but critical component controls the flow of electricity to major parts like the compressor and fan motor.

Knowing how to test a contactor can save time, reduce downtime, and prevent unnecessary replacements. Whether you're troubleshooting an HVAC system or verifying performance, understanding how an AC contactor works (and how to test it) is essential.

What is a contactor in an AC unit and why does it fail?

A contactor is an electrically controlled switch that allows low-voltage signals (typically 24V) to control high-voltage power (220–240V) inside an AC system.

Over time, contactors can fail due to:

• Electrical arcing
• Contact wear and pitting
• Coil burnout
• Dirt, debris, or insect contamination

These failures can prevent your AC unit from turning on, running properly, or shutting off.

How do you know if an AC contactor is bad?

Before testing, it's important to identify early warning signs of a failing AC contactor.

Common symptoms include:

• AC unit not turning on
• Clicking sound without activation
• System running continuously (contacts stuck closed)
• Burnt or blackened contact surfaces

If you are experiencing these issues, it's important to confirm whether the problem is actually the contactor.

We cover this in detail in our guide on how to identify a faulty contactor in AC units, including real-world symptoms and troubleshooting tips: Contactor for AC Units: Identifying Symptoms of a Faulty Contactor

What tools do you need to test an electrical contactor?

To properly test an electrical contactor, you will need:

• A digital multimeter
• Insulated screwdriver
• Safety gloves and protective gear

A multimeter is essential for checking:

• Resistance (Ohms)
• Voltage (AC)
• Continuity

This allows you to fully evaluate the condition of the contactor.

How to test a contactor with a multimeter step by step

Follow this process to safely perform an AC contactor test:

Step 1: Turn off power (Safety First)

Disconnect power at the breaker and the outdoor disconnect box.

Step 2: Perform a visual inspection

Check for:

• Burnt contacts
• Debris or insects
• Loose wiring

This step often reveals obvious issues before testing begins.

Step 3: Test coil resistance

Set your multimeter to Ohms (Ω).

• Place probes on the coil terminals
• A normal reading is typically between 5–20 ohms

Results:

• OL (open line) → coil is broken
• 0 ohms → shorted coil

This is a key step in how to test HVAC contactor performance.

How to test the coil in an AC contactor

To verify coil operation under real conditions:

• Turn the thermostat to call for cooling
• Set the multimeter to AC voltage
• Measure across the coil terminals

Expected result:

• 24–29V present

If voltage is present but the contactor does not engage, the coil is defective.

How to check contact continuity in contactors

To test the switching function:

• Turn power OFF
• Set the multimeter to continuity mode
• Place probes on line and load terminals
• Manually press the contactor plunger

Expected result:

• The meter should beep

If there is no continuity, the contacts are not functioning properly.

What are common signs of a failing AC contactor?

Even without testing, certain signs indicate failure:

• Contacts fused together → system won’t turn off
• Coil not activating → system won’t start
• Voltage not passing through → interrupted operation

These are clear indicators that the AC contactor may need replacement.

When should you replace vs test contactors?

Testing is useful, but sometimes replacement is the better option.

Replace the contactor when:

• Contacts are severely burnt or pitted
• Coil shows no resistance or response
• Performance is inconsistent

Testing helps confirm the issue, but replacement ensures long-term reliability.
