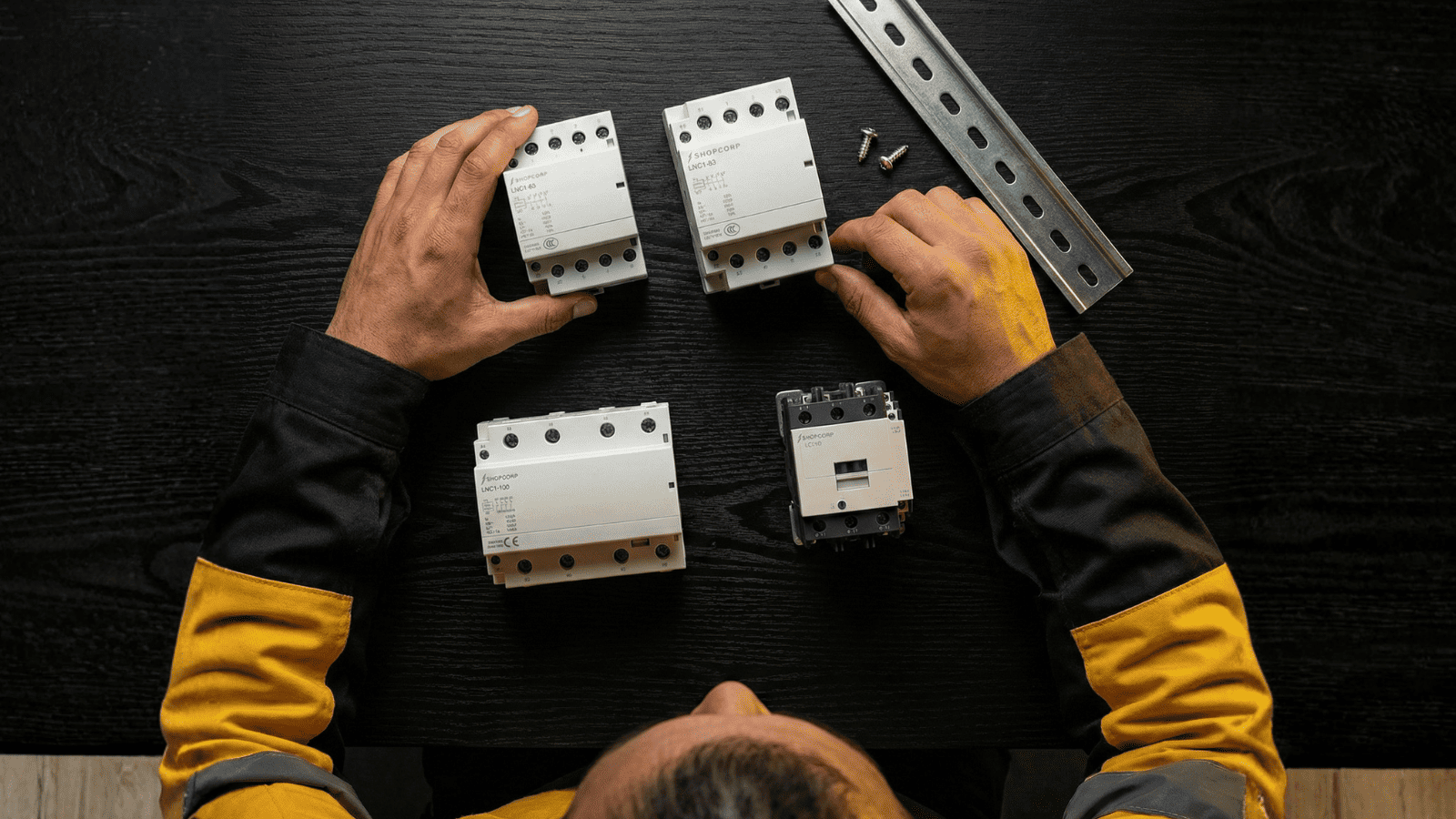

Single Phase vs Three Phase Contactors: Key Differences and Applications

Choosing the correct contactor is essential for ensuring efficient and reliable operation in any electrical system. One of the most important distinctions to understand is whether your application requires a single-phase or three-phase configuration.

While both types of contactors perform the same core function, controlling electrical power using a low-voltage signal, their design, capacity, and applications differ significantly.

Understanding these differences helps electricians, HVAC technicians, and engineers select the right electrical contactor for each system.

What is a contactor and how does it work in different power systems?

A contactor is an electrically controlled switch used to manage high-power circuits such as motors, compressors, and lighting systems.

In both single-phase and three-phase systems, contactors operate by:

• Receiving a control voltage at the coil
• Generating a magnetic field
• Closing or opening contacts to control power flow

The difference lies in how much power they handle and how that power is distributed.

What is a single-phase electrical contactor?

A single-phase electrical contactor is designed for systems that use one alternating current waveform.

These contactors typically feature:

• 1 or 2 poles
• Operation in lower voltage ranges (commonly 120V–230V)
• Simpler wiring (line and neutral)

They are commonly used in:

• Residential lighting systems
• Small appliances
• Light-duty HVAC applications using AC contactor setups
• Small motors and fans

Because of their simplicity, single-phase contactors are cost-effective and easy to install.

What is a three-phase motor contactor?

A three-phase motor contactor is designed for high-power systems that require continuous and balanced electrical supply.

These contactors typically include:

• 3 or 4 poles
• Higher voltage capacity (commonly 400V–600V+)
• Three live conductors (and optional neutral)

Three-phase systems deliver constant power, making them ideal for:

• Industrial motors
• Large HVAC systems using HVAC contactors
• Pumps and compressors
• Manufacturing equipment

Because of their design, three-phase contactors provide smoother and more efficient operation under heavy loads.

What are the key differences between single-phase and three-phase contactors?

Understanding the differences between these contactors is critical for proper system design.

Power Capacity

• Single-phase: Lower load capacity
• Three-phase: High load capacity for industrial applications

Number of Poles

• Single-phase: 1–2 poles
• Three-phase: 3–4 poles

Efficiency

• Single-phase: Pulsating power delivery
• Three-phase: Continuous, balanced power

Application Scope

• Single-phase: Residential and light commercial
• Three-phase: Industrial and heavy-duty systems

These differences directly impact performance, efficiency, and equipment lifespan.

Why do three-phase contactors handle higher loads more efficiently?

Three-phase contactors are more efficient because they distribute electrical load evenly across multiple phases.

This results in:

• Reduced power fluctuations
• Lower heat generation
• Improved motor performance
• Higher overall efficiency

For high-demand systems, a three-phase motor contactor is essential to maintain stable operation.

When should you use single-phase vs three-phase HVAC contactors?

The choice depends on the system’s power requirements.

Use single-phase HVAC contactors when:

• Working with residential AC systems
• Controlling fans or small compressors
• Operating in lower voltage environments

Use three-phase HVAC contactors when:

• Managing large commercial HVAC systems
• Operating heavy-duty compressors
• Requiring continuous and efficient power delivery

Selecting the correct HVAC contactors ensures optimal system performance.

How do pole configuration and wiring differ in AC contactor systems?

Pole configuration determines how many circuits a contactor can control.

• Single-phase systems use fewer poles and simpler wiring
• Three-phase systems require multiple poles to control each live conductor

This impacts:

• Installation complexity
• Panel design
• Load distribution

Understanding these differences is essential when selecting an AC contactor for your system.

What are common mistakes when selecting between contactors?

Incorrect selection of contactors can lead to serious issues.

Common mistakes include:

• Using single-phase contactors for high-load applications
• Undersizing the electrical contactor
• Ignoring voltage and current requirements
• Misunderstanding system phase configuration

Avoiding these mistakes ensures safe and efficient operation.

Choosing the right electrical contactor for your application

Selecting the right electrical contactor depends on:

• Power requirements
• System configuration (single-phase vs three-phase)
• Application type (HVAC, motor, lighting)
• Installation environment
