How a Contactor Works: What Happens When the Coil Is Energized Explained

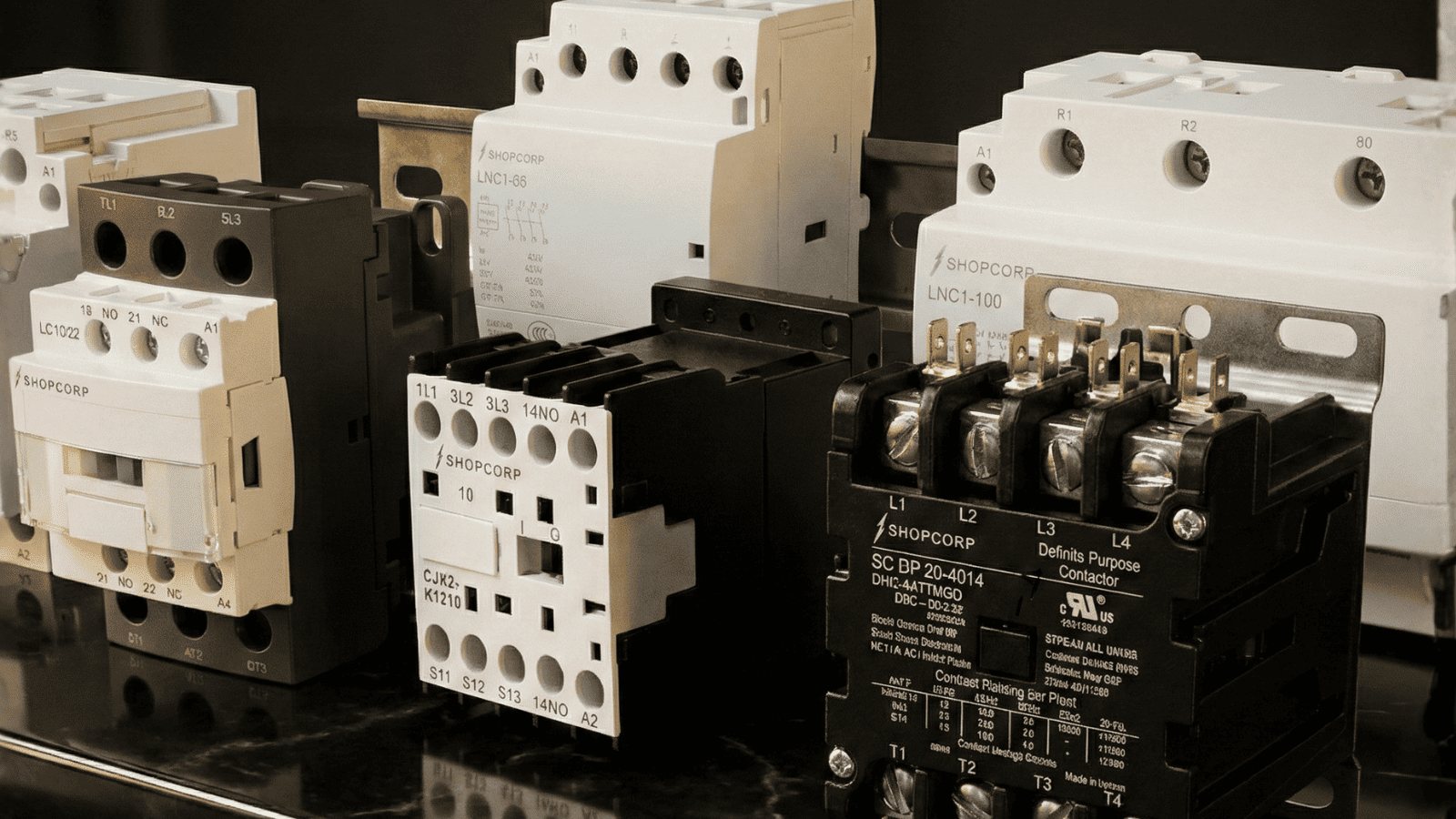

Every time an HVAC system starts, a motor powers up, or a lighting circuit activates, a contactor is working behind the scenes.
Although compact in size, this device plays a critical role in safely controlling high-power electrical loads.

Understanding how contactors operate, especially what happens when the coil is energized, is essential for electricians, HVAC professionals, and engineers working with modern electrical systems.

What is a contactor and what is its role in electrical systems?

A contactor is an electrically controlled switch designed to manage high-voltage and high-current circuits using a low-power control signal.

Unlike manual switches, contactors operate automatically when they receive a control input from:

• Thermostats

• Timers

• PLC systems

• Control relays

This makes them essential for applications such as:

• HVAC contactor systems

• Motor contactor control panels

• Lighting contactor installations

Their primary function is to ensure safe and reliable switching of electrical loads.

How does an electrical contactor control high-power circuits?

An electrical contactor separates the control circuit from the power circuit.

This means:

• A low-voltage signal activates the device

• A high-power circuit is switched ON or OFF

This separation improves safety and allows automation systems to control heavy loads efficiently.

In applications like motor contactors and hvac contactors, this principle enables precise and safe operation of compressors, fans, and industrial equipment.

What happens when the coil in a contactor is energized?

The operation of a contactor begins when voltage is applied to its coil terminals.

Here is the step-by-step process:

1. Electromagnetic field generation

A control voltage (for example, 24V, 120V, or 240V) flows through the coil, creating a magnetic field.

2. Armature movement

The magnetic field pulls a movable metal component called the armature toward the coil.

3. Contact closure

As the armature moves, it closes the main contacts (typically Normally Open), allowing current to flow through the power circuit.

4. Load activation

Once the contacts close, electrical power is delivered to the load, such as:

• Motors

• HVAC compressors

• Lighting systems

This entire process happens almost instantly, enabling reliable switching in electrical contactor applications.

Why is the electromagnetic coil essential in contactors?

The coil is the core component that enables contactors to function.

Without it:

• No magnetic field would be generated

• The armature would not move

• The contacts would remain open

In other words, the coil is what transforms a simple mechanical device into an automated electrical switch.

Its design directly affects performance in hvac contactor, motor contactor, and lighting contactor systems.

How do contacts change state in HVAC contactor and motor contactor systems?

Inside a contactor, contacts are designed to change state when the coil is energized.

• Normally Open (NO) contacts close

• Normally Closed (NC) contacts open

This allows the device to:

• Energize power circuits

• Interrupt control signals

• Manage multiple operations simultaneously

In motor contactors, this is critical for starting and stopping motors safely.
In hvac contactors, it controls compressors and fans efficiently.

What role do auxiliary contacts play in lighting contactor and control circuits?

Auxiliary contacts are smaller internal contacts used for control and signaling purposes.

They are commonly used in:

• Lighting contactors

• Automation systems

• Interlocking circuits

Their functions include:

• Sending feedback signals

• Enabling self-holding circuits

• Coordinating multiple devices

These contacts expand the functionality of the contactor beyond simple ON/OFF switching.

If you want a deeper understanding of how auxiliary contacts improve system control and safety, you can explore our detailed guide: Auxiliary Contacts Explained: Improving Contactor Control and Safety

What happens when the coil is de-energized?

When the control voltage is removed:

• The magnetic field disappears

• The armature returns to its original position (via a spring)

• The contacts revert to their default state

This means:

• Power to the load is interrupted

• The circuit is safely opened

This automatic return mechanism ensures safe shutdown in all electrical contactor applications.

Why do contactors produce a clicking sound during operation?

The clicking sound commonly heard in hvac contactors or industrial panels is caused by:

• The movement of the armature

• The closing or opening of contacts

This audible feedback is often a useful indicator that the contactor is operating correctly.

In some modern designs, such as silent coil models, this sound is minimized.
