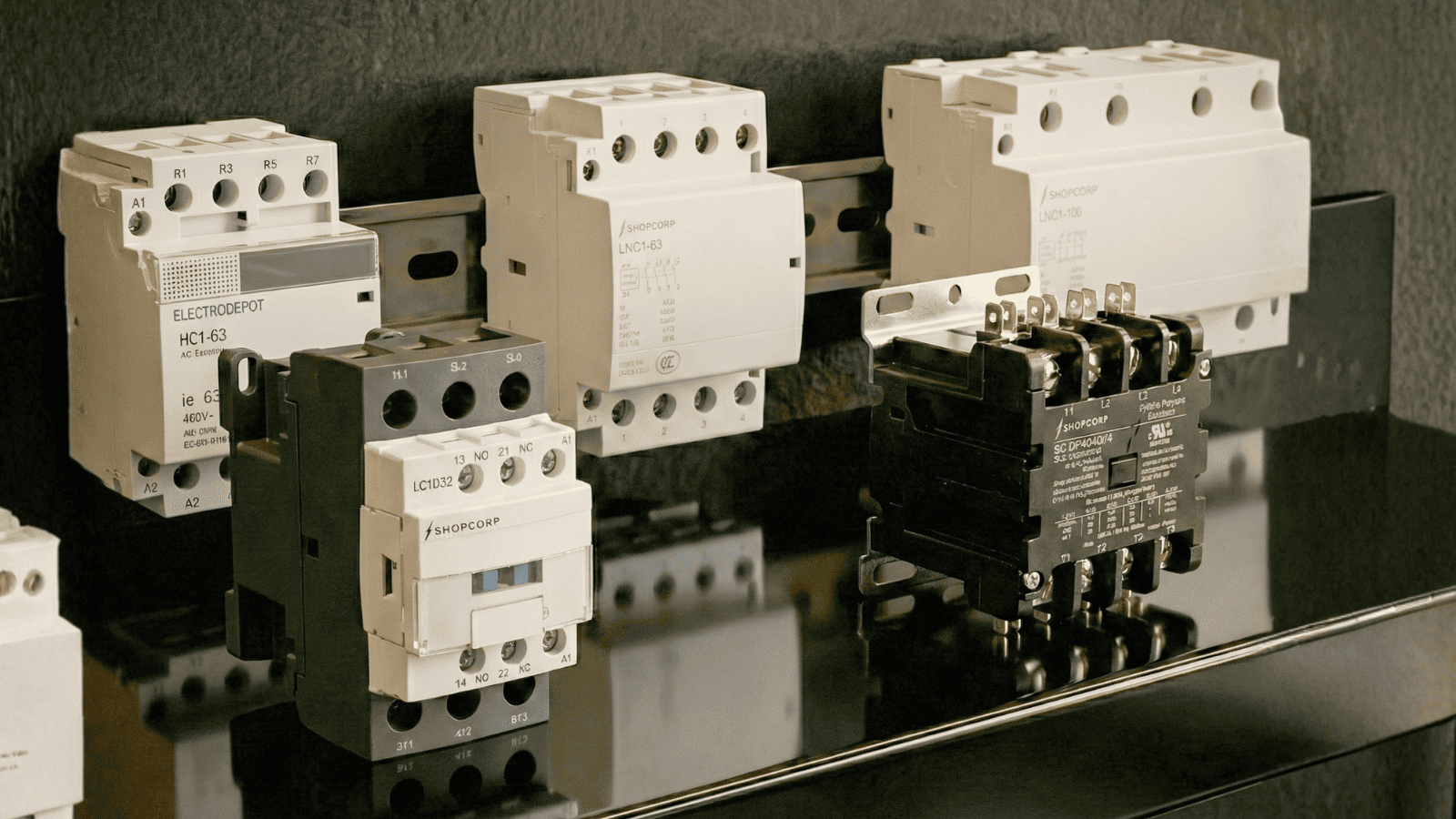

AC-1 vs AC-3 Contactor Ratings Explained: How to Choose the Right Contactor

Selecting the right contactor goes far beyond checking voltage or amp rating. One of the most important factors is understanding the duty classification of the device.

Two of the most common ratings you will encounter are AC-1 and AC-3. While they may seem similar, they are designed for completely different types of loads and operating conditions.

Choosing the wrong rating can result in overheating, contact damage, and premature failure. In this guide, we break down what AC-1 and AC-3 mean and how to select the right contactors for your application.

At Contactor Depot, we provide high-quality contactors engineered for HVAC, motor, and industrial applications, ensuring reliable performance under real operating conditions.

What are AC-1 and AC-3 ratings in contactors?

AC-1 and AC-3 are utilization categories that define how a contactor performs under specific types of electrical loads.

These ratings indicate:

• The type of load being controlled
• The level of electrical stress during operation
• The expected durability of the contactor

Understanding these categories is essential when selecting an electrical contactor for real-world applications.

Why do contactors have different ratings for different loads?

Not all loads behave the same way.

Different types of electrical equipment create different levels of stress on contactors, including:

• Inrush current at startup
• Arcing when contacts open or close
• Heat buildup over time

Because of these variations, a contactor must be rated according to the specific load it will control.

What is an AC-1 contactor used for?

An AC-1 contactor is designed for resistive loads, where current flow is stable and predictable.

Typical applications include:

• Electric heaters
• Ovens and furnaces
• Simple resistive lighting systems

In these scenarios:

• Inrush current is minimal
• Contact wear is low
• Electrical stress is relatively light

This allows AC-1 contactors to operate close to their maximum rated capacity.

What is an AC-3 contactor and why is it more demanding?

An AC-3 contactor is specifically designed for inductive loads, particularly motors.

Motor-driven systems create challenging conditions because:

• Startup current can be several times higher than normal operation
• Electrical arcs occur when the circuit is interrupted
• Repeated cycling increases thermal stress

AC-3 contactors are built to withstand these conditions, making them essential for:

• Compressors
• Pumps
• Fans
• Industrial motors

What is the difference between AC-1 and AC-3 contactor ratings?

The key difference lies in the level of stress the contactor must handle.

AC-1 (Resistive Loads)

• Stable current
• Minimal inrush
• Low contact wear

AC-3 (Motor Loads)

• High startup current
• Significant arcing
• Greater thermal and mechanical stress

Because of these factors, AC-3 contactors require stronger materials and more robust construction.

Why is the AC-3 rating always lower than AC-1?

You may notice that the same contactor has a higher rating under AC-1 than AC-3.

This happens because motor loads create more demanding conditions.

For example:

• A contactor rated for 50A under AC-1 may only handle 20–30A under AC-3

This reduction reflects the additional stress caused by:

• Inrush current
• Contact erosion
• Heat generation

Ignoring this difference is a common mistake when selecting contactors.

What happens if you use the wrong contactor rating?

Using the wrong type of contactor can lead to serious issues.

Common consequences include:

• Contact welding
• Overheating
• Reduced lifespan
• System failure

For example:

Using an AC-1 contactor in a motor application can result in rapid failure due to high inrush current and arcing.

How do you choose the right contactor based on load type?

To select the correct contactor, follow these steps:

1. Identify the load type

Determine whether the load is:

• Resistive
• Inductive (motor-driven)

2. Check application requirements

Consider:

• Startup conditions
• Frequency of operation
• Environmental factors

3. Select the appropriate rating

Choose:

• AC-1 for resistive loads
• AC-3 for motor loads

4. Verify sizing and specifications

Ensure the contactor matches:

• Voltage
• Current
• Application type

Final tips for selecting reliable contactors

Choosing the right contactor ensures long-term system performance and safety.

Keep these best practices in mind:

• Never rely on amp rating alone
• Always match the rating to the load type
• Avoid oversimplifying selection criteria
• Use certified, high-quality contactors

At Contactor Depot, we offer a wide range of contactors designed for different applications, including HVAC systems, motor control, and industrial environments.
