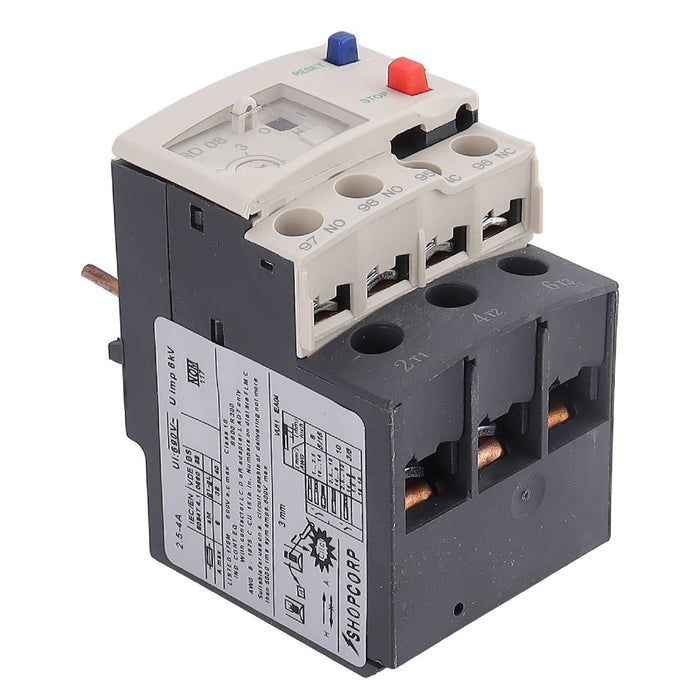

Thermal Overload Relay LR2-D13 (2.5–4A) – Motor Protection Relay with 1NO/1NC, IEC Rated, DIN Rail Mount

Shopcorp Thermal Overload Relay LR2-D13 (2.5-4A) - Motor Protection Relay with 1NO/1NC, IEC Rated, DIN Rail Mount

Rated 4.4 out of 5
Based on 9 reviews
$17.65 - $17.65
$17.65
$17.65 - $17.65
$17.65
Download General Data Sheet (PDF)

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

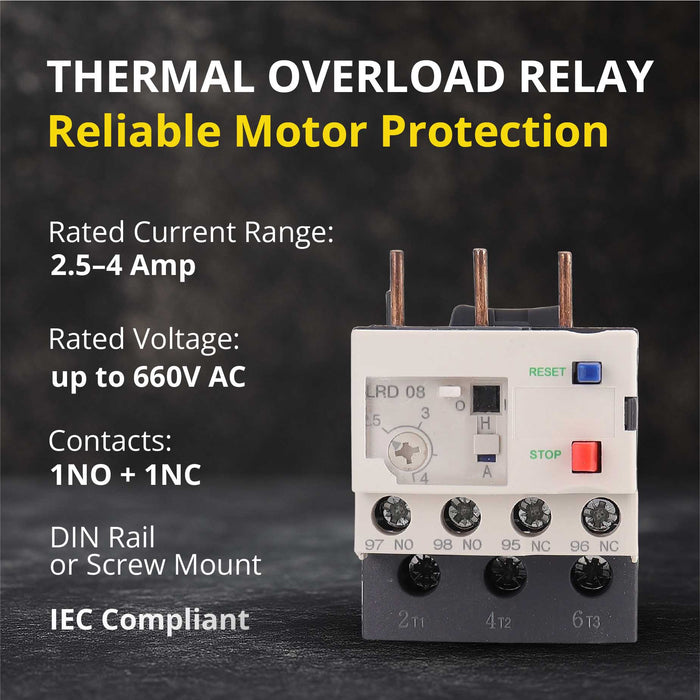

- Model: LR2-D13
- Type: Thermal Overload Relay
- Amp Range: 2.5–4A
- Auxiliary Contacts: 1NO + 1NC
- Rated Voltage: Up to 660V AC
- Trip Class: Thermal overload + phase-failure protection
- Reset Mode: Manual / Automatic
- Mounting: 35 mm DIN rail
- Compatibility: LC1-D series contactors
- Electrical Life: Rated for long-cycle industrial use
- Compensation: Thermal & temperature compensation
- Dimensions: Approx. 90 mm (L) × 44 mm (W) × 48 mm (H)
- Wire Terminals: Screw-type terminals for secure connections

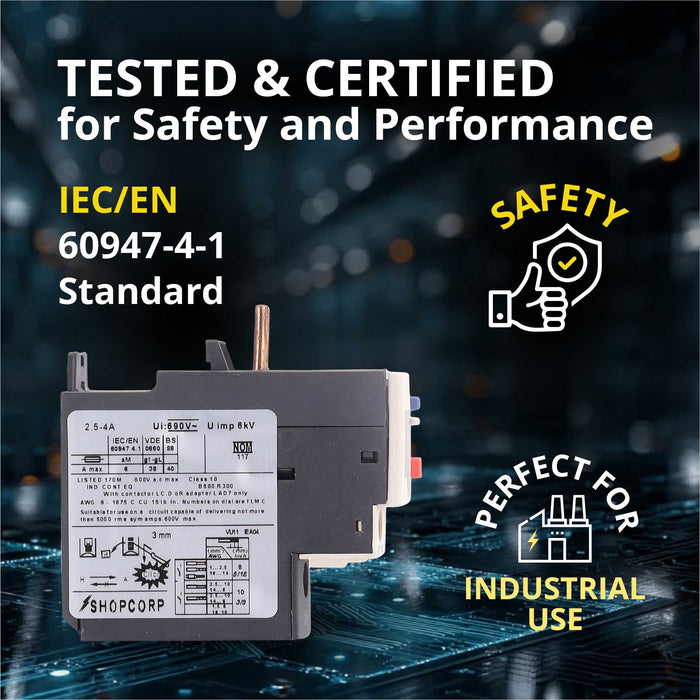

- Standards: IEC/EN compliant, CE certified
- Applications: HVAC compressors, pumps, fans, conveyors, industrial motors, automation systems.

About the Product

Overview - Reliable Motor Protection for HVAC & Automation
The Shopcorp LR2-D13 Thermal Overload Relay (2.5–4A) is engineered for dependable overload, phase-failure, and overheating protection in HVAC systems, automation panels, and industrial motor circuits. Designed for seamless integration with LC1-D contactors, it delivers stable performance, fast response, and long operational life.

Built for HVAC, Pumps, Compressors & Industrial Motors
This IEC-rated overload relay safeguards motors from overload and abnormal operating conditions. Ideal for compressors, fans, pumps, conveyor motors, refrigeration equipment, and automation machinery—ensuring long-term reliability in demanding environments.

Compact & DIN Rail Ready for Fast Installation

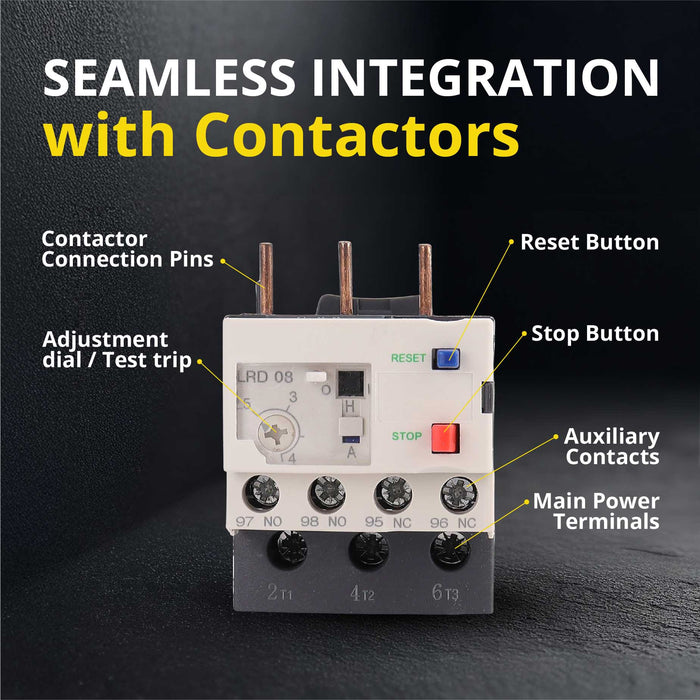

Featuring a compact footprint and DIN rail mounting design, the LR2-D13 installs quickly into control cabinets. Its 1NO + 1NC auxiliary contacts provide clear, accurate signaling for motor control circuits, automation loops, and safety interlocks.

Stable, Accurate Thermal Protection
Equipped with thermal and temperature compensation, this overload relay maintains consistent protection even under fluctuating ambient temperatures. Its manual/automatic reset and clear trip indicator make diagnostics fast and maintenance-friendly.

SKU B0G26TCYT5

See All Contactors Cut Sheets

Have Questions? Call Us at 1-888-766-6610

Our experts are ready to assist you with the best solutions for your project.

Contact us now
average rating 4.4 out of 5
Based on 9 reviews
Write a Review
Reviewed by F. D.
Rated 5 out of 5
Review posted

Great for Automation Projects

I have been upgrading some older control systems and added this relay to provide real overload security. Works flawlessly with signaling through the auxiliary contacts.

Loading...
Was this helpful?
Reviewed by Jasper H.
Rated 5 out of 5
Review posted

Reliable Choice for Motor Protection

Installed on a pump motor, set the dial to 3.5A, and let it run. I checked temperatures after long cycles and everything stayed within safe ranges. Exactly what I needed for protecting small motors.

Loading...
Was this helpful?
Reviewed by Tessa M.
Rated 5 out of 5
Review posted

Perfect Size for Tight Panels

I love how compact this relay is. I put it into a small automation cabinet and still had room for wiring channels. The DIN rail clip is secure and does not wiggle. Great for OEM and retrofit applications.

Loading...
Was this helpful?
Reviewed by Lionel P.
Rated 5 out of 5
Review posted

Accurate Overload Protection

I used this for a fan motor in a commercial unit. The adjustable range gives the flexibility I need. It tripped correctly during a simulated overload test. Exactly what I expect from IEC equipment.

Loading...
Was this helpful?
Reviewed by N. C.
Rated 4 out of 5
Review posted

Quality You Can Feel

This is not cheap plastic. The relay feels solid and the terminals hold wire well. It complies with IEC/EN standards which always gives me peace of mind when using it inside industrial machinery.

Loading...
Was this helpful?
