Shopcorp Mini Contactor 3 Pole 120/220V Coil, 12A AC-3 20A AC-1, IEC 690V for HVAC, Lighting & Motor Control

Shopcorp Mini Contactor 3 Pole 220V Coil, 12A AC-3 20A AC-1, IEC 690V for HVAC, Lighting & Motor Control

4.4
Rated 4.4 out of 5 stars
9 Reviews
$39.99 - $39.99
$39.99
$39.99 - $39.99
$39.99

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

- Model: CJX2-K1210
- Type: Mini Contactor

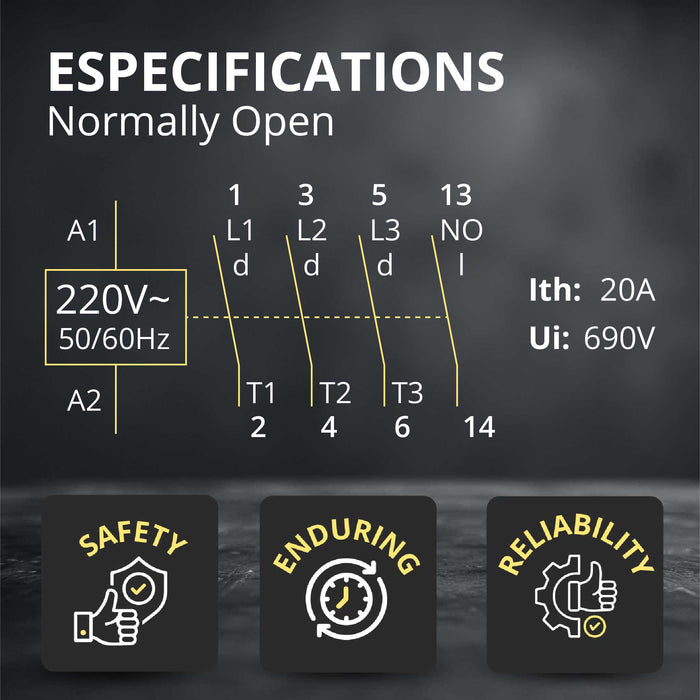

- Configuration: 3 Pole + 1 NO Auxiliary Contact

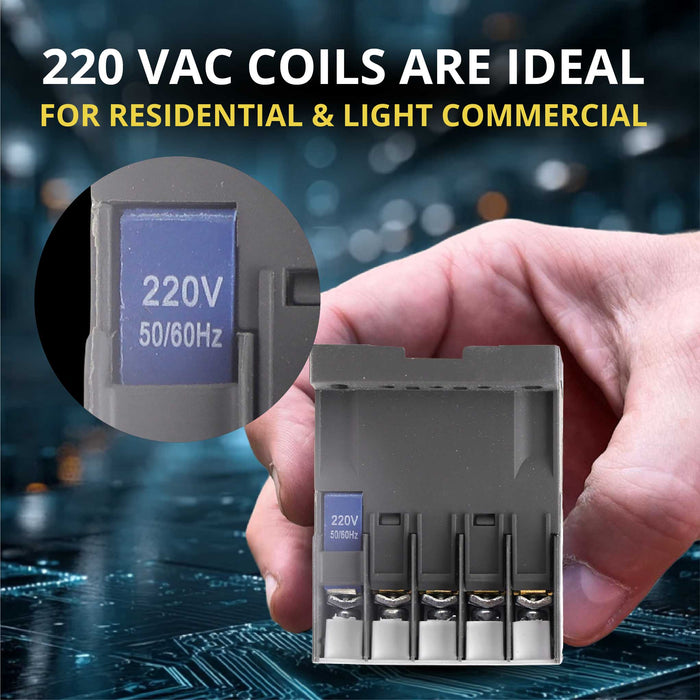

- Coil Voltage: 220V AC, 50/60 Hz
- Rated Current: 12A (AC-3), 20A (AC-1)
- Rated Insulation Voltage: 690V
- Auxiliary Contact Rating: AC-15: 1.6A @ 200–240V, 0.95A @ 380–440V
- Coil Operating Range: 85–110% Us (attraction), 20–75% Us (release)
- Electrical Life: 1 million operations
- Mechanical Life: 8 million operations

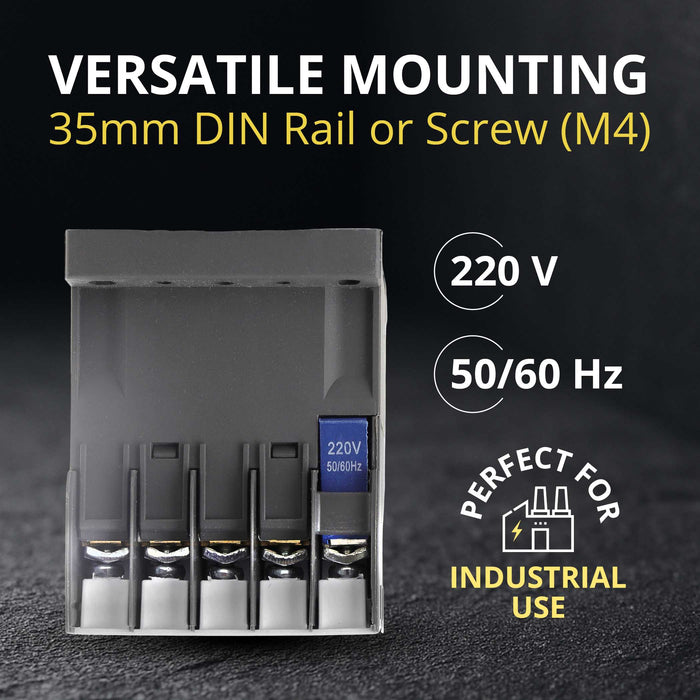

- Mounting: 35 mm DIN Rail

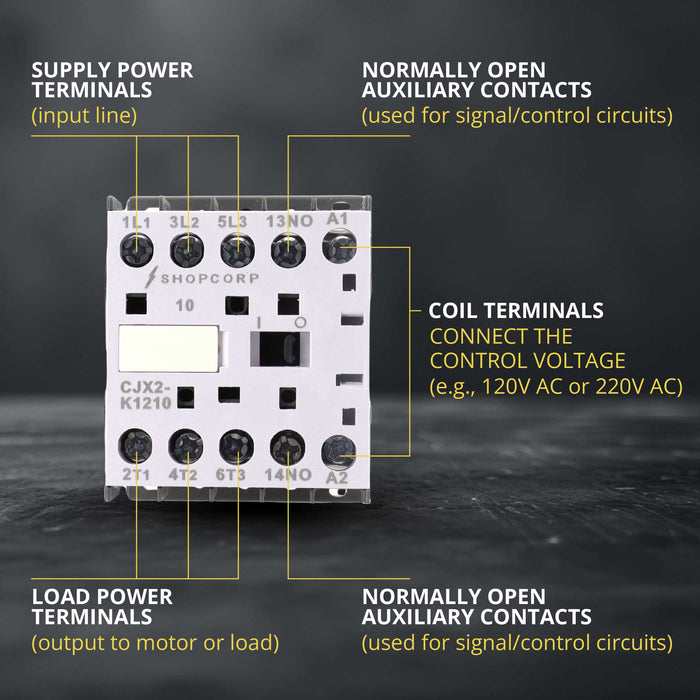

- Wiring Terminals: M3/M4 screw terminals, 1 × 4 mm² wire

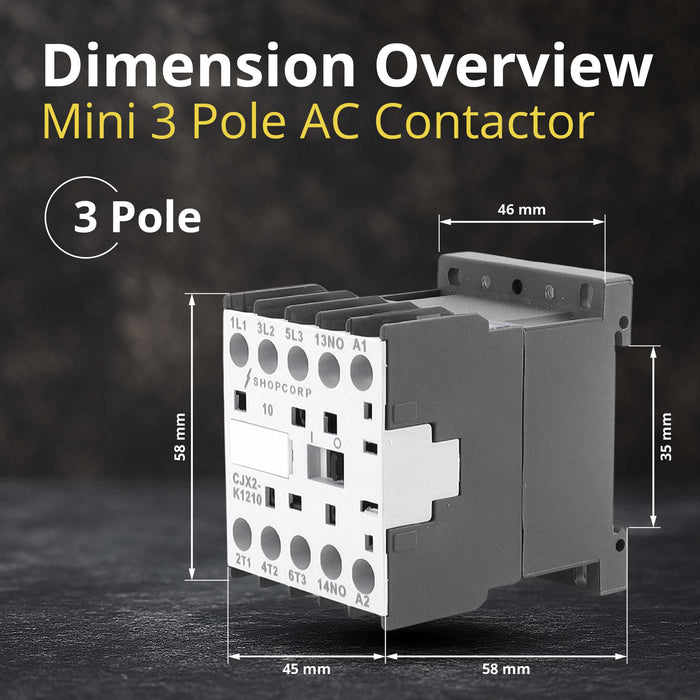

- Dimensions: 45 × 58 × 58 mm (W × H × D)

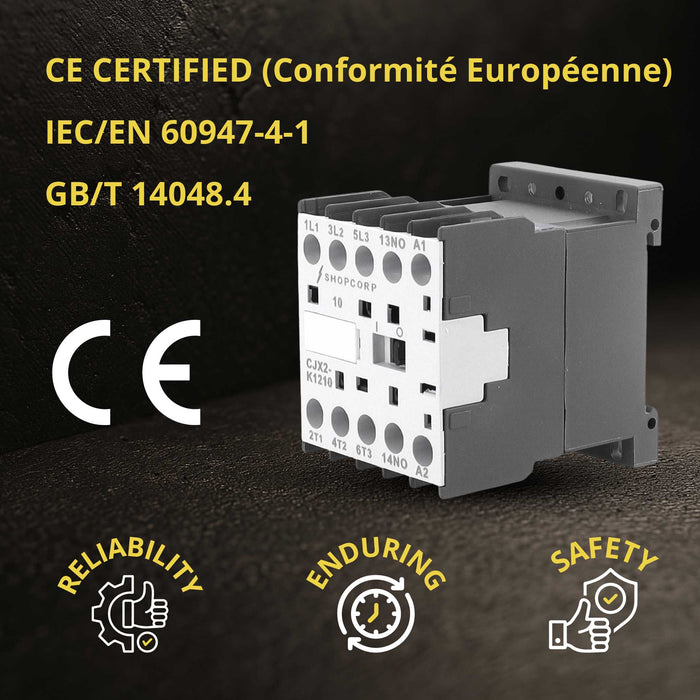

- Standards Compliance: IEC/EN 60947-4-1, GB/T 14048.4, CE Certified
- Operating Temperature: Standard industrial range
- Applications: HVAC, lighting, automation, and motor control systems

About the Product

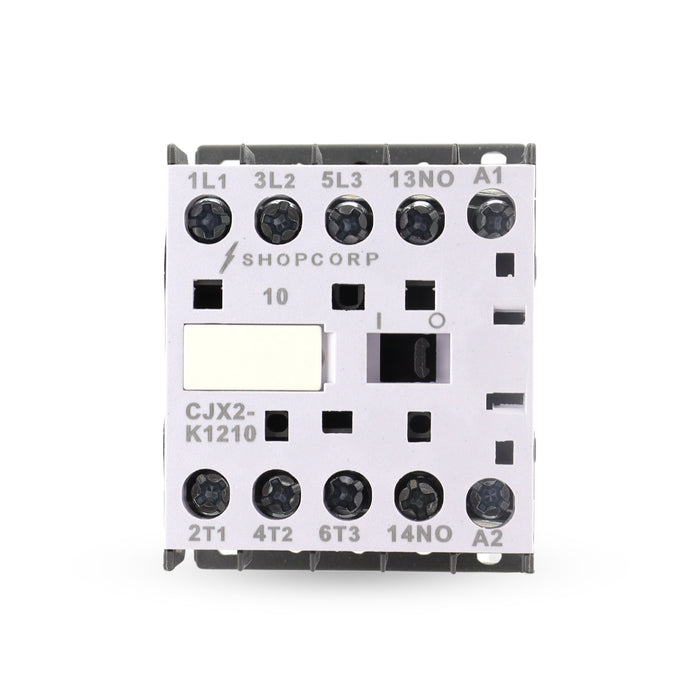

The Shopcorp Mini 3 Pole Contactor (model CJX2-K1210) is a compact IEC-rated solution for HVAC systems, lighting control, and automation applications. Operating with a 220V coil, this contactor ensures reliable, energy-efficient performance across residential, commercial, and industrial environments.

IEC-Compliant & High-Performance Design
This 3-pole contactor delivers 12A (AC-3) for inductive loads and 20A (AC-1) for resistive loads, with a 690V insulation rating for safe, stable operation in high-voltage systems. Designed to perform under continuous duty cycles, it offers silent operation, reduced energy loss, and precise switching control.

Auxiliary Contact for Control Circuit Applications
Includes a 1 Normally Open (NO) auxiliary contact rated AC-15: 1.6A @ 200–240V / 0.95A @ 380–440V, providing accurate control circuit feedback. The coil operates within 85–110% Us attraction and 20–75% Us release, ensuring consistent magnetic engagement even with voltage variations.

Long Service Life & Easy DIN Rail Installation
Built for durability, this mini contactor offers up to 8 million mechanical and 1 million electrical operations. Its 45 × 58 × 58 mm size and DIN rail mount make it ideal for tight spaces in control panels, HVAC cabinets, and automation systems. Features M3/M4 screw terminals (1 × 4 mm²) for fast, reliable wiring and compliance with IEC/EN 60947-4-1 and GB/T 14048.4 standards.

Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

See All Contactors Cut Sheets

SKU B0FXYCJB5D

Have Questions? Call Us at 1-888-766-6610

Our experts are ready to assist you with the best solutions for your project.

Contact us now
4.4
Rated 4.4 out of 5 stars
Based on 9 reviews
100%would recommend this product
Write a Review (Opens in a new tab)
9 reviews
  • E. V.
    I recommend this product
    Rated 5 out of 5 stars
    10 months ago
    Perfect for Motor Control

    I used this mini contactor to control a fractional-HP motor in a small machine. Loved the 3-pole configuration with the extra NO auxiliary; it makes logic wiring much easier.

    Was this helpful?
  • Dante H.
    I recommend this product
    Rated 4 out of 5 stars
    10 months ago
    Good Electrical Life

    We use high-cycle contactors for an automation carousel, and this one is holding up really well. The rated electrical life of one million operations seems accurate so far. It engages reliably, no contact bounce, and no delays.

    Was this helpful?
  • Mireya C.
    I recommend this product
    Rated 5 out of 5 stars
    10 months ago
    Perfect Size for an Automation Cabinet Upgrade

    I replaced an old relay-contactor combo with this mini 3-pole model and it freed up a ton of space in the cabinet. Wiring was extremely easy thanks to clearly marked terminals. It has been running a small circulation pump for weeks with zero issues.

    Was this helpful?
  • Kellan D.
    I recommend this product
    Rated 4 out of 5 stars
    10 months ago
    Reliable IEC-Rated Contactor for Tight Spaces

    I work mostly with IEC gear, and this unit meets the standards I look for. The insulation rating of 690V adds confidence when using it around higher-voltage circuits. Installation was straightforward and the M3/M4 terminals hold up to repeated rewiring during testing.

    Was this helpful?
  • Ana W.
    I recommend this product
    Rated 4 out of 5 stars
    10 months ago
    Smooth Operation at 220V

    Many mini contactors at this size tend to hum a bit, especially at 220V, but this one is totally silent. The coil energizes instantly and the contacts open and close crisply. I put it in a motor-starter test bench and it performed extremely well.

    Was this helpful?
