Shopcorp Dual Band WiFi Antenna 2.4GHz/5GHz/5.8GHz, 2dBi RP-SMA Male Magnetic Base, 10 ft Cable

- Brand: Shopcorp
- Product Type: Dual Band WiFi Antenna
- Frequency Bands: 2.4GHz and 5GHz / 5.8GHz
2.4GHz Frequency Range: 2400–2485 MHz
5GHz / 5.8GHz Frequency Range: 5150–5850 MHz
- Antenna Gain: 2dBi
- Impedance: 50 Ohm
- Radiation Pattern: Omnidirectional
- Connector Type: RP-SMA Male
- Mounting Type: Magnetic Base
- Cable Type: RG174 Coaxial Cable
- Cable Length: 3 m / approximately 10 ft

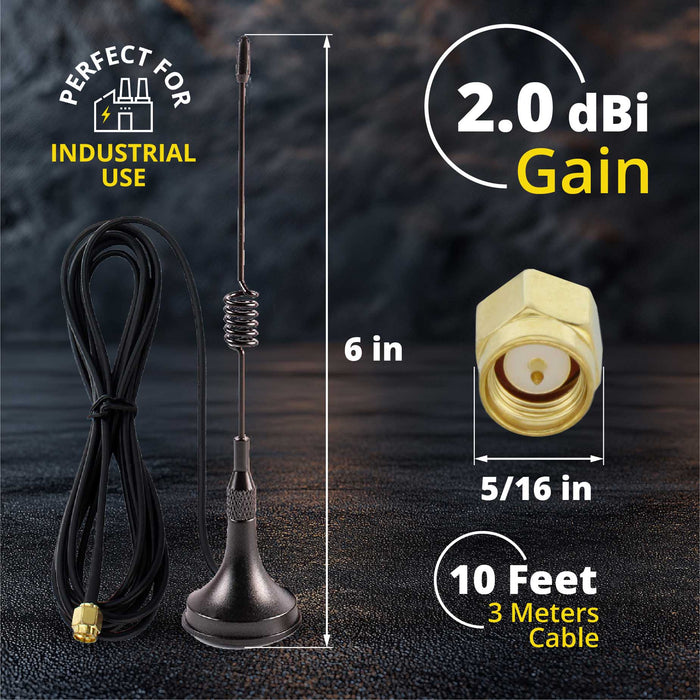

- Antenna Height: approximately 6 in, based on supplied product image
- Typical Applications: WiFi routers, access points, hotspot modems, desktop PC wireless adapters, PCIe network cards, FPV equipment, and compatible wireless audio/video devices
- Recommended Position: Vertical when practical

Designed for Flexible Wireless Installations
The magnetic mounting base and extended cable allow the antenna to be positioned independently from the connected networking equipment. This can be especially useful when the router, adapter, or wireless device is installed in a cabinet, workstation, enclosure, or other location where antenna positioning is limited.

Omnidirectional Antenna Design
The antenna uses an omnidirectional radiation pattern, making it suitable for general-purpose wireless network applications where coverage is needed around the antenna rather than in one highly directional path.

Magnetic Mounting Base
The base is designed to attach to compatible iron or ferrous metal surfaces for convenient installation without permanent mounting hardware.
A stable vertical position is recommended when practical.

Verify Connector Compatibility
This model uses an RP-SMA male connector. Before installation, verify that the wireless device uses a compatible RP-SMA female antenna port.
Do not select compatibility based only on the appearance of the connector, as SMA and RP-SMA connectors can look very similar.

Typical Uses
Suitable for compatible WiFi routers, wireless network cards, access points, hotspot modems, PC wireless adapters, FPV systems, wireless audio/video equipment, and other 2.4GHz or 5GHz/5.8GHz wireless devices.
