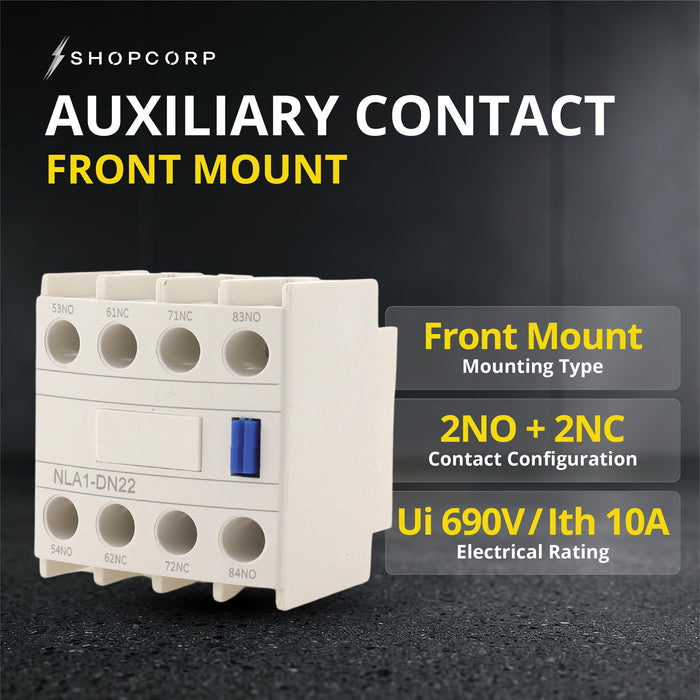

Shopcorp Auxiliary Contact LA1-D22 for AC Contactor 2 NO 2 NC Auxiliary Contact Block, Front Mount Design Contactor

Original price $13.99 - Original price $13.99
Original price
$13.99
$13.99 - $13.99
Current price $13.99

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

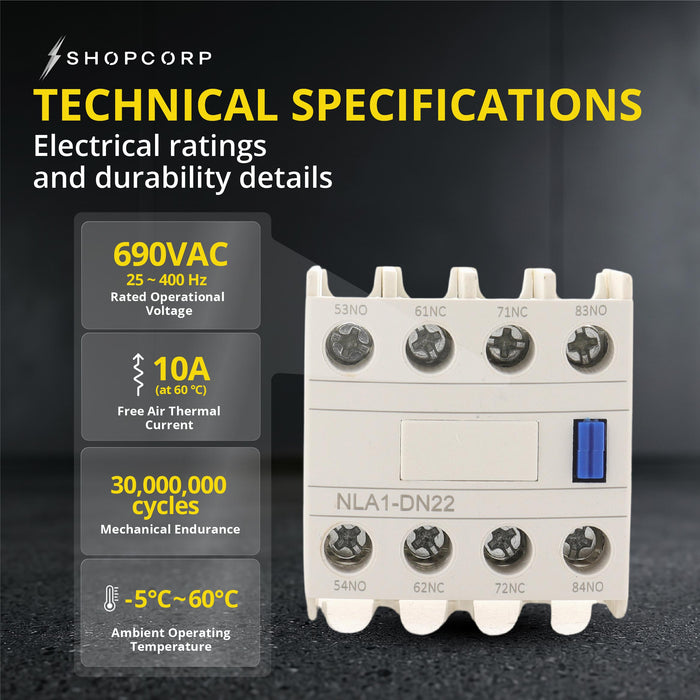

Technical Specifications

- Pole Contact Composition: 2 Normally Open (NO) + 2 Normally Closed (NC)
- Mounting Type: Front Mount

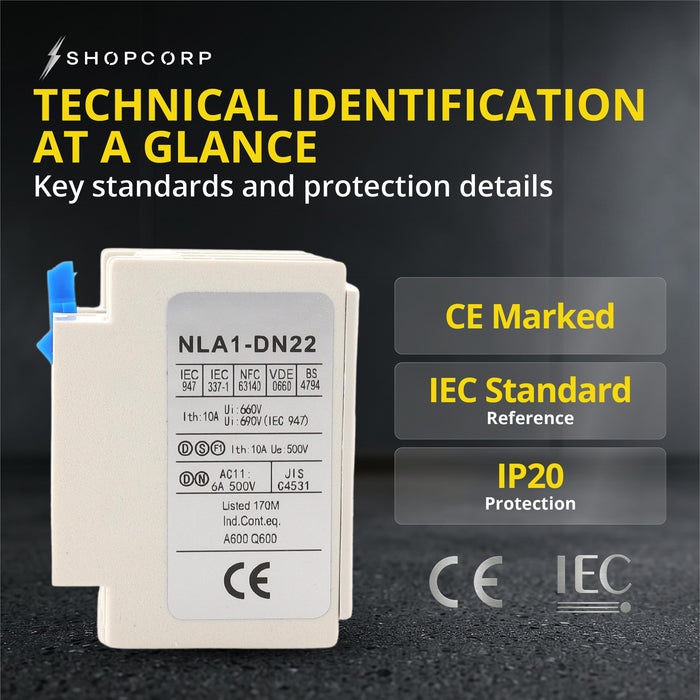

- Rated Insulation Voltage: 690V conforming to IEC 60947
- Rated Operational Voltage: 690V AC (25-400 Hz)
- Conventional Free Air Thermal Current (Ith): 10 A (at 60 °C)
- Minimum Switching Current: 5 mA
- Minimum Switching Voltage: 17V
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -60°C to 80°C
- Altitude: Operates up to 3000 meters without derating

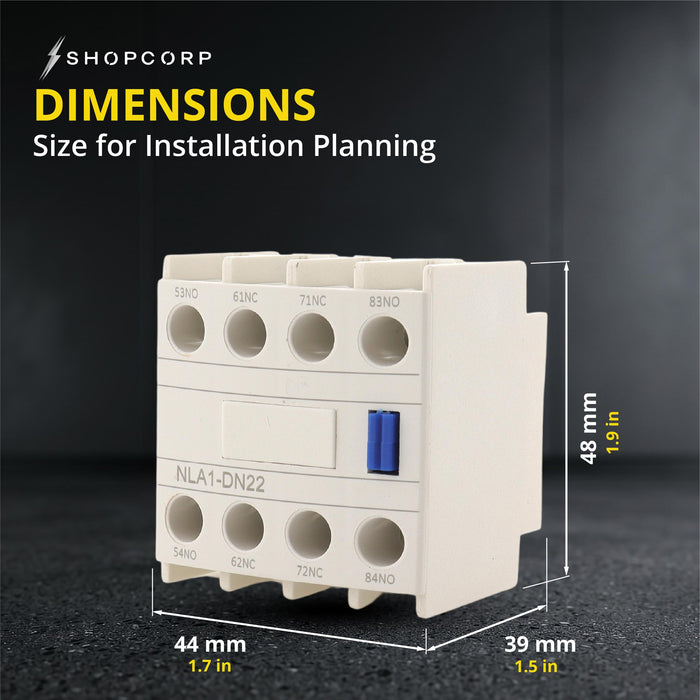

- Dimensions: 48 x 44 x 38.6 mm

About the Product

Backed by the trusted reputation of Shopcorp, the LA1-D22 auxiliary contactor ensures high-quality performance and reliability. Designed for seamless integration into control panels, this contactor meets the highest industry standards and provides long-lasting durability.

Versatile Lighting Contactor Configuration:
This auxiliary contact block is equipped with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, offering flexible and reliable operation for complex circuit control. Its enhanced design ensures compatibility with a wide range of industrial and household applications.

Efficient Front Mount Design:
Designed for front mounting, this contactor allows for quick and easy installation. It is fully compatible with NLC1 contactors, making integration into control systems effortless and ensuring a secure connection.

Reliable Coil Voltage and Load Capacity:
With a rated operational voltage of 690V AC (25-400Hz) and an insulation voltage conforming to IEC 60947 standards, this auxiliary contactor provides stable and efficient operation. It supports an Ith (thermal current) of 10A and switching currents as low as 5mA, allowing for precise electrical control.

Ideal for HVAC and Industrial Applications:
This auxiliary contactor is built for demanding environments, including HVAC systems, household applications, and machine tools. It operates efficiently in ambient temperatures ranging from -5°C to 60°C and can be stored in temperatures as low as -60°C. With the capability to function at altitudes of up to 3000m without derating, it is an ideal solution for various industrial applications.

Compact and Durable Construction:
The LA1-D22 auxiliary contactor features a compact design with dimensions of 48 x 44 x 38.6 mm, ensuring it fits seamlessly into tight spaces without compromising durability or performance.

SKU B0DQYQK1TX
