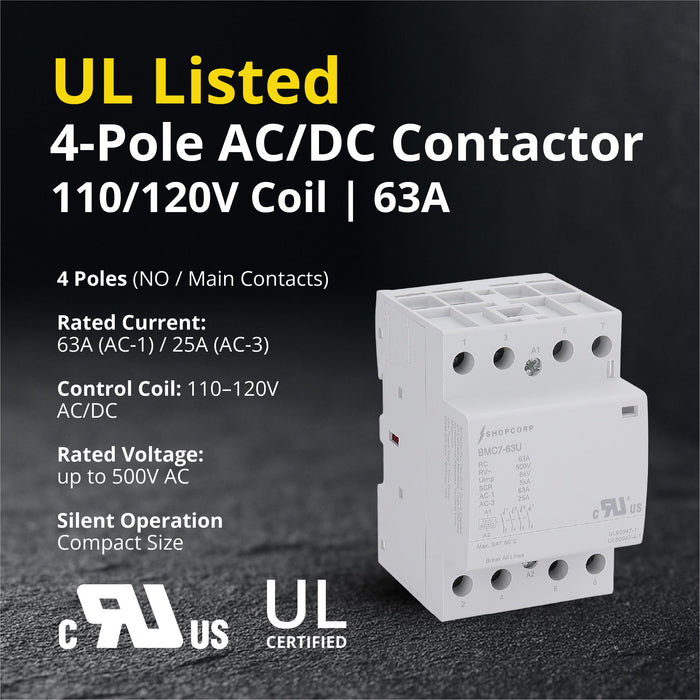

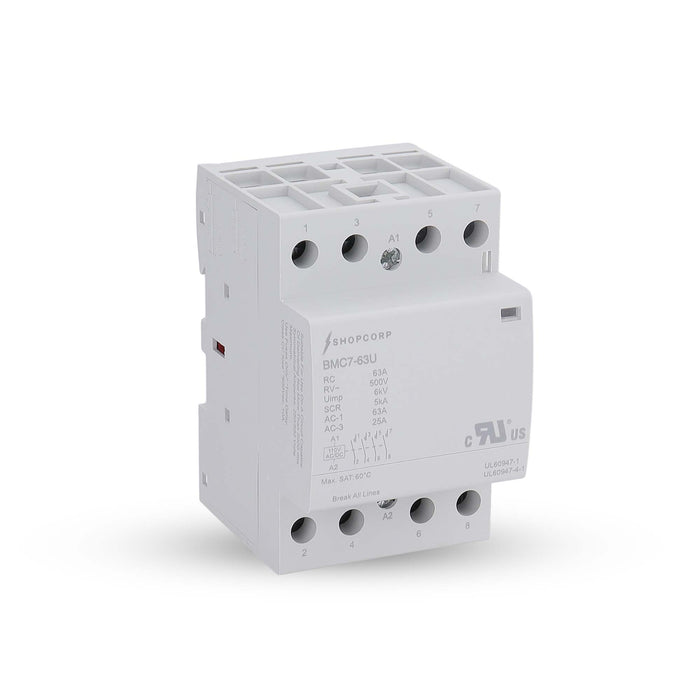

Shopcorp 63A AC/DC 4 Pole Normally Open UL Listed Contactor | 120V Coil, IEC 400V, DIN Rail Mount

Shopcorp 63A AC/DC 4 Pole Normally Open UL Listed Contactor | 120V Coil, IEC 400V, DIN Rail Mount

Rated 4.5 out of 5
Based on 25 reviews
$76.89 - $76.89
$76.89
$76.89 - $76.89
$76.89
Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

This 4-pole IEC contactor is engineered for compact installations and stable switching in lighting, HVAC, and motor control applications.

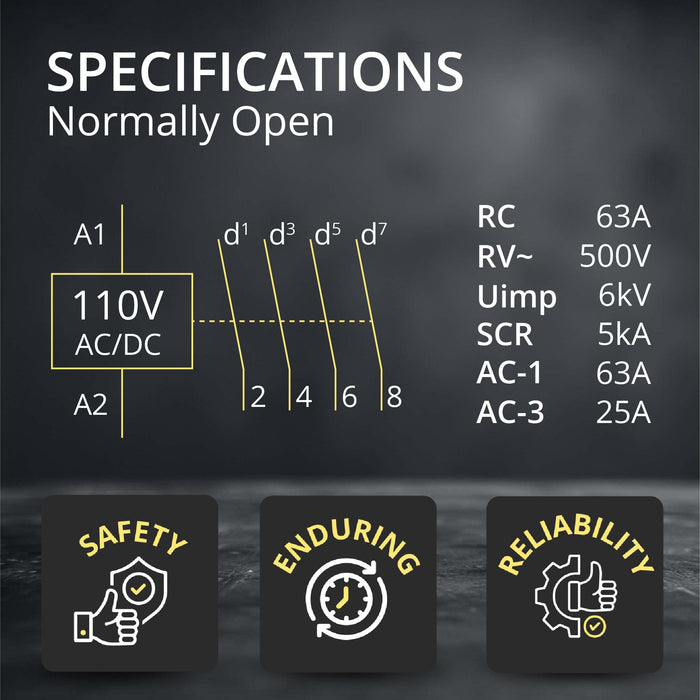

Electrical Ratings
- Configuration: 4 Pole, Normally Open (NO)
- Rated Current: 63A (AC-1), 25A (AC-3)
- Rated Operational Voltage: 400V AC
- Control Voltage: 110/120V AC/DC
- Impulse Withstand Voltage: 6 kV
- Short Circuit Capacity: 5 kA
- Mechanical & Installation

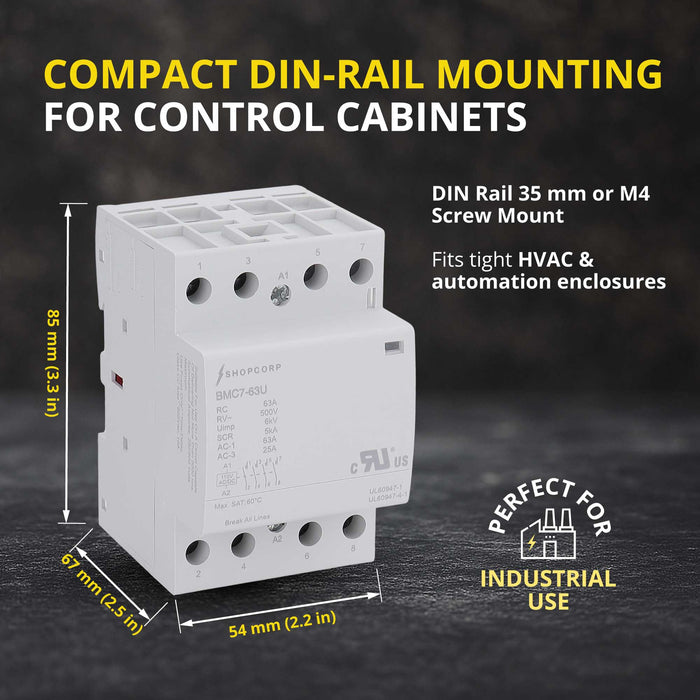

- Mounting: 35 mm DIN rail or M4 screw mount
- Dimensions: 54 × 85 × 67 mm (2.2″ × 3.3″ × 2.5″)

Wire Compatibility:
- Hard copper: 6–25 mm²
- Soft copper: 6–16 mm²
- Protection Rating: IP20 (suitable for IP40 enclosures)

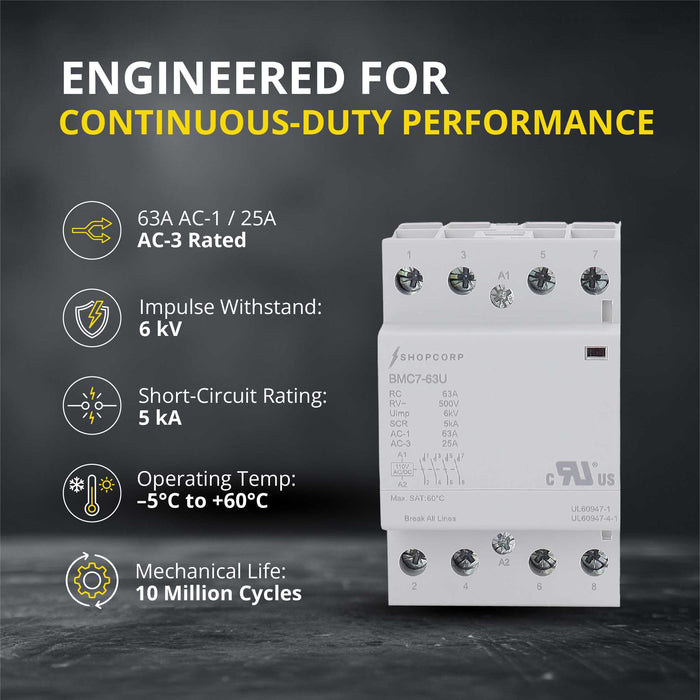

- Durability & Compliance
- Mechanical Life: 10 million operations
- Electrical Life: 50,000 operations
- Operating Temperature: –5 °C to +60 °C

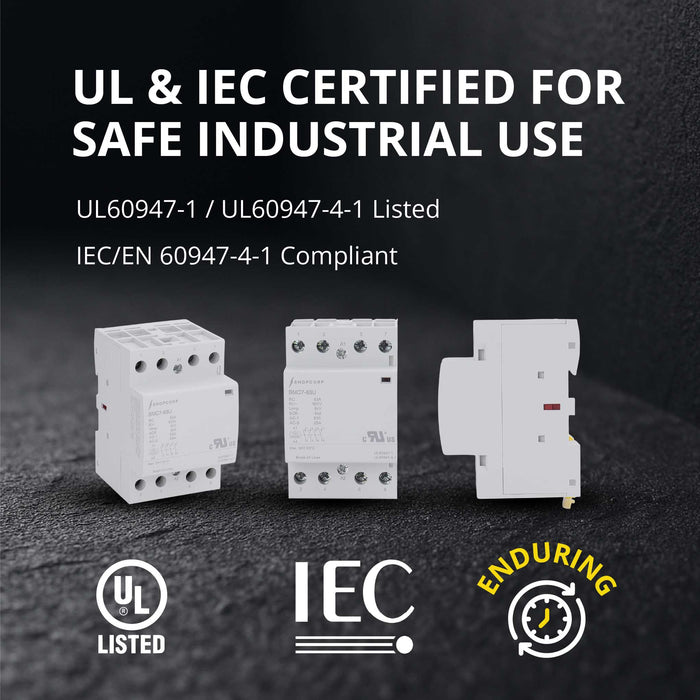

- Standards: UL 60947-1, UL 60947-4-1

About the Product

Shopcorp 63A 4 Pole NO UL 400V Contactor
This Shopcorp 4 Pole Normally Open contactor is engineered for reliable switching in HVAC systems, lighting circuits, automation panels, and low-inductive motor control. Designed for AC/DC control at 110/120V, it delivers stable performance across residential, commercial, and light industrial applications.

High-Performance IEC 400V Design
Rated at 63A (AC-1) and 25A (AC-3), this IEC 400V contactor supports resistive and motor loads with quiet, efficient operation. Its compact form factor makes it ideal for control panels, distribution boxes, and automation cabinets where space efficiency matters.

Compact, Silent & Easy to Install
Built for fast installation, this contactor supports 35 mm DIN rail mounting or M4 screw fixing. Clearly marked terminals, copper conductor compatibility, and defined torque values ensure secure wiring and service-friendly integration.

UL Listed & Built for Long Service Life
Compliant with UL 60947-1 and UL 60947-4-1, this contactor is designed for durability with up to 10 million mechanical operations and 50,000 electrical operations, ensuring long-term reliability in demanding environments.

- Designed for HVAC panels, lighting control, automation, and motor switching
- Normally Open (NO) configuration for reliable circuit control
- AC/DC 110/120V control voltage for flexible system compatibility
- Quiet operation suitable for residential and commercial installations
- Compact IEC design ideal for DIN rail control panels
- UL listed to IEC standards for dependable electrical performance

SKU B0G4SF6VS3
