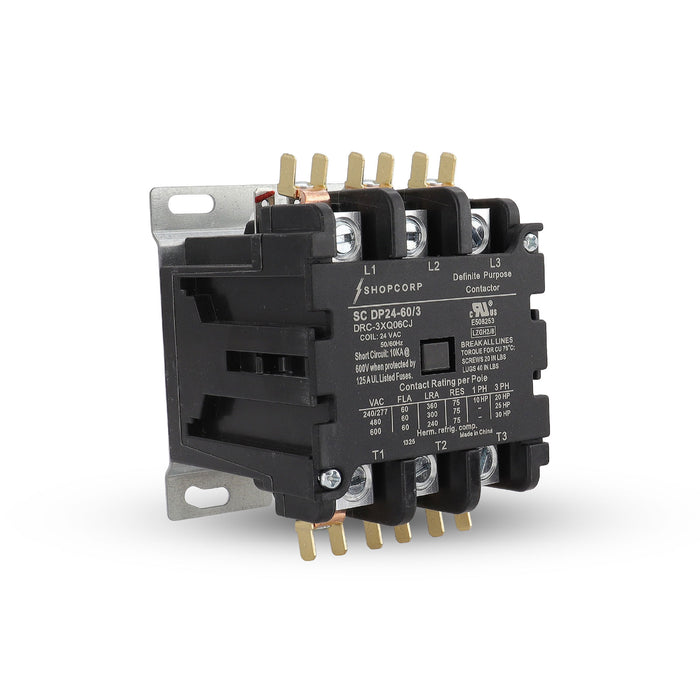

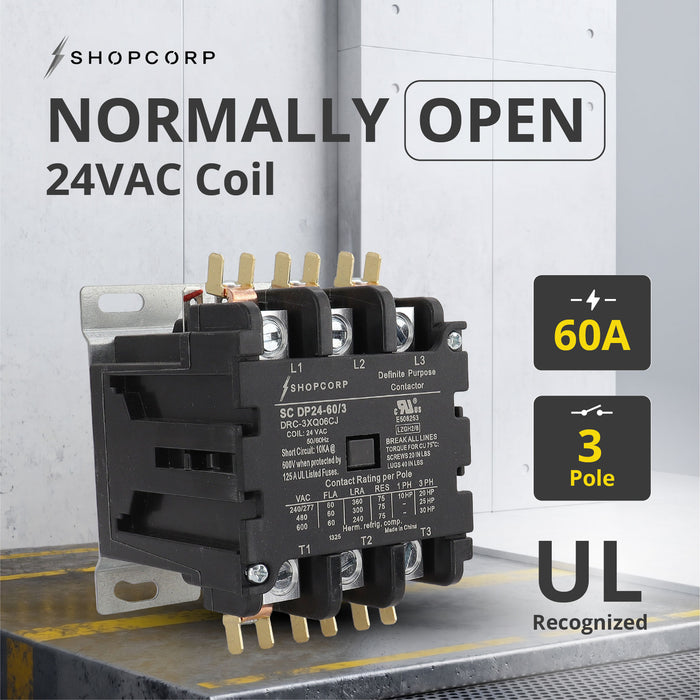

Shopcorp 60A 3 Pole Definite Purpose - 75 RES 24V Coil Contactor - UL Recognized for HVAC, Refrigeration, and Heat Pump Systems

- Type: Definite Purpose (DP) Contactor
- Configuration: 3 Pole, Normally Open (NO)
- Contactor Rating: 60A FLA, 75A RES
- Application Standards: UL 508, UL 60947-4-1, UL 60335 (A2L approved)
- UL File Number: E508253
- Contact Material: AgCdO 85%/15%
- Coil Voltage: 24VAC, 50/60Hz
- Coil Insulation Class: F
- Environmental Resistance: Dust-proof, Quiet Operation

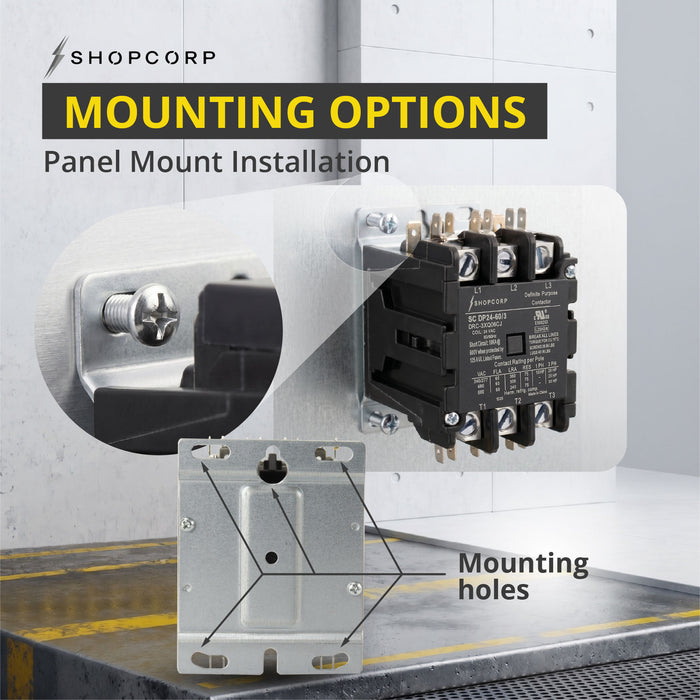

- Enclosure Mounting: Panel Mount Compatible
- Operating Temperature: Standard industrial range

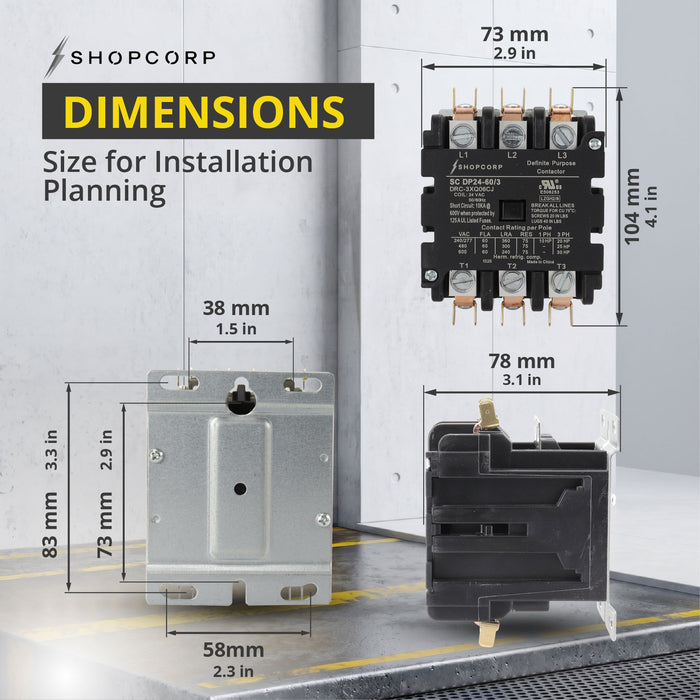

- Dimensions: 103.8 mm (H) x 73 mm (W) x 77.5 mm (D)

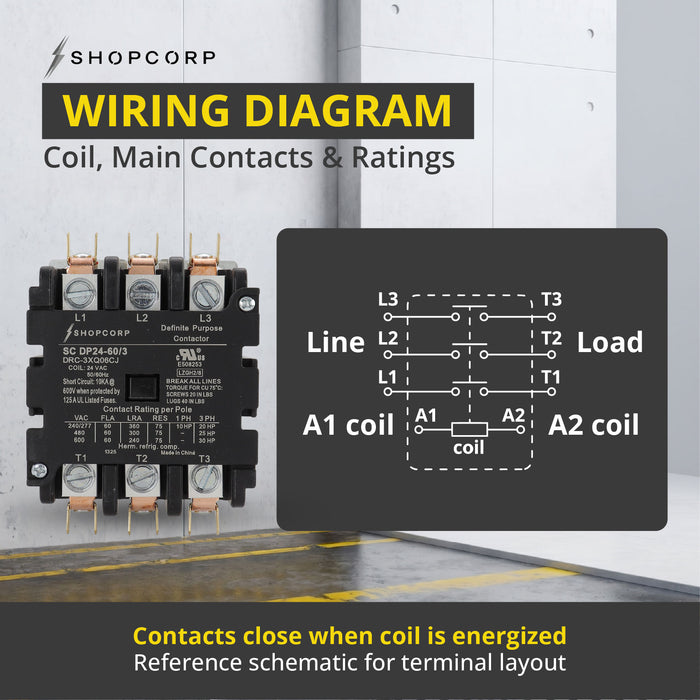

- Installation: Quick-connect terminals with labeled positions

At Contactor Depot, we specialize in premium-grade HVAC contactors, AC contactors, and lighting contactors, crafted to support the most demanding commercial and residential applications. Whether you're retrofitting a heat pump system or upgrading a refrigeration setup, our components offer dependable, industrial-certified performance.

Discover our Shopcorp 60A 3 Pole Definite Purpose Contactor, a top-tier solution designed for HVAC systems operating with A2L refrigerants and heat pumps. Engineered with AgCdO 85%/15% contacts, this contactor delivers superior conductivity, arc resistance, and quiet, dust-resistant operation, making it a standout component for both new builds and replacement projects.

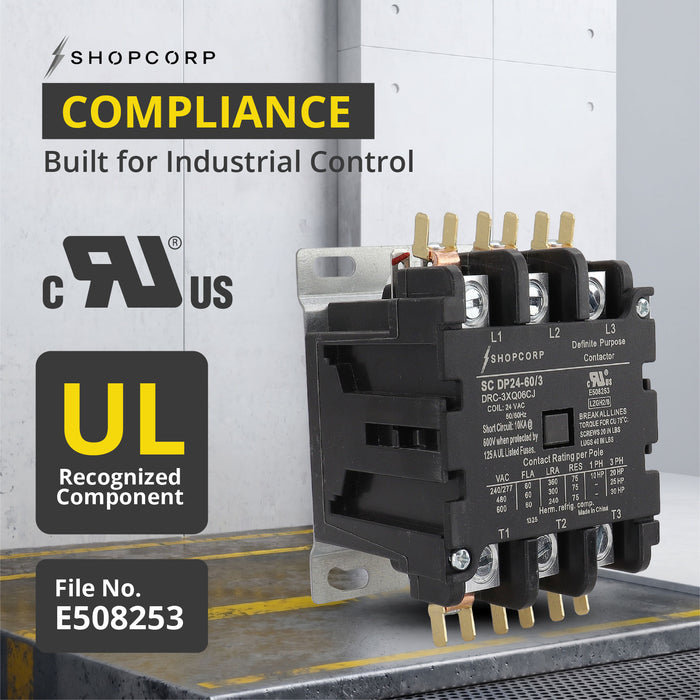

Built with a 24V AC coil and Class F insulation, this contactor supports frequent cycling under heavy-duty loads, offering thermal protection and long-term reliability. Rated for up to 60 full load amps and 75 resistive amps, this contactor is UL Recognized (File E508253) and complies with UL 508, UL 60947-4-1, and UL 60335 standards—making it fully approved for modern HVAC systems that utilize next-gen refrigerants.

Its compact dimensions (103.8 mm x 73 mm x 77.5 mm). With quick-connect terminals and robust terminal torque ratings, installation is streamlined, secure, and service-friendly.

If you're looking for a UL-compliant, efficient, and durable definite purpose contactor, this model is engineered to exceed expectations. Backed by Contactor Depot’s Quality Guarantee and expert support, it’s a trusted solution for professionals in HVAC, lighting, and motor load control.
