Shopcorp 60 Amp 2 Pole Definite Purpose Contactor | 75A RES, 24V Coil, UL Listed for HVAC, Refrigeration & Heat Pump Systems

- Type: Definite Purpose (DP) Contactor
- Configuration: 2 Pole, Normally Open (NO)
- Contactor Rating: 60A FLA, 75A RES
- Application Standards: UL 508, UL 60947-4-1, UL 60335 (A2L approved)
- UL File Number: E508253
- Contact Material: AgCdO 85%/15%
- Coil Voltage: 24VAC, 50/60Hz
- Coil Insulation Class: F
- Environmental Resistance: Dust-proof, Quiet Operation
- Enclosure Mounting: Panel Mount
- Operating Temperature: Standard industrial range

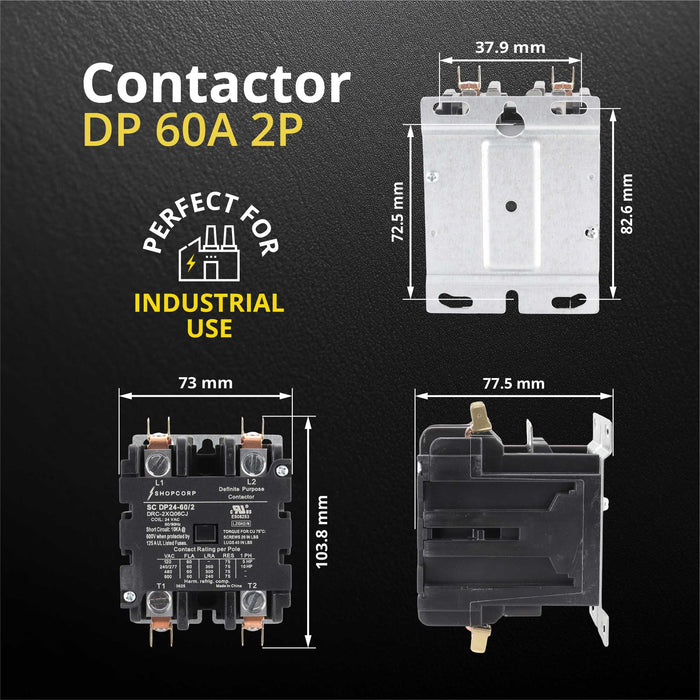

- Dimensions: 103.8 mm (H) x 73 mm (W) x 77.5 mm (D)
- Installation: Quick-connect terminals with torque-rated connections

Reliable 60A 2 Pole Contactor for HVAC and Refrigeration
The Shopcorp 60A 2 Pole Definite Purpose Contactor is engineered for demanding HVAC, refrigeration, and heat pump systems. With a 75A resistive rating and 60A full load capacity, it provides safe, efficient, and consistent performance across residential, commercial, and industrial environments.

UL Certified for Modern HVAC Applications
This contactor is UL Listed under file E508253 and complies with UL 508, UL 60947-4-1, and UL 60335 standards. Approved for A2L refrigerants, it ensures safe operation in next-gen HVAC systems while meeting today’s strict regulatory requirements.

Durable Design with 24V Coil

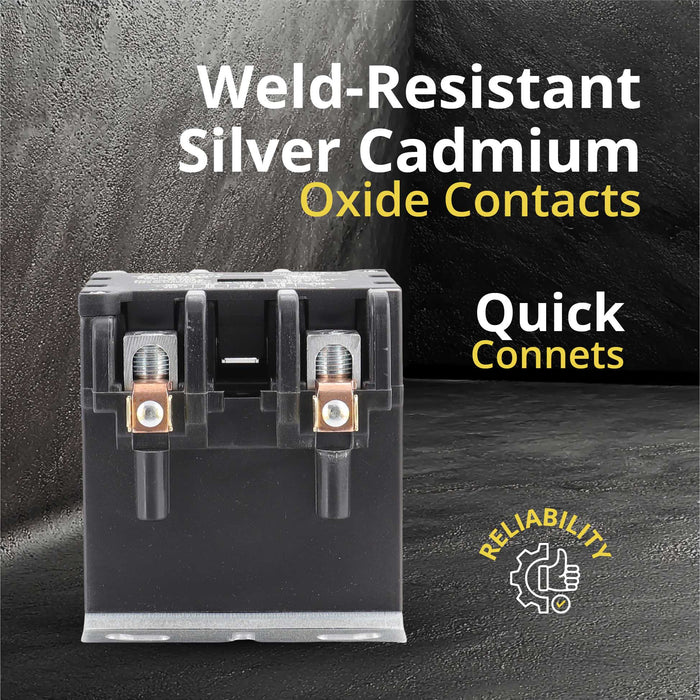

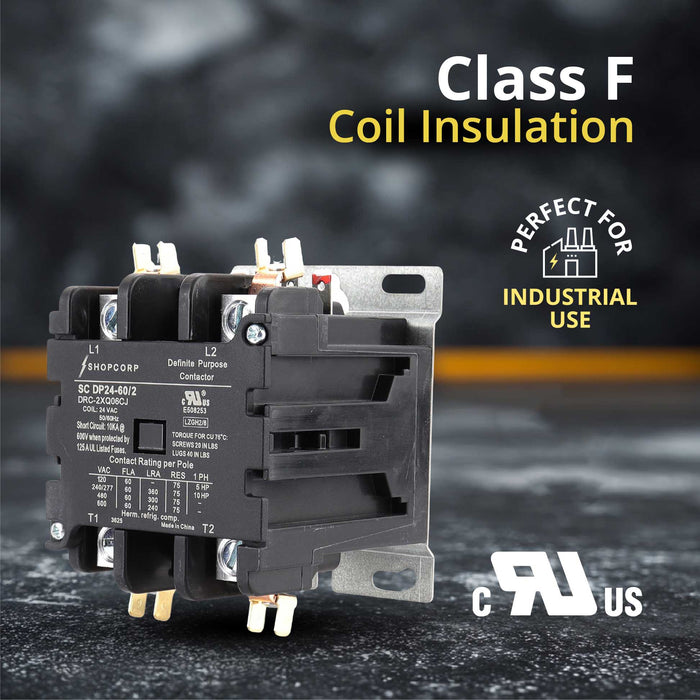

Built with a 24V AC coil and Class F insulation, this contactor supports frequent cycling, thermal resistance, and quiet operation. Its AgCdO 85%/15% contact material delivers exceptional conductivity, arc resistance, and long-term durability.

Compact and Easy to Install
Featuring a robust enclosed body, compact dimensions (103.8 x 73 x 77.5 mm), this 2 pole contactor is designed for streamlined installation and service-friendly access.
