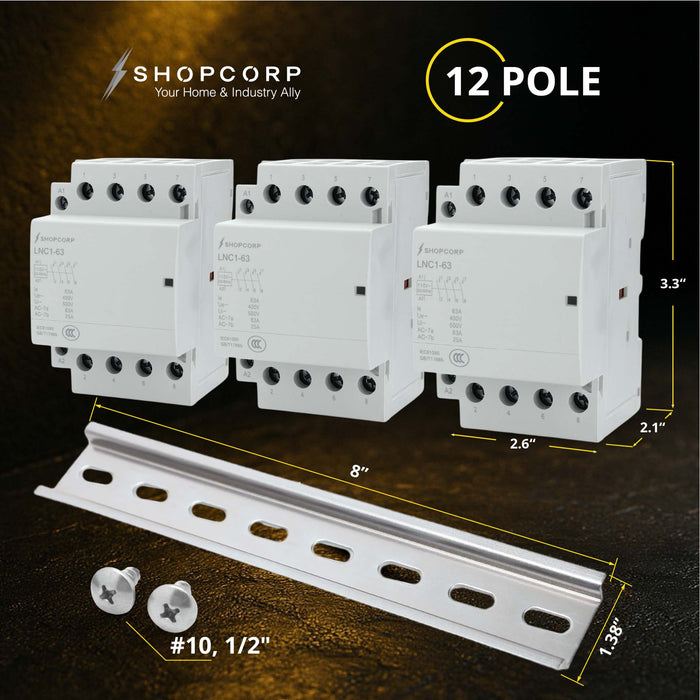

Shopcorp 63A 12 Pole (4x3) NO Contactor - IEC 400V - 110/120VAC Coil - with DIN Rail & Screws for HVAC, Motor & Lighting

Contactor IEC 400V
Contactor Type NO
Inductive Load: 40A
Resistive Load: 63A
DC Load: 30A, @ 24VDC
Power status indicator
Number of Poles 4
Coil Volts: 110/120VAC, 50/60 Hz
Coil Load: Inrush 52VA, Sealed 10VA
IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
Electric e strength: 4 kV
Operating Temperature: -30…+70 °C (-22…+158 °F)
1 HP @ 1 Phase - 120V
2 HP @ 1 Phase - 230V
5 HP @ 3 Phase - 208V
5 HP @ 3 Phase - 230V
10HP @ 3 Phase - 480V
Weight: 0.88 lb (0.42 kg)
Width: 2.1" (54 mm)
Height: 3.3" (84 mm)
Depth: 2.5" (64 mm)
CE approved 61095, UL pending
Base or DIN 35mm mount

Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1

Shopcorp 12 Pole 60 Amp Normally Open IEC 110 / 120VAC Contactor

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 12 Pole (4 Pole x 3 Units) 60 Amp Normally Open (NO) IEC 400V Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, featuring compatibility with DIN rail mounting, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

Backed by the trusted reputation of Shopcorp, this 4 Pole 60 Amp Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
