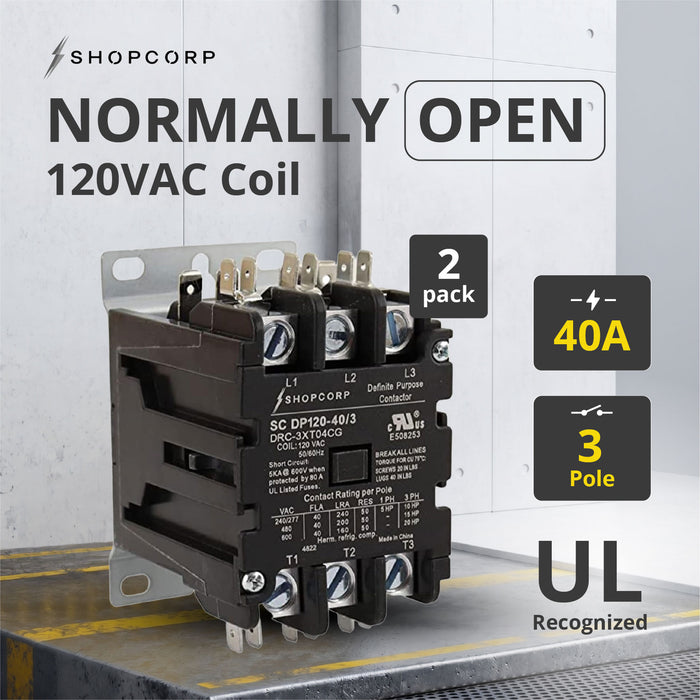

Shopcorp 40A 3 Pole 600V Definite Purpose, NO Contactor - 110/120VAC Coil for HVAC and Lighting - UL Certified - 2 pack

Shopcorp 40Amp 3 Pole 600V Definite Purpose, NO Contactor - 110/120VAC Coil for HVAC and Lighting - UL Certified | 2 pack

Rated 4.6 out of 5
Based on 54 reviews
$45.99 - $45.99
$45.99
$84.99
$84.99 - $84.99
$84.99

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

Fla Rating: 40 FLA
Part number: CKYC2-3XT04CG
INITIAL DIELECTRIC STRENGTH: Between Contacts & Coils: 2,200 VAC, Between Poles: 2,200 VAC, Between Open Contacts: 2,200 VAC
ARC COVER Standard
INSULATION SYSTEM: 130°C Class B
TEMPERATURE RANGE: -40°C to + 65°C / -40°F to + 150°F
UNIT WEIGHT: 1 lb
POWER POLE TERMINATIONS: # 10-32 screw or box lug
WIRE SIZE: #10-32 screw 16-8 (must use ring terminal), Box lug 14-4
RECOMMENDED TIGHTENING TORQUE: # 10-32 screw: 22 in. lb, Boxlug: 40 in. lb
QUICK CONNECTS. Coil terminals: Dual 0.25" QC or #6-32 screw/0.25" OC. Power terminals: Dual 0.25" QC


Voltage:
Normal Coil Voltage: 120V
Nominal Coil Resistance: 170 Ohms
Maximum Pick Up Voltage: 88V
Minimum Drop Out Voltage: 20-70V
Nominal Inrush @ 50Hz: 65VA
Nominal Inrush @ 60Hz: 60VA
Nominal Sealed @ 50Hz: 7.5VA
Nominal Sealed @ 60Hz: 6VA
Maximum Coil Voltage: 132V

Amperage:
Full Load Amps: 40A
Resistive Amps @ 600VAC: 50A
Locked Rotor Amps @ 240/277 VAC: 240A
Locked Rotor Amps @ 480 VAC: 200A
Locked Rotor Amps @ 600 VAC: 120A
Maximum Horsepower: Single Phase, 3HP

About the Product

Shopcorp 40A 3 Pole Normally Open 600V Definite Purpose Contactor - UL certified - 2 pack

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 40 Amp 3 Pole Normally Open (NO) Definite Purpose Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

This 40 Amp 3 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.

Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

See All Contactors Cut Sheets

SKU B0CN3FMK97

Have Questions? Call Us at 1-888-766-6610

Our experts are ready to assist you with the best solutions for your project.

Contact us now
average rating 4.6 out of 5
Based on 54 reviews
  • 5 Stars
    30 Reviews
  • 4 Stars
    24 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Write a Review
Review posted
Reviewed by Alyssa P.
Rated 5 out of 5

Professional Quality at a Fair Price

As someone who installs electrical equipment regularly, I can say these feel like professional-grade contactors. The housing is durable, the contacts operate smoothly, and the 40A rating is ideal for many HVAC and motor applications. I'd definitely purchase this 2-pack again.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Trevor H.
Rated 5 out of 5

Perfect Spare for Future Repairs

I only needed one contactor right away, but having the second unit ready for the next service call is a huge bonus. Both appear very well made, and the first one has been working perfectly on my refrigeration equipment.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Joanna R.
Rated 4 out of 5

Quiet Operation on Every Cycle

One thing I really like is how quietly these contactors operate. They energize without the loud buzzing I've experienced with cheaper models. They've been controlling a three-phase fan system with no issues.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Simon C.
Rated 5 out of 5

Excellent UL Certified Contactor

I specifically wanted a UL Certified contactor for a customer installation, and this fit the bill perfectly. It gives me confidence knowing it's built to recognized safety standards. The performance has been flawless.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Erica H.
Rated 4 out of 5

Solid Construction and Easy Wiring

The terminals are sturdy, and I appreciated having both quick-connect and screw connection options. Installation was straightforward, and everything lined up perfectly with my existing wiring. Excellent product.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Wesley B.
Rated 5 out of 5

Great for Lighting Control Panels

I installed one of these in a commercial lighting panel and kept the second as a backup. The contacts engage smoothly, and the 120V coil works exactly as expected. Very pleased with the overall quality.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Calvin M.
Rated 5 out of 5

Two Reliable Replacements in One Box

I needed to replace two aging contactors on separate HVAC units, so the 2-pack was perfect. Both installed easily and have been operating quietly ever since. Nice to have a matching spare on hand as well.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Logan C.
Rated 5 out of 5

Trusted Replacement Option

I replaced a failed OEM contactor with one of these, and it works even better. Stronger coil action and tighter terminal screws. Great buy for anyone maintaining HVAC systems.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Felix V.
Rated 4 out of 5

High-Quality Components at a Fair Price

Everything about this product feels premium, from the clean enclosure to the contact points. I am using it on a 240V compressor and it handles the load perfectly.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Damon S.
Rated 5 out of 5

Excellent for Dual Installation Projects

I used one for a heat pump and another for a lighting control circuit. Both installed easily and performed flawlessly. Its rare to find consistency across multiple units so Shopcorp nailed it.

Loading...
I recommend this product
Was this helpful?
