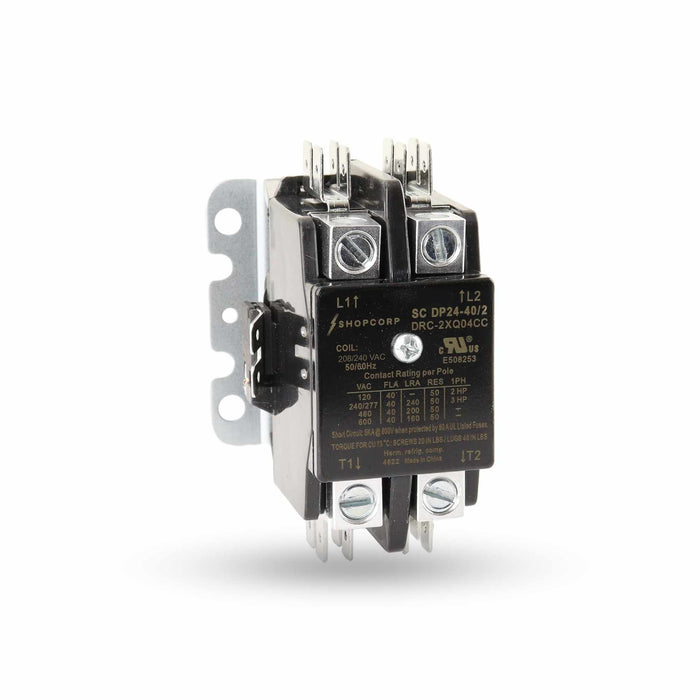

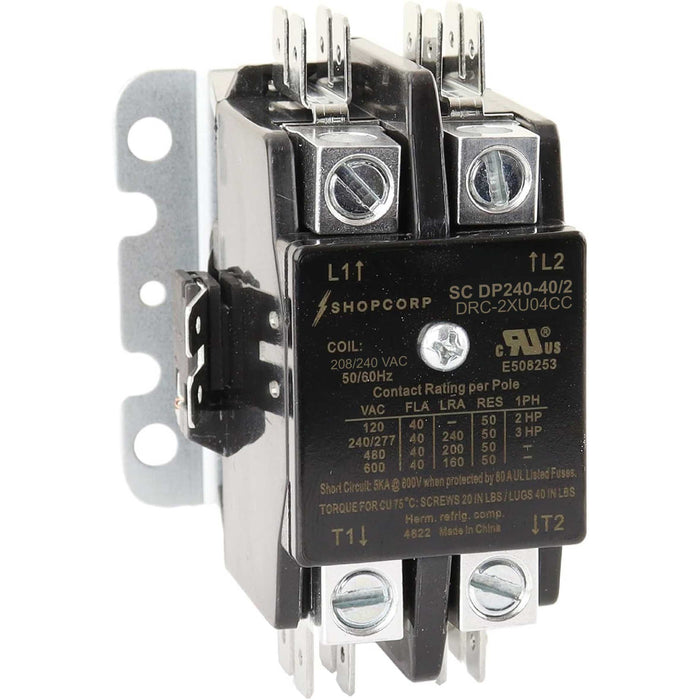

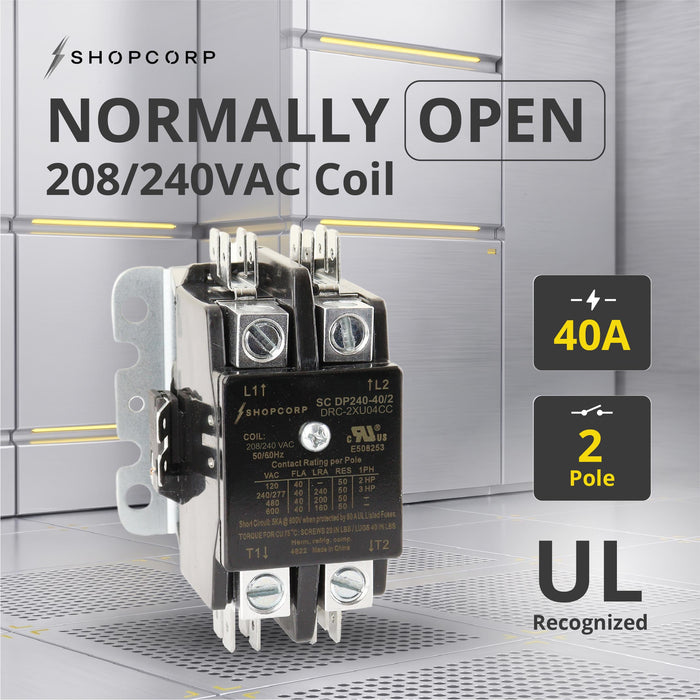

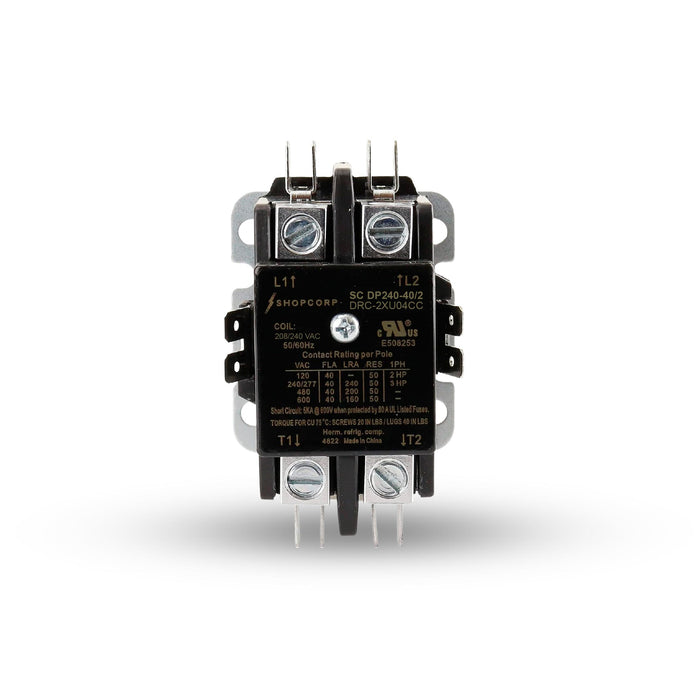

Shopcorp 40 Amp 2 Pole Definite Purpose Contactor | 50A RES, 240V Coil, UL Listed for HVAC, Lighting & Motor Load Applications

- Type: Definite Purpose (DP) Magnetic Contactor

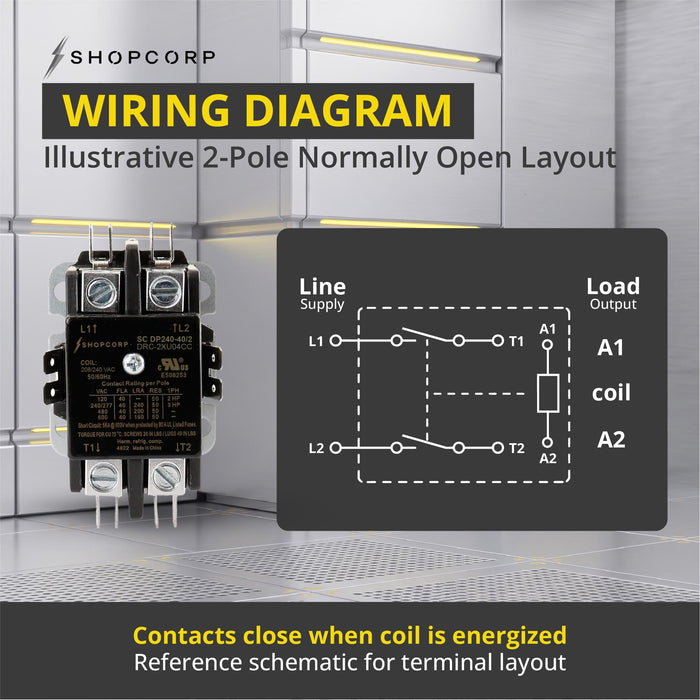

- Configuration: 2 Pole, Normally Open (NO)
- Contactor Rating: 40A Full Load Amps (FLA), 50A Resistive Amps (RES)
- Application Standards: UL 508, UL 60947-4-1, UL 60335 (A2L Approved)
- UL File Number: E508253
- Contact Material: Silver Cadmium Oxide (AgCdO 85%/15%)
- Coil Voltage: 208–240VAC, 50/60Hz
- Coil Resistance: 1350 Ohm
- Pick-Up Voltage: 180V
- Drop-Out Voltage Range: 48–156V
- VA Load: 25 VA inrush @ 50Hz, 20 VA inrush @ 60Hz; 7.5 VA sealed @ 50Hz, 6.5 VA sealed @ 60Hz
- Coil Insulation Class: F
- Environmental Resistance: Dust-proof, Quiet Operation

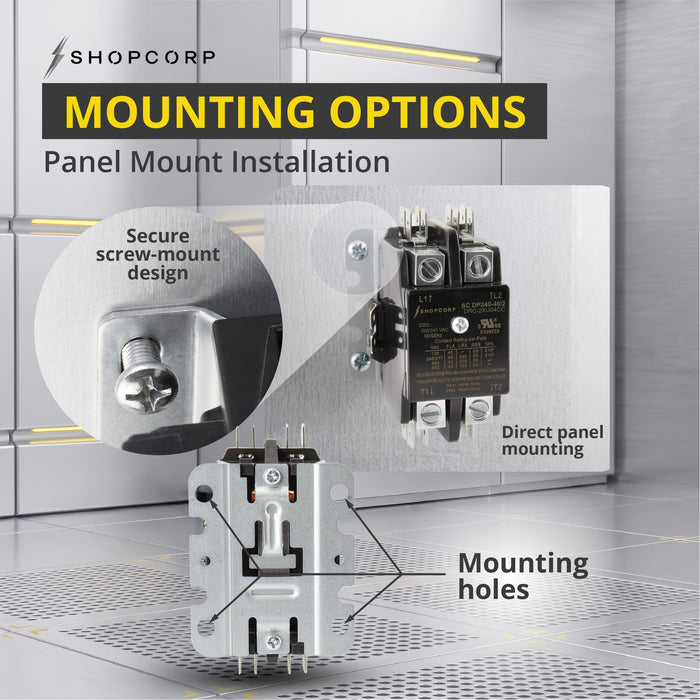

- Mounting Options: Snap-on DIN rail / Panel mount
-Operating Temperature: Standard industrial range
- Terminals: Quick-connect / Box-lug combination

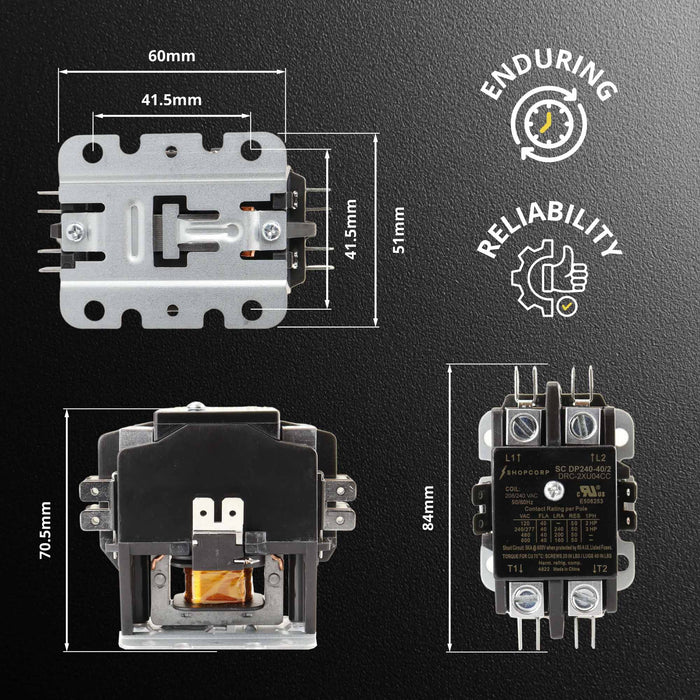

- Dimensions: Compact 103.8 mm (H) x 73 mm (W) x 77.5 mm (D)

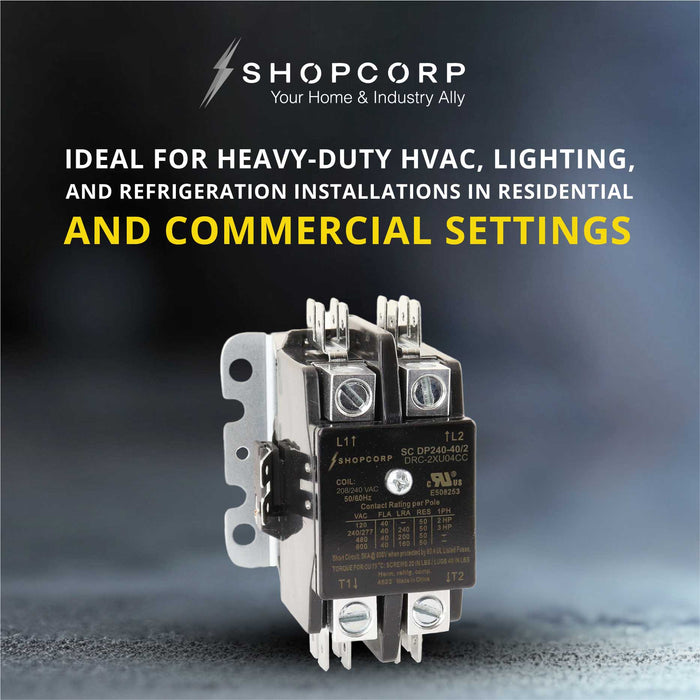

Reliable 40A 2 Pole Contactor for HVAC, Lighting & Refrigeration
The Shopcorp 40A 2 Pole Definite Purpose Contactor is engineered for HVAC systems, lighting, refrigeration, and motor load control in residential, commercial, and industrial environments. Rated at 40A FLA and 50A RES, this magnetic contactor provides dependable switching performance and long service life.

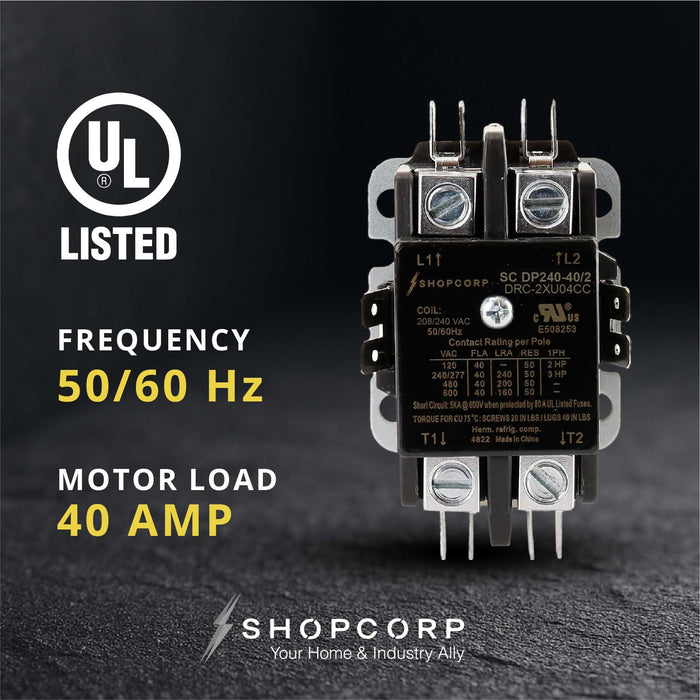

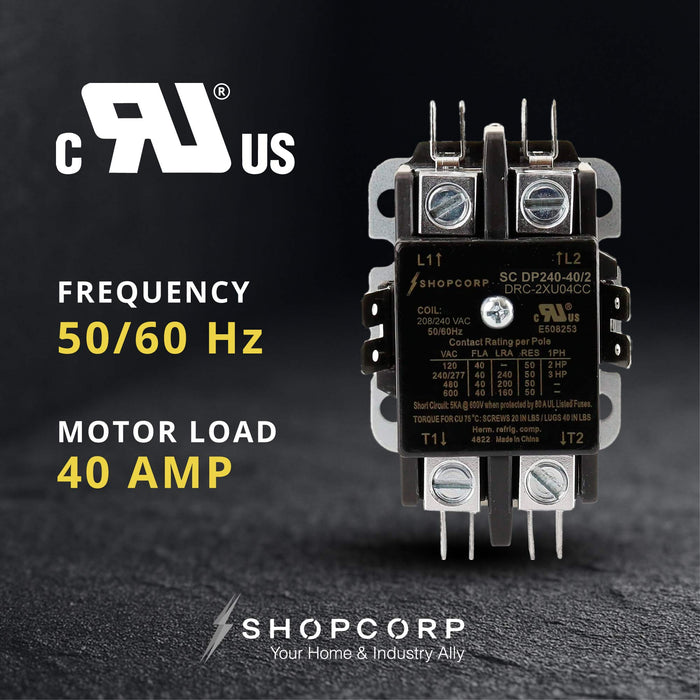

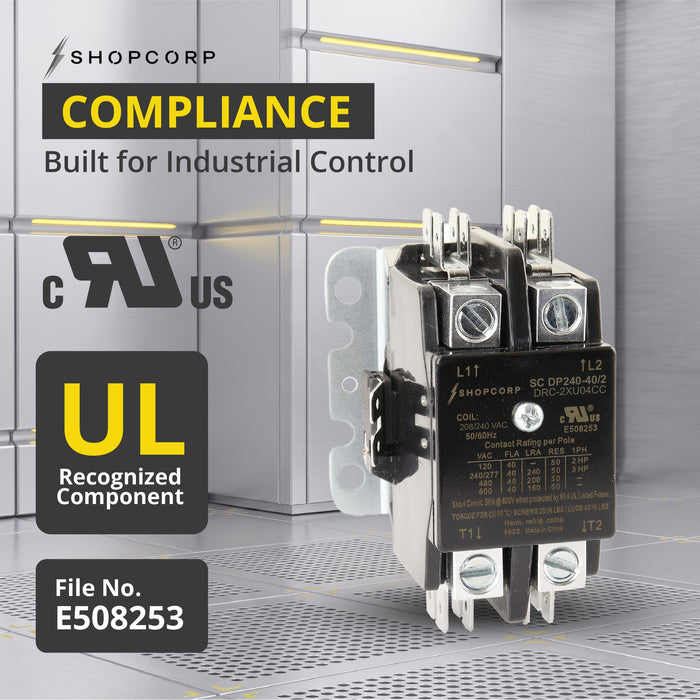

UL Listed and Internationally Compliant:
Built to meet UL 508, UL 60947-4-1, and UL 60335 standards, this model ensures full compliance with A2L refrigerant-compatible HVAC systems. Its high-quality construction with silver cadmium oxide contacts provides excellent conductivity, arc resistance, and quiet operation under demanding conditions.

Efficient 240V Coil with Precision Design:
Operating at 208–240V AC, 50/60Hz, this contactor features a 1350 Ohm coil resistance, 180V pick-up voltage, and 48–156V dropout range. With 25 VA inrush (50Hz) and 7.5 VA sealed (50Hz) performance, the coil offers reliable magnetic actuation with low power consumption.

Compact, Durable & Easy to Install:
Compact and easy to integrate into HVAC panels or control boxes, this model includes quick-connect terminals, metal mounting plate, and dust-protected enclosure for enhanced safety. Designed for continuous duty, it supports quiet, stable, and efficient operation in demanding applications.
