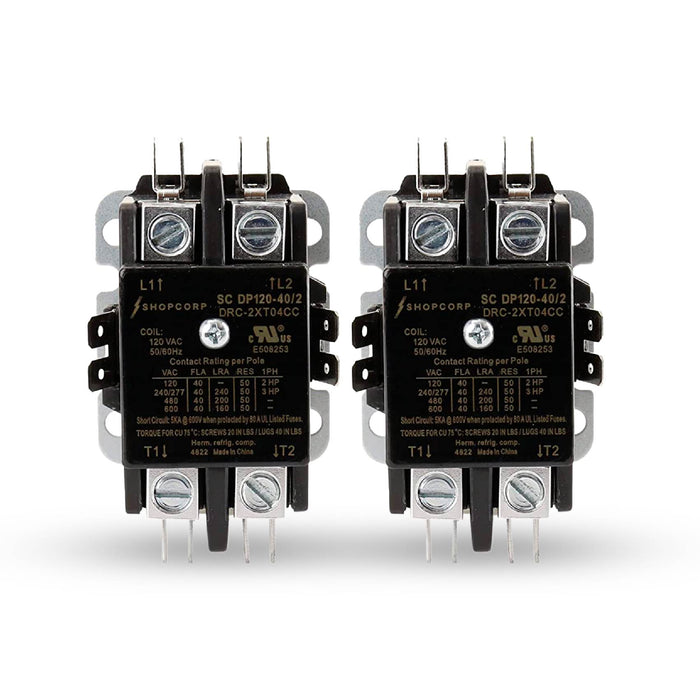

Shopcorp 40A 2 Pole 600V Definite Purpose, NO Contactor - 110/120VAC Coil for HVAC and Lighting - 2 pack

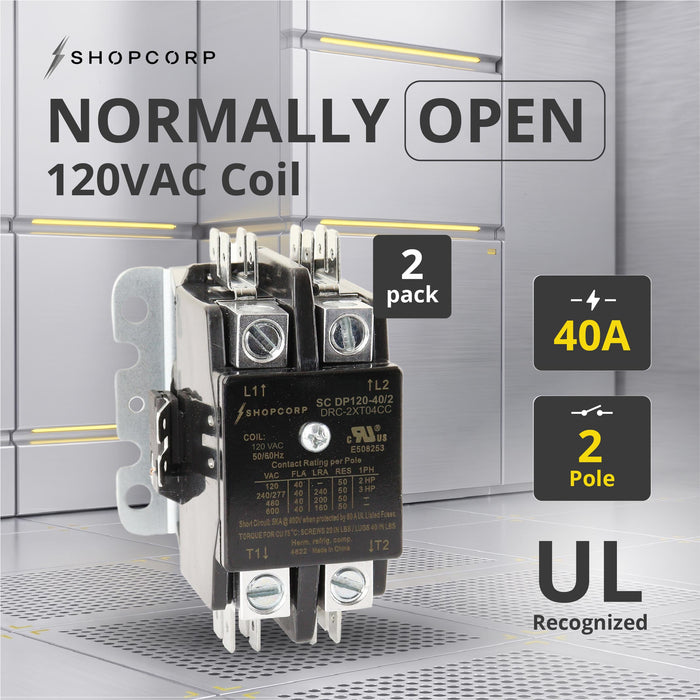

Shopcorp 40Amp 2 Pole 600V Definite Purpose Normally Open Contactor - 110/120VAC Coil for HVAC, AC and Lighting | 2 pack

Rated 4.5 out of 5
Based on 43 reviews
$41.99 - $41.99
$41.99
$41.99 - $41.99
$41.99
Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

Fla Rating: 40 FLA
Part number: CKYC2-2XT04GG
INITIAL DIELECTRIC STRENGTH: Between Contacts & Coils: 2,200 VAC, Between Poles: 2,200 VAC (includes shunt), Between Open Contacts: 2,200 VAC (no shunt)
ARC COVERStandard
INSULATION SYSTEM: 130°C Class B
TEMPERATURE RANGE: -40°C to + 65°C / -40°F to + 150°F
UNIT WEIGHT: 0.60 lb
POWER POLE TERMINATIONS: # 10-32 screw or box lug
WIRE SIZE: #10-32 screw 16-8 (must use ring terminal), Box lug 14-4
RECOMMENDED TIGHTENING TORQUE: # 10-32 screw: 22 in. lb, Boxlug: 40 in. lb
QUICK CONNECTS. Coil terminals: Dual 0.25" QC, Power terminals: Dual or Ouad 0.25" QC


Voltage:
Normal Coil Voltage: 120V
Nominal Coil Resistance: 360 Ohms
Maximum Pick Up Voltage: 88V
Minimum Drop Out Voltage: 20-70V
Nominal Inrush @ 50Hz: 33VA
Nominal Inrush @ 60Hz: 30VA
Nominal Sealed @ 50Hz: 8VA
Nominal Sealed @ 60Hz: 6.5VA
Maximum Coil Voltage: 132V

Amperage:
Full Load Amps: 40A
Resistive Amps @ 600VAC: 50A
Locked Rotor Amps @ 240/277 VAC: 160A
Locked Rotor Amps @ 480 VAC: 160A
Locked Rotor Amps @ 600 VAC: 120A
Maximum Horsepower: Single Phase, 2HP

About the Product

Shopcorp 40A 2 Pole Normally Open 600V Definite Purpose Contactor - 2 pack

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 40 Amp 2 Pole Normally Open (NO) Definite Purpose Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

This 40 Amp 2 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.

SKU B0CN3FFGL3

See All Contactors Cut Sheets

Have Questions? Call Us at 1-888-766-6610

Our experts are ready to assist you with the best solutions for your project.

Contact us now
average rating 4.5 out of 5
Based on 43 reviews
  • 5 Stars
    22 Reviews
  • 4 Stars
    21 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Write a Review
Review posted
Reviewed by Manuel T.
Rated 4 out of 5

Reliable Performance

I have installed many definite purpose contactors over the years, and these compare very favorably. The 120V coil operates quietly, the contacts engage positively, and the overall build quality gives me confidence that they will provide years of dependable service.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by T. M.
Rated 5 out of 5

Perfect Addition to My Electrical Inventory

I like keeping common HVAC components available in my workshop, and this two-pack was a smart purchase. After successfully installing the first one, I have complete confidence that the second will be just as reliable when I need it.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Nathaniel B.
Rated 4 out of 5

Quality You Notice Right Away

The housing feels sturdy, the terminals are solid, and everything is clearly labeled. Installation took less time than expected because the design is straightforward. Its always nice when replacement parts fit exactly the way they should.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Scott W.
Rated 5 out of 5

Dependable Switching Every Cycle

These contactors control two separate condenser units that start and stop frequently throughout the day. They engage consistently without chatter, and the operation has remained stable through weeks of use.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Cristina L.
Rated 5 out of 5

Excellent Value for Two Units

Buying two contactors together made sense for me since I maintain several rental properties. I used one immediately and stored the second for future repairs. Both arrived in excellent condition and perform exactly as expected.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Rebecca H.
Rated 5 out of 5

Great Replacement

I look for components that make installation easy. The terminal options gave me flexibility, and the contactor fit my control cabinet perfectly. Both units in the pack appear to be very well manufactured.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Brandon K.
Rated 4 out of 5

Smooth Operation with a 120V Coil

This contactor worked perfectly with my existing 120VAC control circuit. The coil pulls in cleanly, operates quietly, and the equipment has been running reliably since the replacement. Great product for HVAC repairs.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Paige U.
Rated 5 out of 5

Convenient Two-Pack for Service Work

I bought this pack because I had two rooftop AC units that needed maintenance. Both contactors installed without any issues and have been operating smoothly ever since. Having a spare on hand is always a plus.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Sam T.
Rated 5 out of 5

Reliable 2-Pack for Long-Term Use

Having two identical contactors in the pack is very convenient. I installed one and inspected the other as a backup. Both units appear identical in quality and construction. Based on current performance, I expect a long service life from these contactors.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Steven M.
Rated 4 out of 5

Strong Build

The materials and assembly quality are noticeable. The armature movement is smooth, and the contacts seat properly. It is refreshing to install a component that works perfectly right out of the box with no adjustments needed.

Loading...
I recommend this product
Was this helpful?
