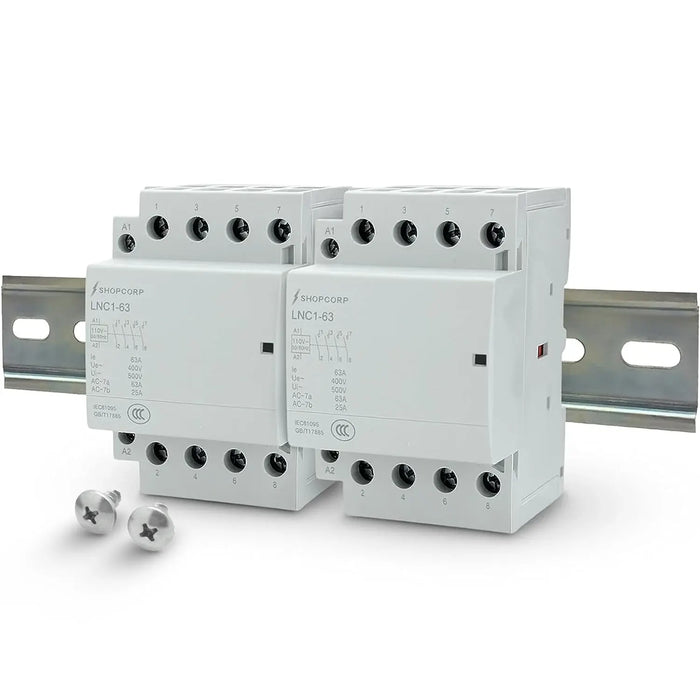

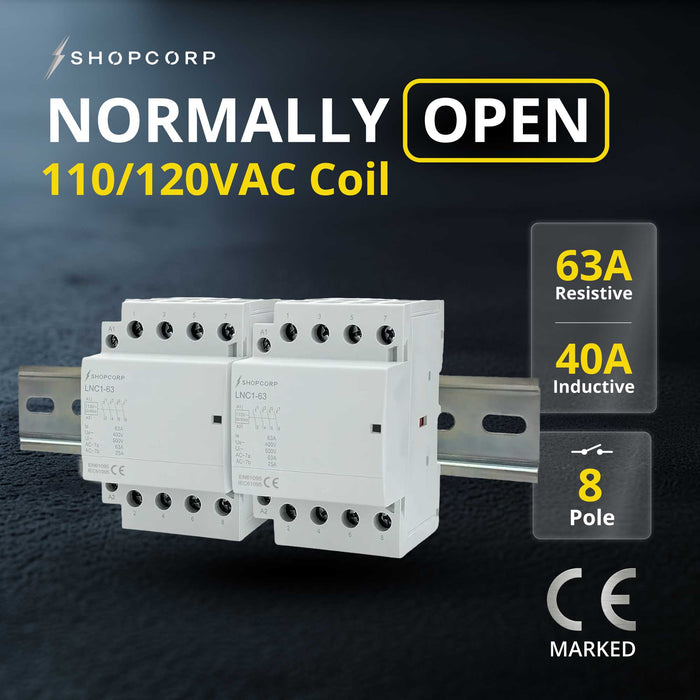

Shopcorp 50A 8 Pole (4 pole x 2 units) NO Contactor - 110/120VAC Coil, DIN Rail and Screws for HVAC, AC, Motor and Lighting

Contactor IEC 400V
Contactor Type NO

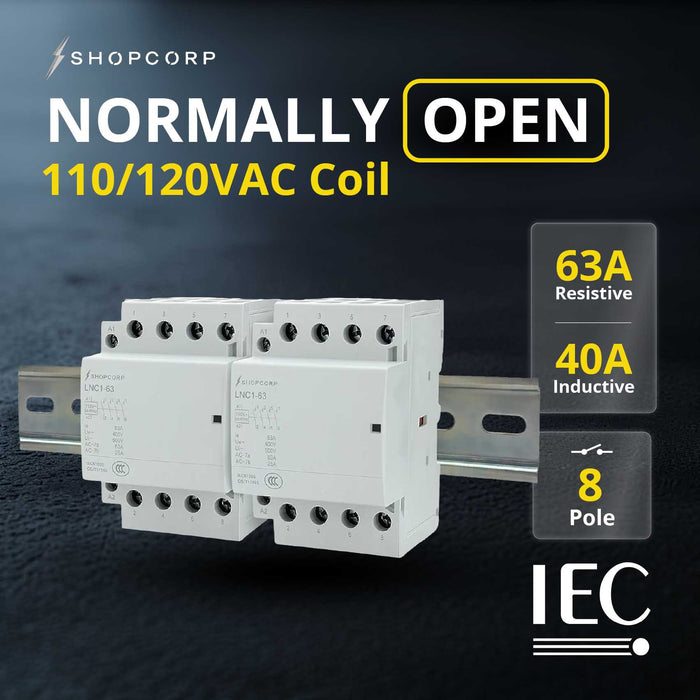

Inductive Load: 40A
Resistive Load: 63A
DC Load: 30A, @ 24VDC
Power status indicator
Number of Poles 4
Coil Volts: 110/120VAC, 50 Hz
Coil Load: Inrush 52VA, Sealed 10VA
IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
Electric e strength: 4 kV
Operating Temperature: -40…+70 °C (-40…+158 °F)
1 HP @ 1 Phase - 120V
2 HP @ 1 Phase - 230V
5 HP @ 3 Phase - 208V
5 HP @ 3 Phase - 230V
10HP @ 3 Phase - 480V
Weight: 0.88 lb (0.42 kg)

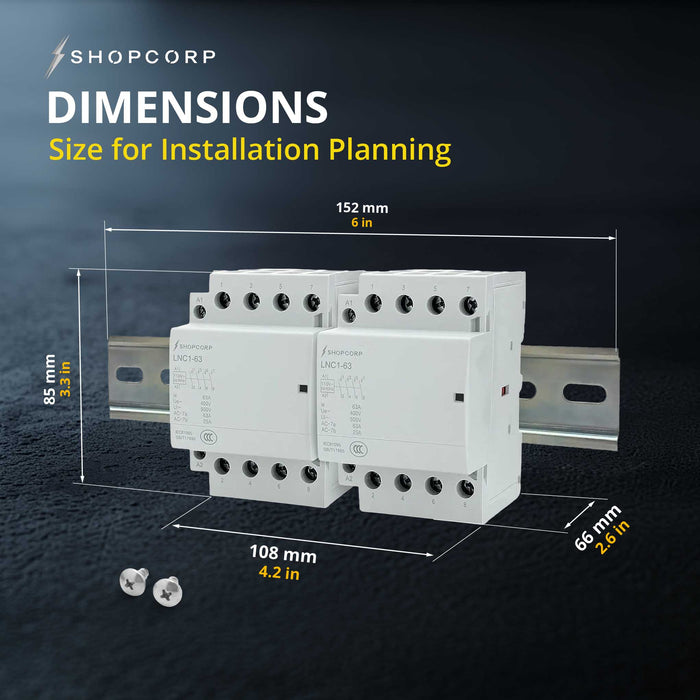

Dimenssions: 2.1" (54 mm) x 3.3" (85 mm) x 2.6" (66 mm)
CE approved 61095, UL pending

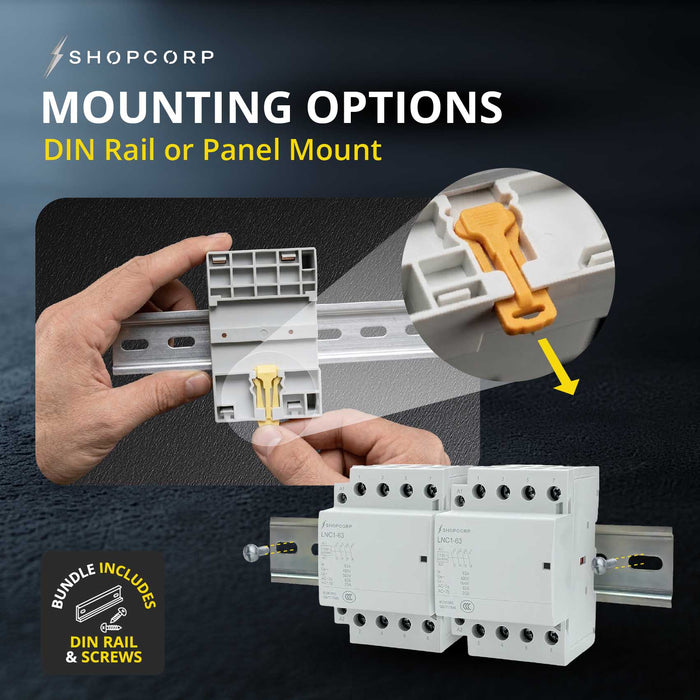

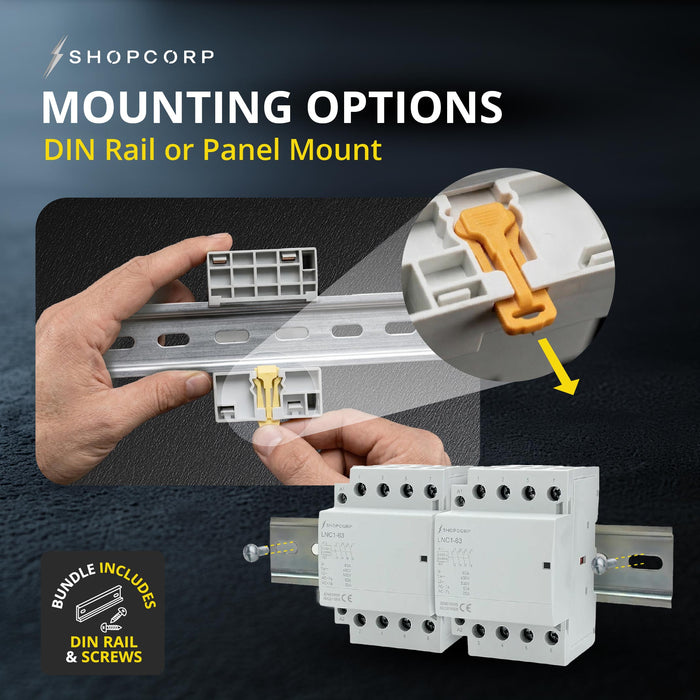

Base or DIN 35mm mount

Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1

DIN Rail Specifications:
Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 152.40mm (6”) and thickness 5mm (0.2”)

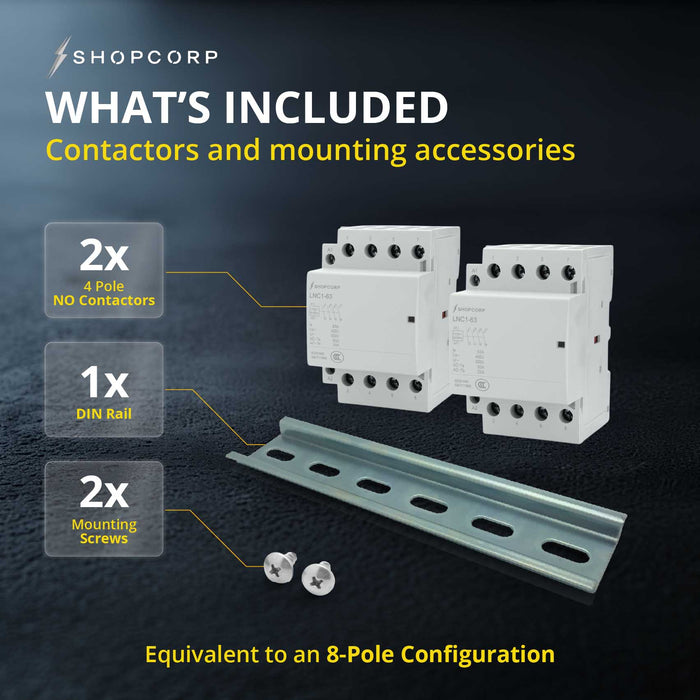

Bundle Content:

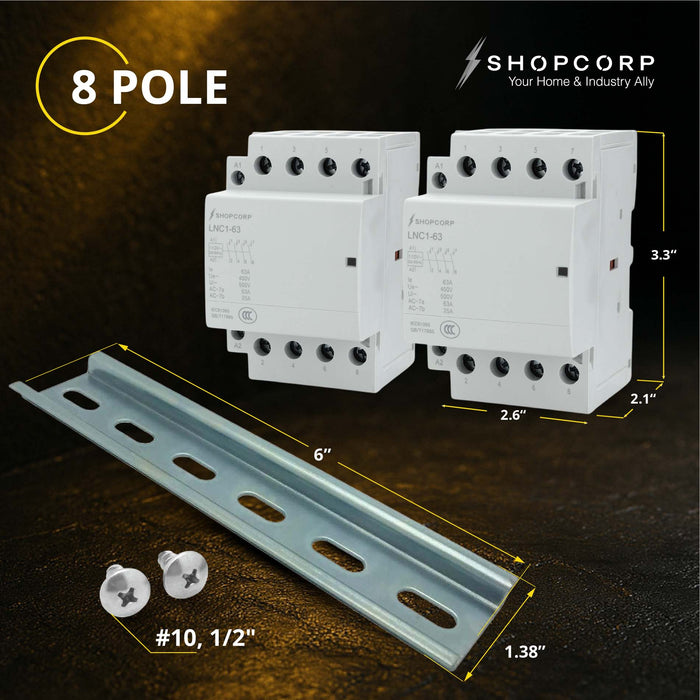

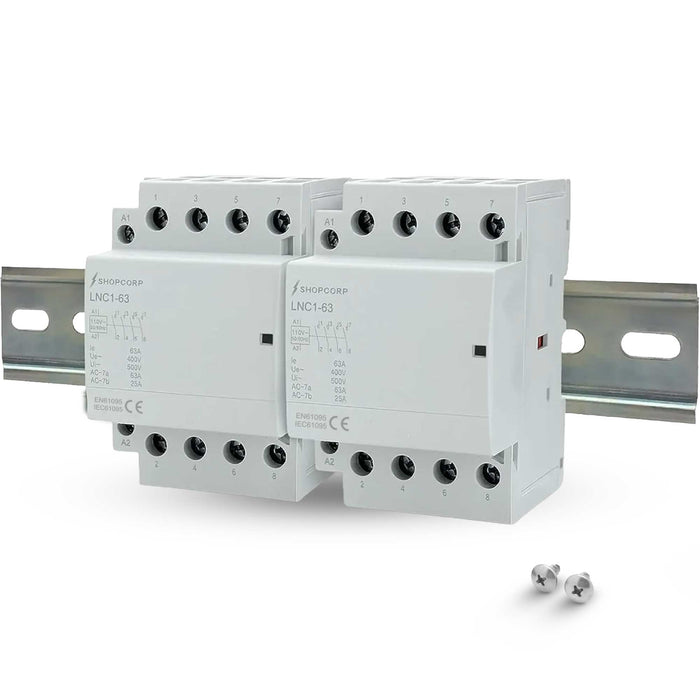

5 ITEMS - Two (2) 63A 4 Pole Normally Open (NO) Contactors and power status indicator; one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail and two (2) stainless steel truss head screws (#10, 1/2") for immediate home or industrial installation.

Shopcorp 50A 8 Pole (4 Poles x 2 Units) NO Contactor

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 50 Amp 8 Pole Normally Open (NO) IEC Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, featuring compatibility with DIN rail mounting, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

Backed by the trusted reputation of Shopcorp, this 40 Amp 8 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
