Shopcorp 3 Pole AC Contactor 24VAC Coil, 32A IEC 690V Switch with 1NO/1NC Auxiliary Contacts, DIN Rail Mount for HVAC, Motor & Lighting Control

This IEC contactor is designed for compact motor and lighting control applications requiring a 24VAC coil and auxiliary contact support.

Specifications
- Product Type: 3 Pole AC Contactor
- Model Marking: LC1D32
- Coil Voltage: 24VAC, 50/60Hz
- Pole Configuration: 3 Pole
- Auxiliary Contacts: 1NO + 1NC
- Auxiliary Contact Markings: 13-14 NO, 21-22 NC
- Coil Terminals: A1 / A2
- Rated Insulation Voltage (Ui): 690V
- Standard Markings: IEC/EN 60947-4-1, VDE 0660, CE marked
- Mounting Options: DIN rail or panel mount
- Approximate Dimensions: 85 mm (H) x 45 mm (W) x 90 mm (D)
- Applications: HVAC systems, compressors, pumps, fans, lighting circuits, motor control panels, industrial control cabinets

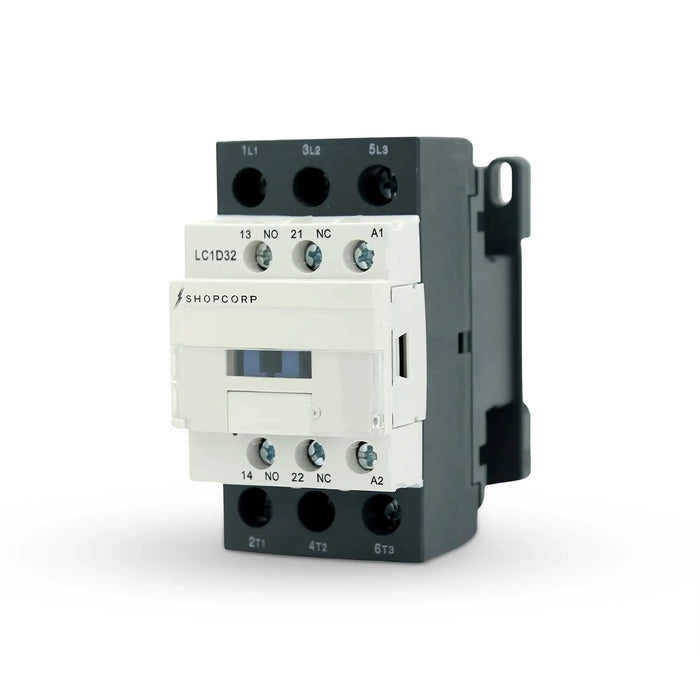

- Terminal Layout: Main power terminals, auxiliary contacts, and coil terminals clearly marked
- Installation Type: Compact panel-friendly design for control cabinets and enclosures

The Shopcorp 3 Pole AC Contactor is built for professionals who need reliable switching performance in HVAC, motor control, and lighting applications. Designed with a 24VAC coil, 3 pole configuration, and 1NO / 1NC auxiliary contacts, this IEC-rated contactor supports control, signaling, and load switching in compact electrical panels and industrial enclosures.

Marked with Ui 690V and IEC/EN 60947-4-1 compliance, this contactor is suitable for use in compatible systems involving compressors, pumps, fans, and other motor-driven equipment. Its DIN rail or panel mount design and compact dimensions help simplify installation in control cabinets, HVAC boxes, and industrial assemblies.

Reliable 3 Pole AC Contactor for HVAC, Motor, and Lighting Control
The Shopcorp 3 Pole AC Contactor is designed for dependable switching in HVAC systems, motor control panels, lighting circuits, compressors, pumps, and fans. Built with a 24VAC coil and a compact body for panel integration, it is a practical solution for industrial and commercial control applications that require stable performance and clear terminal layout.

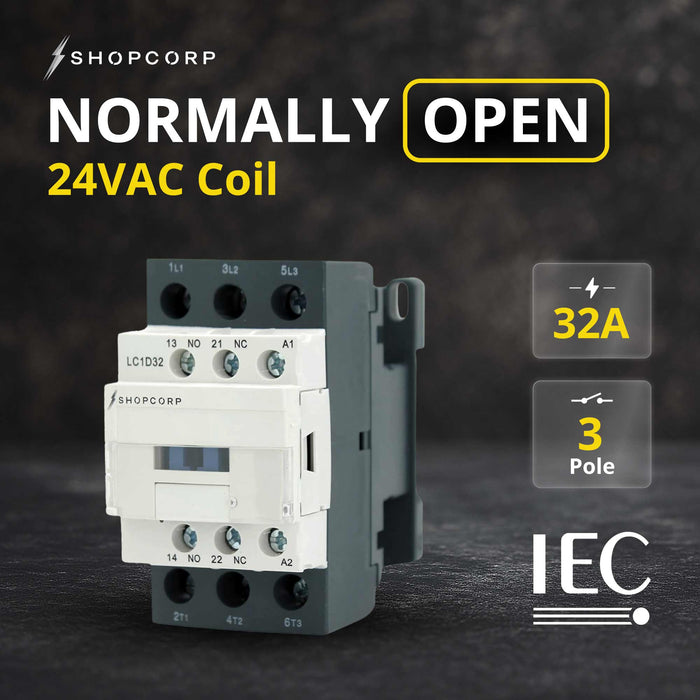

24VAC Coil and 1NO/1NC Auxiliary Contacts
This contactor features a 24VAC 50/60Hz coil and integrated 1NO / 1NC auxiliary contacts marked 13-14 NO and 21-22 NC. These auxiliary contacts support signaling, feedback, interlock, and control circuit functions in electrical panels and automation systems.

IEC 690V Contactor for Industrial Control Applications
Built for industrial control use, this model features a Ui 690V insulation rating and is marked to IEC/EN 60947-4-1 and VDE 0660 standards. It is designed for use in compatible HVAC, lighting, and motor load systems where IEC-rated components are required.

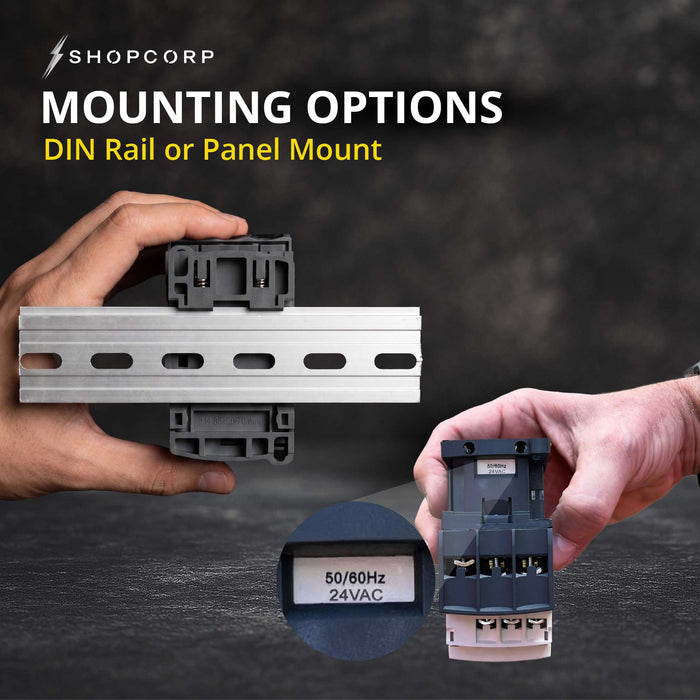

DIN Rail or Panel Mount Installation
With a compact footprint of approximately 85 x 45 x 90 mm, this contactor is easy to install in cabinets, control boxes, and electrical enclosures. The included DIN rail or panel mount base supports flexible installation planning for OEM builds, service replacements, and new control assemblies.
