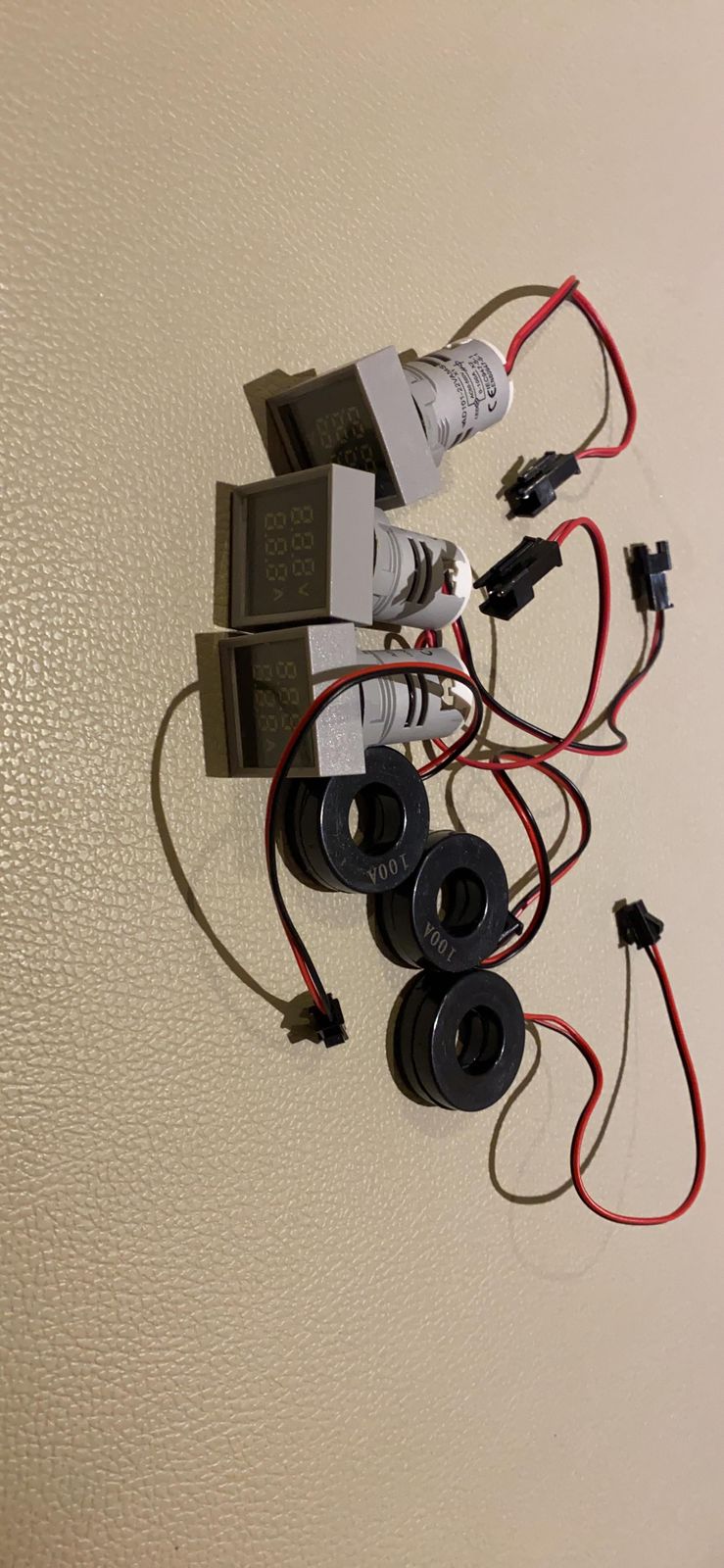

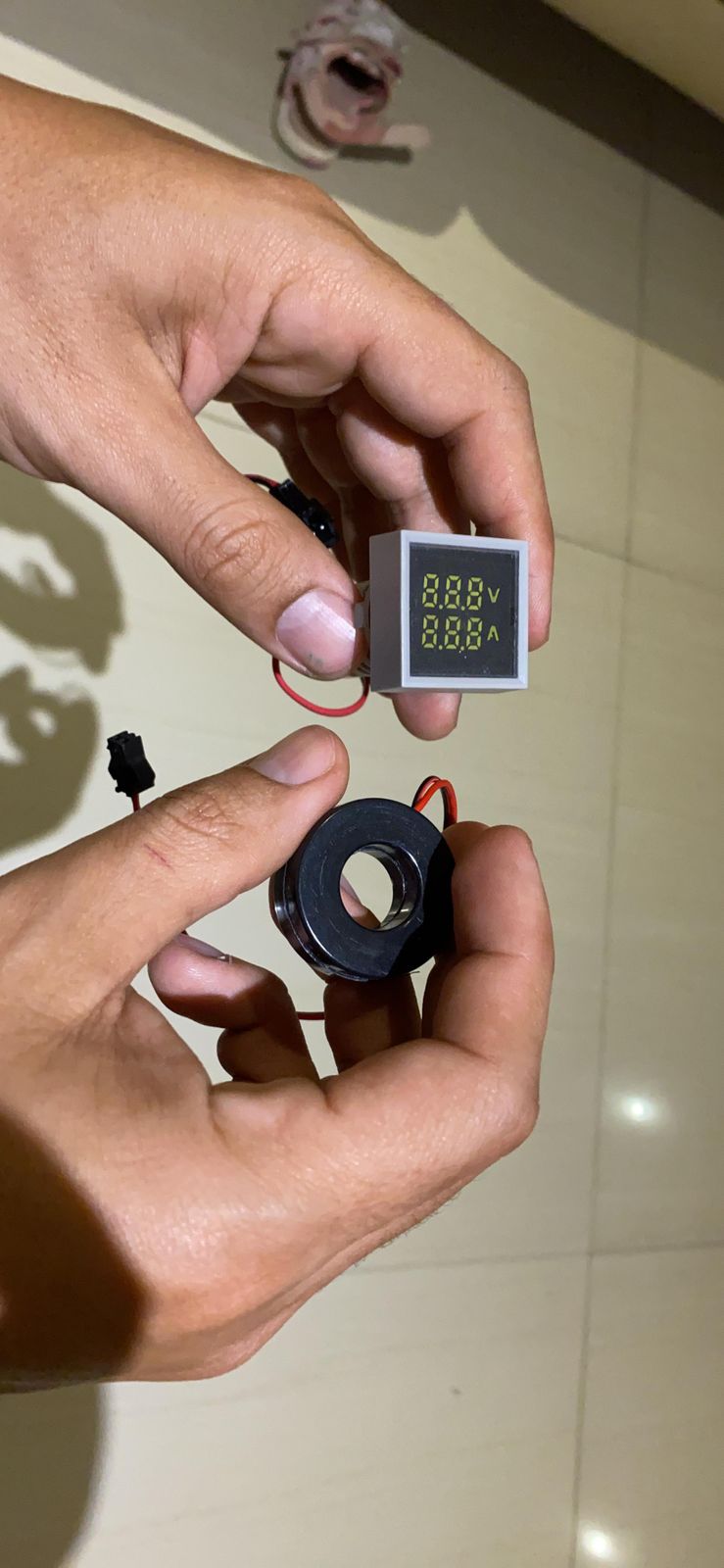

Versatile Digital LED Display Voltmeter and Ammeter
Shopcorp Digital LED Display Indicator Voltmeter and Ammeter provides a visual indication of system status at a glance. This industrial indicator light has an operating voltage of 500V and a current meter range of 0-100A. The model AD101-22VAM features a 22 mm/0.87" (7/8") mount hole diameter, LED bulb type, cool white color temperature, ABS lamp body material, dustproof base, heat dissipation holes, and IP65 protection degree. Certifications: CE.
Suitable for Various Industrial Uses
This versatile LED indicator light can be used as a signal indication, warning signal, pilot light, accident signal, and other signals in the line of electric power, telecommunication, machine tool, mount panels, consoles of textile equipment and operating rooms, ships, airplanes, printing, and mining machinery.
Working Condition
- Operating temperature: -20°C to 80°C
- Relative Humidity: Less than 95%
- Insulation resistance: Greater than or equal to 2M Ohms
- Allowable voltage fluctuation: ±2A
- Continuous operating life: Greater than or equal to 30000H
- Brightness: 95nit
- CTI: Greater than or equal to 600
- Amp accuracy: ±2A
- Voltage accuracy: ±2%
- Vibration frequency: 2-80Hz with acceleration of 0.7g
- Pollution degree: 3
- Installation group: II
Dual Voltage and Amperage Gauge
The 2-in-1 multimeter (dual) voltage and amperage gauge measures and provides information about current draw and current continuity, as well as the electrical power difference between two points in a circuit. It is suitable for indicating signals in the circuits of power, telecommunications, and machine tools. When properly calibrated, it can also measure pressure, temperature, and flow.
Simple Connection and Easy to Use
This handheld, portable digital indicator is small, with exquisite workmanship and long service life. It can be operated without plugging it in, making it suitable for outdoor use. It has an LED (light-emitting diode) alarm light when the RMS value or peak value is greater than the range. Note: It does not have a memory function or automatic calibration.
High Accuracy and Stable Working Performance
The Shopcorp Digital LED Display Indicator Voltmeter and Ammeter eliminates human errors, offering accurate and fast readings compared to analogue meters. This digital meter is more stable and reliable, free from parallax errors, with automatic range selection and high input impedance. All products are fully inspected at the factory and are aging regularly.
Specifications
- Model: AD101-22VAMS
- Inches Length: 2 inches
- Mount Hole Diameter: 22 mm / 0.87" (7/8")
- Bulb Type: LED
- Color Temperature: Cool white
- Lamp Body Material: ABS
- Dustproof Base
- Heat Dissipation Holes
- Operating Voltage: 220V
- Current: 0-100 A Max AC380
- Operating Temperature: -20°C~80°C
- Relative Humidity: Less than 95%
- Insulation Resistance: Greater than or equal to 2M Ohms
- Allowable Voltage Fluctuation: ±2A
- Continuous Operating Life: Greater than or equal to 30000H
- Brightness: 95nit
- CTI: Greater than or equal to 600
- Voltage Accuracy: ±2%
- Pollution Degree: 3
- Installation Group: II
- Protection Degree: IP65
- Certifications: CE
