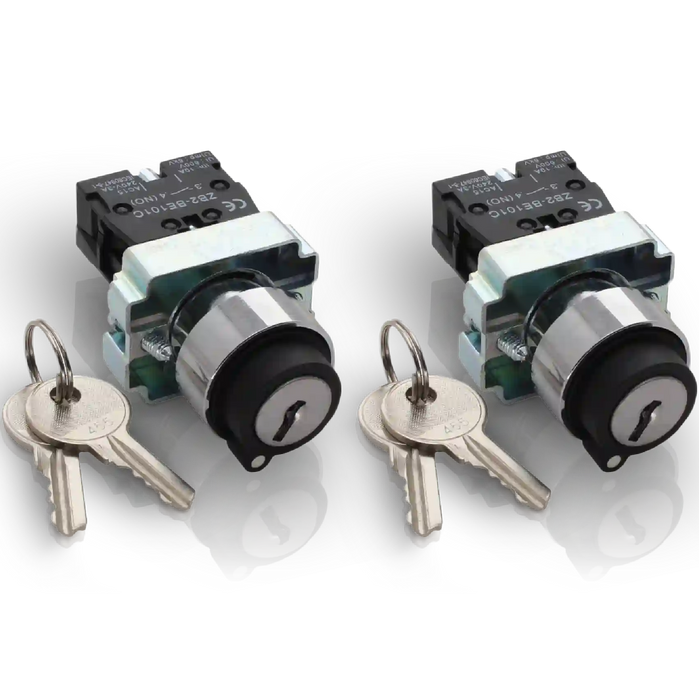

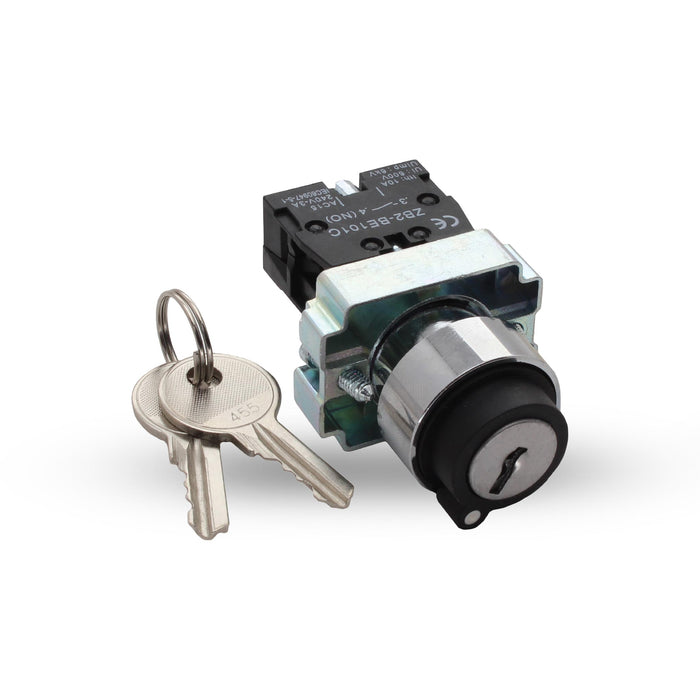

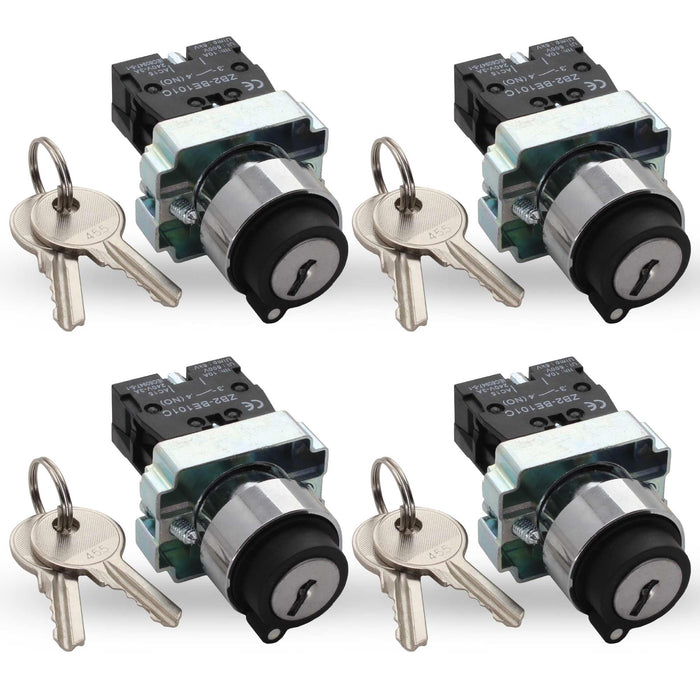

Shopcorp 2-Position Maintained Selector Rotary Key Switch - Robust and Reliable

Shopcorp Selector Switch offers a two (2) position self-lock switch (rotary switch) with a 22mm mounting hole and a maintained (latching) operation type. This robust and lightweight piece is made of plastic, metal, and electronic components. It functions as a normally open (NO) switch and a key switch 2 position. No battery required. Our buttons conform to the GB/T14048.5 standard.

Working Condition of On Off Key Switch

Operating voltage (Ui): 415V; Contact current: 10A; Protection grade: IP55; Certification: CE, CCC; Operating temperature: between -25°C and +70°C; Operating humidity: 50%; Vibration resistance: 15g, amplitude is about 1.0mm; Electrical durability/life: 50,000 times; Shock resistance: 200g; Operation Mode: on-none-off.

Versatility of 2 Position Switch

This switch is used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage of 415V and below, DC operational voltage of 220V and below, for controlling electromagnetic starters, contactors, relays, and other automatic electrical circuit controls. It can withstand harsh weather conditions due to its lock, fall, and vibration resistance. Shopcorp Selector switches are versatile and widely used, including in many electrical appliances in the home.

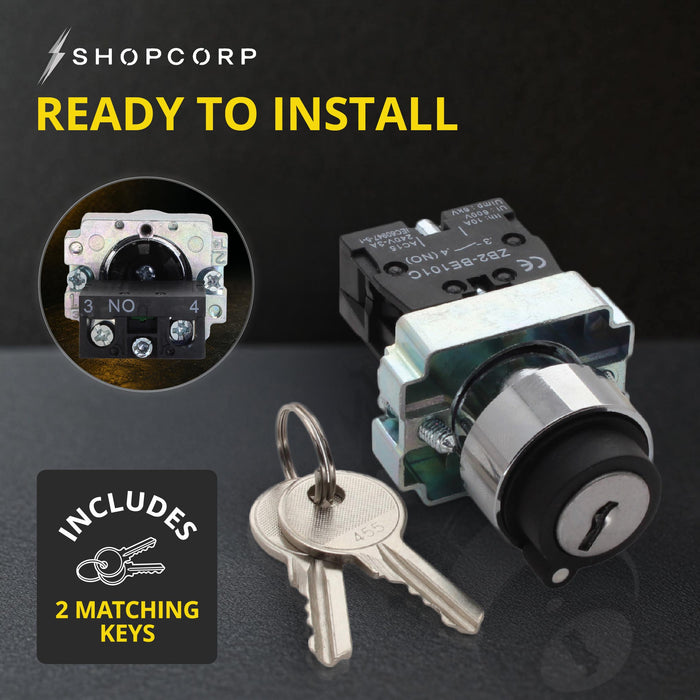

Installation and Disassembly of Rotary Switch

To install, unscrew the nut and fix the head. Align the top of the head with the direction of the buckle and put the switch seat on. Secure by turning the buckle back to its original position. For disassembly, pull the head out from the middle seat, hook the convex point of the clasp with the index finger, pull gently, and then move the buckle to the other side.

Stable Working Performance of Barrel Key Switch Momentary

This Selector Switch is made of non-flammable materials and resistant plastic, ideal for use in high-temperature environments. Its thick Aluminum Alloy circuit will protect the Switch Head, giving it a long working life and anti-oxidant properties. Finally, its pure Silver Contact Base makes it possible for the switch to be used with 10 Amp current and can be replaced, as it is separate from the switch head.

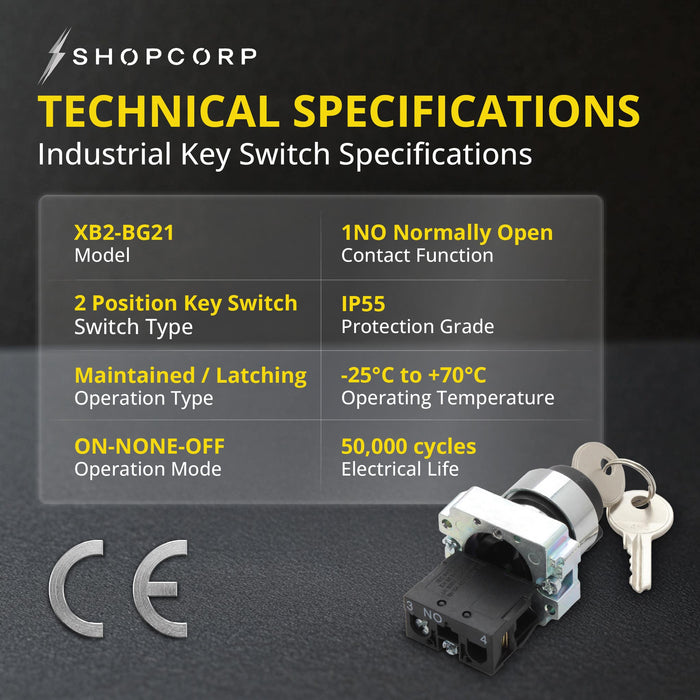

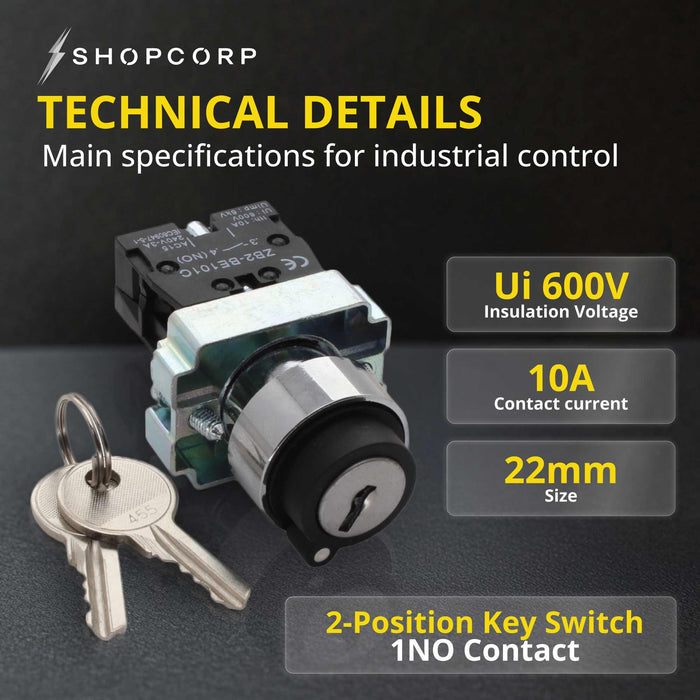

Specifications

Product name: Position Selector Key Switch
Model: XB2-BG21
Style: 2 Position
Switch type: 2 Position Key Switch

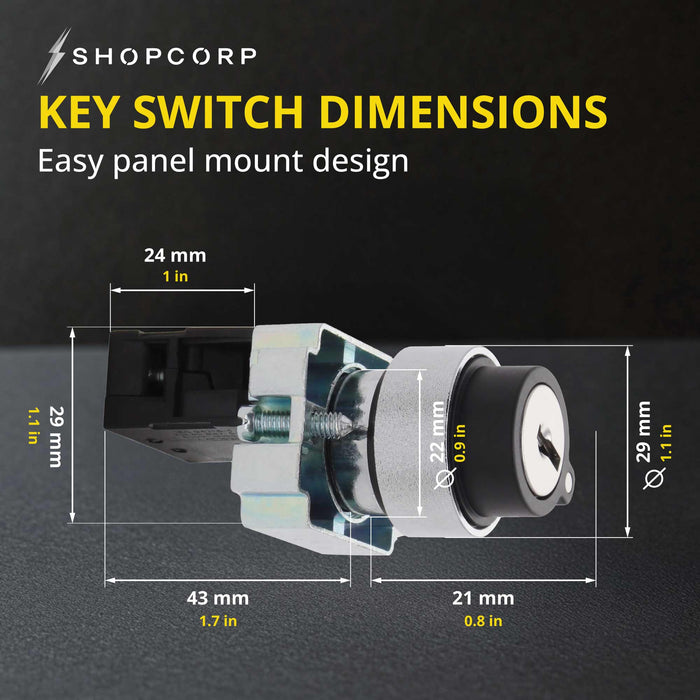

Mounting hole size: 22mm
Operation type: Maintained (Latching)
Operation Mode: on-none-off
Operating voltage (Ui): 415V
Contact current: 10A
Operating temperature: between -25°C and +70°C
Operating humidity: 50%
Vibration resistance: 15g, amplitude is about 1.0mm
Electrical durability/life: 50,000 times
Shock resistance: 200g
Protection grade: IP55
Certification: CE, CCC
Terminal Quantity: silver point
Structure: normally open (NO)
Weight: 96g/0.20lb/3.2oz
Material: Plastic, metal and electronic
Button Color: Black

Choose the Shopcorp 2-Position Maintained Selector Rotary Key Switch for reliable, efficient, and durable control in both home and industrial applications.
