Shopcorp 40A 4 Pole Normally Closed Contactor IEC 400V - 110/120VAC Coil whit DIN Rail for HVAC, AC, Motor Load, and Lighting

$101.99
GET A QUOTE
Description

Shopcorp 40A 4 Pole Normally Closed IEC 400V Contactor



We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 4 Pole 120V Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, featuring a user-friendly power status indicator. It excels in a wide range of applications, including 4 pole lighting contactor, motor control, and switching. Industrial quality components ensure reliability, and it's compatible with 35mm DIN rails.



Technical Specifications:

Contactor IEC 400V
Contactor Type NC
Full Load Amps-Inductive 20
Full Load Amps-Resistive 40
DC Load: 30A, @ 24VDC
Power status indicator
Number of Poles 4
Coil Volts: 110/120VAC, 50/60 Hz
Coil Load: Inrush 30VA, Sealed 4VA
IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
Electric e strength: 4 kV
Operating Temperature: -30…+70 °C (-22…+158 °F)
1 HP @ 1 Phase - 120V
2 HP @ 1 Phase - 230V
5 HP @ 3 Phase - 208V
5 HP @ 3 Phase - 230V
10HP @ 3 Phase - 480V
Weight: 0.88 lb (0.42 kg)
CE approved 61095, UL pending

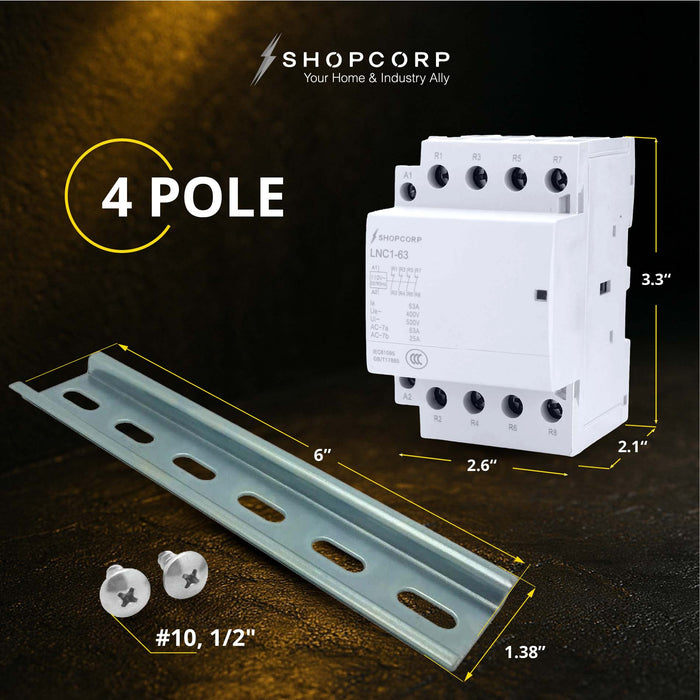

Base or DIN 35mm mount

Wiring:

Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Compliance:

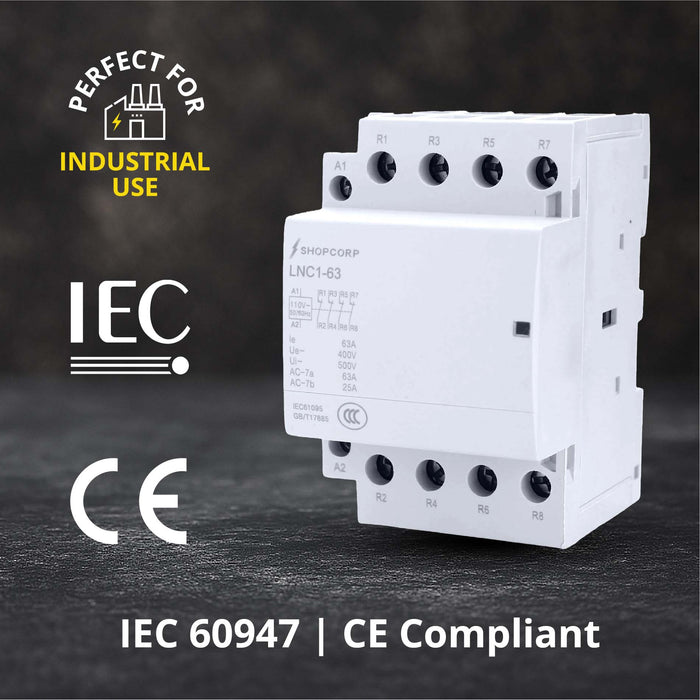

EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, VDE 0660



This 4 Pole 120V Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, including the 40 Amp 4 Pole Normally Closed (NC) General Purpose Contactor. It also includes a power status indicator and complies with IEC/EN standards for consistent and reliable installation.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
