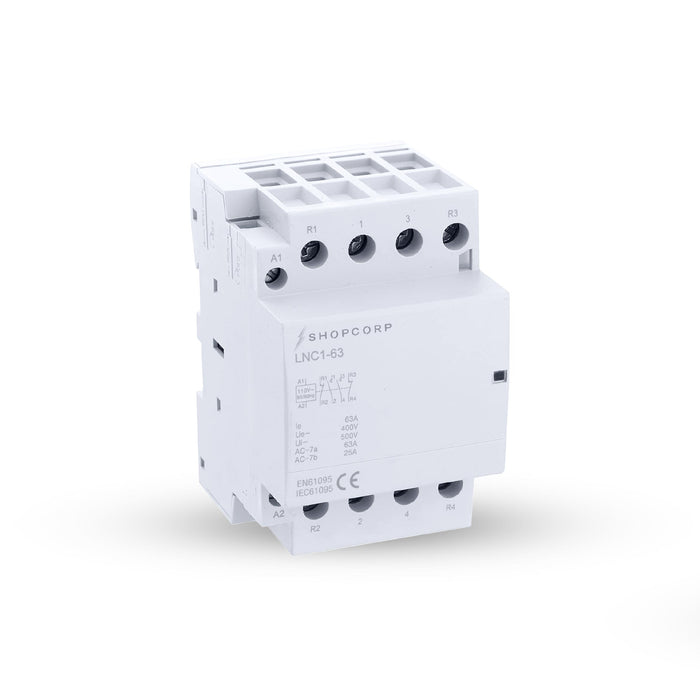

Shopcorp 63 Amp 4 Pole 2NO / 2NC 400V Contactor - 110/120VAC for HVAC, AC, Motor Load and Lighting

Shopcorp 63 Amp 4 Pole 2NO / 2NC 400V Contactor, 110/120VAC Coil for HVAC, Air Conditioner, Motor Load & Lighting System

Rated 4.6 out of 5
Based on 38 reviews
$99.99 - $99.99
$99.99
$99.99 - $99.99
$99.99
Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS

Technical Specifications

Contactor IEC 400V

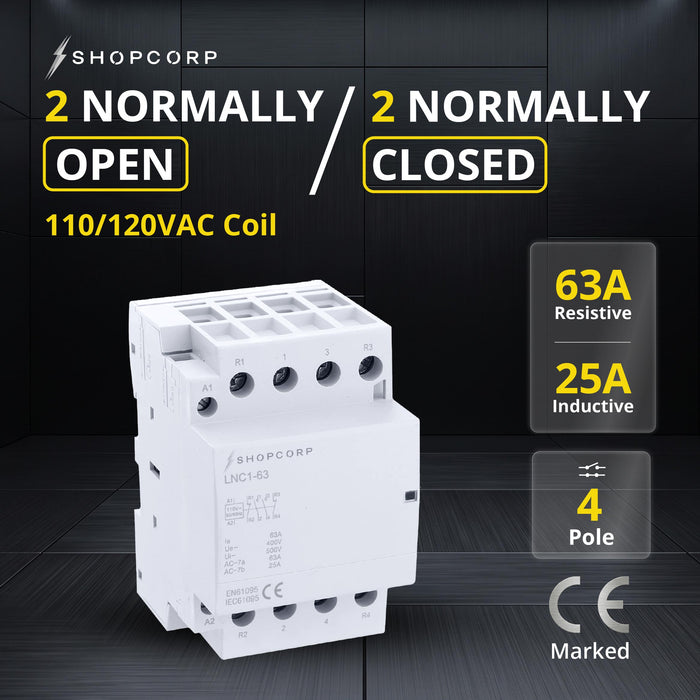

Contactor Type 2NO 2NC
Full Load Amps-Inductive 40
Full Load Amps-Resistive 63
DC Load: 30A, @ 24VDC
Power status indicator
Number of Poles 4
Coil Volts: 110/120VAC, 50/60 Hz
Coil Load: Inrush 52VA, Sealed 10VA
IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
Electric e strength: 4 kV
Operating Temperature: -30…+70 °C (-22…+158 °F)
1 HP @ 1 Phase - 120V
2 HP @ 1 Phase - 230V
5 HP @ 3 Phase - 208V
5 HP @ 3 Phase - 230V
10HP @ 3 Phase - 480V
Weight: 0.88 lb (0.42 kg)

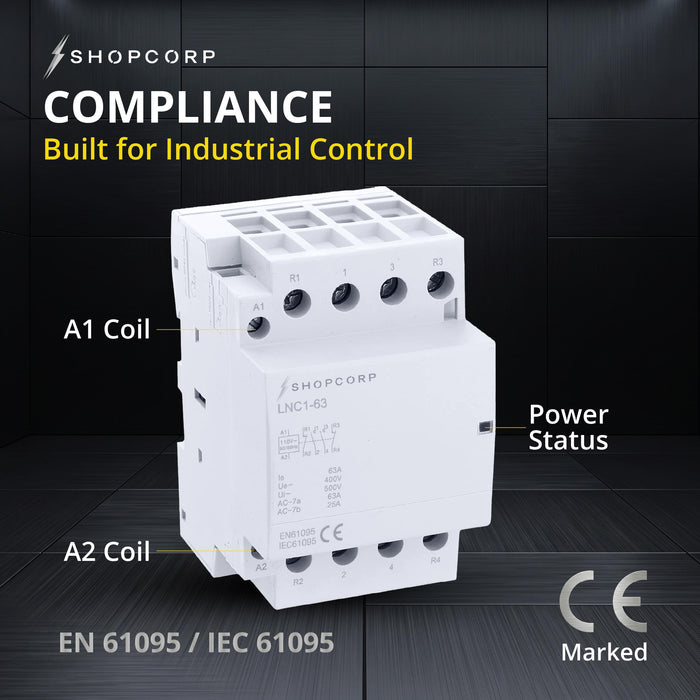

CE approved 61095, UL pending

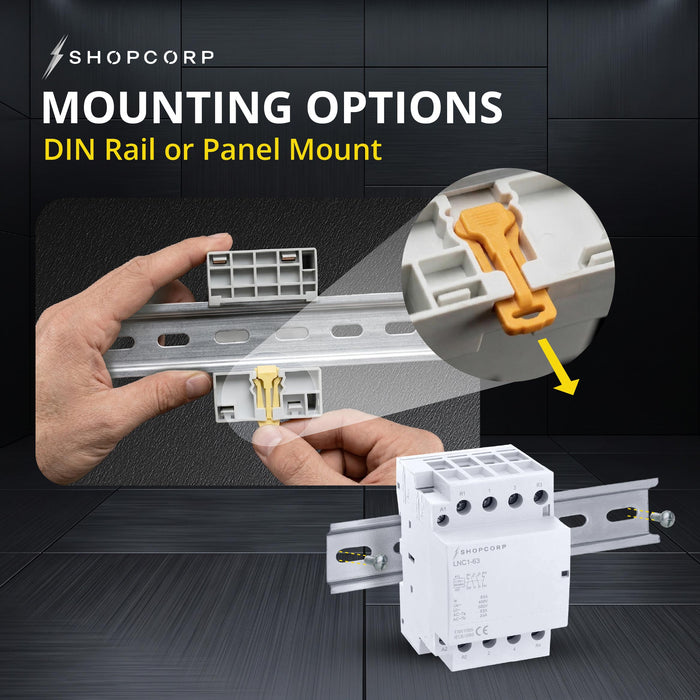

Base or DIN 35mm mount

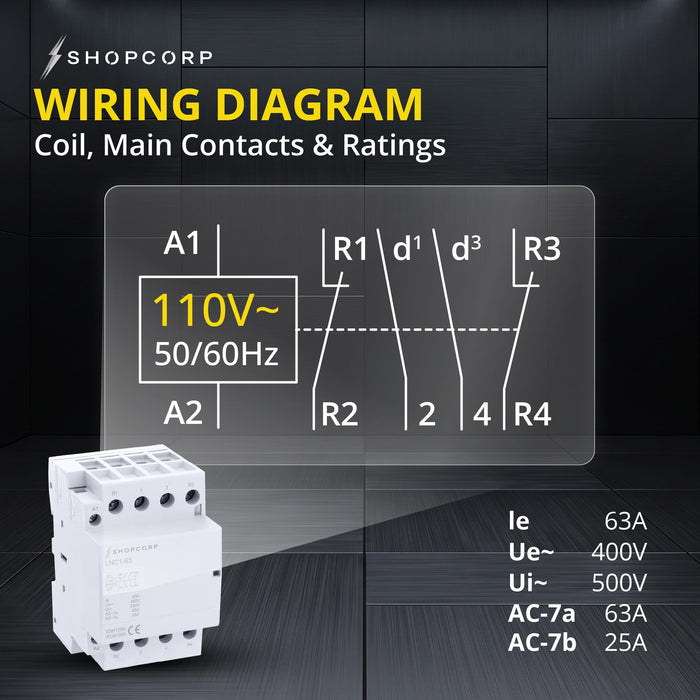

Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Aplications:
Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil.

About the Product

Shopcorp 63A 4 Pole 2 Normally Open 2 Normally Closed IEC 400V Contactor

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 4 Pole 120V Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, featuring compatibility with DIN rail mounting, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including 4 pole lighting contactor, motor control, and switching.

This 4 Pole Contactor, 2 normally open / 2 normally closed, including din rail contactor, is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.

SKU B09YMW71R3
