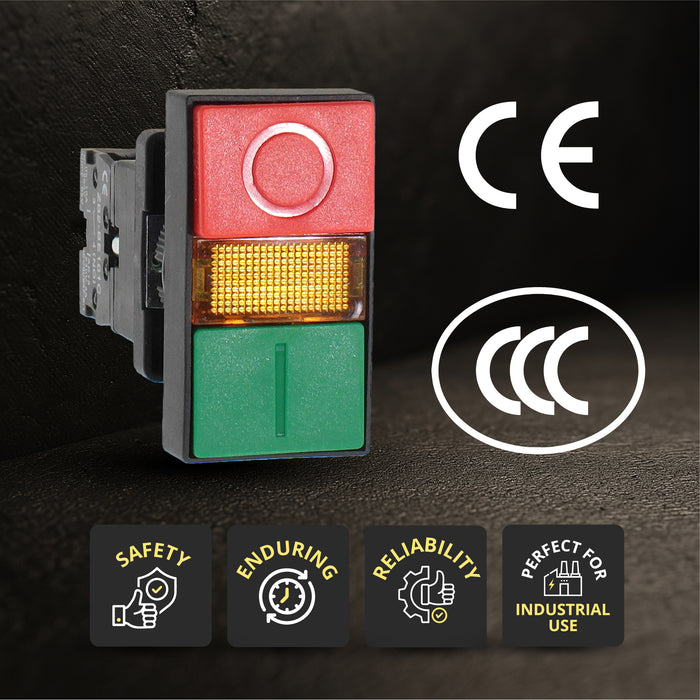

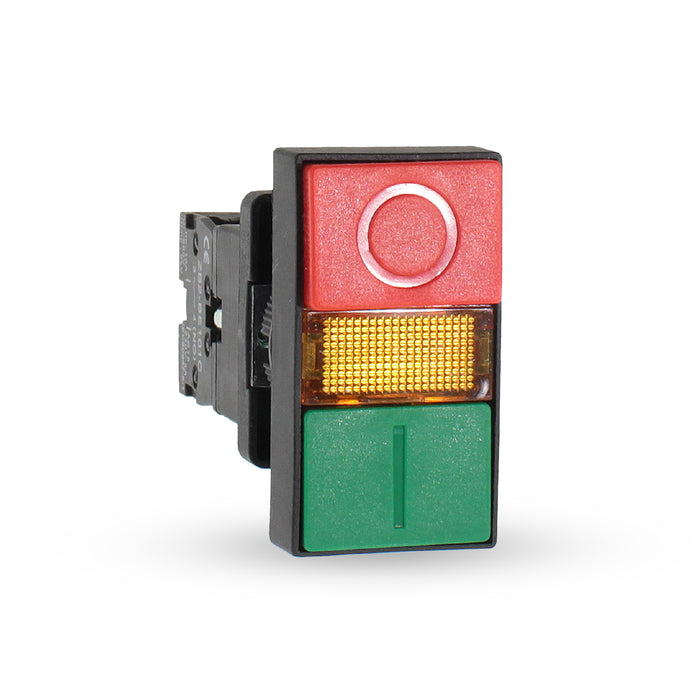

Shopcorp Double Head Push Button with Signal Lamp - On/Off Start/Stop Switch for Home and Industrial Equipment and Mount Panels in Operating Rooms and Distribution Boxes (1 Unit)

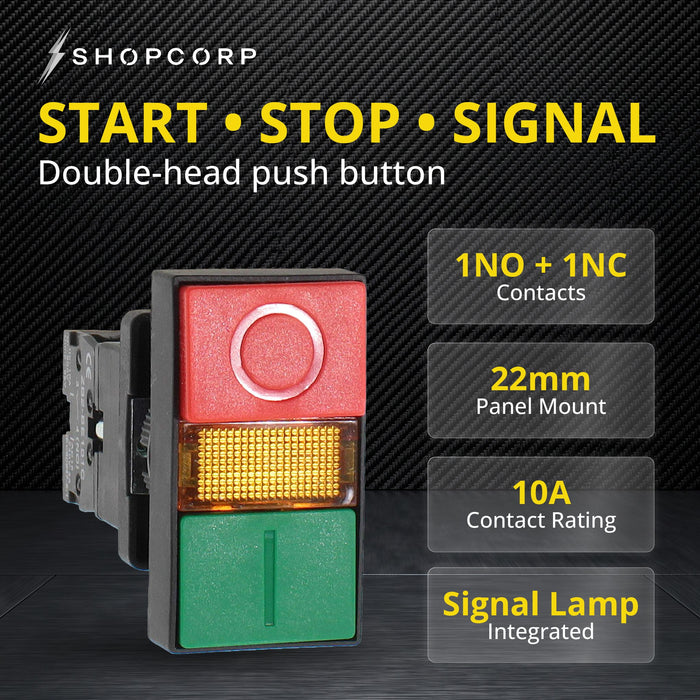

INDUSTRIAL QUALITY - Double head type pushbutton model XB2-EW8465 used for controlling signal and interlocking purposes in circuits of AC voltage up to 660V/AC 50Hz and DC voltage below 400V. Includes a signal lamp suitable for electrical appliances circuit of AC voltage up to 380V/50Hz and DC voltage below 380V; ideal for using as indicating signals, warning signals, emergency signals, etc.
HIGH-QUALITY MATERIALS - The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion
VERSATILE - Useful for different kinds of industrial installations. Widely used for control of electronic and/or magnetic starter, contactor and relay, or other similar circuit. Can be used in mount panels, stations, machines and consoles of textile equipment and operating rooms or distribution boxes for ships, airplanes or cities
EASY INSTALLATION AND HIGH VISIBILITY - Includes 4 screw terminals and 1 Normally Open (NO) and 1 Normally Closed (NC) contacts. Highly visible in color to provide an easy and fast access to it, easy to operate in emergency situations. Live wire input goes into terminal 3 and live wire output into terminal 4 (NO). Neutral wire input goes into terminal 2 and neutral wire output into terminal 1 (NC). Green button controls NO terminals, and red button controls NC terminals
OTHER SPECS - Model: XB2-EW8465. Operational voltage: ?660V. Ambient temperature: -25 °C~ +55°C. Operational humidity: 45% to 90%. Power-frequency withstand voltage: AC 2.5KV/min. Contact resistance: ?25min ?. Mechanical life: 100*10^4 (pushbutton), 50*10^4 (selector switch/key switches). Electrical life: 500*10^4 (pushbutton), 250*10^4 (selector switch/key switches). Please check Product Description for full list of specifications
Double head type push button model XB2-EW8465 used for controlling signal and interlocking purposes in circuits of AC voltage up to 660V/AC
50Hz and DC voltage below 400V. Includes a signal lamp suitable for electrical appliances circuit of AC voltage up to 380V/50Hz and DC voltage
below 380V; ideal for using as indicating signals, warning signals, emergency signals, etc. The contact is made of special silver alloy with high
anti-electrical erosion properties.

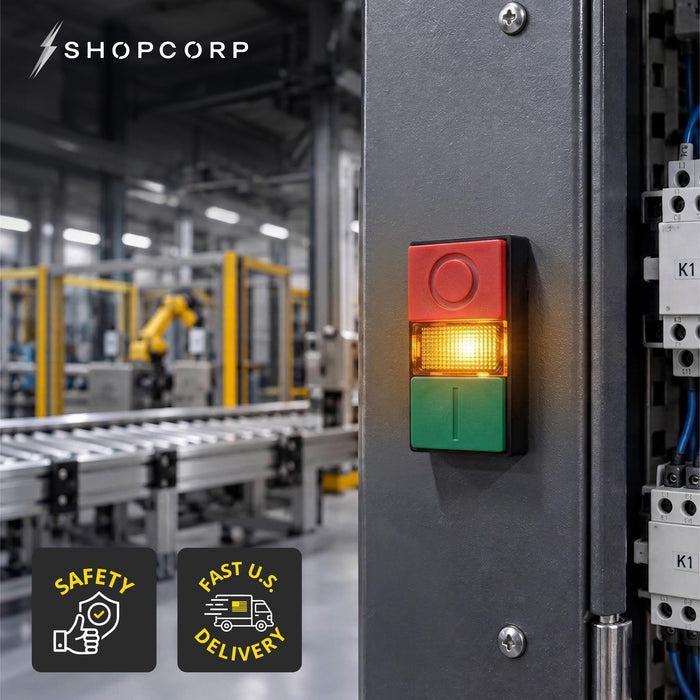

Useful for different kinds of industrial installations. Widely used for control of electromagnetic starter, contactor and relay, or other similar circuit.
Can be used in mount panels, machines and consoles of textile equipment and operating rooms or distribution boxes for ships, airplanes or cities.

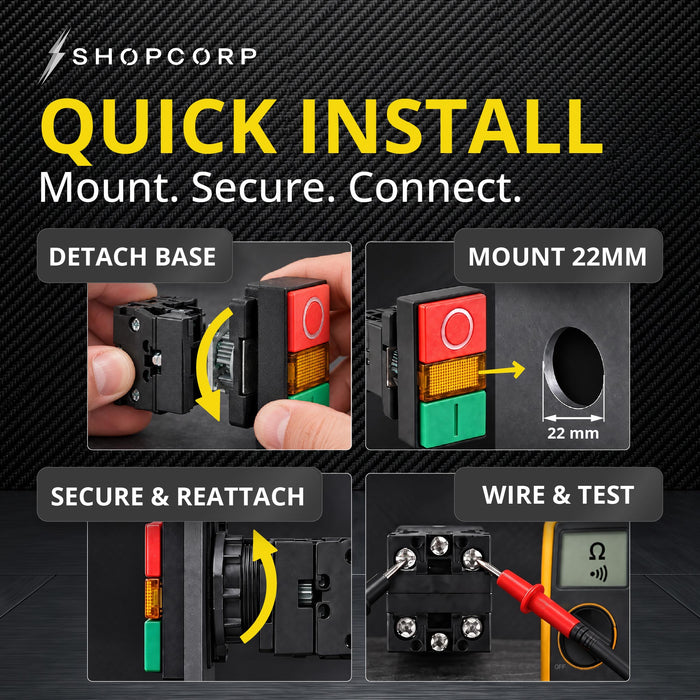

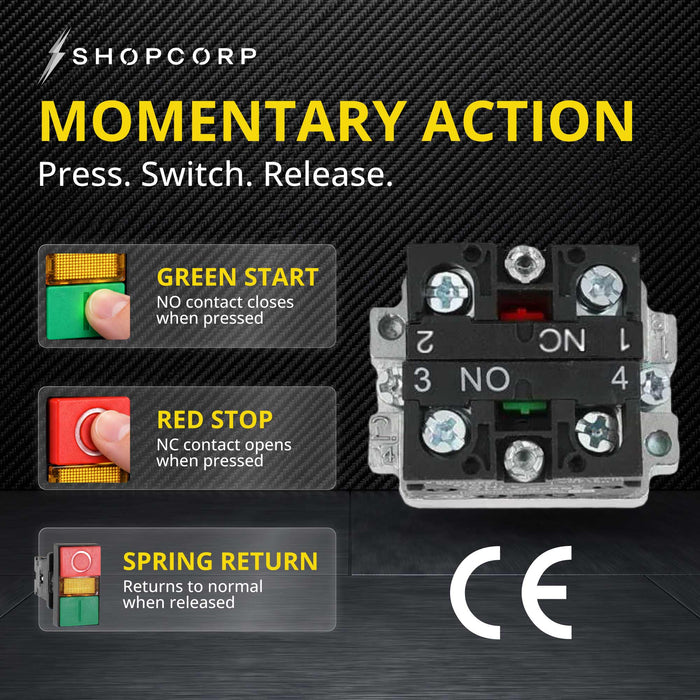

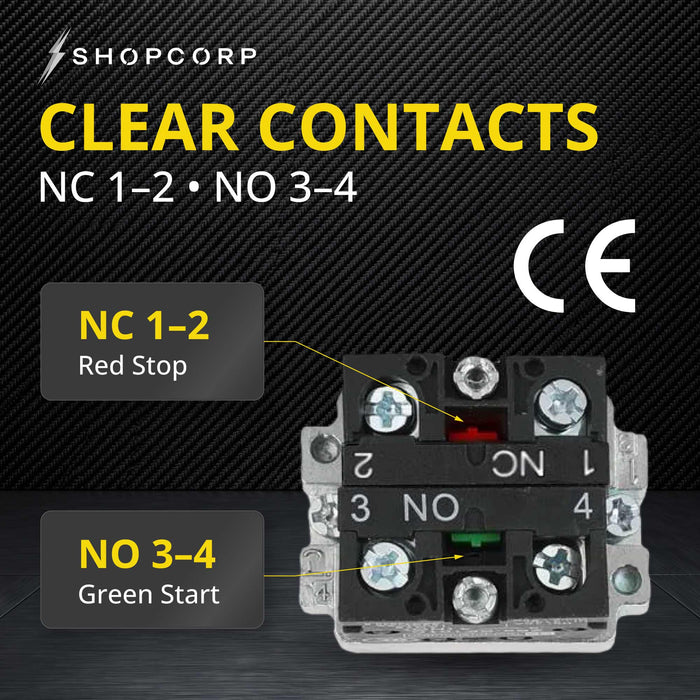

Includes 4 screw terminals and 1 Normally Open (NO) and 1 Normally Closed (NC) contacts. Highly visible in color, easy to operate in emergency
situations. Live wire input goes into terminal 3 and live wire output into terminal 4 (NO); neutral wire input goes into terminal 2 and neutral wire
output into terminal 1 (NC). Green button controls NO terminals, and red button controls NC terminals.
General specifications
Model: XB2-EW8465
Operational voltage: ?660V
Ambient temperature: -25 °C~ +55°C
Operational humidity: 45% to 90%
Power-frequency withstand voltage: 2500V AC, 1 min
Button specifications
Rated insulation voltage: AC 600V (50/60Hz)
Convertional current: 10A
Insulation resistance: ?50M ?
Contact resistance: ?25min ?
Mechanical life: 100*10^4 (pushbutton), 50*10^4 (selector switch/key switches)
Electrical life: 500*10^4 (pushbutton), 250*10^4 (selector switch/key switches)
Signal lamp specifications
Insulation resistance: ?50M ?
Contact resistance: ?25min ?
Pf withstand voltage: AC 2.5KV/min
Voltage wave: ±20%10A
Brightness: 60cd/m2
Continuous working life: 100*10^4 h
