Electrodepot 60A 4 Pole IEC Contactor - 110/120VAC Coil for HVAC, AC, Motor Load and Lighting

Rated 5.0 out of 5
Based on 61 reviews
$99.95
GET A QUOTE
Description

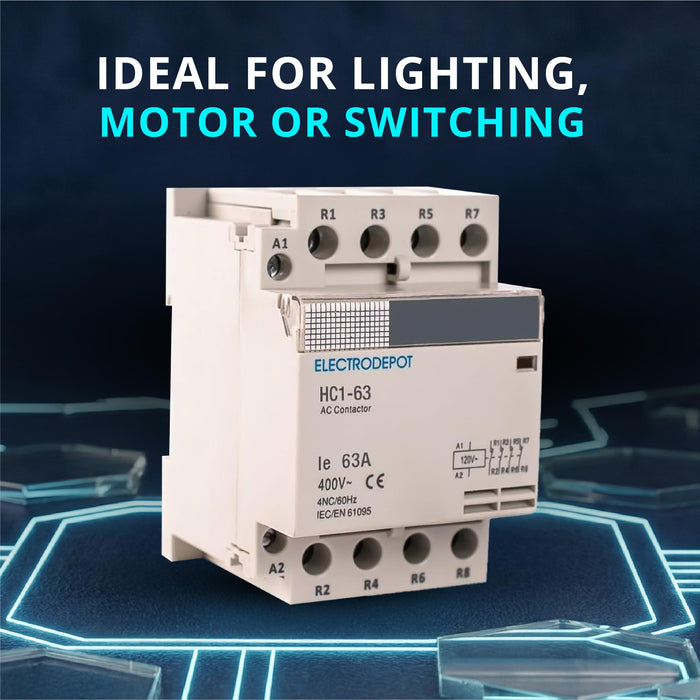

60 Amp 4 Pole IEC Contactor

We offer a wide selection of contactors, including HVAC contactors, AC contactors, and lighting contactors, all designed to meet the needs of your HVAC system and lighting control. Whether you're looking for information on HVAC contactor wiring or need a reliable motor contactor for your air conditioning unit, we have you covered.

Discover our exceptional 60 Amp 4 Pole Normally Closed (NC) IEC 400V Contactor, perfect for home or industrial uses. This contactor is designed to meet various electrical needs, featuring compatibility with DIN rail mounting, a convenient power status indicator, and an energy-saving, silent, and no-humming coil. It's the ideal solution for applications in lighting, motor, and switching.

Technical Specifications:

  • Contactor IEC 400V

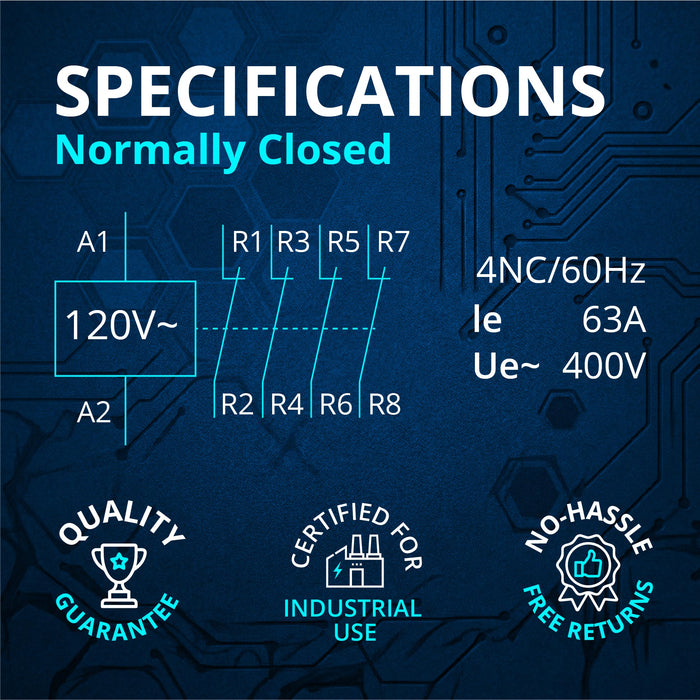

  • Contactor Type Normally Closed
  • Full Load Amps-Inductive 30
  • Full Load Amps-Resistive 60
  • DC Load: 30A, @ 24VDC

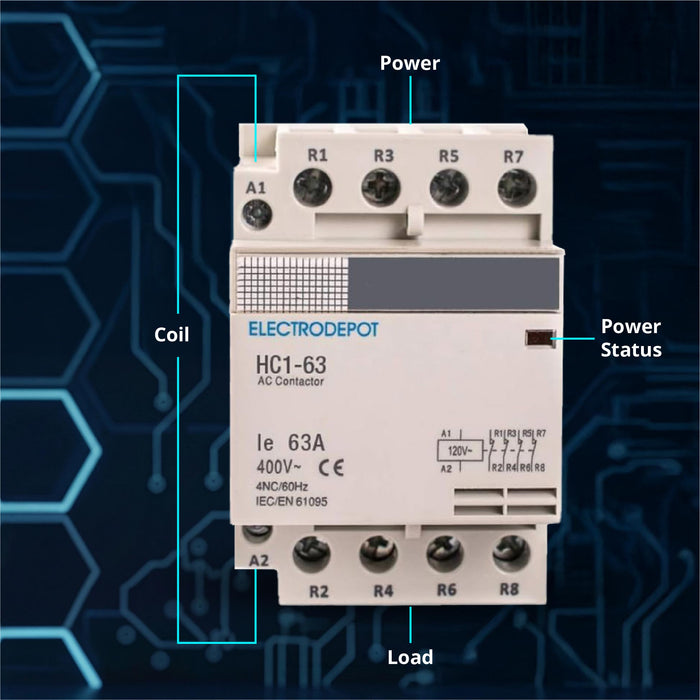

  • Power status indicator
  • Number of Poles 4

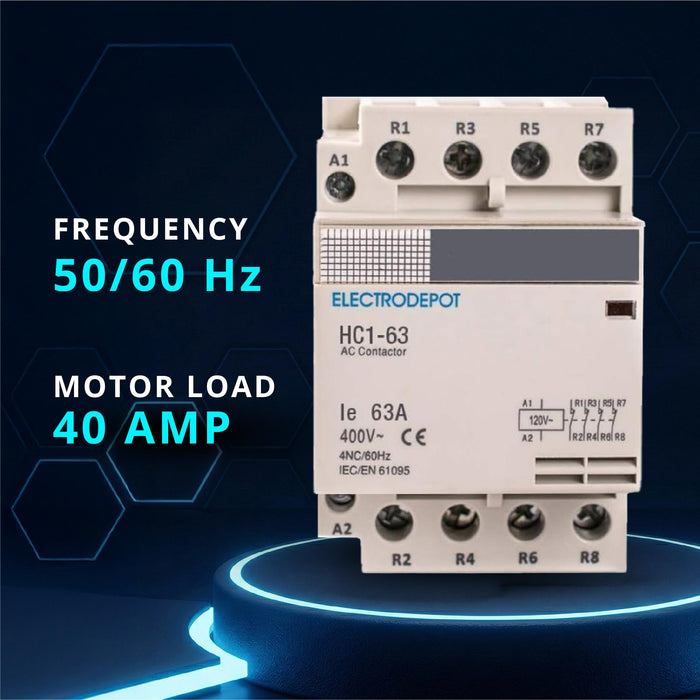

  • Coil Volts: 110/120VAC, 50/60 Hz
  • Coil Load: Inrush 52VA, Sealed 10VA
  • IEC AC Rate: AC-1, 16 kW. AC-3, 11 kW
  • Electric Strength: 4 kV
  • Operating Temperature: -30…+70 °C (-22…+158 °F)
  • 1 HP @ 1 Phase - 120V
  • 2 HP @ 1 Phase - 230V
  • 5 HP @ 3 Phase - 208V
  • 5 HP @ 3 Phase - 230V
  • 10HP @ 3 Phase - 480V
  • Weight: 0.88 lb (0.42 kg)
  • CE approved 61095, UL pending
  • Base or DIN 35mm mount

Wiring:

  • Solid Conductor: 25 mm2 Max torque 0.6 Nm
  • Stranding Conductor: 16 mm2, Max torque 0.6 Nm




Backed by the trusted reputation of Electrodepot, this 60 Amp 4 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
