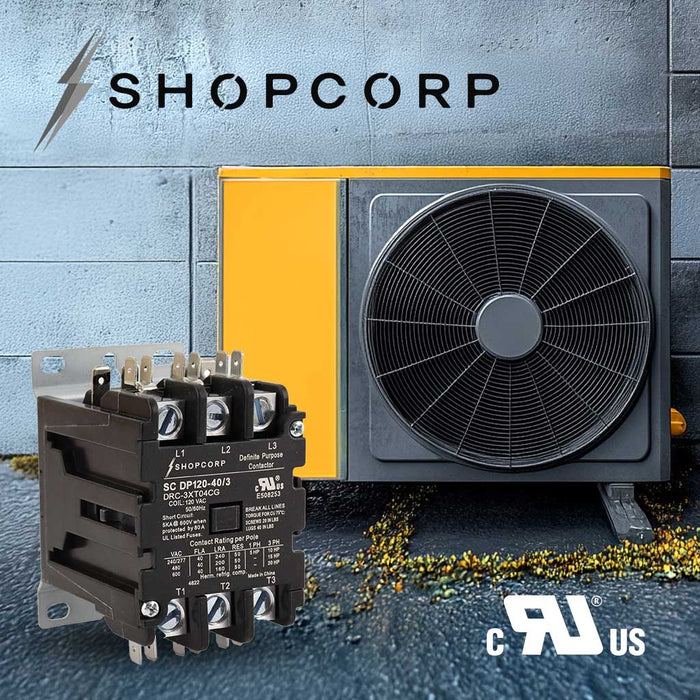

Shopcorp 40A 3 Pole 600V Definite Purpose - Normally Open Contactor - 110/120VAC Coil for HVAC & Lighting - UL Certified

Fla Rating: 40 FLA
Part number: CKYC2-3XT04CG
INITIAL DIELECTRIC STRENGTH: Between Contacts & Coils: 2,200 VAC, Between Poles: 2,200 VAC, Between Open Contacts: 2,200 VAC
ARC COVER Standard
INSULATION SYSTEM: 130°C Class B
TEMPERATURE RANGE: -40°C to + 65°C / -40°F to + 150°F
UNIT WEIGHT: 1 lb
POWER POLE TERMINATIONS: # 10-32 screw or box lug
WIRE SIZE: #10-32 screw 16-8 (must use ring terminal), Box lug 14-4
RECOMMENDED TIGHTENING TORQUE: # 10-32 screw: 22 in. lb, Boxlug: 40 in. lb
QUICK CONNECTS. Coil terminals: Dual 0.25" QC or #6-32 screw/0.25" OC. Power terminals: Dual 0.25" QC

Voltage:
Normal Coil Voltage: 120V
Nominal Coil Resistance: 170 Ohms
Maximum Pick Up Voltage: 88V
Minimum Drop Out Voltage: 20-70V
Nominal Inrush @ 50Hz: 65VA
Nominal Inrush @ 60Hz: 60VA
Nominal Sealed @ 50Hz: 7.5VA
Nominal Sealed @ 60Hz: 6VA
Maximum Coil Voltage: 132V

Amperage:
Full Load Amps: 40A
Resistive Amps @ 600VAC: 50A
Locked Rotor Amps @ 240/277 VAC: 240A
Locked Rotor Amps @ 480 VAC: 200A
Locked Rotor Amps @ 600 VAC: 120A
Maximum Horsepower: Single Phase, 3HP

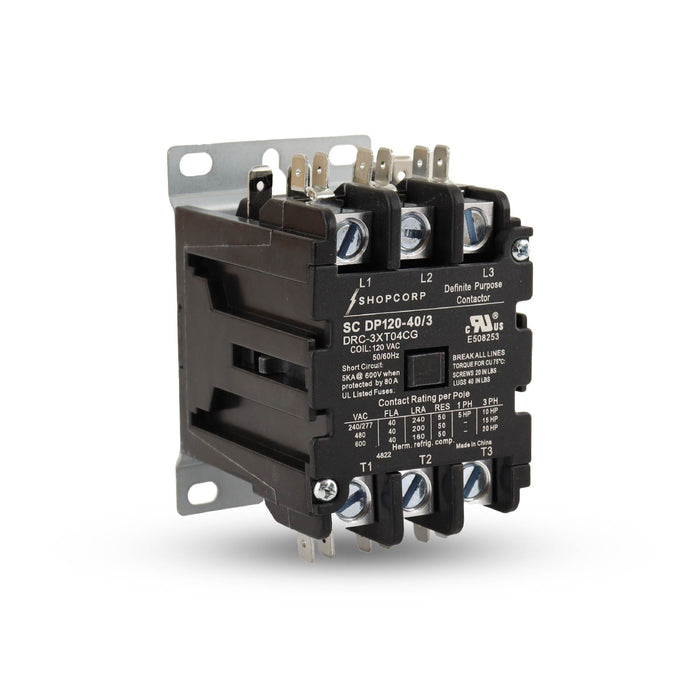

Shopcorp 40A 3 Pole Normally Open 600V Definite Purpose Contactor - UL certified

We offer a diverse range of contactors, including HVAC contactors, AC contactors, and lighting contactors, all meticulously crafted to meet the exacting demands of your HVAC system and lighting control needs. Whether you're seeking guidance on HVAC contactor wiring or in need of a dependable motor contactor for your air conditioning unit, we've got you covered.

Explore our 40 Amp 3 Pole Normally Open (NO) Definite Purpose Contactor designed for both home and industrial applications. This 120V contactor is meticulously crafted to meet various electrical needs, a user-friendly power status indicator, and an energy-efficient, silent, and no-humming coil. It excels in a wide range of applications, including lighting, motor control, and switching.

This 40 Amp 3 Pole Contactor is in full compliance with IEC/EN standards, ensuring consistent and dependable installation. If you're in search of top-quality and adaptable electrical components, explore our comprehensive range of contactors, designed for effortless installation and backed by expert support for any inquiries.

From electrical contactors and motor contactors to contactor electrical units, we offer premium options to fulfill all your electrical needs. Browse our selection, which includes contactors suitable for air conditioners, lighting systems, and much more.
