Shopcorp 3 Position Maintained Selector Rotary Switch - Waterproof, 22mm, 220/240V and 10A Electrical Switch NO/NO

- Operating/Insulation voltage: 220VAC and 380V respectively
- Contact current: 10A
- Size: 22mm
- Protection grade: IP55
- Certification: CE, CCC
- Operating temperature: between -25°C and +70°C
- Operating humidity: 50%
- Vibration resistance: 15g
- Electrical durability/life: 50,000 times
- Shock resistance: 200g
- Switch type: Selector Rotary Switch
- Mounting Type: Panel Mount

VERSATILE AND RELIABLE ELECTRICAL SWITCH:
This electrical switch is used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage of 220V and below for controlling the electromagnetic starter, contactor, relay, and other automatic control electric circuits. It can be used under harsh weather conditions because of the lock, fall, and vibration resistance. Shopcorp Selector switches are widely used, including in many electrical appliances in the home.

EASY INSTALLATION AND DISASSEMBLY:

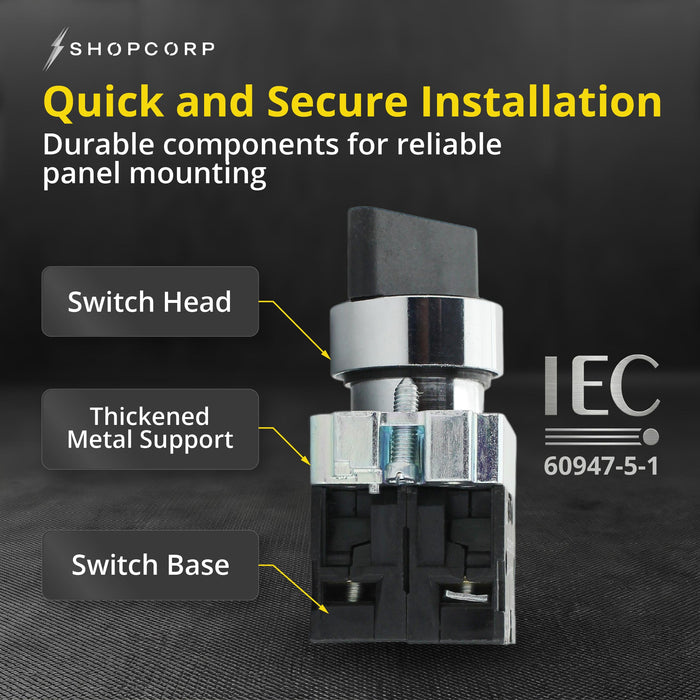

To install, first, you need to screw out the nut and fix the head. Then align the top of the head in the direction of the buckle and put the switch seat on. Finally, turn the buckle to the original position and clamp the head. To disassemble, first, you need to pull the head out of the middle seat. Then, hook the convex point of the clasp with the index finger and pull gently. Lastly, move the buckle to the other side.

STABLE WORKING PERFORMANCE:
This selector rotary switch is made of non-flammable materials and resistant plastic, ideal for use in high-temperature environments. Also, its thick Aluminum Alloy circuit will protect the Switch Head, giving it a long working life and anti-oxidant properties. Finally, its pure and thickened Metal Contact Base makes it possible for the switch to be used with 10 Amp current and can be replaced, as it is separate from the switch head.

WORKING CONDITION:
Operating/Insulation voltage: 220VAC and 380V respectively; Contact current: 10A; Installation dimensions: Ø22mm; Protection grade: IP55; Certification: CE, CCC; Operating temperature: between -25°C and +70°C; Operating humidity: 50%; Vibration resistance: 15g, amplitude is about 1.0mm; Electrical durability/life: 50,000 times; Shock resistance: 200g. Switch type: Selector Rotary Switch; Mounting Type: Panel Mount. This selector switch must be fixed to use on the panel.

AVAILABLE VARIATIONS:
We offer different variations to suit your needs: 1 PACK NO/NO, 2 PACK NO/NO, 4 PACK NO/NO.

Shopcorp rotary switch offers a 3 position self-lock switch with a 22mm mounting hole and a maintained (latching) operation type. This piece is robust and lightweight. It can also be connected as a normally open (NO) switch. It is made of plastic, metal, and electronic components. No battery required. The buttons conform to the GB/T14048.5 standard.

With these specifications and features, the Shopcorp 3-Position Maintained Selector Rotary Switch is an ideal choice for various industrial and home applications.
