Shopcorp 60A 3 Pole Definite Purpose - 75 RES 120V Coil Contactor - UL Listed for HVAC, Refrigeration, and Heat Pump Systems

Shopcorp 60A 3 Pole Definite Purpose - 75 RES 120V Coil Contactor - UL Listed for HVAC, Refrigeration, and Heat Pump Systems

Rated 4.9 out of 5
Based on 12 reviews
$0.00 - $0.00
$0.00
$69.99
$69.99 - $69.99
$69.99
Download Cut Sheet (PDF)
Download General Data Sheet (PDF)

FREE SHIPPING & FREE RETURNS ON ALL U.S ORDERS

30 DAY HASSLE FREE EXCHANGES & RETURNS
Technical Specifications

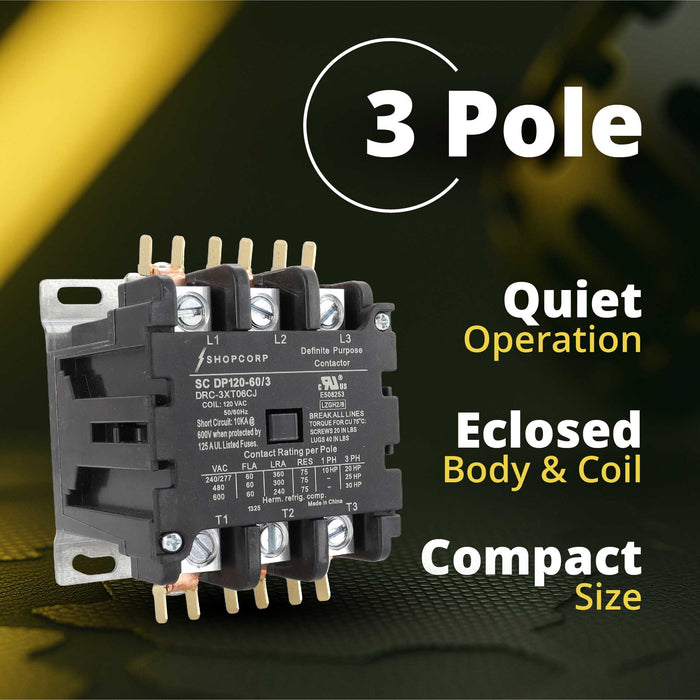

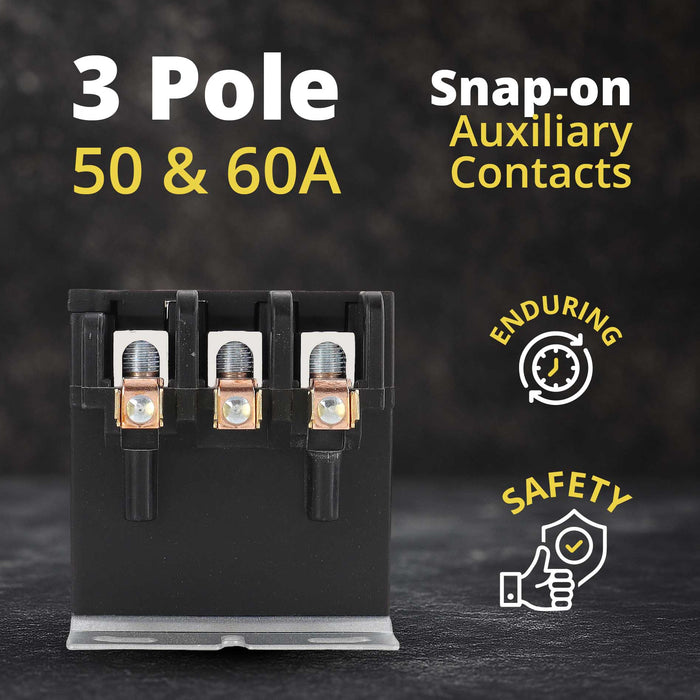

- Contactor Type: Definite Purpose (DP), 3 Pole, Normally Open (NO)

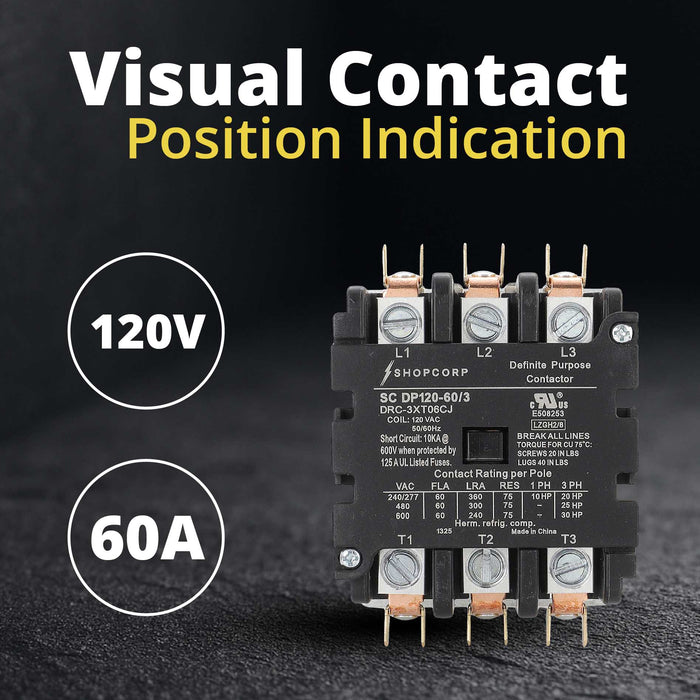

- Full Load Amps (FLA): 60A
- Resistive Load Rating (RES): 75A
- Coil Voltage: 120V AC, 50/60Hz

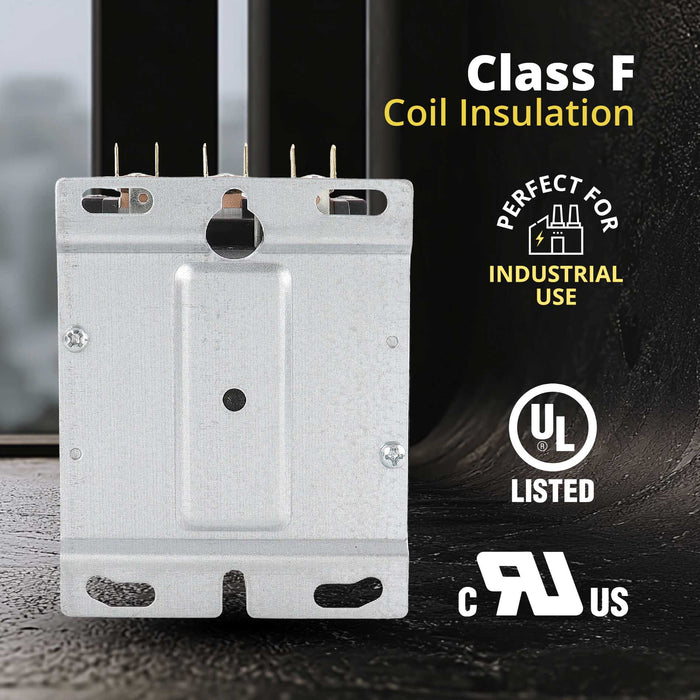

- Coil Insulation Class: F

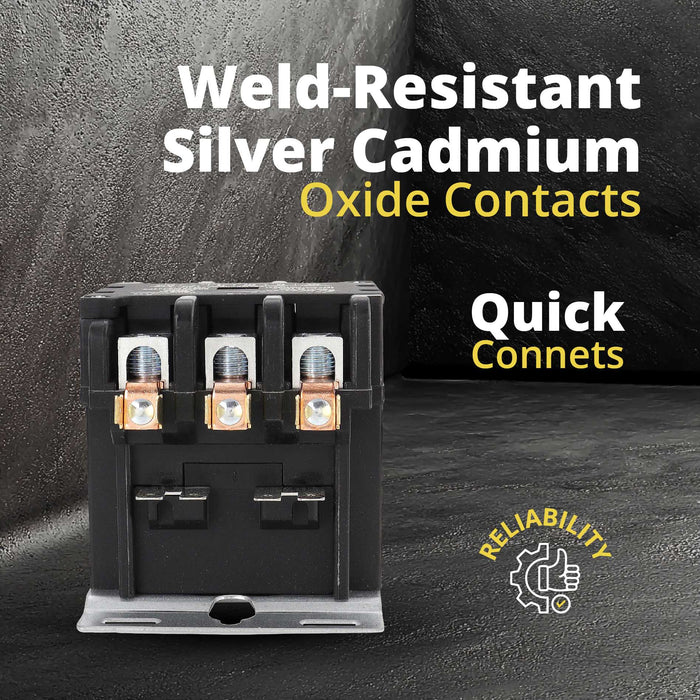

- Contact Material: AgCdO 85% / 15%
- Certifications: UL Listed (File E508253), UL 508, UL 60947-4-1, UL 60335
- Applications: HVAC systems, A2L refrigerants, refrigeration units, heat pumps
- Operation: Quiet and dust-resistant
- Mounting: Snap-on DIN rail or panel mount
- Dimensions: 103.8 mm (H) x 73 mm (W) x 77.5 mm (D)
- Terminal Type: Quick-connect for fast installation

About the Product

At Contactor Depot, we provide a specialized selection of HVAC contactors, AC contactors, and lighting contactors, designed to deliver exceptional reliability in both residential and industrial environments. Whether you're upgrading your refrigeration system or maintaining a heat pump, our components offer certified performance you can count on.

Introducing the Shopcorp 60A 3 Pole Definite Purpose Contactor, built with a rugged design and a powerful 120V AC coil to support modern HVAC systems, A2L refrigerants, and refrigeration units. With a 75A resistive load rating, this contactor features AgCdO 85%/15% silver alloy contacts, providing excellent arc resistance and conductivity for demanding applications.

Certified under UL File E508253, and compliant with UL 508, UL 60947-4-1, and UL 60335, this contactor meets today’s regulatory standards for HVAC and refrigeration performance. It’s also engineered with Class F insulation, offering superior thermal protection for long-lasting durability under high-load cycles.

Its 3-pole Normally Open configuration supports quiet operation and dust resistance, making it suitable for residential indoor environments as well as industrial panels. With quick-connect terminals and a compact footprint—103.8 mm x 73 mm x 77.5 mm—it installs easily into existing enclosures.

When reliability matters, trust this definite purpose contactor to deliver UL-listed, industry-grade performance backed by Contactor Depot’s Quality Guarantee and expert technical support.

SKU B0F4151XFC

See All Contactors Cut Sheets

Have Questions? Call Us at 1-888-766-6610

Our experts are ready to assist you with the best solutions for your project.

Contact us now
average rating 4.9 out of 5
Based on 12 reviews
Write a Review
Reviewed by Anthony W.
Rated 5 out of 5
Review posted

Great Choice for A2L Compliance

Installed in a residential HVAC system that uses A2L refrigerant. The compliance with UL 60335 is crucial in this case. Performance under load is solid, and the 75A resistive rating gives flexibility for mixed loads. Coil draw is stable, even with frequent cycles during peak summer use.

Loading...
Was this helpful?
Reviewed by Matthew G.
Rated 5 out of 5
Review posted

Clean Operation and Fast Installation

Used this in an upgrade from a lower-rated contactor that was overheating. The Shopcorp model has a much sturdier design. The arc suppression is effective, and the coil pulls in firmly. Everything from installation to performance speaks to industrial-grade reliability.

Loading...
Was this helpful?
Reviewed by Daniel L.
Rated 5 out of 5
Review posted

Top Performer in Retrofit Projects

During a retrofit for a multi-zone heat pump system, this contactor simplified the job. It snapped directly onto existing DIN rail slots, and the wiring terminals were easy to access. The system has been running for weeks with zero interruptions. Its quiet operation is a noticeable upgrade.

Loading...
Was this helpful?
Reviewed by Christopher H.
Rated 5 out of 5
Review posted

Meets UL and Field Expectations

Finding a UL-listed contactor that truly performs to spec is not always easy. This one meets both code and contractor expectations. The torque on terminals stays consistent, and the coil’s response is reliable. I tested this with various resistive and inductive loads, and it held steady throughout.

Loading...
Was this helpful?
Reviewed by Charles M.
Rated 5 out of 5
Review posted

Durable and Consistent Under Load

We used this for a refrigeration system running continuously in a commercial kitchen. The environment demands reliability and silence, both of which this contactor delivers. Its coil remains cool to the touch, and switching is precise every time. It integrates seamlessly with our 120V control scheme.
