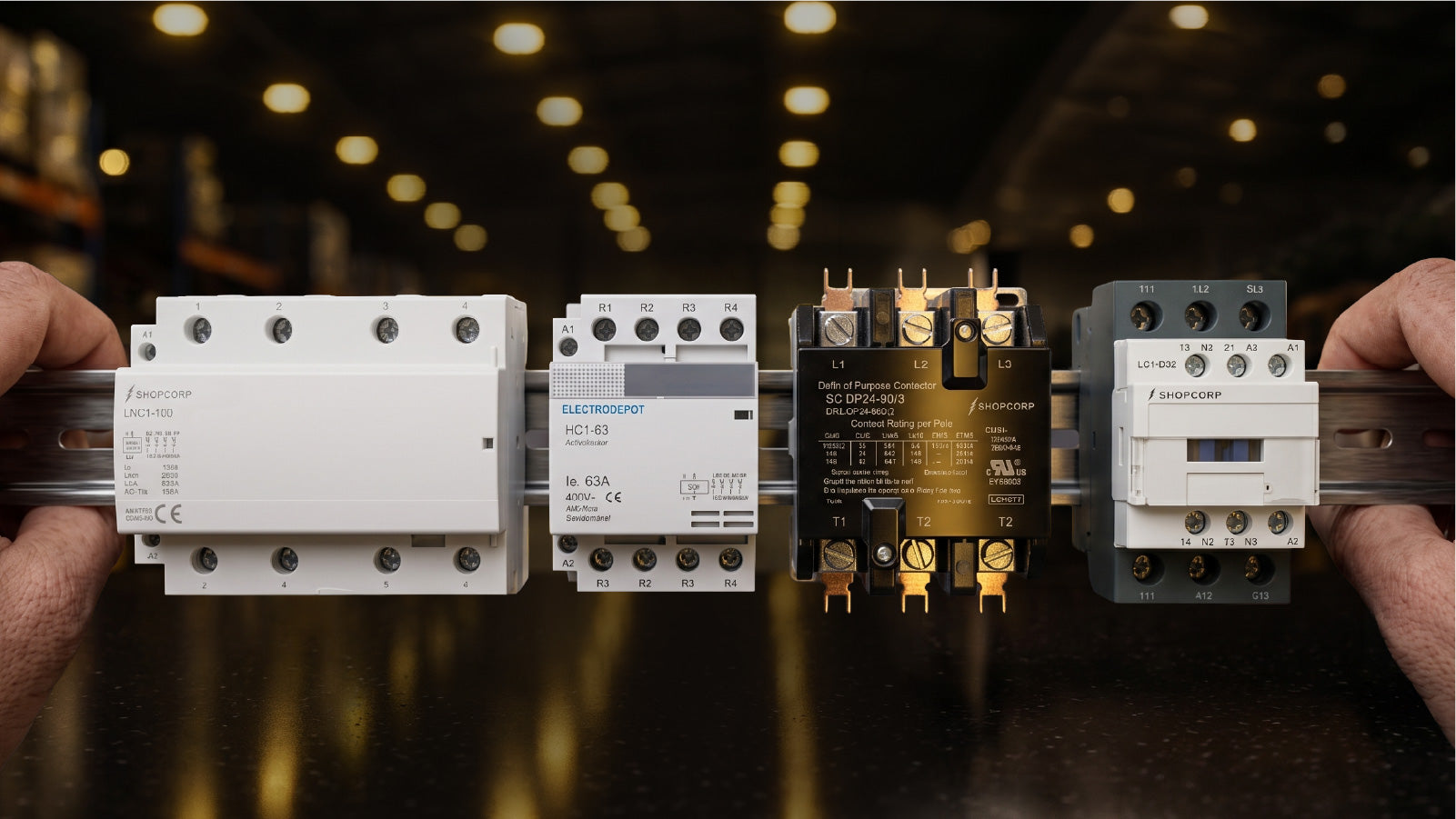

Wrong Coil Voltage on a Contactor: What Can Go Wrong?

Using the wrong coil voltage on a contactor can prevent it from operating correctly and may lead to overheating, loud buzzing, contact chattering, coil burnout, or complete equipment failure. The control voltage supplied to the coil must always match the coil's rated voltage to ensure reliable operation of HVAC systems, motors, lighting circuits, and other electrical equipment.

The coil is the component that creates the magnetic force needed to close the main contacts. If the supplied voltage is either too high or too low, the contactor may fail to energize properly, operate intermittently, or suffer permanent damage.

In this guide, we'll explain what happens when the wrong coil voltage is applied, the symptoms you may notice, the risks to your electrical system, and how to avoid costly failures.

What happens if a contactor has the wrong coil voltage?

Every electrical contactor is designed to operate within a specific coil voltage.

Common examples include:

• 24V AC
• 120V AC
• 208–240V AC
• 24V DC
• 48V DC

When the control circuit supplies a voltage different from the coil rating, the magnetic field no longer operates as intended.

The result may include:

• Failure to energize
• Weak magnetic pull
• Excessive vibration
• Coil overheating
• Premature contact wear
• Permanent coil damage

Many coil-related problems begin with a mismatch between the coil voltage and the control circuit. If you'd like to understand how coil voltages are selected and why compatibility is important, we recommend reading our guide:

Understanding Coil Voltages for Contactors: Compatibility with Your Electrical Systems

That article explains how different coil voltages work and how to choose the correct one for your application.

What problems occur when the coil voltage is too high?

Applying a higher voltage than the coil is designed for is one of the fastest ways to damage a contactor.

Coil Burnout

Excess voltage forces excessive current through the coil windings.

The insulation surrounding the copper wire overheats rapidly and may fail within seconds.

Permanent Internal Damage

Once the insulation melts, internal short circuits develop inside the coil.

In most cases, the coil cannot be repaired and the contactor must be replaced.

Excessive Heat

Even if immediate failure does not occur, continuous overvoltage significantly reduces the operating life of the coil.

What happens if the coil voltage is too low?

Undervoltage creates a different set of problems.

Instead of damaging the coil immediately, it often prevents the magnetic system from operating correctly.

Weak Magnetic Pull

The armature may not fully close against the magnetic core.

This incomplete movement reduces contact pressure and increases mechanical vibration.

Failure to Pull In

If the voltage drops too far below the rated value, the coil cannot generate enough magnetic force to close the contacts.

The connected equipment never receives power.

Intermittent Operation

Some systems may energize briefly before releasing again as voltage fluctuates.

This produces inconsistent equipment operation.

What should you check before replacing a contactor?

Before replacing the contactor, inspect the complete control circuit.

Verify the Coil Rating

Confirm that the installed coil matches the required control voltage.

Measure Control Voltage

Use a multimeter to measure the voltage across the coil terminals while the control circuit is energized.

Inspect the Coil

Look for:

• Burn marks
• Cracked insulation
• Burnt odor
• Discoloration

Check Wiring Connections

Loose terminals or damaged conductors may reduce the voltage reaching the coil.

Inspect the Control Devices

Faults in thermostats, relays, timers, PLC outputs, or control transformers can also produce incorrect coil voltage.

Can the wrong coil voltage damage other equipment?

Yes.

Although the coil is usually the first component affected, the consequences may extend throughout the system.

Possible secondary damage includes:

• Compressor stress in HVAC contactors
• Motor overheating
• Lighting circuit interruptions
• Contact welding
• Control board failures
• Increased electrical arcing

Ignoring coil voltage problems can therefore lead to much more expensive repairs than replacing the contactor alone.

How can you prevent coil voltage problems?

Most coil voltage failures are preventable.

Follow these recommendations:

• Always verify the coil voltage before installation.
• Match the control circuit voltage to the coil rating.
• Inspect control transformers periodically.
• Tighten electrical connections.
• Replace damaged wiring promptly.
• Measure control voltage during troubleshooting.
• Select the correct contactor for the application.

Taking a few minutes to verify voltage compatibility can significantly improve the service life of motor contactors, HVAC contactors, lighting contactors, and other industrial switching devices.

Applying the wrong coil voltage to a contactor can result in buzzing, chattering, overheating, failure to energize, or permanent coil damage. Whether the supplied voltage is too high or too low, the contactor cannot generate the magnetic force required for reliable switching.

By matching the coil voltage to the control circuit, verifying electrical connections, and performing routine inspections, you can improve system reliability and avoid unnecessary equipment failures.
