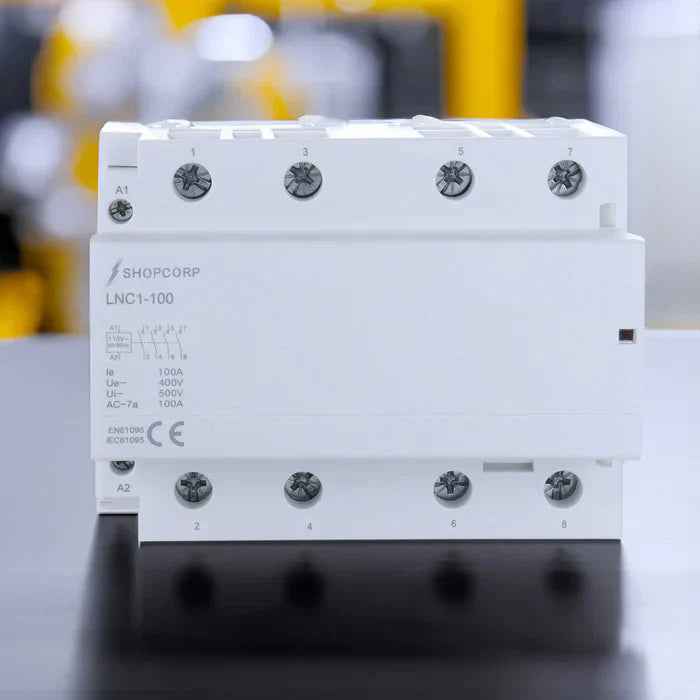

How to Wire a Lighting Contactor: Step-by-Step Guide for Safe and Reliable Connections

Modern electrical systems rely on components that guarantee safety, reliability, and efficiency. Among them, the lighting contactor stands out as an essential device for managing large-scale lighting loads in commercial, industrial, and even residential applications. Whether you are wiring a new system or replacing an existing electrical contactor, following the proper steps ensures long-term performance and prevents costly issues.

In this guide, we will walk through the basics of wiring a lighting contactor, explain the purpose of its terminals, and provide a structured step-by-step process to complete the installation safely.

Understanding the Basics of a Lighting Contactor

A lighting contactor is an electromechanical switch designed to handle high electrical loads with the help of a low-voltage control circuit. Unlike smaller relays, which are not built for continuous or heavy-duty use, contactors are specifically engineered to switch on and off large groups of lights, often across entire buildings, warehouses, or outdoor installations.

By separating control circuits from power circuits, a contactor provides safe and efficient management of electrical loads. This makes it a cornerstone for applications in energy management, automated lighting schedules, and facility safety.

Identifying the Terminals of a Contactor

Before beginning any wiring process, it is critical to identify the main terminals of the device:

Coil Terminals (A1 and A2)

These connect to the control circuit and energize the coil, creating the magnetic field that moves the contacts.

Line Terminals (L1, L2, L3)

These are connected to the incoming power supply. Depending on whether the application is single-phase or three-phase, one or more of these terminals will be used.

Load Terminals (T1, T2, T3)

These connect directly to the lighting system or other equipment being controlled.

Auxiliary Contacts

Additional contacts often used for interlocking, feedback, or control signalization.

Recognizing each terminal ensures correct wiring and prevents dangerous misconfigurations.

Wiring the Coil Circuit

The first step in wiring is to connect the coil terminals:

1. Connect the control power supply to terminal A1. This is typically 24V, 120V, or 240V depending on the application.

2. Connect the neutral or return line of the control circuit to terminal A2.

3. Ensure the coil voltage matches the specifications of your lighting contactor. Using the wrong coil voltage can damage the coil or result in the contactor failing to energize.

Once completed, the coil circuit allows the contactor to be energized when the control signal is applied, closing the power contacts.

Wiring the Power Circuit

The next step involves connecting the electrical contactor to the main power supply and the load:

1. Connect the power supply lines to the line-side terminals (L1, L2, L3). These typically come from the main breaker or disconnect switch.

2. Connect the lighting load wires to the load-side terminals (T1, T2, T3). This ensures that when the contactor energizes, the current flows to the lights.

3. For single-phase applications, only L1/T1 and L2/T2 may be used. For three-phase systems, all three sets are utilized.

4. Verify that all connections are tight and torqued according to the manufacturer’s guidelines to prevent overheating or arcing.

Safety Checks Before Powering On

Before energizing the lighting contactor, always perform safety checks:

• Inspect all wiring connections for tightness and insulation integrity.

• Confirm that the coil voltage matches the control circuit.

• Test the auxiliary contacts if used for additional control or signalization.

• Ensure the breaker or disconnect is off before performing the final inspection.

These steps significantly reduce the risk of electrical hazards during startup.

Testing the Lighting Contactor After Installation

Once the wiring is complete and the system is powered on, testing ensures the lighting contactors are working correctly:

• Energize the control circuit by applying power to the coil (A1 and A2).

• Observe the audible “click” as the contactor engages and the main contacts close.

• Verify that the lighting circuits are powered correctly.

• Test auxiliary contacts by checking their response in the control circuit.

• De-energize the coil to ensure the contacts return to their default position.

If the lights do not activate, common issues include miswired terminals, incorrect coil voltage, or loose connections.

Why Professionals Choose Quality Contactors

A properly wired contactor is only as reliable as its build quality. That’s why professionals rely on motor load contactors, HVAC contactors, and lighting contactors that meet strict safety certifications. At Contactor Depot, our Shopcorp line of electrical contactors is engineered to deliver:

• UL and CSA certifications for safety and compliance.

• Heavy-duty housings for durability in demanding environments.

• Silent and energy-efficient coils for smooth operation.

• Multiple configurations (2-pole, 3-pole, 4-pole, and more) for versatile installations.

By investing in high-quality contactors, tradesmen and facility managers gain confidence in both safety and long-term performance.
