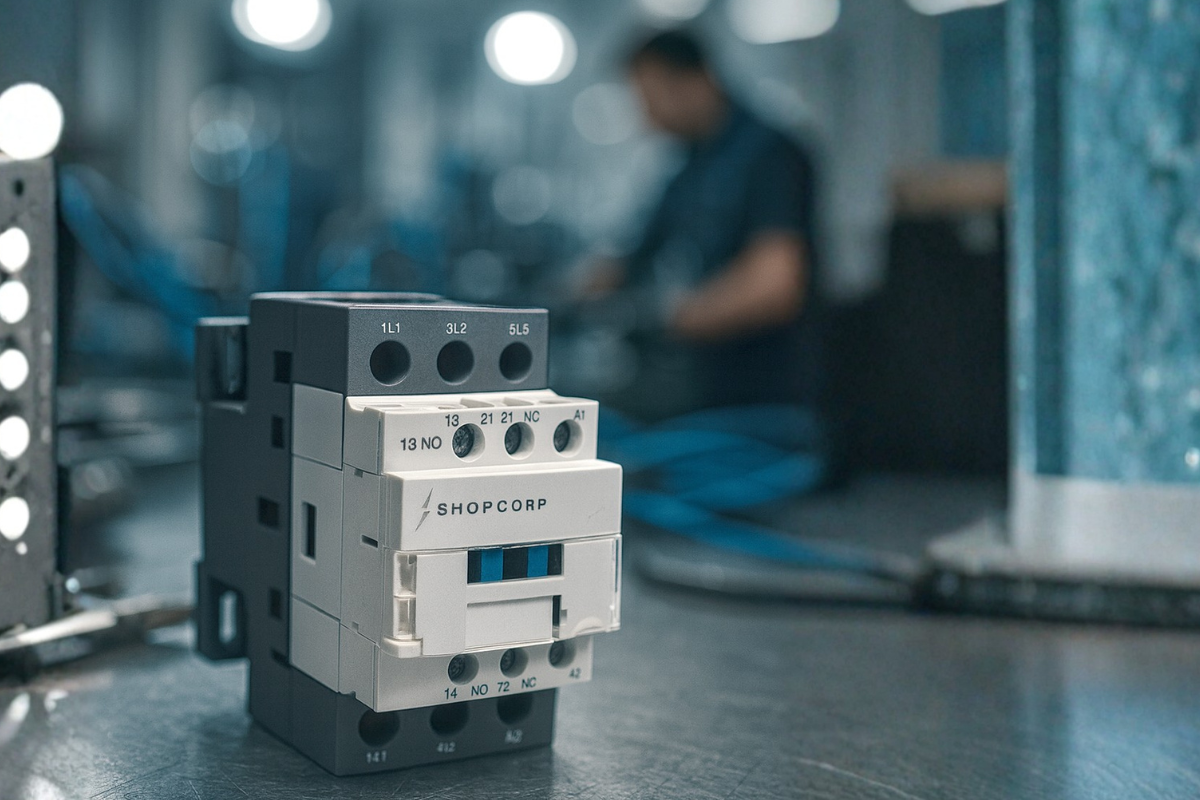

How to Choose the Right Replacement Contactor Coil Voltage (24V, 110V, 220V)

When replacing a contactor, one of the most important details to get right is the coil voltage. Choosing the wrong voltage can cause the electrical contactor to buzz, overheat, fail to pull in, or burn out entirely. Whether you’re working on an HVAC contactor, lighting contactor, motor contactor, or any industrial control panel, matching the coil voltage to your system’s control circuit is essential for safe, reliable performance.

This guide explains what coil voltage is, why it matters, and how to choose the correct replacement in 24V, 110/120V, or 220/240V systems.

What Is Contactor Coil Voltage and Why Is It Important?

The coil voltage is the amount of voltage required to energize the contactor’s electromagnet. When the coil is powered, it pulls the contacts closed and allows high-voltage power to flow to the load.

If the coil voltage does not match your control circuit:

• The contactor will not energize properly

• It may chatter, making a loud buzzing noise

• The coil can burn out prematurely

• Equipment like compressors, blowers, and lighting banks may fail to start

Matching coil voltage correctly protects the system and ensures seamless operation.

How Do You Identify the Correct Coil Voltage on a Contactor?

1. Check the Label on the Old Contactor

Every electrical contactor has a label or sticker that indicates coil voltage. It typically reads:

• 24 VAC

• 110/120 VAC

• 220/240 VAC

If the label is faded or damaged, look for stamped numbers near the coil terminals marked A1/A2.

2. Verify the System’s Control Voltage

The key rule:
Coil voltage must match the control circuit, not the load voltage.

Examples:

• HVAC systems often use 24V low-voltage thermostat signals

• Air compressors and industrial equipment commonly use 110/120V control circuits

• Lighting control panels may use 220/240V coil voltage

Never assume, always verify.

3. Match the Replacement Coil Voltage Exactly

If your old unit used a 24V coil, the new one must also be 24V even if the load operates at 240V. Coil and load voltages are independent.

4. Check the Frequency Rating (Hz)

Most coils are 50/60 Hz, but older or overseas equipment may differ.
Always match the frequency listed on the old contactor.

What’s the Difference Between Coil Voltage and Load Voltage?

This is the most common source of confusion.

A contactor may control a 240V motor while still using a 24V coil. Always treat them as two different circuits.

Which Coil Voltage Should You Choose? (24V vs 110V vs 220V)

24V Coils: Best for HVAC and Thermostat-Controlled Systems

Common in:

• Heat pumps

• Condensers

• Furnaces

• Air handlers

Benefits:

• Safe, low-voltage control

• Compatible with standard thermostats

110/120V Coils: Ideal for Small Industrial and Commercial Equipment

Found in:

• Air compressors

• Small machinery

• Packaging equipment

• Older lighting systems

Benefits:

• Easy integration with standard control transformers

• Reliable for mid-sized loads

220/240V Coils: Used in High-Voltage Lighting and Industrial Panels

Used when:

• Control circuits match the building’s main voltage

• Long wire runs require reduced voltage drop

• Lighting systems use lighting contactors with photocells or timers

Benefits:

• Simple wiring in large facilities

• No control transformer required

How to Choose the Right Replacement Coil Voltage (Step-by-Step)

1. Read the rating label on your existing contactor

This is the most reliable method.

2. Identify your control circuit voltage

Use a multimeter if needed.

3. Confirm the coil voltage printed near terminals A1/A2

Coil terminals are dedicated and labeled for clarity.

4. Never choose a different voltage "because it’s available"

Mismatching voltage is dangerous.

5. Match coil voltage AND frequency (Hz)

Ensures proper magnetic performance and longevity.

What Happens If You Use the Wrong Coil Voltage?

• 24V coil on 120V → Instant burnout

• 120V coil on 24V → Coil will never energize

• Incorrect Hz → Overheating and poor performance

• Under-voltage → Chattering, buzzing, failed starts

• Over-voltage → Damaged coil, internal fire risk

Replacing a contactor is easy, fixing the damage from the wrong coil is not.

How to Avoid Mistakes When Replacing a Contactor Coil

• Always photograph the old wiring before removal

• Note both coil voltage and load voltage

• Verify coil terminals (A1/A2) separately from power terminals

• If uncertain, check the equipment manual or wiring diagram

At Contactor Depot, we recommend choosing UL/IEC-certified coils only.

Why Choose Shopcorp Contactors for Your Replacement Needs?

Shopcorp contactors are engineered for HVAC, lighting, and industrial applications, offering:

• Correct coil options in 24V, 110/120V, and 220/240V

• UL and IEC certifications

• Durable electromagnets and high-quality contacts

• Quiet operation with minimal chatter

• Reliable performance across all load types

Whether you’re replacing a motor contactor, lighting contactor, or HVAC contactor, our catalog ensures a perfect match.
