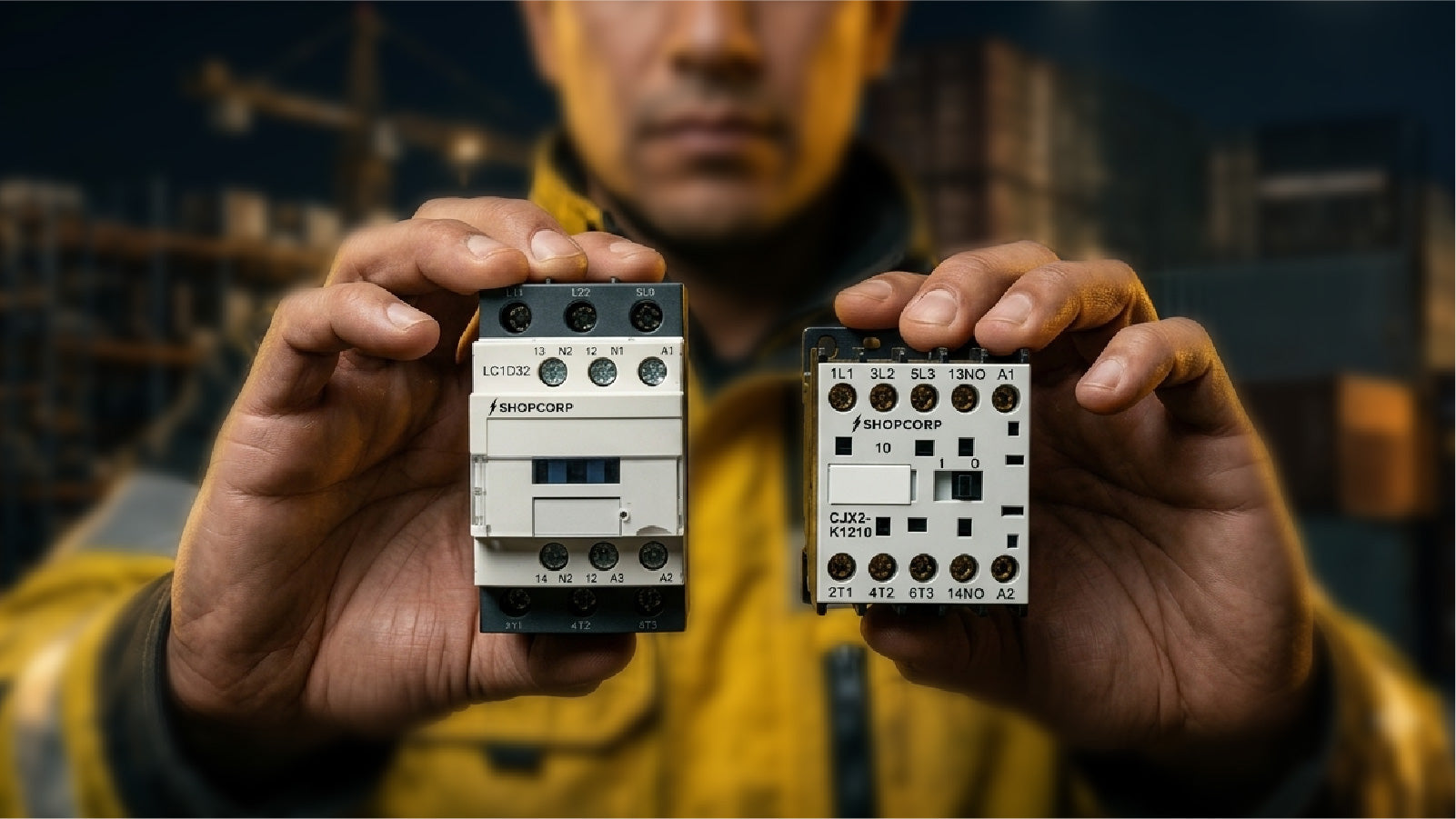

How to Choose the Right Contactor for a Three-Phase Motor

To choose the right contactor for a three-phase motor, start with the motor nameplate: identify its Full Load Amps (FLA), operating voltage, and horsepower or kW rating. Then select a three-pole motor contactor with the appropriate motor-duty utilization rating (commonly AC-3 for normal starting and stopping) sufficient current capacity, and a coil voltage that matches the control circuit.

Selecting a contactor based only on a large amperage number printed on the device can lead to poor performance or premature failure. Three-phase motors create significant starting current and inductive switching stress, so the electrical contactor must be evaluated specifically for motor duty rather than as a general-purpose power switch.

This guide explains the most important specifications to check when choosing motor contactors, from FLA and utilization category to coil voltage, pole configuration, auxiliary contacts, and overload protection.





What should you check first when selecting a motor contactor?

Start with the motor nameplate.

Before comparing contactors, identify the electrical characteristics of the motor itself, including:

• Full Load Amps (FLA)
• Operating voltage
• Horsepower or kW
• Number of phases
• Frequency
• Duty or operating conditions, when available

The nameplate provides a much more reliable starting point than estimating the required motor contactor simply from the physical size of the motor.

A three-phase motor that appears similar to another motor may operate at a different voltage or current and therefore require a different contactor.

Why does motor FLA matter when choosing a contactor?

FLA, or Full Load Amps, represents the current the motor is expected to draw while operating at its rated load.

This value is critical because the contactor must safely carry the motor current during normal operation.

However, FLA is not the only consideration.

When a motor starts, its current can temporarily rise well above its normal operating level. That startup condition creates additional thermal and electrical stress on the motor contactor.

For this reason, contactor selection should consider:

• Motor FLA
• Starting characteristics
• Switching frequency
• Manufacturer motor-duty ratings

A contactor that appears adequate based only on continuous current may not necessarily be suitable for repeated motor starting.

Why is the AC-3 rating important for three-phase motors?

The utilization category tells you what type of load and switching duty the electrical contactor is designed to handle.

For standard squirrel-cage motors, AC-3 is one of the most important ratings to check.

AC-3 applications generally involve:

• Starting the motor
• Carrying current while the motor runs
• Opening the circuit during normal running conditions

Motor loads are inductive, which means they create greater switching stress than simple resistive loads.

This is why the same contactor may have a significantly different amp rating depending on whether it is used for AC-1 or AC-3 duty.

If the motor will be frequently jogged, reversed, plugged, or switched under more severe conditions, a more demanding utilization category such as AC-4 may be required.

The key lesson is simple:

Do not choose a three-phase motor contactor based only on its general amp rating. Verify the motor-duty rating for the actual application.

How many poles does a three-phase motor contactor need?

A standard three-phase motor normally requires a 3-pole contactor so that all three phase conductors are switched together.

Each pole controls one phase:

• L1 → T1
• L2 → T2
• L3 → T3

When the coil energizes, all three poles close simultaneously and deliver three-phase power to the motor.

When the coil de-energizes, the three power paths open together.

A three-pole design is therefore the standard configuration for many three-phase motor contactors.

Other pole configurations may be used in specialized systems, but they should be selected according to the actual electrical design rather than simply substituting a different pole count.

How much current capacity should a contactor have?

The contactor must be rated to handle the motor's operating current and the stress created during starting.

A practical selection process begins with the motor FLA and then confirms that the contactor's applicable AC-3 rating meets the motor requirements.

Designs commonly include additional current margin rather than selecting a contactor exactly at the motor's FLA. The amount of margin depends on factors such as:

• Starting frequency
• Duty cycle
• Ambient conditions
• Manufacturer recommendations
• Motor starting characteristics

For frequently switched motors, a larger margin may be appropriate than for equipment that starts only occasionally and then operates continuously.

However, a simple multiplier should never replace the manufacturer's AC-3 horsepower, kW, and current tables.

How do you select the correct coil voltage?

The coil voltage controls the electromagnetic mechanism inside the contactor.

It must match the voltage supplied by the control circuit.

Common coil voltages include:

• 24V
• 110/120V
• 208/230V
• Other AC or DC control voltages depending on the system

The motor's operating voltage and the contactor's coil voltage are not necessarily the same.

For example, a motor contactor may switch a 480V three-phase motor while its coil is controlled by a much lower voltage circuit.

Applying the wrong voltage to the coil can cause:

• Failure to pull in
• Buzzing or chattering
• Coil overheating
• Permanent coil damage

Always verify the coil label before installation.

Why should horsepower and motor voltage also be checked?

Motor FLA gives essential information, but horsepower and operating voltage provide another important verification point.

Manufacturers often publish motor contactor ratings according to combinations such as:

• Horsepower at 208V
• Horsepower at 230V
• Horsepower at 460/480V

The same contactor may support different horsepower levels at different system voltages.

This is why a good selection process cross-checks:

FLA + voltage + HP/kW + utilization category

rather than relying on any single specification.

Do you need auxiliary contacts for a three-phase motor?

That depends on the control circuit.

Auxiliary contacts do not normally carry the motor's main power. Instead, they are used for functions such as:

• Holding or seal-in circuits
• Status indication
• PLC feedback
• Electrical interlocking
• Alarm circuits
• Start/stop logic

Common configurations include Normally Open (NO) and Normally Closed (NC) auxiliary contacts.

For example, a motor starter may use an NO auxiliary contact to maintain the coil circuit after the START button is released.

Before selecting the electrical contactor, review the control schematic and determine how many auxiliary contacts are required.

Why should a motor contactor be paired with overload protection?

A motor contactor switches the motor on and off, but it is not a substitute for motor overload protection.

A thermal overload relay or other suitable motor protection device helps detect excessive current conditions that could damage the motor.

This is especially important when a motor experiences:

• Mechanical overload
• Stalled conditions
• Excessive current
• Abnormally long starting periods

The contactor and overload protection therefore perform different jobs:

Contactor → switches the motor

Overload protection → helps protect the motor from sustained overload conditions

Selecting these components as part of the same motor-control system improves overall reliability.

What mistakes should you avoid when selecting a contactor?

Several common mistakes can lead to incorrect motor contactor selection.

Choosing by Amp Rating Alone

A general current rating does not automatically indicate suitability for motor duty.

Always check the applicable AC-3 or motor rating.

Ignoring the Motor Nameplate

Estimating current from horsepower alone can overlook important motor-specific information.

Use the actual nameplate data whenever available.

Using the Wrong Coil Voltage

The load voltage and control voltage serve different functions.

Verify both separately.

Selecting the Wrong Number of Poles

A standard three-phase motor generally requires simultaneous switching of all three phases.

Ignoring Switching Frequency

A motor that starts occasionally places less switching stress on the contactor than one that cycles repeatedly.

Forgetting Auxiliary Contact Requirements

Control circuits may require additional NO or NC auxiliary contacts.

Skipping Overload Protection

The contactor itself does not provide complete protection against motor overload.

Choosing the right contactor for a three-phase motor requires matching the contactor to the motor's actual electrical and operating requirements, not simply choosing a device with a similar amp rating. Start with the motor nameplate, confirm the FLA and operating voltage, select the proper AC-3 motor-duty rating, verify the three-pole configuration, and match the coil voltage to the control circuit.

Auxiliary contact requirements, switching frequency, horsepower ratings, and overload protection should also be considered before making the final selection.

A properly selected motor contactor provides more reliable switching, better equipment protection, and longer service life in commercial and industrial motor-control applications.
