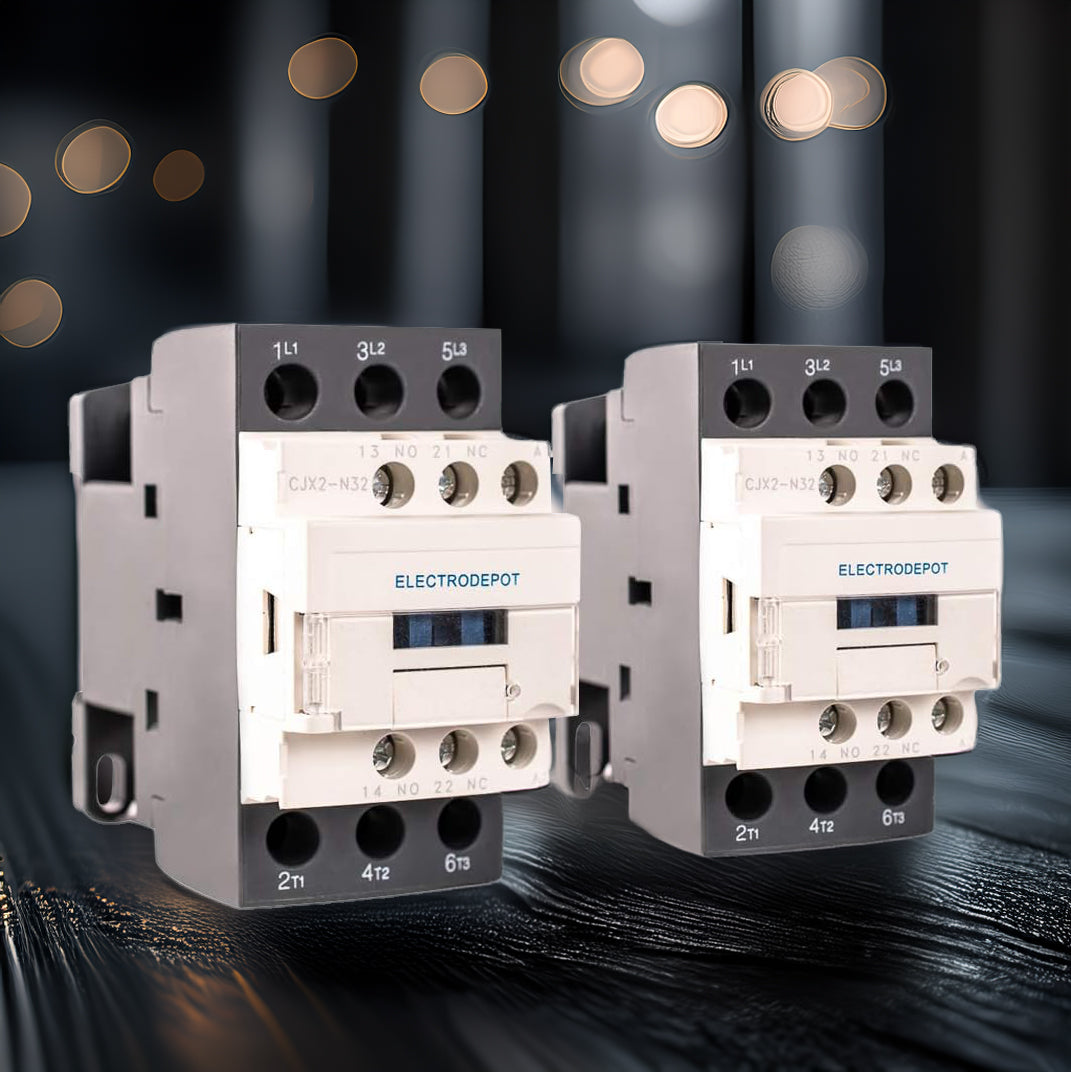

Differences in 3 Pole and 4 Pole Contactors: Find the Best for Your System
August 13, 2024

Differences in 3 Pole and 4 Pole Contactors: Find the Best for Your System

When choosing a contactor for your electrical system, understanding the differences between 3 pole and 4 pole contactors is crucial. Each type serves specific purposes and is designed to meet various needs in electrical control and protection. This article will guide you through the distinctions between 3 pole and 4 pole contactors and help you find the best option for your system.



What is a 3 Pole Contactor?

A 3 pole contactor is designed to control three-phase loads. It consists of three poles that are used to switch three separate lines of the electrical circuit. 3 pole contactors are commonly used for controlling three-phase motors and other three-phase equipment.



Key Features of 3 Pole Contactors



  • Three-Terminal Design: A 3 pole contactor has three terminals that connect to the three phases of a three-phase system.
  • Versatility: Suitable for various industrial applications where three-phase power is required.
  • Compact Size: Generally smaller and more cost-effective than 4 pole contactors for systems that do not need to disconnect the neutral.

    •

    Applications of 3 Pole Contactors



  • Motor Control: Ideal for controlling three-phase motors in industrial and commercial settings.
  • Lighting Systems: Used in three-phase lighting systems to switch the lights on and off.
  • HVAC Systems: Controls the operation of three-phase HVAC systems for cooling and heating.

    •

    What is a 4 Pole Contactor?

    A 4 pole contactor is designed to control three-phase loads while also providing the ability to disconnect the neutral line. It includes four poles: three for the phases and one for the neutral. This type of contactor is essential for applications where it is necessary to disconnect all lines, including the neutral, for complete isolation.

    Key Features of 4 Pole Contactors



  • Four-Terminal Design: A 4 pole contactor includes four terminals – three for the phases and one for the neutral.
  • Neutral Isolation: Provides the ability to isolate the neutral line, which is important for certain types of equipment and applications.
  • Enhanced Protection: Offers more comprehensive protection by disconnecting all connections, ensuring safer operation and maintenance.

    •

    Applications of 4 Pole Contactors



  • Motor Control with Neutral Disconnection: Used in systems where complete disconnection of all lines is required.
  • Industrial Equipment: Suitable for industrial applications where neutral isolation is necessary for safe operation.
  • Specialized Lighting Systems: Ideal for complex lighting setups that require the neutral to be disconnected for maintenance or safety.

    •

    Similarities Between 3 Pole and 4 Pole Contactors

    Both 3 pole and 4 pole contactors serve the fundamental purpose of controlling and switching electrical circuits. They are designed to handle high currents and are used to manage electrical loads in various applications. Both types provide reliable switching capabilities, enabling precise control of equipment and machinery. They are also built to withstand the stresses of electrical operation, ensuring durability and longevity. Additionally, 3 pole and 4 pole contactors can be used in similar environments and are compatible with various control systems, making them versatile choices for different electrical needs.



    Choosing the Right Contactor: 3 Pole vs. 4 Pole

    Selecting the correct contactor for your system involves understanding the specific needs of your application. Whether you need a 3 pole or a 4 pole contactor depends on the number of phases in your electrical load. For a three-phase motor, a 3 pole contactor is typically sufficient. However, if you require the ability to disconnect the neutral in addition to the phases, a 4 pole contactor is essential. Additionally, it's crucial to determine whether you need a normally open or normally closed contactor. Normally open contactors are open until activated, whereas normally closed contactors are closed until triggered. At Contactor Depot, we offer both normally open and normally closed contactors in various configurations, ensuring you can find the perfect match for your system's requirements.



    Why Choose Contactor Depot?

    At Contactor Depot, we offer a wide range of high-quality 3 pole and 4 pole contactors designed to meet various needs and specifications. Our contactors are built for reliability, performance, and ease of use. Whether you need a 3 pole contactor for standard three-phase applications or a 4 pole contactor for complete isolation, we have the perfect solution for you.





    Benefits of Choosing Our Contactors

    • Quality Assurance: Our contactors are manufactured to meet the highest standards of quality and reliability.
    • Expert Advice: Our team is available to provide expert guidance in selecting the right contactor for your specific needs.
    • Customer Support: We offer dedicated customer service to ensure a smooth purchasing experience and address any questions or concerns.

    Understanding the differences between 3 pole and 4 pole contactors is essential for selecting the right component for your electrical system. By considering the number of phases, load requirements, and safety needs, you can make an informed decision. At Contactor Depot, we provide a range of high-quality contactors to suit various applications. Explore our selection today to find the best contactor for your system and ensure optimal performance and safety.
