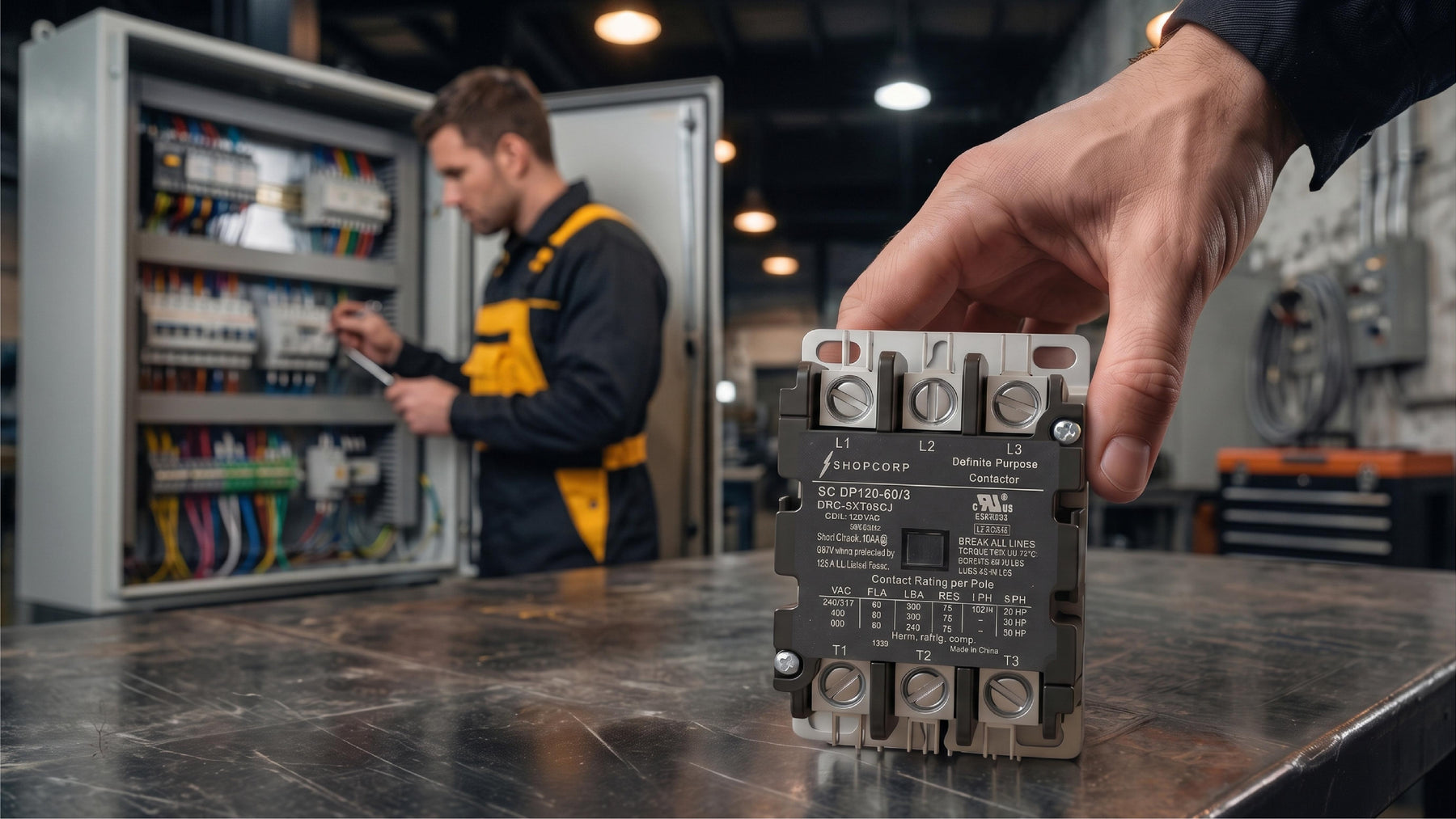

Definite Purpose Contactor: What Is It Used For in HVAC Systems?

A definite purpose contactor is an electrically operated switching device designed for specific load applications, with HVAC and refrigeration equipment among its most common uses. In an HVAC system, the contactor allows a control signal (often coming from a thermostat or control board) to switch power to equipment such as compressors and condenser fan motors. Depending on the equipment and power circuit, definite purpose contactors are commonly available in 1-pole, 2-pole, and 3-pole configurations.

Choosing between these configurations is not simply a matter of selecting more poles. The number of poles determines how many conductors the definite purpose contactor switches, so the correct configuration must match the equipment's electrical design. Coil voltage, amperage, load ratings, and application requirements must also be verified before selecting a replacement.

This guide explains what definite purpose contactors are used for, how they operate in HVAC equipment, and what 1-pole, 2-pole, and 3-pole configurations mean when choosing a contactor.

What Is a Definite Purpose Contactor?

A definite purpose contactor, often abbreviated as a DP contactor, is a type of electromagnetic switch designed and rated for defined applications and load characteristics.

Like other electrical contactors, it separates the control function from the power circuit. A relatively small control signal energizes an electromagnetic coil, and the resulting magnetic force changes the position of the main contacts. Those contacts then control power to the connected load.

DP contactors are especially common in equipment such as:

• Air conditioning systems
• Heat pumps
• Refrigeration equipment
• Compressors
• Condenser fans
• Electric heating equipment
• Ventilation systems
• Certain pumps and appliances

Their widespread use in HVAC is one reason technicians frequently encounter 1-pole, 2-pole, and 3-pole versions when servicing or replacing components.

How Does a Definite Purpose Contactor Work?

The operation of a definite purpose contactor involves two different electrical sections: the control circuit and the power circuit.

The coil belongs to the control side. When the correct voltage is applied to the coil terminals, the coil generates a magnetic field.

That magnetic force moves the contactor's armature, changing the state of the main contacts.

The main contacts belong to the power side. In a Normally Open configuration, they close when the coil is energized, establishing an electrical path between the line and load terminals.

The sequence can be summarized as:

Control signal → Coil energizes → Magnetic mechanism moves → Main contacts close → Load receives power

When the control signal is removed, the magnetic field collapses and the mechanism returns the contacts to their normal position.

In an air conditioning system, for example, this switching action can be used as part of the circuit that controls power to the compressor and condenser fan motor.

Why Are Definite Purpose Contactors Common in HVAC?

HVAC equipment requires components designed for predictable switching duties and specific electrical loads. This makes definite purpose contactors a common solution for air conditioning, refrigeration, heating, and ventilation equipment.

Consider a typical cooling cycle.

When cooling is requested, the HVAC control system provides the appropriate control signal. The contactor coil energizes, the main contacts change state, and power becomes available to the equipment connected through the contactor.

When the cooling demand ends, the control signal is removed and the contactor releases.

This allows the control system to command the operation of higher-power equipment without requiring the thermostat itself to directly switch the main load.

However, not every HVAC system uses the same contactor. The electrical configuration of the equipment determines whether a 1-pole, 2-pole, 3-pole, or another design is required.

What Does the Number of Poles Mean on a Definite Purpose Contactor?

A pole represents an independent power path that the contactor can switch.

Therefore:

1-pole = one switched power path
2-pole = two switched power paths
3-pole = three switched power paths

This distinction is important because the number of poles should correspond to the circuit and equipment design.

It should not be confused with coil voltage. A 1-pole and a 2-pole contactor, for example, could potentially use the same coil voltage while having completely different power-contact configurations.

Let's examine each configuration.

When Is a 1-Pole Definite Purpose Contactor Used in HVAC?

A 1-pole definite purpose contactor switches one power path.

These contactors can be found in certain single-phase HVAC designs where only one side of the power circuit is intentionally switched by the contactor. The other side may use a continuous connection or a different arrangement specified by the equipment manufacturer.

A 1-pole design should therefore not be interpreted simply as a "smaller version" of a 2-pole contactor.

It represents a different circuit configuration.

When replacing one, technicians should verify:

• Original pole configuration
• Line and load arrangement
• Coil voltage
• Contact ratings
• Equipment voltage
• Load requirements
• Manufacturer wiring diagram

The existing equipment design is especially important. Changing the pole configuration without understanding the circuit can change how power is isolated or supplied within the system.

When Is a 2-Pole Definite Purpose Contactor Used in HVAC?

A 2-pole definite purpose contactor provides two switched power paths and is commonly encountered in single-phase HVAC equipment.

For a circuit designed to switch both power conductors through the contactor, energizing the coil closes both poles together. When the coil is de-energized, both return to their normal state.

This configuration is widely used in applications such as:

• Residential air conditioners
• Condensing units
• Heat pumps
• Compressors
• Condenser fan circuits
• Other single-phase HVAC equipment

However, "2-pole" alone is not enough information to select a replacement.

Two contactors can both have two poles while differing substantially in amp rating, coil voltage, load ratings, terminal arrangement, mounting, and other specifications.

That is why the original equipment specifications should remain the starting point.

When Is a 3-Pole Definite Purpose Contactor Used?

A 3-pole contactor switches three power paths simultaneously.

This configuration is commonly associated with three-phase loads, making it relevant to larger commercial and industrial HVAC equipment that operates from three-phase power.

Applications may include certain:

• Commercial HVAC units
• Three-phase compressors
• Rooftop units
• Pumps
• Fans and blowers
• Refrigeration systems
• Other three-phase equipment

In a three-phase circuit, the three main poles allow the contactor to control the three phases as part of the equipment's designed switching system.

A 3-pole contactor should still be selected according to the actual load ratings. Simply finding a contactor with three poles does not establish that it is appropriate for a particular compressor, motor, or HVAC unit.

What Specifications Matter Besides the Number of Poles?

Pole count is only one part of contactor selection.

Coil Voltage

The coil must be compatible with the control circuit.

For example, a contactor designed with a 24VAC coil cannot automatically be replaced with one using a 120VAC or 240VAC coil just because the main-contact specifications look similar.

The voltage applied to the coil and the voltage being switched by the main contacts are separate specifications.

Current and Load Ratings

The contactor must be rated for the actual application.

HVAC loads can involve compressors and motors with starting characteristics that differ significantly from simple resistive loads. For that reason, the relevant load rating should be checked rather than selecting a contactor solely from a prominent amp number printed on its housing.

Operating Voltage

Verify that the main contacts are rated appropriately for the equipment's electrical supply.

Contact Configuration

Determine whether the application requires Normally Open (NO), Normally Closed (NC), or another specified arrangement.

Terminal Layout and Mounting

Physical compatibility matters too. Terminal position, mounting dimensions, connection type, and available panel space can affect whether a replacement is suitable.

Can You Replace a 1-Pole HVAC Contactor with a 2-Pole Contactor?

A different pole configuration should not be treated as a direct replacement simply because the amp rating and coil voltage match.

Changing from a 1-pole to a 2-pole configuration can alter how the equipment's power circuit operates. Whether such a change is appropriate depends on the wiring design, equipment requirements, and applicable electrical specifications.

For replacement work, matching the original configuration is the straightforward approach unless the equipment documentation or a qualified professional specifies an approved alternative.

This is an important distinction because a replacement contactor is not selected by appearance alone.

What Are Common Mistakes When Choosing a Definite Purpose Contactor?

One of the most common mistakes is focusing on a single specification.

For example, finding "40A" on an existing contactor and purchasing another 40A unit does not necessarily establish compatibility.

Other common selection errors include:

• Matching amperage but not coil voltage
• Ignoring the number of poles
• Confusing load voltage with coil voltage
• Selecting by physical appearance
• Ignoring the actual HVAC load
• Assuming every 2-pole contactor is interchangeable
• Overlooking NO or NC configuration
• Failing to check terminal and mounting compatibility

A compatible definite purpose contactor needs to satisfy the relevant electrical and physical requirements together.

Choosing the Right Definite Purpose Contactor Starts with the Application

A definite purpose contactor provides controlled switching for specific electrical loads and is especially common in HVAC and refrigeration equipment. In these systems, 1-pole, 2-pole, and 3-pole contactors serve different circuit configurations: 1-pole designs appear in certain single-phase systems, 2-pole designs are common across single-phase HVAC equipment, and 3-pole designs are generally associated with three-phase loads.

The pole count, however, is only the beginning. Coil voltage, operating voltage, load ratings, contact configuration, and equipment requirements all need to match the application. When replacing an HVAC contactor, use the original equipment specifications and wiring documentation as your reference rather than assuming that two contactors with a similar appearance or amp rating are interchangeable.

Choose by specs, not appearance.
