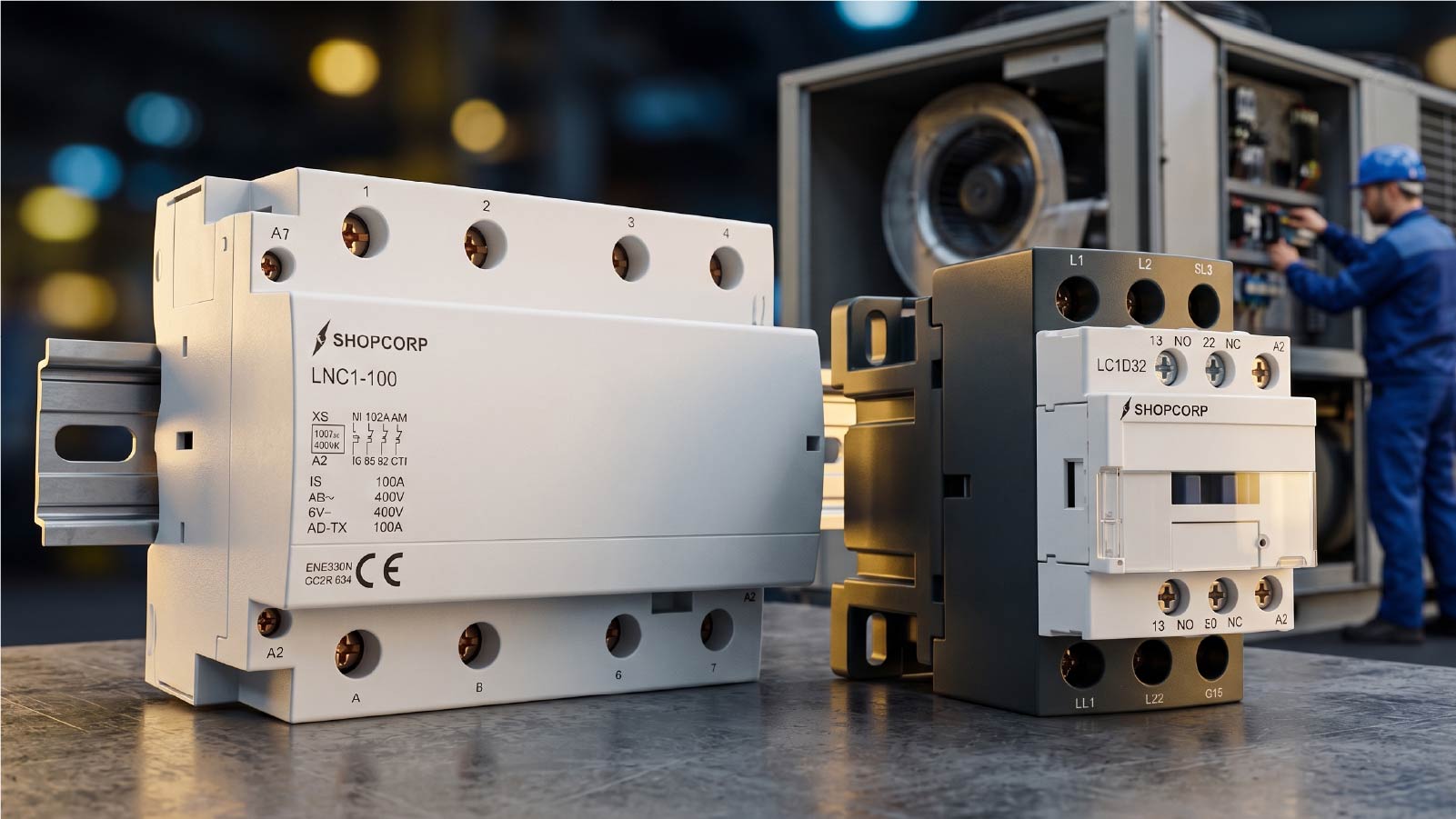

AC Contactors Explained: 24V vs 120V Contactor Coils and How to Choose the Right One

When selecting a contactor, most people focus on amperage, pole configuration, or load capacity. However, one specification that often causes confusion is coil voltage.

Whether you are working with HVAC contactors, motor contactors, lighting contactors, or industrial control systems, understanding the difference between a 24V coil and a 120V coil is essential for reliable and safe operation.

Although both types perform the same basic function, they are designed for different control environments and wiring strategies. Choosing the wrong coil voltage can prevent the system from operating correctly or even damage the equipment.

In this guide, we explain how 24V and 120V contactors work, where each is commonly used, and how to select the right option for your application.

What does the coil do in a contactor?

The coil is the component that activates the contactor.

When the correct control voltage is applied to the coil terminals, an electromagnetic field is generated. This magnetic force pulls the internal armature, causing the power contacts to close and allowing current to flow to the connected load.

Without the coil, the electrical contactor cannot switch the circuit.

The coil essentially acts as the bridge between the low-power control circuit and the high-power load being controlled.

What is a 24V coil contactor?

A 24V coil contactor is designed to operate when it receives a 24-volt control signal.

These models are extremely common in:

• Residential HVAC systems
• Smart home automation
• Thermostat-controlled equipment
• Building management systems
• PLC-based control systems

One reason 24V HVAC contactors are so popular is safety. Low-voltage control circuits significantly reduce the risk of electrical shock and allow thermostats and electronic control boards to operate safely.

Because modern air conditioning systems typically use a 24V control transformer, most residential AC contactors use a 24V coil.

What is a 120V coil contactor?

A 120V coil contactor operates directly from a 120-volt control circuit.

These contactors are commonly found in:

• Commercial HVAC systems
• Industrial control panels
• Pump control systems
• Older building automation systems
• Equipment located far from the control source

Unlike low-voltage systems, a 120V control circuit does not require a separate step-down transformer in many installations.

This can simplify system design in certain applications.

What are the biggest differences between 24V and 120V contactors?

Although both devices perform the same switching function, there are several important differences.

Safety

A 24V coil operates using low-voltage control signals, making it inherently safer for technicians and installers.

A 120V coil uses line voltage and therefore requires stricter safety procedures.

Wiring Distance

One advantage of 120V control circuits is their ability to travel longer distances with less voltage drop.

In large facilities, this can be beneficial when control panels are located far from the equipment being switched.

Compatibility

24V contactors integrate easily with:

• Thermostats
• Smart controllers
• PLC systems
• Building automation platforms

Meanwhile, 120V coils are often used where direct line-voltage control is preferred.

System Design

Many HVAC contactors are specifically designed around 24V control architectures, while industrial systems may use a variety of control voltages depending on the application.

Why are 24V coils common in HVAC contactors?

Most residential air conditioning systems rely on low-voltage controls.

When the thermostat calls for cooling, it sends a 24V signal to the HVAC contactor, energizing the coil and starting the compressor and condenser fan.

This design provides several advantages:

• Improved safety
• Simpler thermostat wiring
• Easy integration with smart controls
• Reduced risk during maintenance

Because of these benefits, 24V coils have become the industry standard for residential HVAC contactors.

When should you use a 120V coil electrical contactor?

A 120V coil electrical contactor may be the better choice when:

• The control circuit already operates at 120V
• Long wire runs are required
• Industrial equipment uses line-voltage controls
• The system does not rely on low-voltage electronics

These applications are more common in industrial and commercial environments than in residential HVAC systems.

Can you replace a 24V coil with a 120V coil?

Only if the control circuit is also designed for 120V operation.

Simply installing a different coil voltage without modifying the control system will not solve compatibility issues.

In some modular contactors, the coil can be replaced independently.

However, many compact HVAC contactors use sealed designs that require replacing the entire unit.

Always verify:

• Coil voltage
• Current rating
• Pole configuration
• Manufacturer specifications

before making any replacement.

What happens if the wrong coil voltage is installed?

Installing the wrong coil voltage is one of the most common causes of contactor failure.

Using a 120V Coil in a 24V System

The coil will not receive enough voltage to energize properly.

As a result:

• The contactor will not pull in
• The load will not start
• The system will remain inoperative

Using a 24V Coil in a 120V System

This is significantly more dangerous.

Excessive voltage can:

• Overheat the coil
• Destroy the winding
• Produce smoke
• Create fire hazards

Matching the coil voltage to the control circuit is critical for safe operation.

How do you choose the right coil voltage for your application?

The best choice depends on the control circuit, not the load itself.

Before selecting a contactor, identify:

Control Voltage

Determine the voltage supplied by the thermostat, controller, PLC, or switch.

Application Type

Consider whether the contactor will be used for:

• HVAC systems
• Motor control
• Lighting systems
• Industrial automation

Wiring Distance

Longer control runs may influence the preferred control voltage.

System Compatibility

Ensure the selected contactor integrates properly with the existing control architecture.
