In the world of electrical control systems, contactors play a pivotal role in managing the flow of electricity. These electromagnetic switches are commonly used to control heavy-duty electrical loads, such as motors, lighting systems, and industrial machinery.

To ensure safety and efficiency in electrical circuits, it's crucial to understand the amp rating of a contactor, which indicates its capacity to carry current without overheating or failing. In this article, we will delve deeper into the comparison between 100 Amp and 60 Amp contactors, explore their limits, discuss the implications of using a higher amp contactor, and clarify the significance of the amp rating on a contactor.

1. Amp Rating on a Contactor

The amp rating, also known as the ampere rating or current rating, is a fundamental specification found on a contactor's nameplate. This rating represents the maximum current-carrying capacity of the contactor in amperes (A). It is a critical parameter when selecting the right contactor for a specific electrical application. Choosing a contactor with an appropriate amp rating ensures safe and reliable operation within the intended electrical circuit.

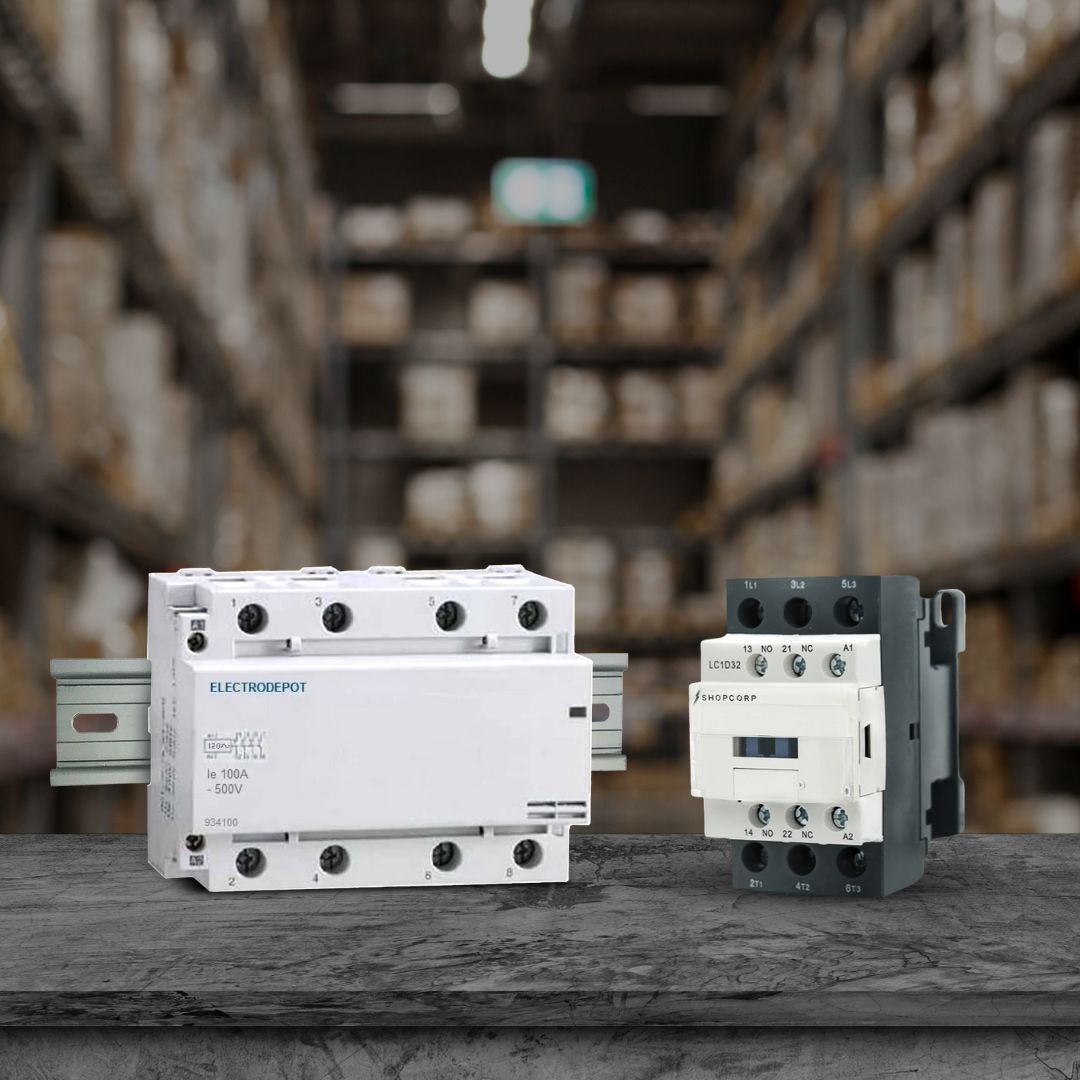

2. Comparing 100 Amp and 60 Amp Contactors

a. Current Handling Capacity

• 100 Amp Contactor: This robust contactor is designed to safely manage electrical currents of up to 100 amperes. It is well-suited for applications demanding higher current loads, such as large motors and heavy industrial equipment.

Electrodepot Contactor - 100 Amp. Photo: Contactor Depot

• 60 Amp Contactor: On the other hand, a 60 Amp contactor is tailored to handle currents of up to 60 amperes. It finds its niche in applications with more moderate current requirements.

Electrodepot Contactor - 60 Amp. Photo: Contactor Depot

b. Size and Form Factor

• 100 Amp Contactors: Due to their higher current-carrying capacity, 100 Amp contactors are typically larger and more substantial in size. Their form factor can be a consideration in installations with limited available space.

• 60 Amp Contactors: In contrast, 60 Amp contactors are more compact and space-efficient. They are preferred in situations where space constraints are a concern.

c. Cost

• 100 Amp Contactors: The higher ampacity and robust construction of 100 Amp contactors usually make them more expensive than their 60 Amp counterparts.

d. Energy Efficiency

• 60 Amp Contactors: In applications with lower current requirements, 60 Amp contactors may be more energy-efficient due to their lower coil power consumption.

3. The Limit of a Contactor

Every contactor has a predefined amp rating, and it is essential to operate within this limit. Exceeding the contactor's rated ampacity can lead to several issues, including overheating, welding of the electrical contacts, and premature failure. To ensure the safety and longevity of your electrical system, it is imperative to stay within the manufacturer's specified amp rating.

4. Can You Use a Higher Amp Contactor?

While it is technically possible to use a contactor with a higher amp rating than required for a specific application, it is generally not recommended for several reasons:

• Inefficiency: Using a higher amp contactor than necessary can result in inefficiencies, as larger contactors tend to be more expensive and consume more energy than their smaller counterparts.

• Reduced Lifespan: Oversizing a contactor may lead to a shorter lifespan and reduced reliability, as it may not operate within its optimal range. This can result in more frequent maintenance and replacement.

5. What Does the Amp Rating on a Contactor Mean?

The amp rating on a contactor is a clear indication of its maximum current-carrying capacity. To select the appropriate contactor for your application, follow these steps:

• Determine Maximum Current: Calculate the maximum current that your load requires under normal operating conditions.
• Choose the Right Contactor: Select a contactor with an amp rating equal to or slightly higher than the calculated current. This ensures the contactor operates safely and efficiently within the circuit.

In summary, when faced with the choice between a 100 Amp and a 60 Amp contactor, a thorough understanding of the specific requirements of your application is essential. The amp rating on a contactor is a critical parameter that reflects its current-carrying capacity. Selecting the appropriate contactor size ensures the safety and efficiency of your electrical system. Avoid the use of a higher amp contactor than necessary to prevent unnecessary costs and potential operational issues. Understanding the limits and significance of the amp rating is vital for making informed decisions in electrical control applications. Always consult with electrical experts or manufacturers for precise recommendations and guidance on contactor selection.
